Model # 58076081700 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58076081700 air conditioner, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for
58076081700 Air Conditioner
Room Air Conditioner Accordion Filler Assembly, Right 4959AR3402B
#2E

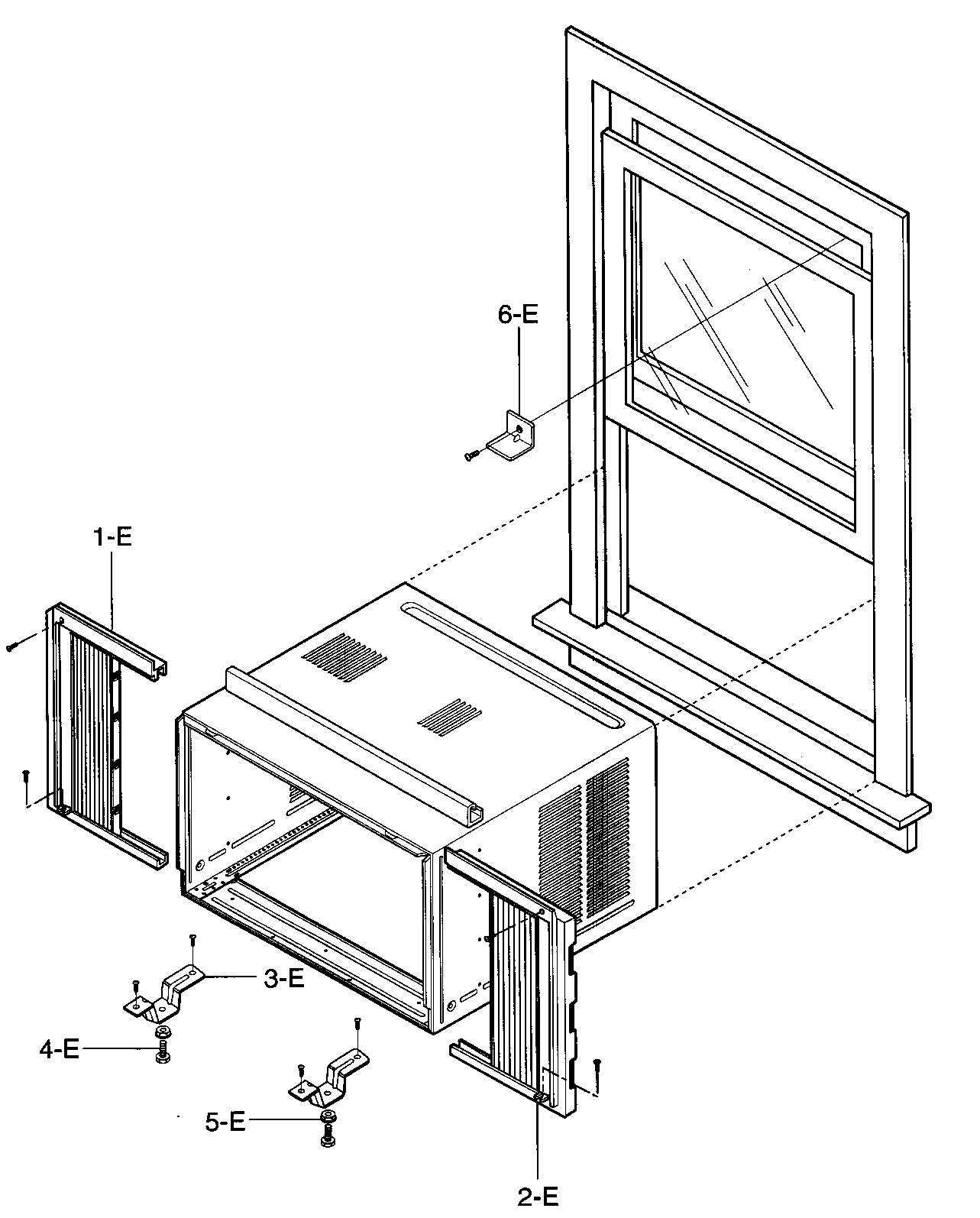

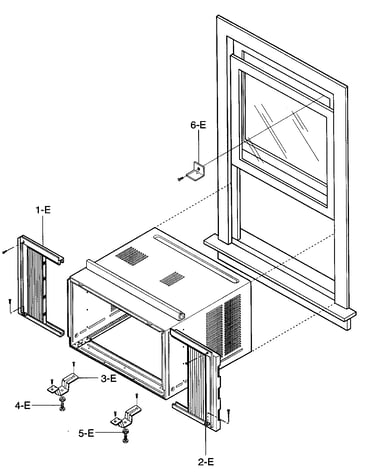

Installation kit assy diagram

Room air conditioner accordion filler assembly, right

Part #4959AR3402B

Replaced by #3127A20074X

?
Manufacturer substitution
This part replaces 4959AR3402B. Substitute parts can look different from the original.
$44.30 |
12% OFF Phone Price : $50.30
In Stock
Room Air Conditioner Accordion Filler, Left 4959AR3402A
#1E

Installation kit assy diagram

Room air conditioner accordion filler, left

Part #4959AR3402A

Replaced by #3127A20074X

?
Manufacturer substitution
This part replaces 4959AR3402A. Substitute parts can look different from the original.
$44.30 |
12% OFF Phone Price : $50.30
In Stock
Room Air Conditioner Drain Pipe 3H02773A
#16C

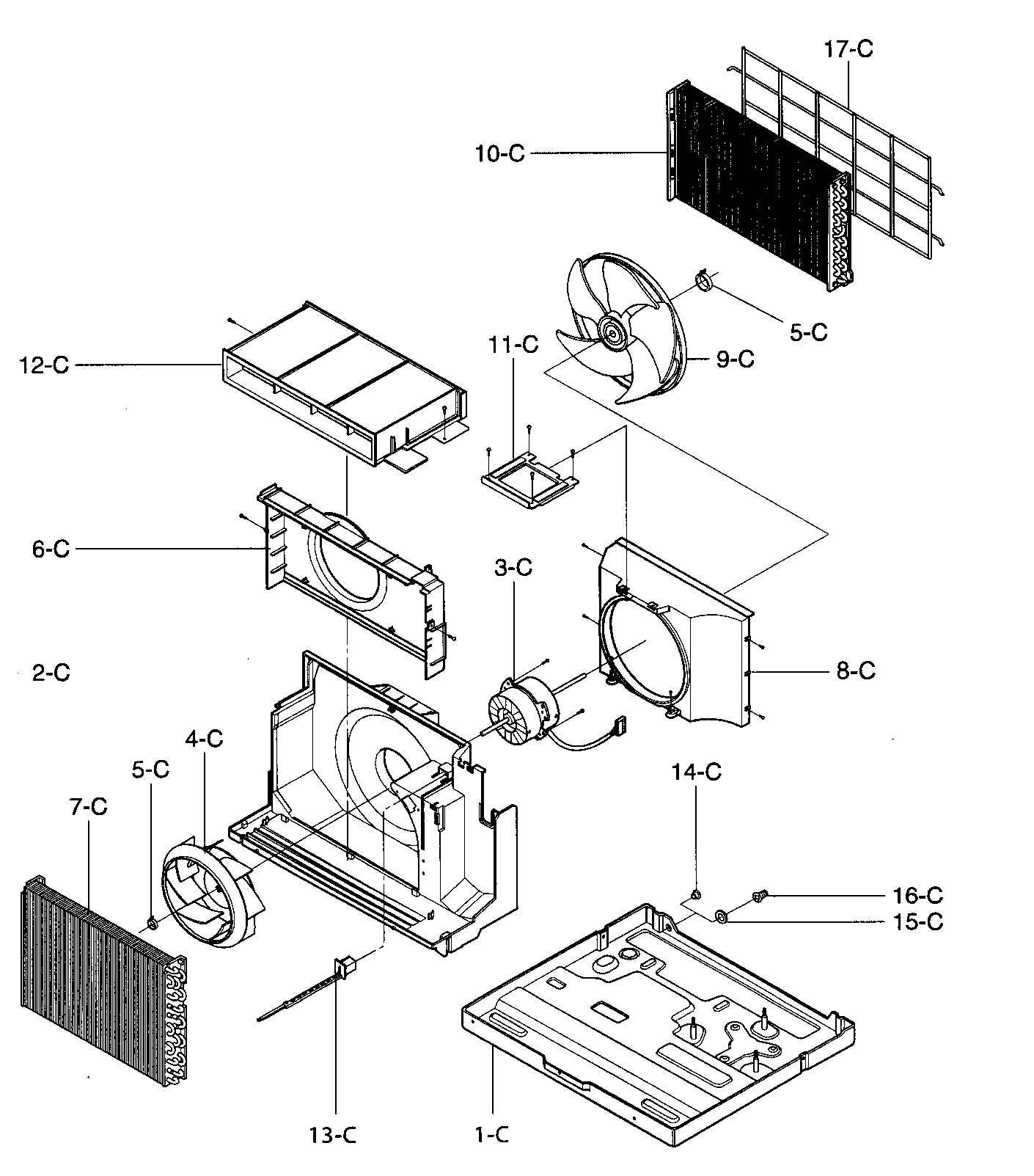

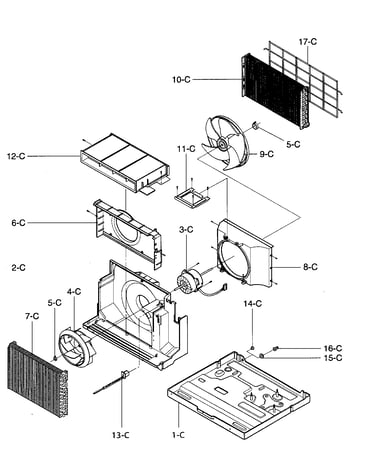

Air handling/cycle parts diagram

Room air conditioner drain pipe

Part #3H02773A

This item is not returnable
$4.44 |
18% OFF Phone Price : $5.44
In Stock
Icp Room Air Conditioner Fan Motor Capacitor (replaces 16-05-00710-109, 2a00986n, 2h00841t, 6120ar2359b) 6120AR2194F
#6B

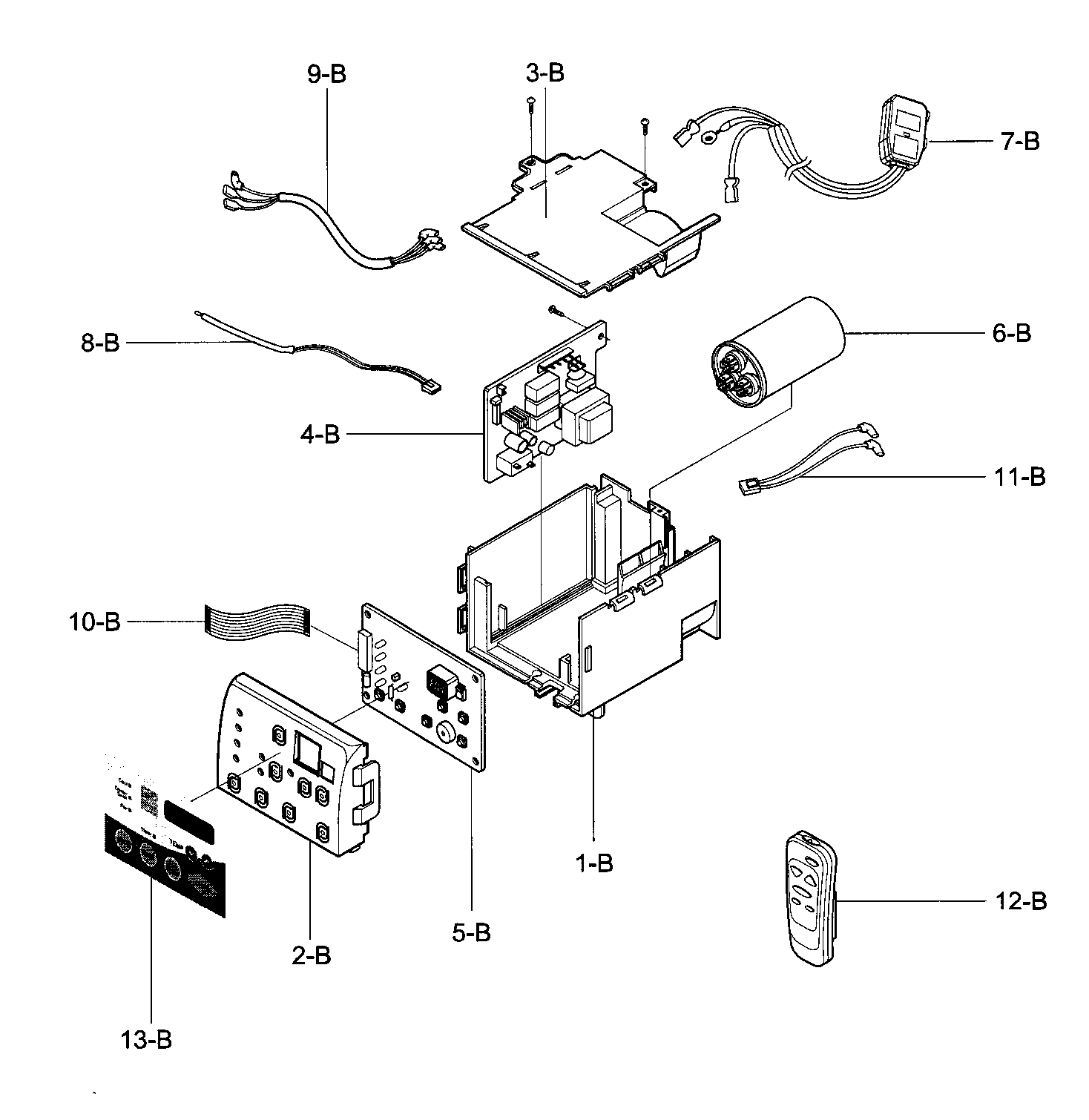

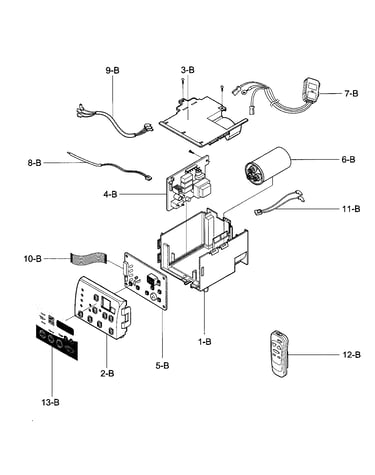

Control box assy diagram

Icp room air conditioner fan motor capacitor (replaces 16-05-00710-109, 2a00986n, 2h00841t, 6120ar2359b)

Part #6120AR2194F

$178.80
In Stock
Friedrich Room Air Conditioner Control Panel 3720A10111C
#2B

Control box assy diagram

Friedrich room air conditioner control panel

Part #3720A10111C

This item is not returnable
$13.43
In Stock
Washer 4H01029E
#15C

Air handling/cycle parts diagram

Washer

Part #4H01029E

Replaced by #4H01029F

?
Manufacturer substitution
This part replaces 4H01029E. Substitute parts can look different from the original.
This item is not returnable
$5.71
In Stock
Evaporator Tube 5211A20470L
#12D

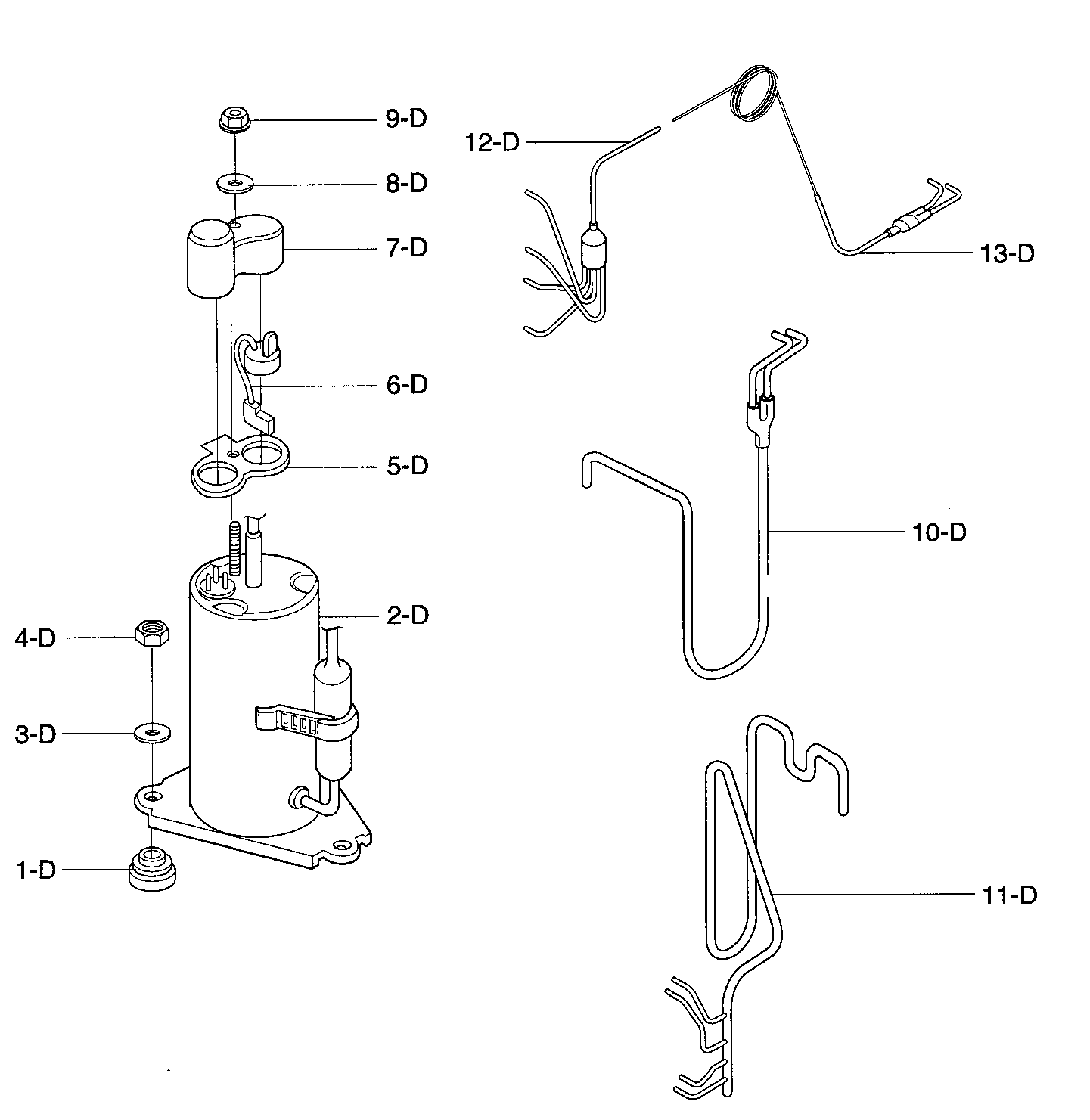

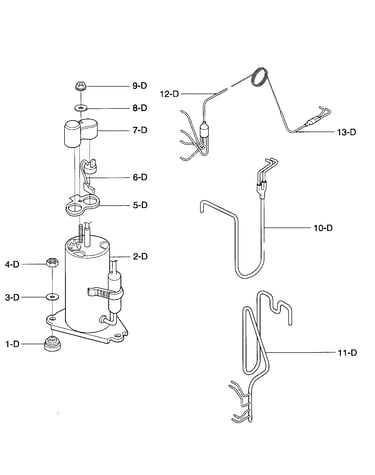

Compressor parts diagram

Evaporator tube

Part #5211A20470L

$66.33
In Stock
Goldstar Room Air Conditioner Window Lock Bracket 4H01785B
#6E

Installation kit assy diagram

Goldstar room air conditioner window lock bracket

Part #4H01785B

This item is not returnable
$4.48 |
18% OFF Phone Price : $5.48
In Stock
Discharge 5211A10074D
#10D

Compressor parts diagram

Discharge

Part #5211A10074D

$51.76
In Stock
Room Air Conditioner Louver 4758A20040A
#5A

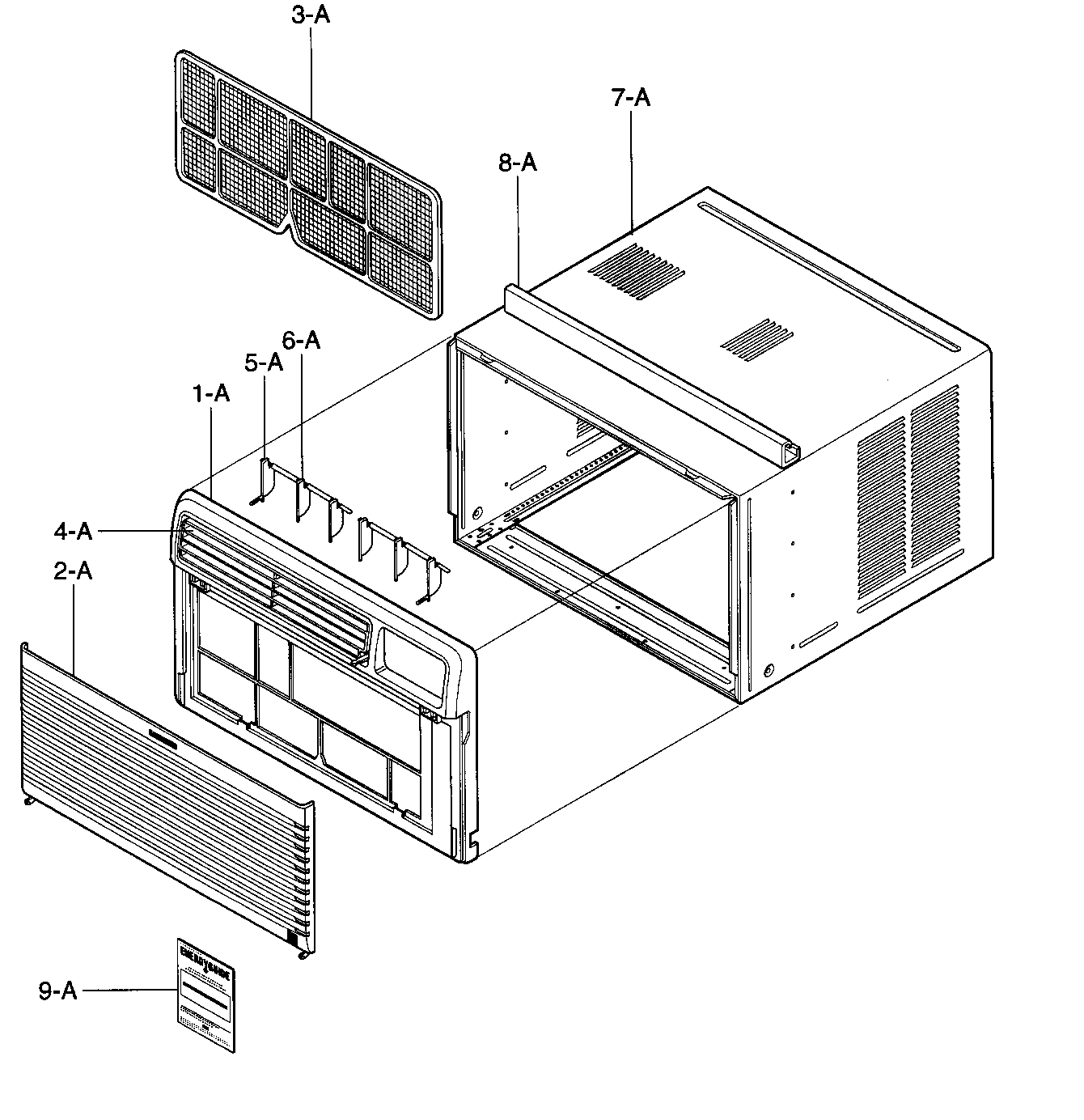

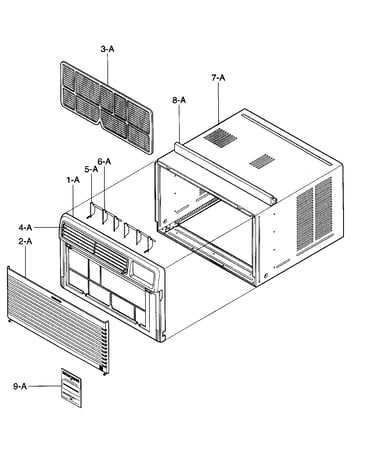

Cabinet/front grille assy diagram

Room air conditioner louver

Part #4758A20040A

This item is not returnable
$5.71
In Stock
