Model # 38BRG018 SERIES300 Official Carrier condensing unit

Here are the diagrams and repair parts for Official Carrier 38BRG018-SERIES300 condensing unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

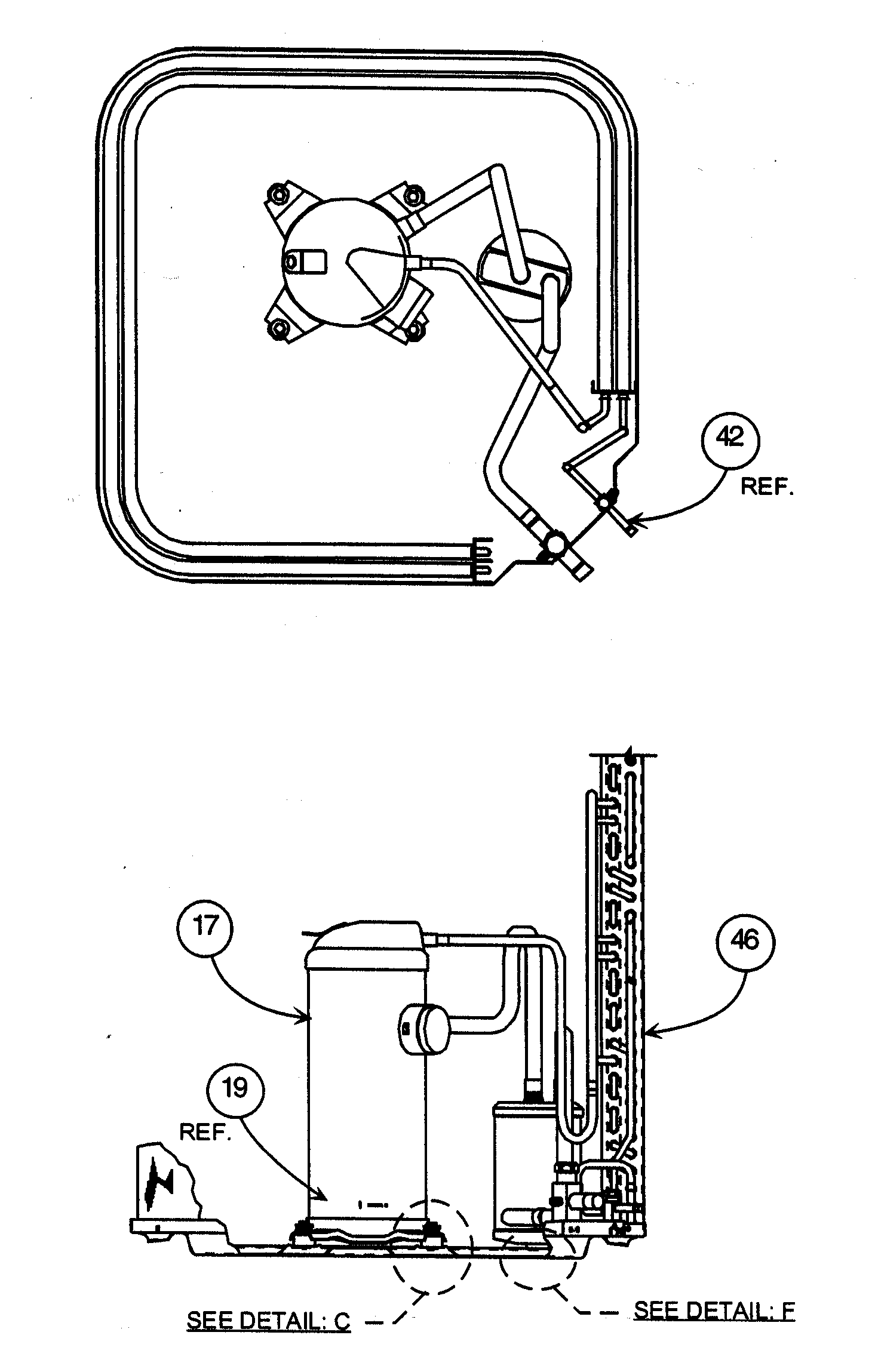

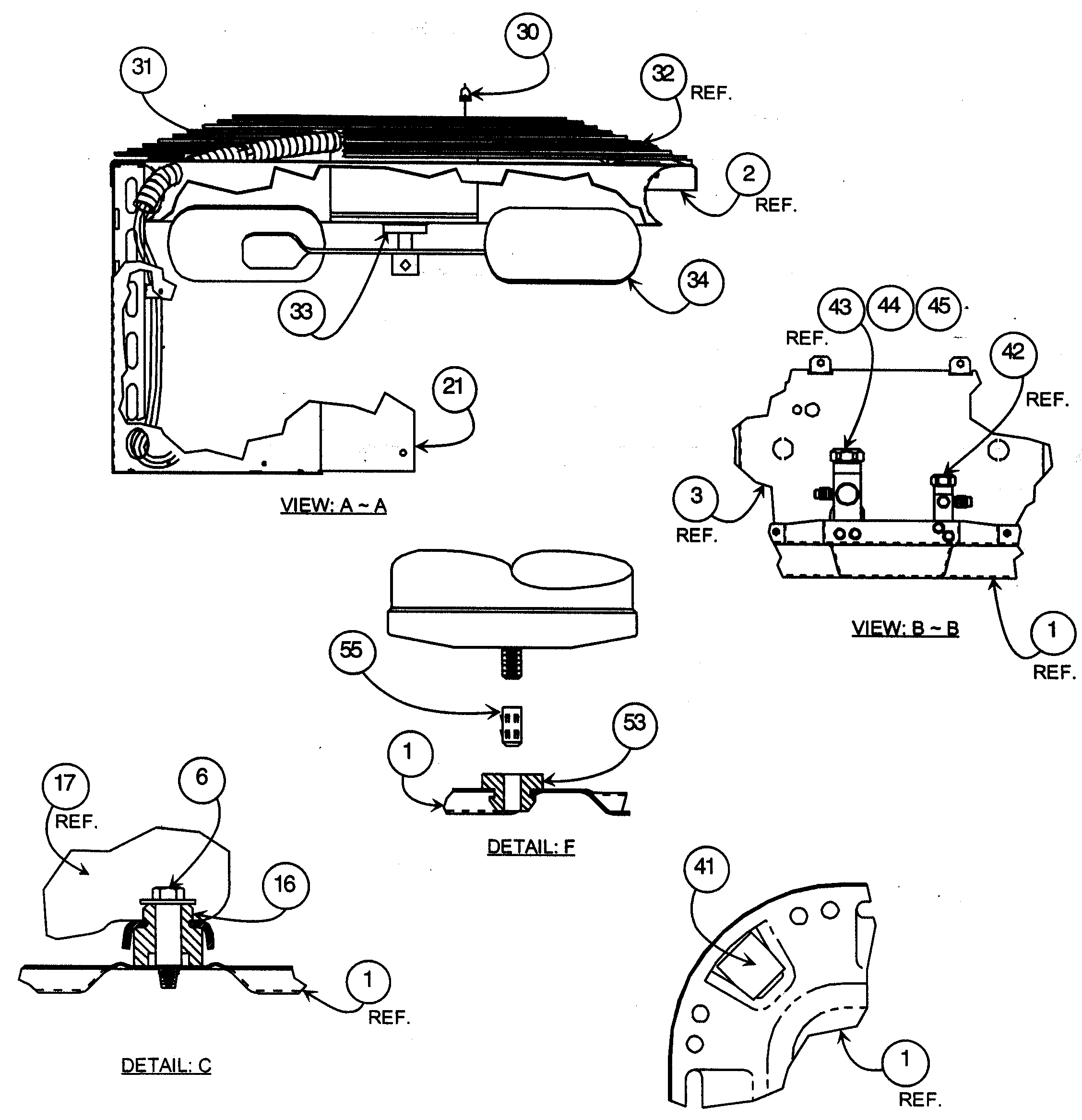

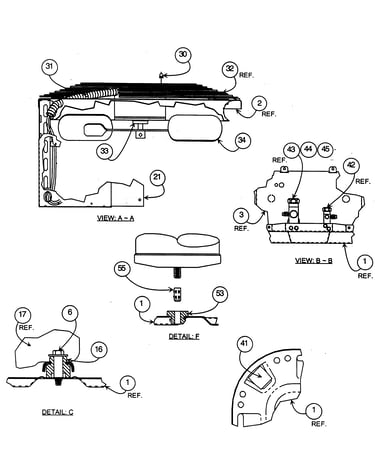

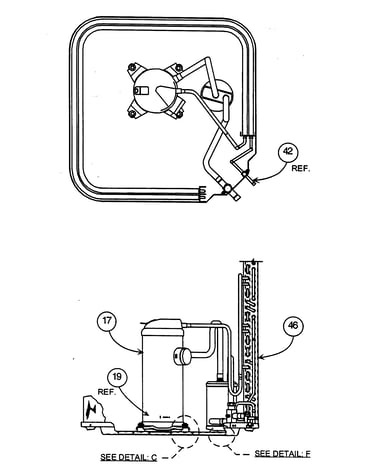

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 51 parts  |
Contactor HN51KB024
#26

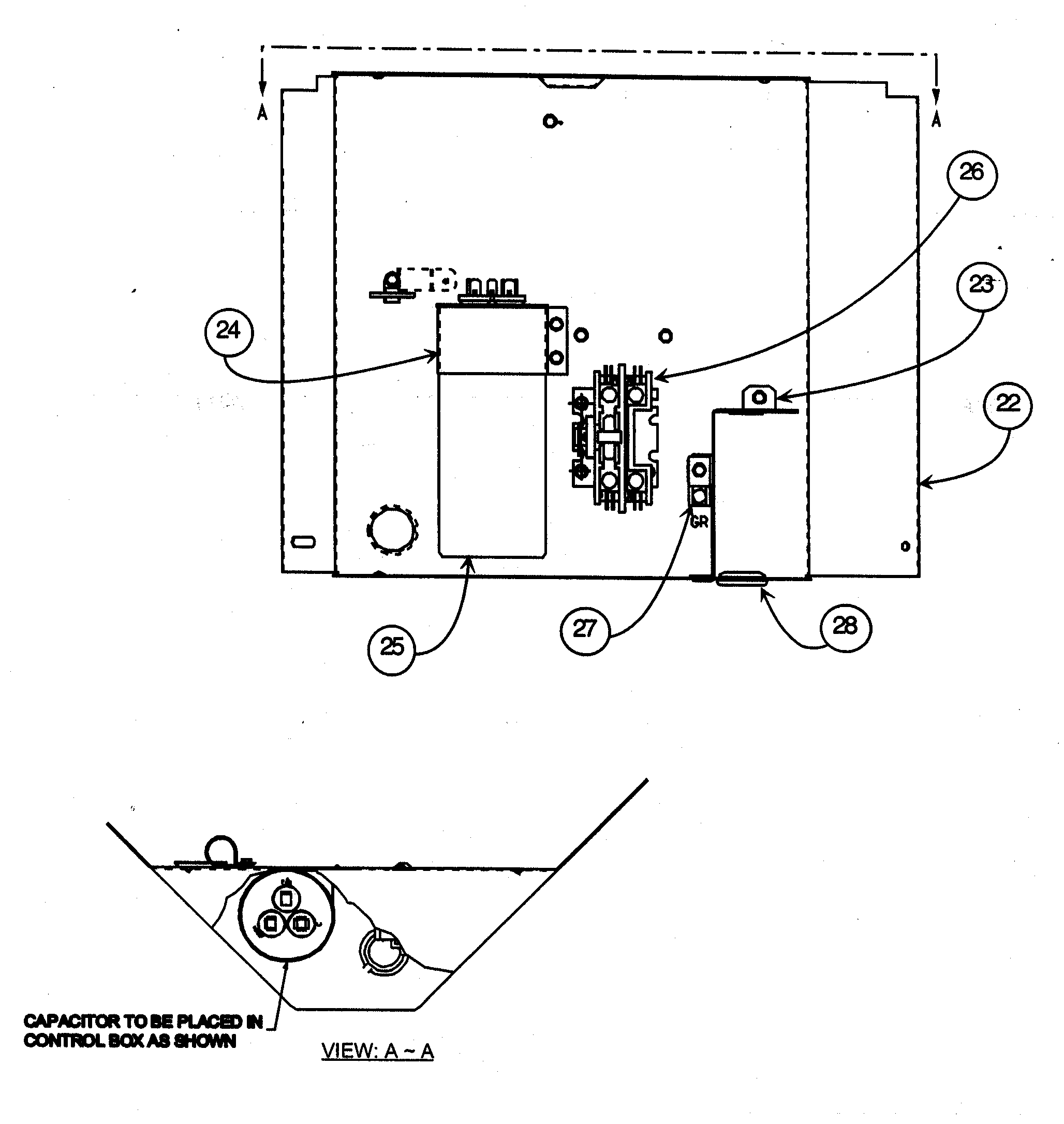

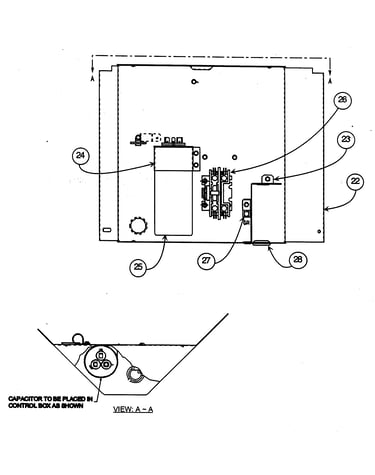

Control box diagram

Contactor

Part #HN51KB024

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Capacitor Strap 317739-302
#24

Control box diagram

Central air conditioner capacitor strap

Part #317739-302

$11.74
In Stock
Capactr Duel P291-3053RS
#25

Control box diagram

Capactr duel

Part #P291-3053RS

Replaced by #CAP050300440RSP

?
Manufacturer substitution
This part replaces P291-3053RS. Substitute parts can look different from the original.
This item is not returnable
$34.08 |
13% OFF Phone Price : $39.08
In Stock
Valve 317412-401
Valve

Part #317412-401

$143.32
In Stock
Central Air Conditioner Start Capacitor (replaces Hc95de088, P281-8805) P281-8806
#NI

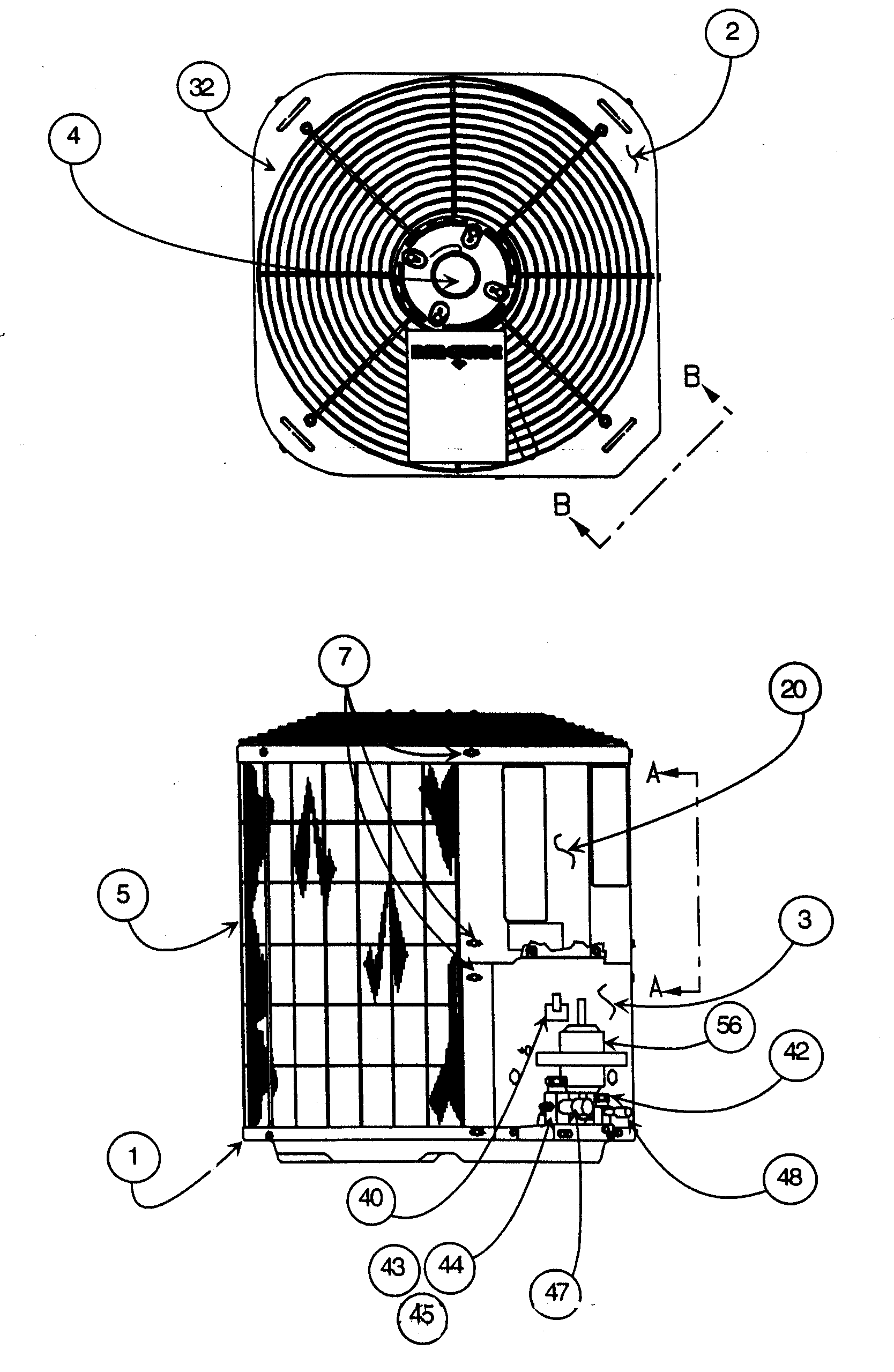

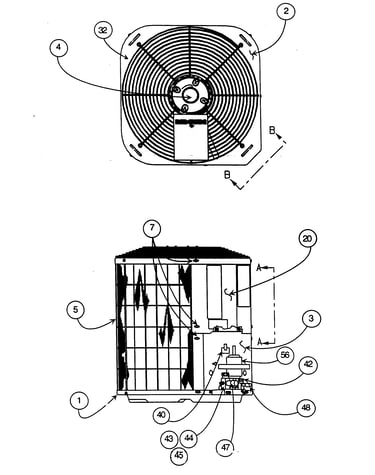

Fan guard/inlet grille diagram

Central air conditioner start capacitor (replaces hc95de088, p281-8805)

Part #P281-8806

$36.73
In Stock
Paint 313974-751
#NI

Fan guard/inlet grille diagram

Paint

Part #313974-751

$60.89
In Stock
Lug HY90AZ009
#27

Control box diagram

Lug

Part #HY90AZ009

$8.23
In Stock
Delay Kit KAATD0101TDR
#NI

Fan guard/inlet grille diagram

Delay kit

Part #KAATD0101TDR

$403.47
In Stock
Relay P283-9930
#NI

Fan guard/inlet grille diagram

Relay

Part #P283-9930

$101.98
In Stock
Central Air Conditioner Nameplate 323761-101
#4

Fan guard/inlet grille diagram

Central air conditioner nameplate

Part #323761-101

$26.14
In Stock
