GE JVM1330BW03 microwave

GE JVM1330BW03 microwave Parts

Here are the diagrams and repair parts for GE JVM1330BW03 microwave, as well as links to manuals and error code tables, if available.

By Schematic
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for JVM1330BW03 Microwave

  • Microwave Micro-switch for GE JVM1330BW03 - Part WB24X829

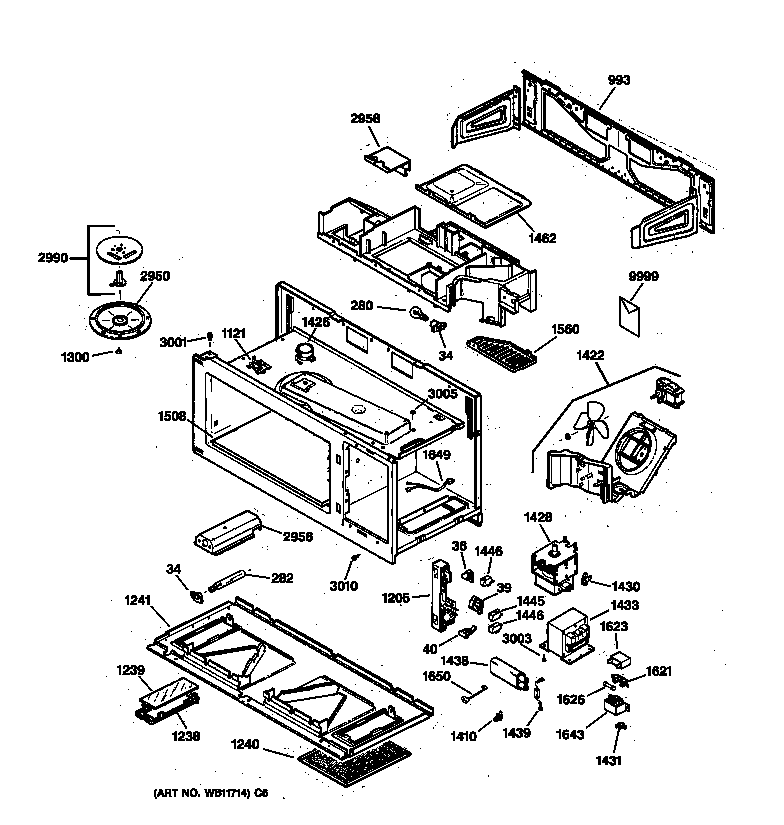

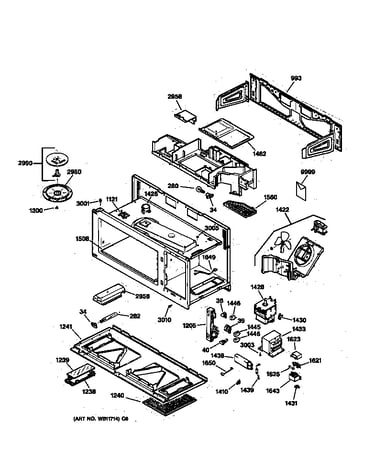

    Base, stirrer & electronics diagram

    Switch

    Part #WB24X801

    Replaced by #WB24X829

    Info Icon
    Manufacturer substitution
    This part replaces WB24X801. Substitute parts can look different from the original.
    In Stock
    $30.28
    17% OFF Phone Price : $36.28Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Door Interlock Switch for GE JVM1330BW03 - Part WB24X830

    Base, stirrer & electronics diagram

    Switch

    Part #WB24X800

    Replaced by #WB24X830

    Info Icon
    Manufacturer substitution
    This part replaces WB24X800. Substitute parts can look different from the original.
    In Stock
    $36.05
    14% OFF Phone Price : $42.05Info Icon
    Minus Item
    Qty
    Plus Item
  • Maytag Microwave Thermostat for GE JVM1330BW03 - Part WB27X709

    Base, stirrer & electronics diagram

    Maytag Microwave Thermostat

    Part #WB27X709
    This item is not returnable
    In Stock
    $32.76
    15% OFF Phone Price : $38.76Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Light Bulb for GE JVM1330BW03 - Part WB36X10003

    Base, stirrer & electronics diagram

    1/2 Siz Lamp

    Part #WB36X936

    Replaced by #WB36X10003

    Info Icon
    Manufacturer substitution
    This part replaces WB36X936. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $15.61
    11% OFF Phone Price : $17.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Light Bulb for GE JVM1330BW03 - Part WB36X10003

    Base, stirrer & electronics diagram

    Microwave/hood Lamp

    Part #WB2X4235

    Replaced by #WB36X10003

    Info Icon
    Manufacturer substitution
    This part replaces WB2X4235. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $15.61
    11% OFF Phone Price : $17.61Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Thermal Cut-off for GE JVM1330BW03 - Part WB27X1127

    Base, stirrer & electronics diagram

    Microwave Thermal Cut-off

    Part #WB27X1127
    In Stock
    $40.71
    13% OFF Phone Price : $46.71Info Icon
    Minus Item
    Qty
    Plus Item
  • Washer Screw for GE JVM1330BW03 - Part WB01X10084

    Base, stirrer & electronics diagram

    Sc Washer

    Part #WB1X1436

    Replaced by #WB01X10084

    Info Icon
    Manufacturer substitution
    This part replaces WB1X1436. Substitute parts can look different from the original.
    In Stock
    $8.38
    11% OFF Phone Price : $9.38Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Light Socket for GE JVM1330BW03 - Part WB08X10016

    Base, stirrer & electronics diagram

    Lamp Socket

    Part #WB8X310

    Replaced by #WB08X10016

    Info Icon
    Manufacturer substitution
    This part replaces WB8X310. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $27.29
    18% OFF Phone Price : $33.29Info Icon
    Minus Item
    Qty
    Plus Item
  • Power Cord for GE JVM1330BW03 - Part WB18X10200

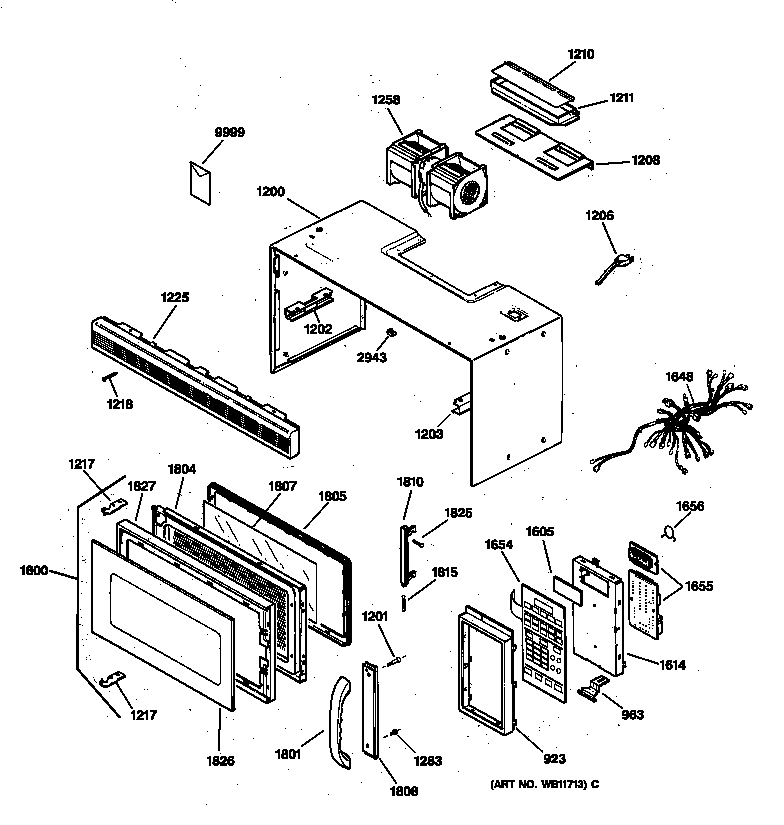

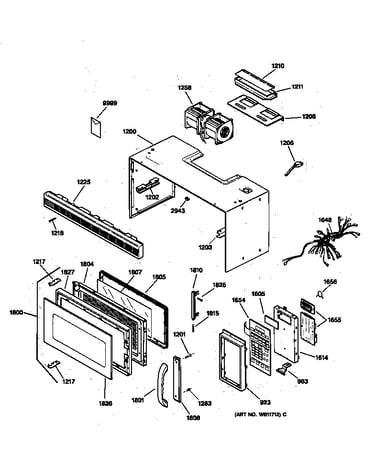

    Case, door & controls diagram

    Power Cor

    Part #WB18X566

    Replaced by #WB18X10200

    Info Icon
    Manufacturer substitution
    This part replaces WB18X566. Substitute parts can look different from the original.
    In Stock
    $74.40
    7% OFF Phone Price : $80.40Info Icon
    Minus Item
    Qty
    Plus Item
  • Microwave Vent Motor Capacitor for GE JVM1330BW03 - Part WB27X10170

    Base, stirrer & electronics diagram

    Capacitor

    Part #WB27X705

    Replaced by #WB27X10170

    Info Icon
    Manufacturer substitution
    This part replaces WB27X705. Substitute parts can look different from the original.
    In Stock
    $16.34
    43% OFF Was : $28.80Info Icon
    Minus Item
    Qty
    Plus Item
