Craftsman
Drill/Driver

Model # 315115330 Official Craftsman drill

Here are the diagrams and repair parts for Official Craftsman 315115330 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

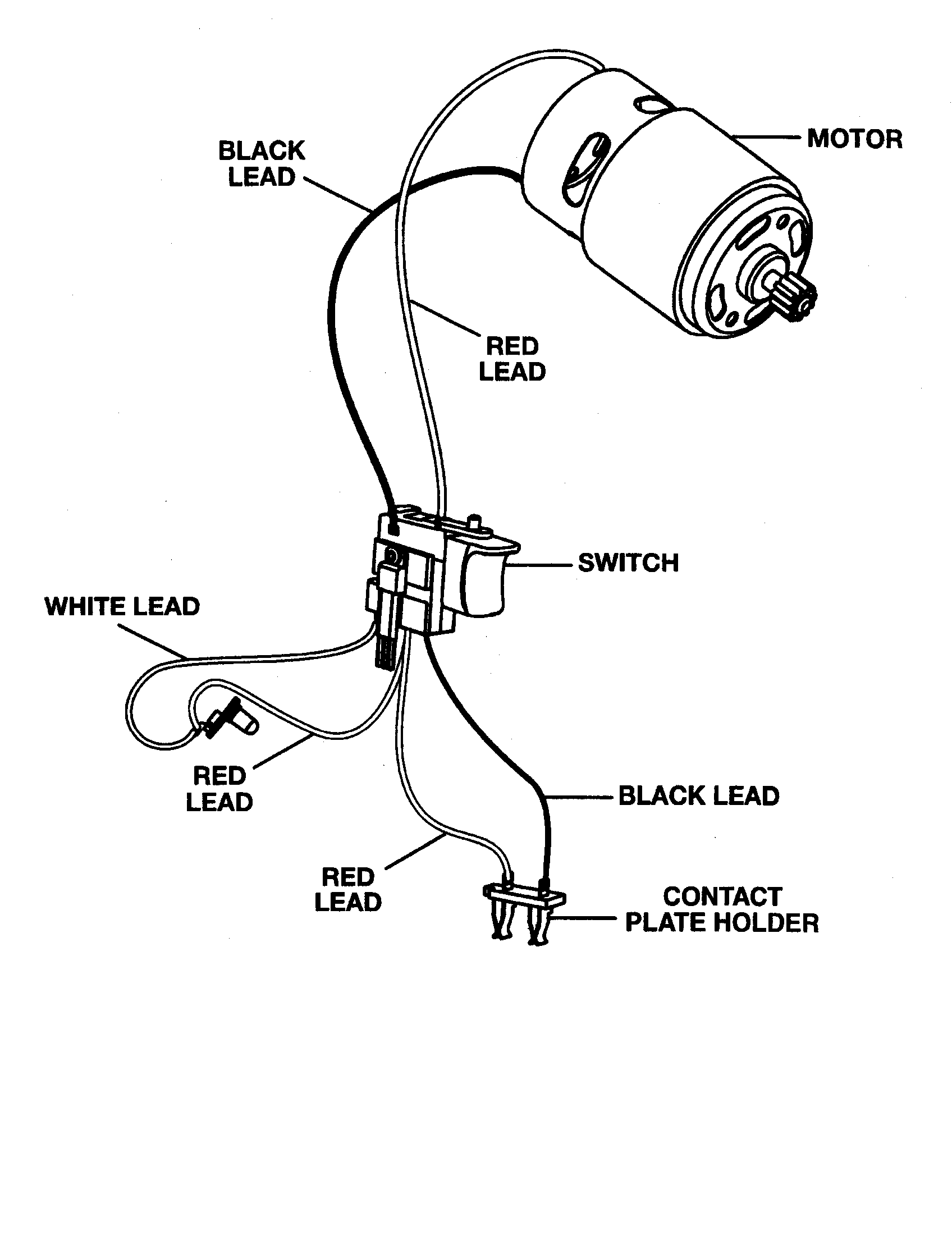

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Washer 690011004
#9

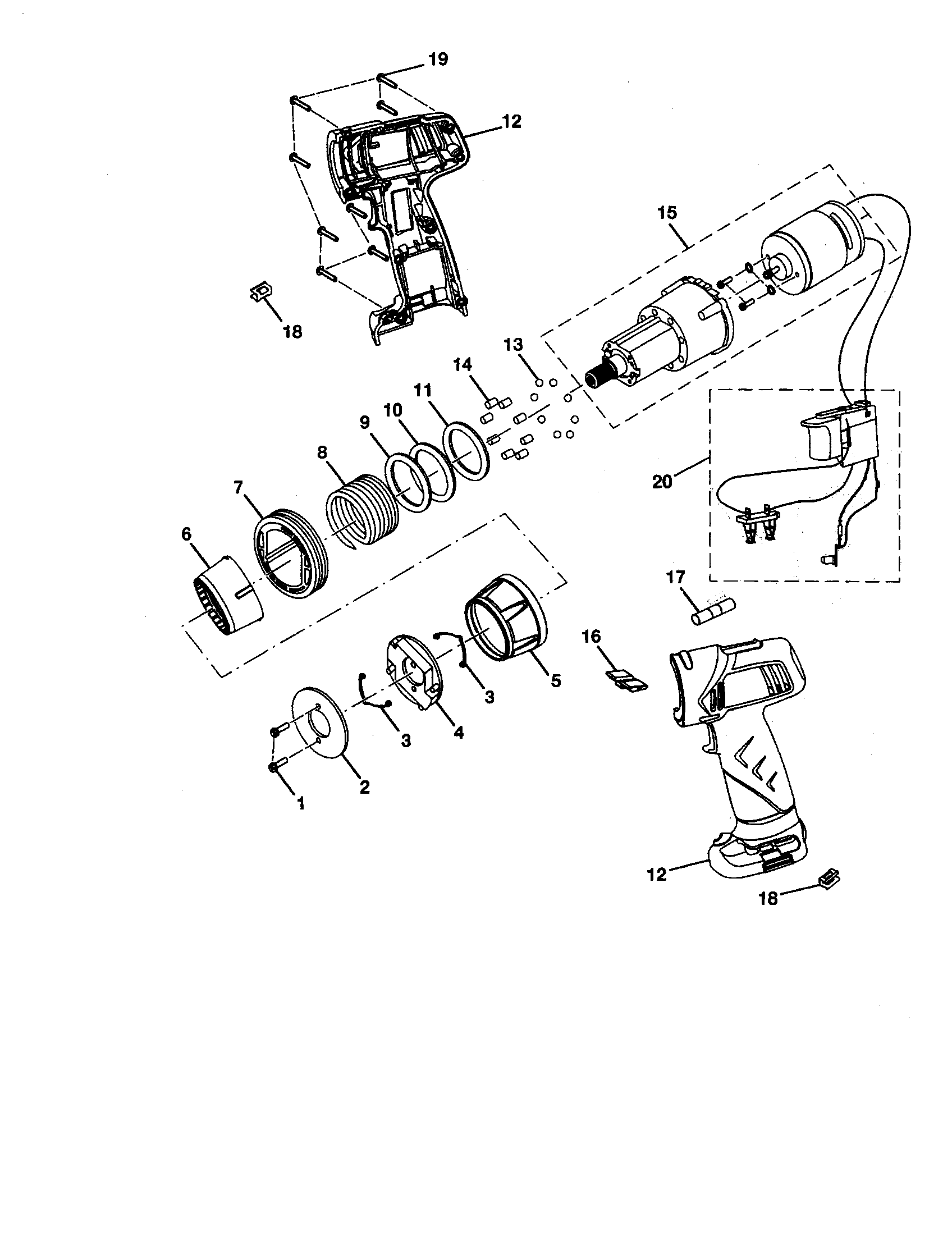

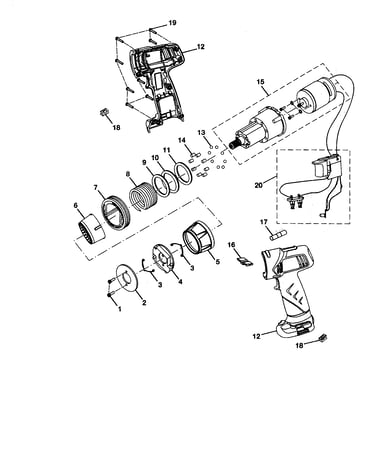

Handle/motor/gear/housing diagram

Washer

Part #690011004

The manufacturer no longer makes this part, and there's no substitute part

Switch Assembly 270023055
#20

Handle/motor/gear/housing diagram

Switch assembly

Part #270023055

The manufacturer no longer makes this part, and there's no substitute part

Housing 200202348
#12

Handle/motor/gear/housing diagram

Housing

Part #200202348

The manufacturer no longer makes this part, and there's no substitute part

Bit 6782108
#6

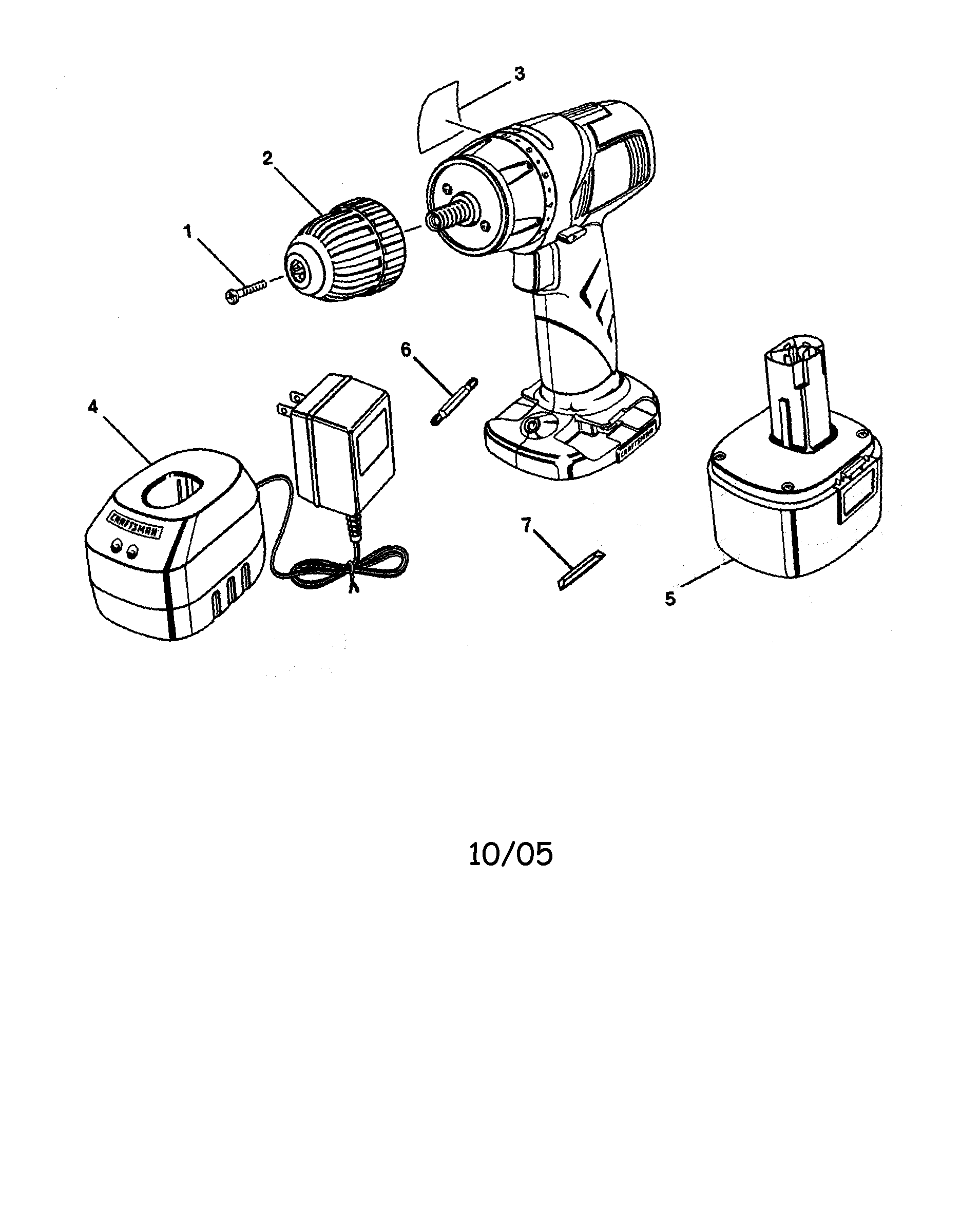

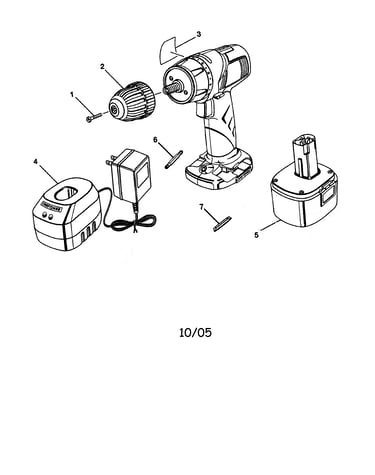

Drill/battery/ charger diagram

Bit

Part #6782108

The manufacturer no longer makes this part, and there's no substitute part

Mounting Plate 630871002
#2

Handle/motor/gear/housing diagram

Mounting plate

Part #630871002

The manufacturer no longer makes this part, and there's no substitute part

Washer 690011005
#10

Handle/motor/gear/housing diagram

Washer

Part #690011005

The manufacturer no longer makes this part, and there's no substitute part

Battery 130139016
#5

Drill/battery/ charger diagram

Battery

Part #130139016

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 550014008
#7

Handle/motor/gear/housing diagram

Sleeve

Part #550014008

The manufacturer no longer makes this part, and there's no substitute part

Drill Level 3000909
#17

Handle/motor/gear/housing diagram

Drill level

Part #3000909

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap 641001002
#5

Handle/motor/gear/housing diagram

Clutch cap

Part #641001002

The manufacturer no longer makes this part, and there's no substitute part
