Where is the model number on a Kenmore upright freezer?
On the Kenmore upright freezer model 25321042410, the model number is printed on the serial plate located inside the appliance compartment. Open the freezer door and look along the interior walls or ceiling area where the label is easy to read and record for parts lookup.
Most common places to check
We recommend checking these spots in order (they are the most typical for upright freezers):
- Inside the freezer compartment on a side wall
- Inside the freezer compartment near the top (ceiling area)
- Along the door opening frame (cabinet face behind the door)
- Behind the lower kick plate or base panel area
- On the back exterior panel (less common, but possible)
For the exact label location and how it is referenced in documentation, use the 25321042410 owner's manual.
How to use the model and serial plate info
Once you find the serial plate, write down the details exactly as shown.
| What to record | Why it matters |
|---|---|
| Model number (example: 253.XXXXXXXX) | Ensures we match the correct Kenmore parts list |
| Serial number | Helps confirm production series and compatible revisions |
| Purchase date | Useful for maintenance history and service planning |
Tips so you do not miss it
- Use a flashlight; the label is often in a shaded corner.
- Wipe dust lightly with soap and water only; harsh cleaners can damage the printing.
- Take a clear photo of the plate so you can zoom in later.
Why it matters
Kenmore model numbers can look similar across freezer families. Using the exact model number from the serial plate prevents ordering the wrong gasket, temperature control, or door hardware for your upright freezer.
Last updated: February 2026
What is the life expectancy of an upright freezer?
Most upright freezers, including the Kenmore 25321042410, typically last 10 to 15 years. With consistent care (cleaning, good airflow, and preventing heavy frost buildup), it’s common to reach the upper end of that range and avoid early compressor and seal problems.
What affects lifespan the most
- Room temperature and ventilation: Hot garages and tight enclosures make the compressor work harder.
- Door seal condition: A leaking gasket causes longer run times and frost.
- Frost management and cleaning: Heavy frost and dirty surfaces reduce efficiency.
- Power events: Frequent outages or surges add stress to electrical start components.
- How often the door is opened: Warm, moist air increases frost and run time.
Maintenance habits that extend life (practical checklist)
The care guidance in the 25321042410 owner's manual supports these habits, especially around cleaning and defrosting.
- Keep frost from building up; defrost and clean when frost reaches about 1/4 to 1/2 inch.
- Use a plastic scraper only for frost; never use metal tools.
- During defrosting, unplug the freezer and leave the door open.
- If your model uses a defrost drain, use the drain plug and drain tube method to control meltwater.
- For long storage, clean and dry the interior, then block the door slightly open to prevent odors and mold.
Quick expectations by age
| Freezer age | What we typically see | What to do |
|---|---|---|
| 0 to 5 years | Normal operation | Keep coils area clean, maintain airflow |
| 6 to 10 years | More frost or longer run times | Check door seal, reduce door openings |
| 11 to 15 years | Higher chance of cooling or start issues | Watch temps, address gasket and electrical symptoms early |
Why it matters
A freezer that runs longer than it should uses more electricity and wears out key components faster. Staying ahead of frost buildup and keeping the door sealing tightly helps the Kenmore 25321042410 hold safe temperatures with less compressor strain.
Last updated: February 2026

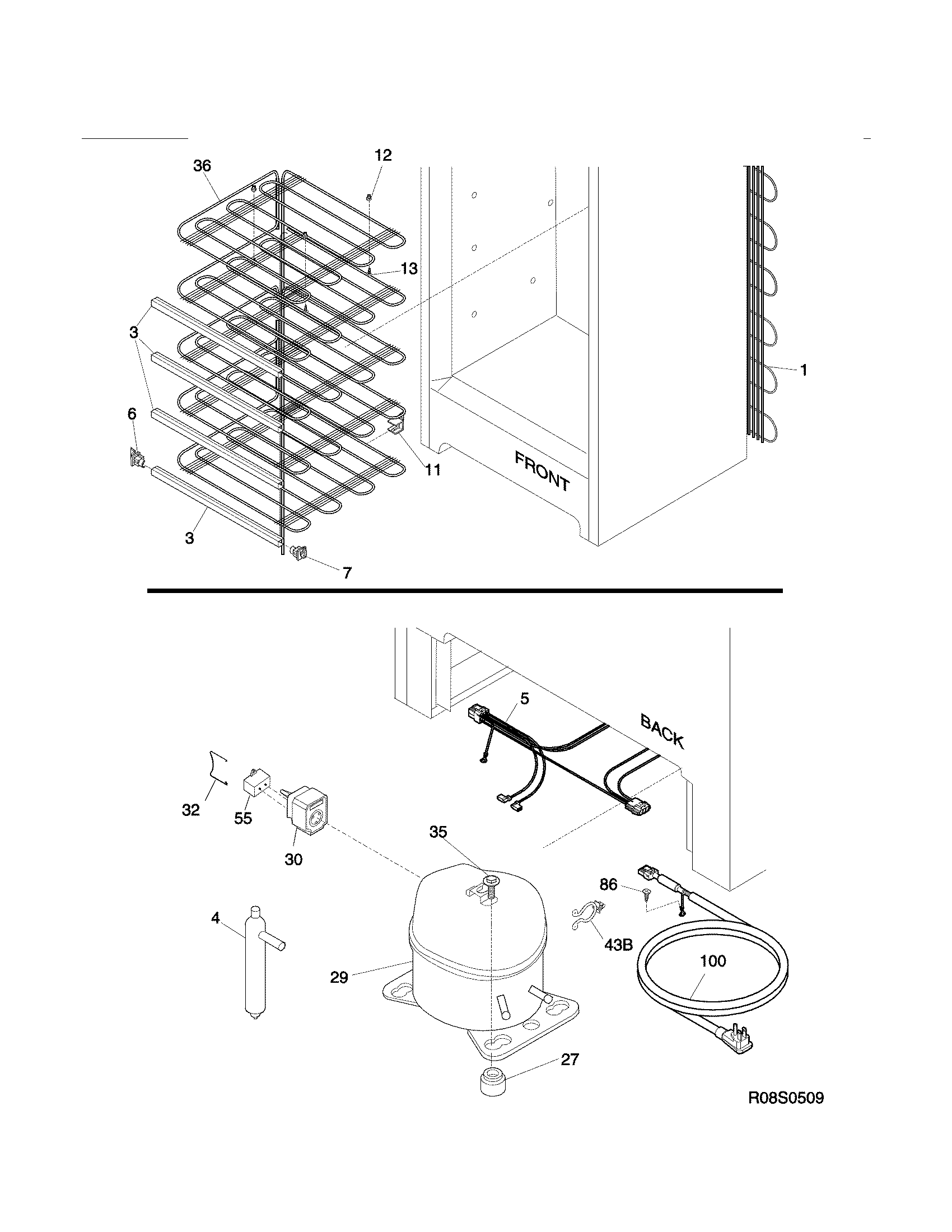

Where are the condenser coils on a Kenmore upright freezer?
On the Kenmore upright freezer model 25321042410, the condenser coils are typically located in the warm-air section of the cabinet, not in the food compartment. Depending on the design, they are usually behind the lower rear access area or integrated into the outer cabinet walls where they can release heat.
How to find the condenser coils
We recommend using the access and service locations shown in the 25321042410 owner's manual. In most upright freezers, you can confirm coil location by following these checks:
- Unplug the freezer before removing any panels.
- Look for a warm area and airflow near the lower back of the cabinet.
- Check behind the lower rear cover or near the compressor compartment.
- If you do not see exposed coils, they are often “skin condenser” coils built into the cabinet walls.
- Vacuum dust from accessible coil areas and the compressor compartment to improve cooling.
What you will see (quick comparison)
| Coil style | Where it is | What it looks like | Cleaning approach |
|---|---|---|---|
| Exposed condenser coil | Lower back or bottom area | Black radiator-like tubing/fins | Brush and vacuum carefully |
| Hidden (skin) condenser | Inside outer cabinet walls | No visible coil | Keep vents clear, clean compressor area |
Why it matters
Condenser coils dump heat from the sealed system. When they are clogged with dust or blocked by tight clearances, the compressor can run longer, temperatures can rise, and energy use can increase.
Related parts that can affect cooling symptoms
If you are troubleshooting poor cooling (not just locating coils), these model-matched parts are commonly involved:
- Freezer condenser coil 5300083897 (if your unit uses an exposed coil assembly)
- Freezer start relay 297259515 (helps the compressor start)
- Gibson refrigerator run capacitor 297286803 (supports compressor starting and running)
Last updated: February 2026
Is there a reset button on a Kenmore upright freezer?
Kenmore upright freezers like model 25321042410 typically do not have a dedicated “reset” button. Most resets are done by power-cycling the freezer (unplugging briefly, then restoring power) and then confirming the temperature control setting inside the cabinet per the 25321042410 owner's manual.
How to reset (safe, effective steps)
- Unplug the freezer from the wall outlet.
- Wait 5 minutes to let the control and compressor protection reset.
- Plug the freezer back in.
- Set the temperature control back to your normal setting (many models are factory preset for typical storage).
- Allow several hours for temperatures to stabilize before making more adjustments.
What “reset” fixes (and what it does not)
A reset helps when the control is temporarily confused after a power interruption or the compressor is in a short-cycle protection delay. It will not correct a failed component such as a start relay, thermostat, or compressor.
| Symptom | Reset worth trying? | Next most likely check |
|---|---|---|
| Freezer not running after outage | Yes | Outlet power, cord, control setting |
| Clicking, won’t start cooling | Sometimes | Start relay/capacitor |
| Runs but not cold enough | Sometimes | Frost buildup, airflow, door seal |
| Heavy frost on walls | No | Defrost/door sealing issue |
When to look beyond a reset
- Temperature control location: On many upright models, the electromechanical temperature control is inside the freezer cabinet.
- Frost buildup: Defrost and clean when frost reaches about 1/4 to 1/2 inch; unplug the freezer before defrosting.
- Door sealing: A leaking gasket can cause long run times and warm temps.
If you suspect a starting problem, the freezer start relay 297259515 is a common part involved in compressor start issues.
Why it matters
A proper reset and correct temperature setting prevent unnecessary compressor cycling, help food stay safely frozen, and reduce frost and energy use.
Last updated: February 2026
What size is a Kenmore freezer by model number 25321042410?
The Kenmore upright freezer model 25321042410 is in the Kenmore 253-series covered by the use and care documentation for model group 253.21042*, but the excerpted manual text does not list the exact cubic-foot capacity. Most Kenmore upright freezers in this series are typically in the 15 to 18 cu. ft. range; confirm the exact size on the rating plate or in the 25321042410 owner's manual.
How to find the exact capacity for model 25321042410
Use these quick checks to get the precise “cu. ft.” number without guessing:
- Check the model/serial (rating) plate inside the cabinet (often on an interior side wall).
- Look for wording like “Capacity” or “Total volume” in cubic feet.
- In the manual PDF, search for “specifications”, “capacity”, or “cu. ft.”.
- If you are measuring for fit, measure the outside dimensions (W x H x D) and allow airflow clearance.
- If the door was reversed or replaced, verify the model number on the rating plate still matches 25321042410.
Typical size ranges (what “size” can mean)
“Size” is commonly used two ways. Here is what we see most often for upright freezers like this Kenmore:
| What you need | Typical range | Best way to confirm |
|---|---|---|
| Storage capacity (cu. ft.) | 15 to 18 cu. ft. | Rating plate or manual specs |
| Exterior width | 27 to 32 in. | Tape measure across the front |
| Exterior height | 60 to 72 in. | Measure floor to top |
Why it matters
Capacity helps you compare storage space, but exterior dimensions determine whether the freezer fits your space and has enough ventilation. Using the rating plate and the 25321042410 owner's manual keeps you aligned with the exact configuration of your unit.
Last updated: February 2026
