Sharp
Countertop Microwave

Model # R-430EW Official Sharp microwave

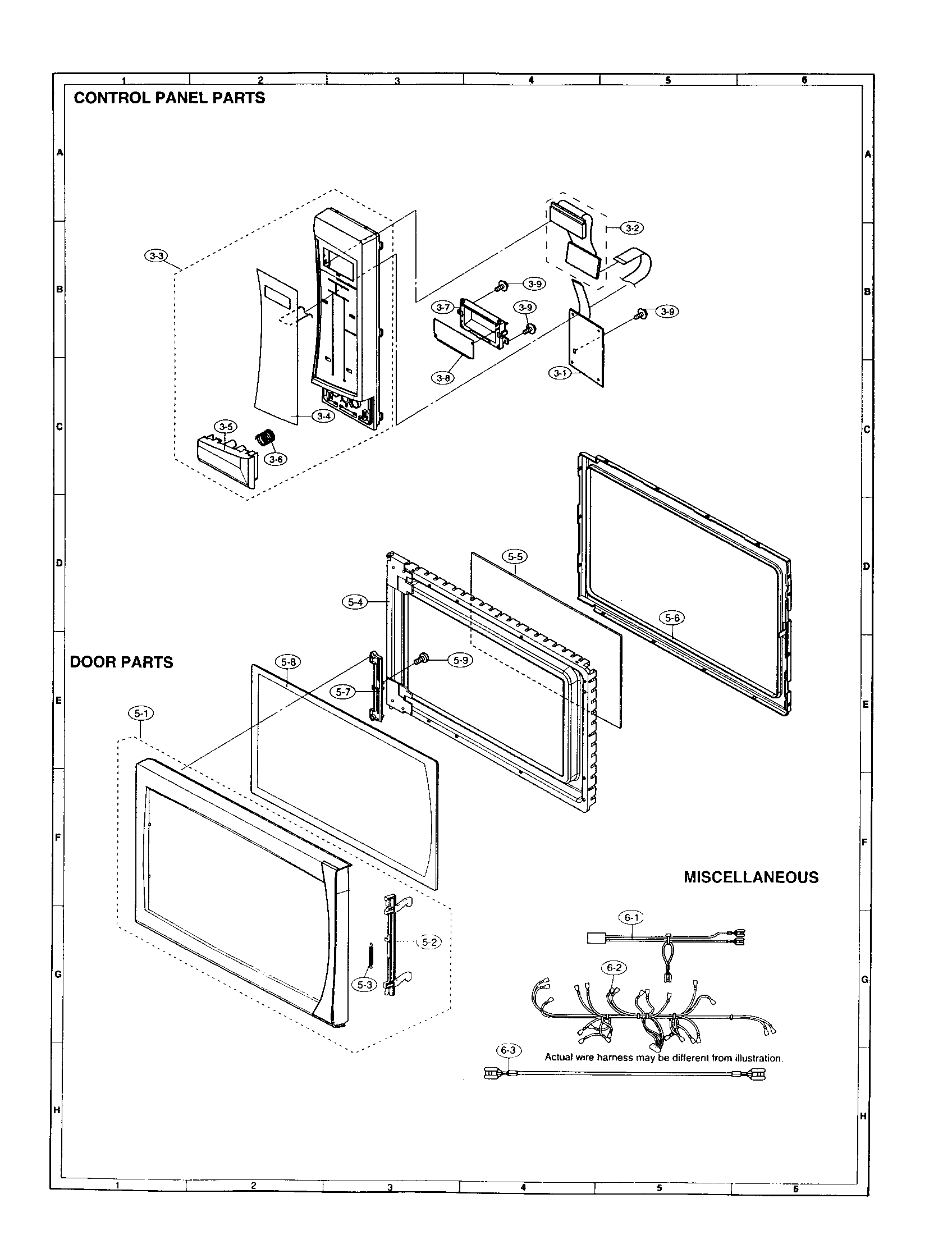

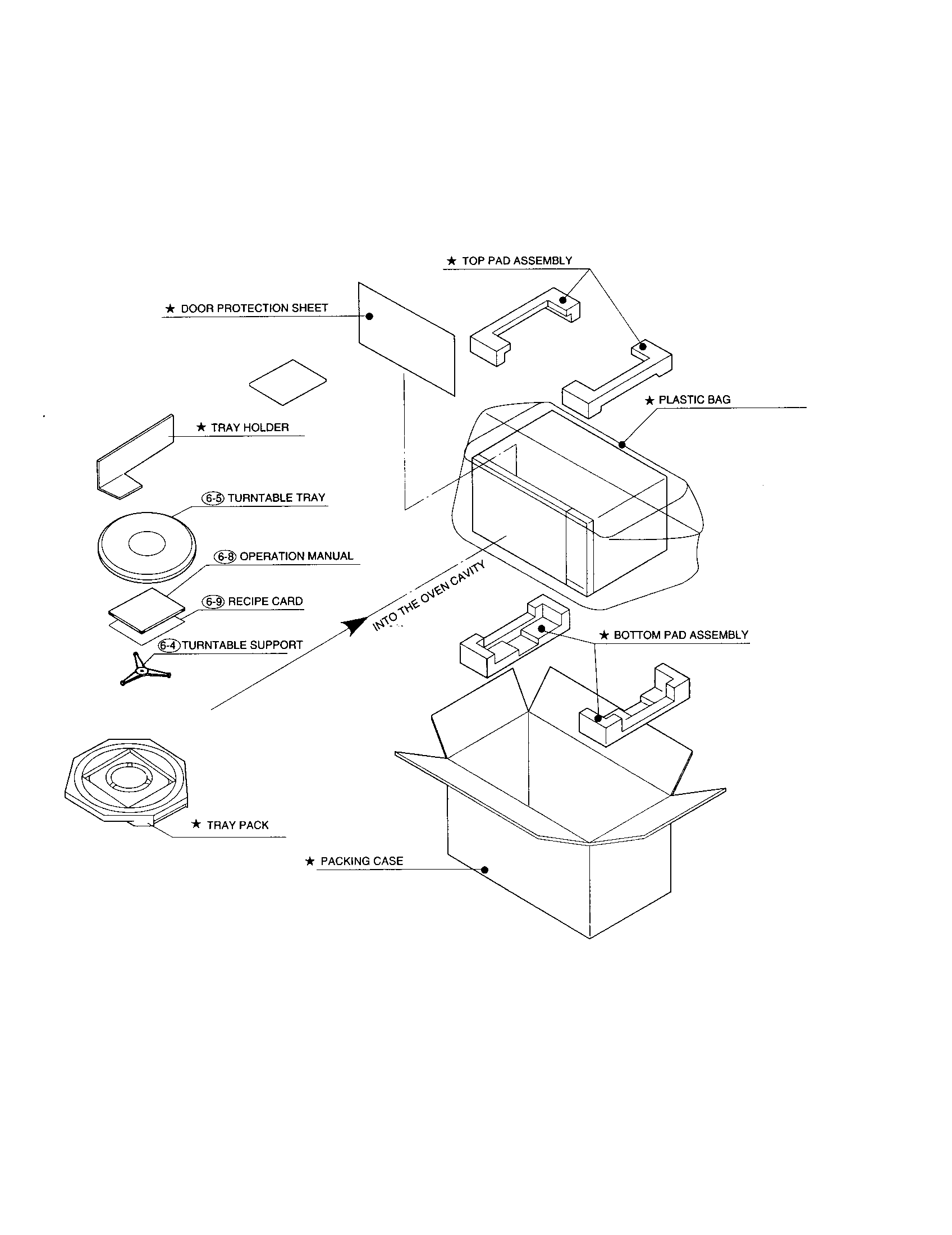

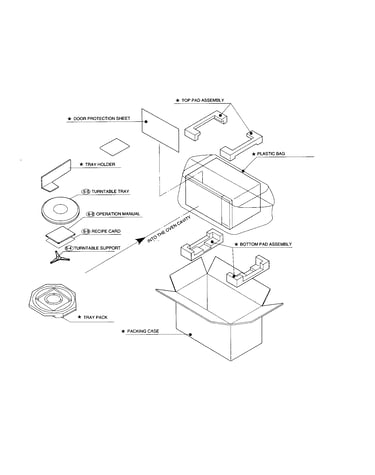

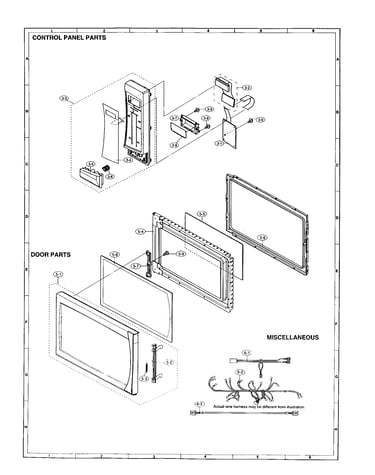

Here are the diagrams and repair parts for Official Sharp R-430EW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

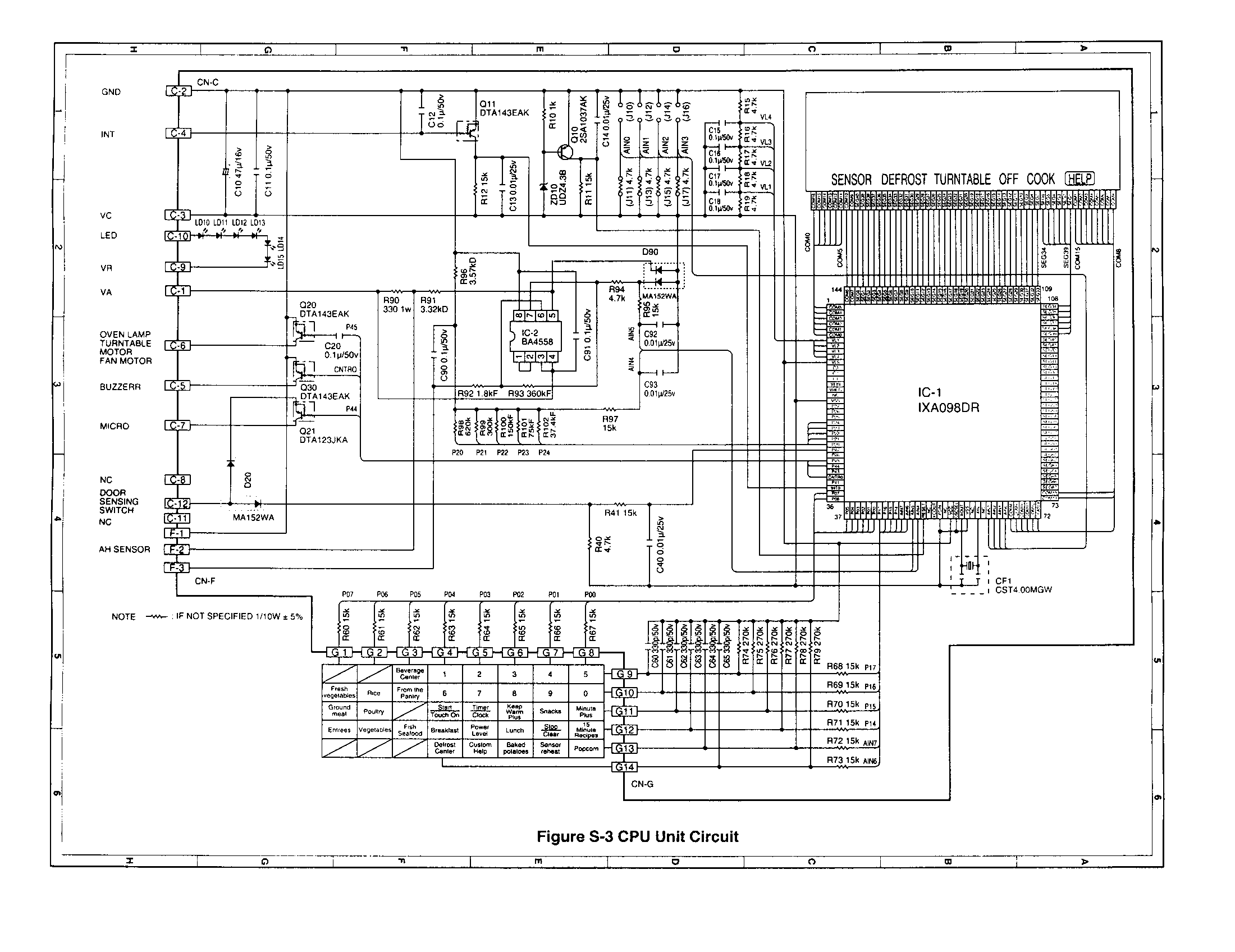

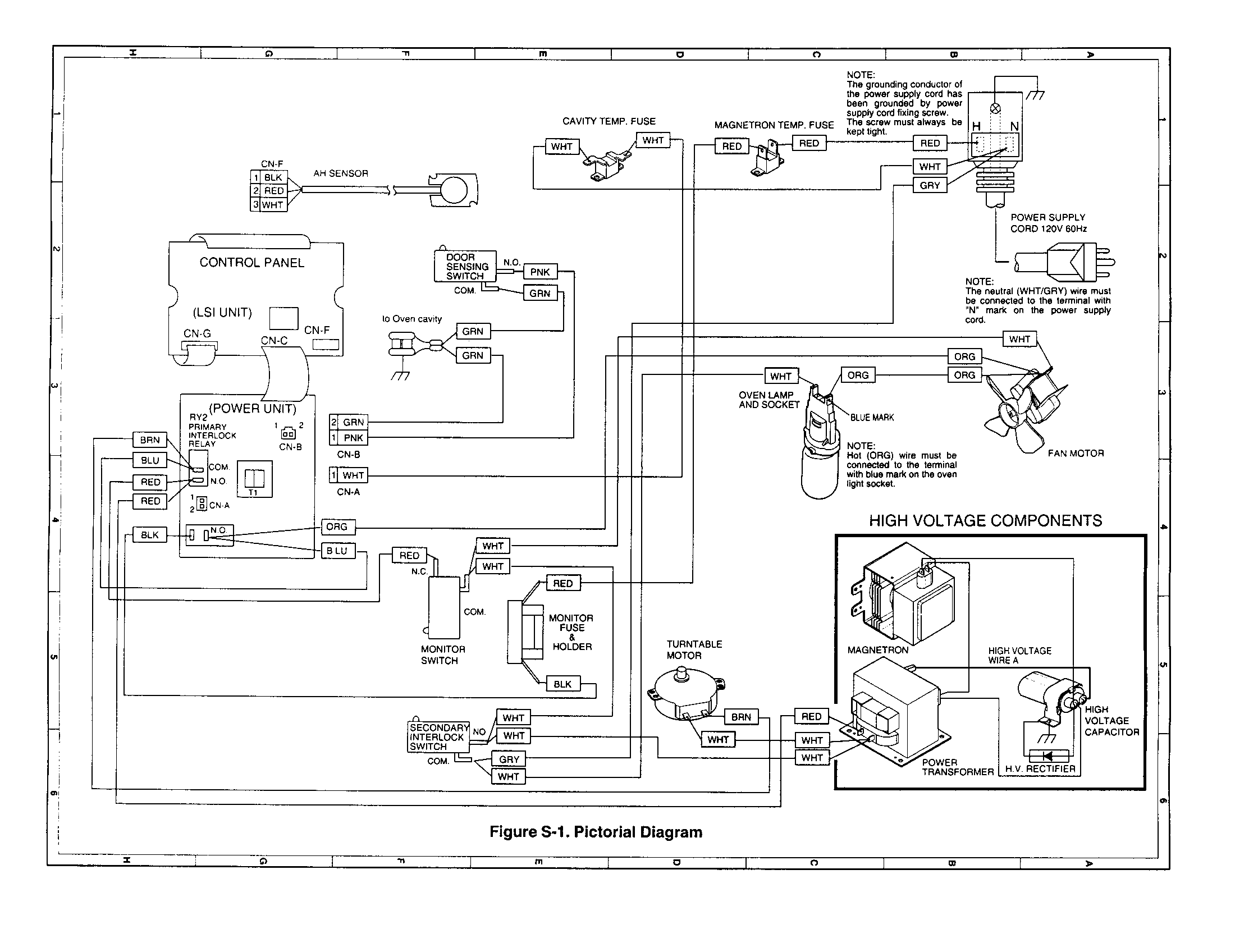

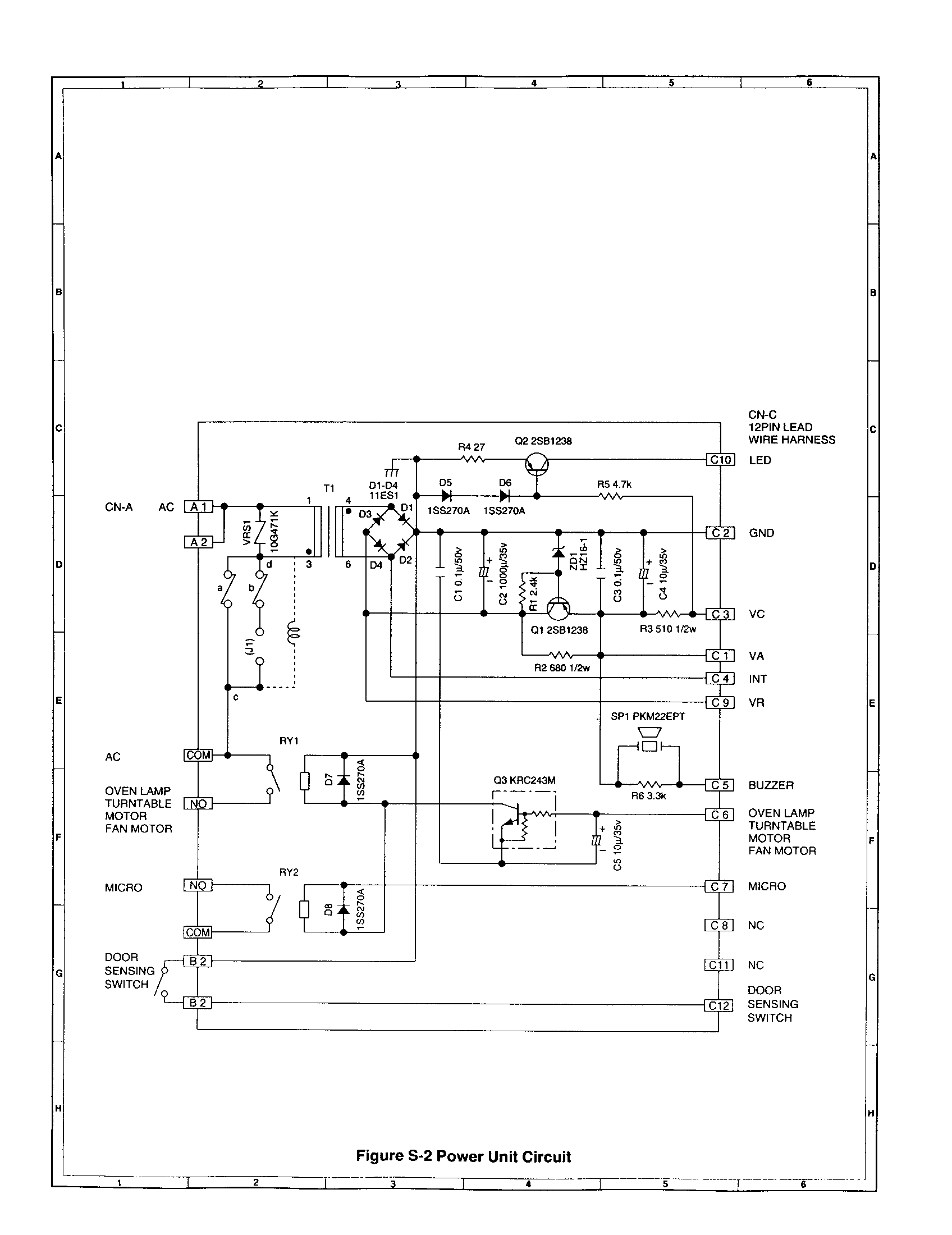

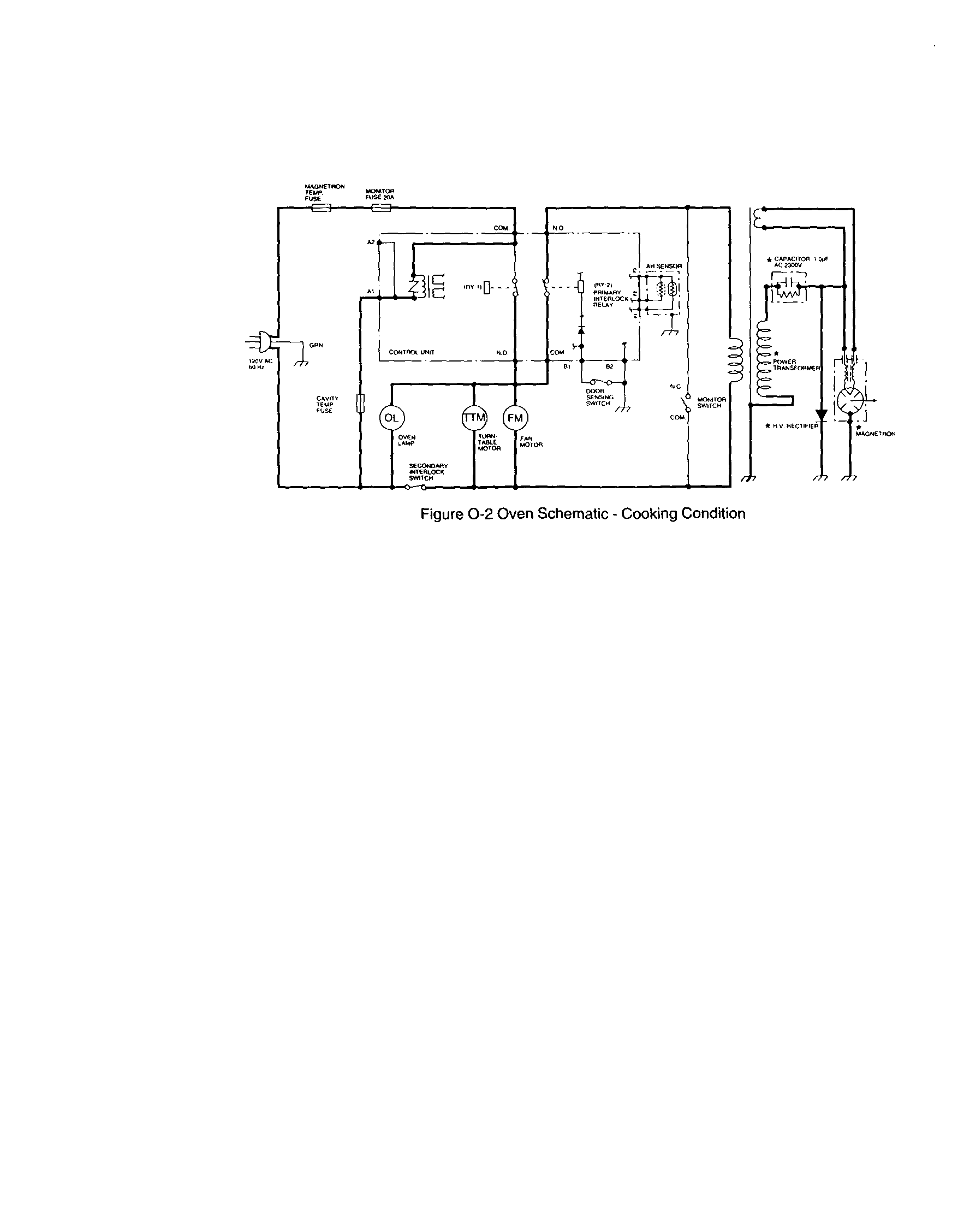

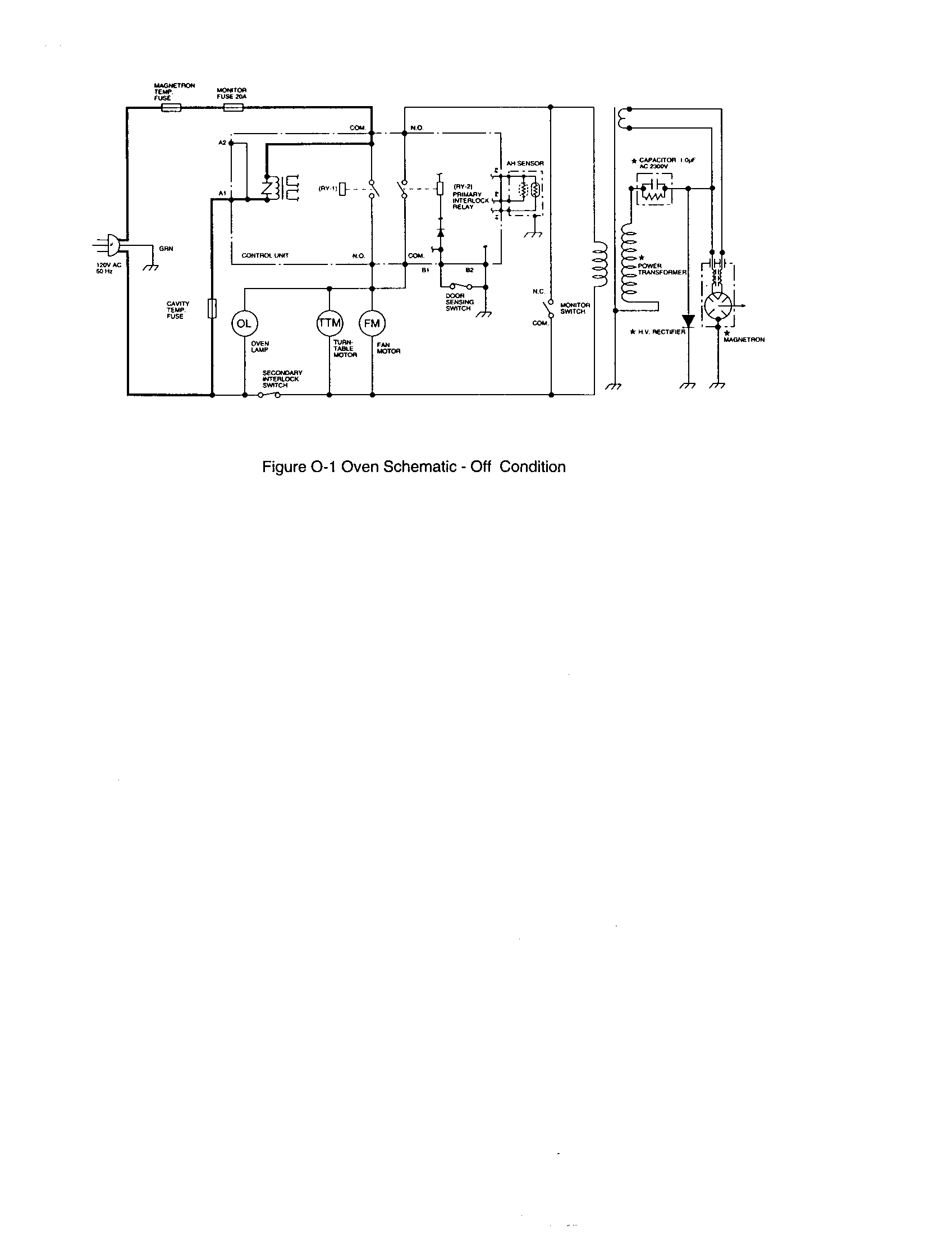

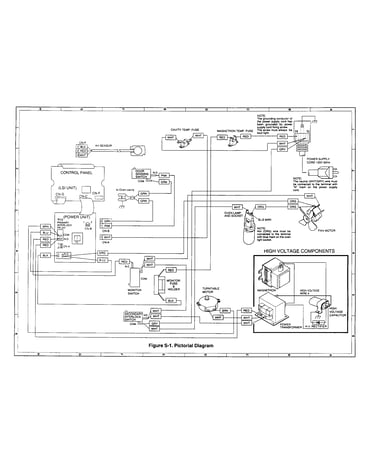

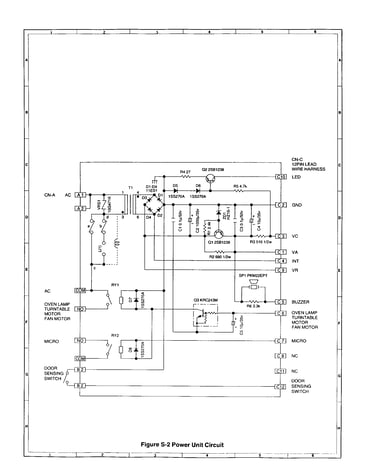

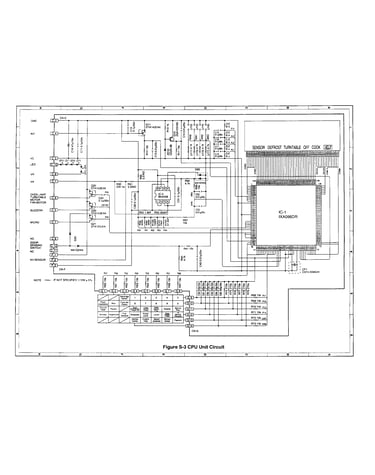

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 97 parts  |

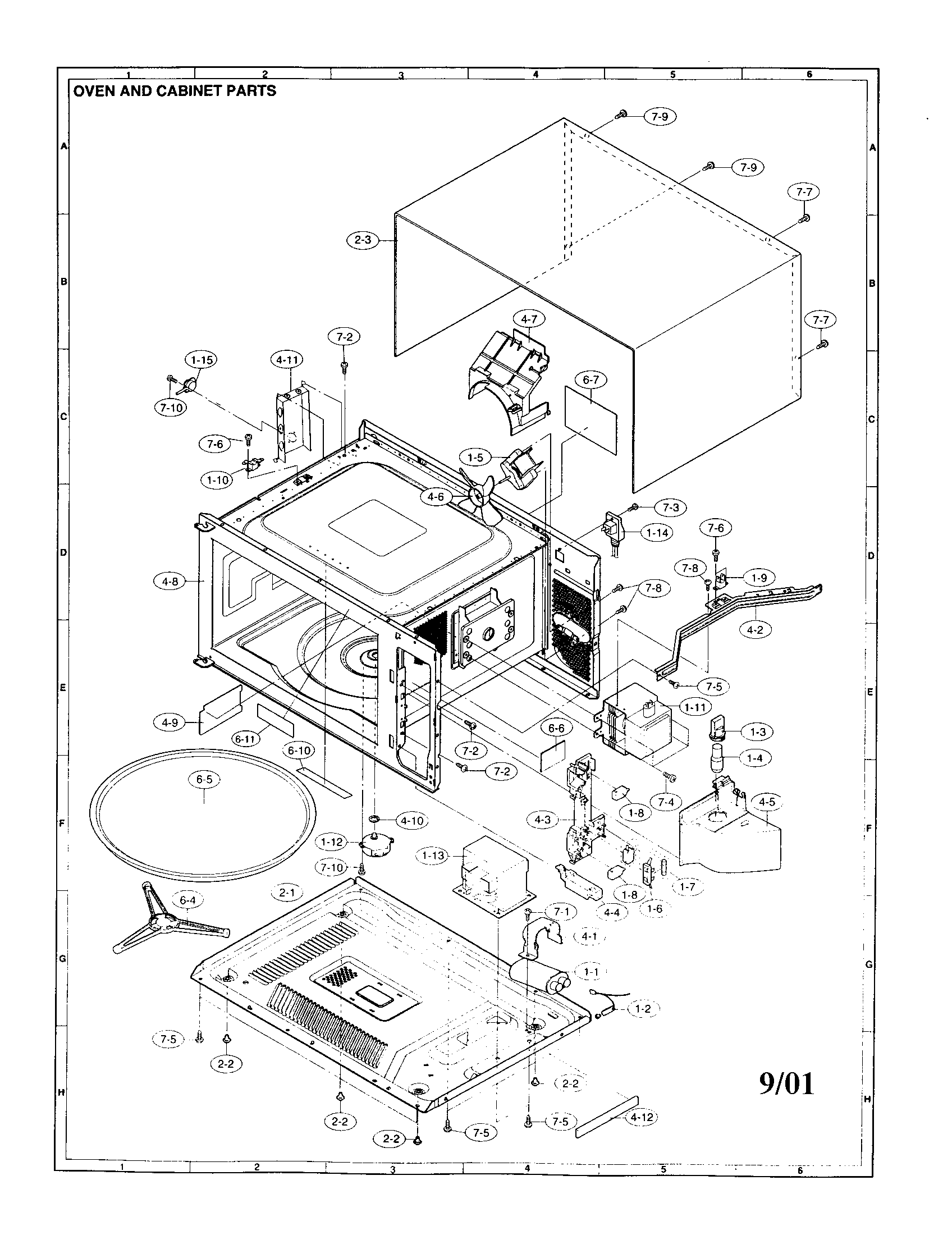

Oven Cover PCOVPB085MRP0

#4-09

All parts diagram

Oven cover

Part #PCOVPB085MRP0

The manufacturer no longer makes this part, and there's no substitute part

Capacitor VRD-B12EF242J

#NI

All parts diagram

Capacitor

Part #VRD-B12EF242J

The manufacturer no longer makes this part, and there's no substitute part

Cap H/v RC-QZB018MRE0

#1-01

All parts diagram

Cap h/v

Part #RC-QZB018MRE0

The manufacturer no longer makes this part, and there's no substitute part

Diode VHD11ES1///-1

#NI

All parts diagram

Diode

Part #VHD11ES1///-1

The manufacturer no longer makes this part, and there's no substitute part

Tray NTNT-A095WRE0

#6-05

All parts diagram

Tray

Part #NTNT-A095WRE0

The manufacturer no longer makes this part, and there's no substitute part

Sensor FDTCTA198WRK0

#1-15

All parts diagram

Sensor

Part #FDTCTA198WRK0

The manufacturer no longer makes this part, and there's no substitute part

Label TCAUAB037MRR0

#6-06

All parts diagram

Label

Part #TCAUAB037MRR0

The manufacturer no longer makes this part, and there's no substitute part

Switch FFS-BA016/KIT

#1-07

All parts diagram

Switch

Part #FFS-BA016/KIT

The manufacturer no longer makes this part, and there's no substitute part

Resistor VRD-B12HF681J

#NI

All parts diagram

Resistor

Part #VRD-B12HF681J

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder QFSHDB003MRE0

#1-06

All parts diagram

Fuse holder

Part #QFSHDB003MRE0

The manufacturer no longer makes this part, and there's no substitute part
