KitchenAid KGCP484KSS05 gas counter unit Parts
Here are the diagrams and repair parts for KitchenAid KGCP484KSS05 gas counter unit, as well as links to manuals and error code tables, if available.
Installation guide
Error CodesBy Schematic
By Part
SELECT DIAGRAM
Browse Parts for KGCP484KSS05 Cooktops

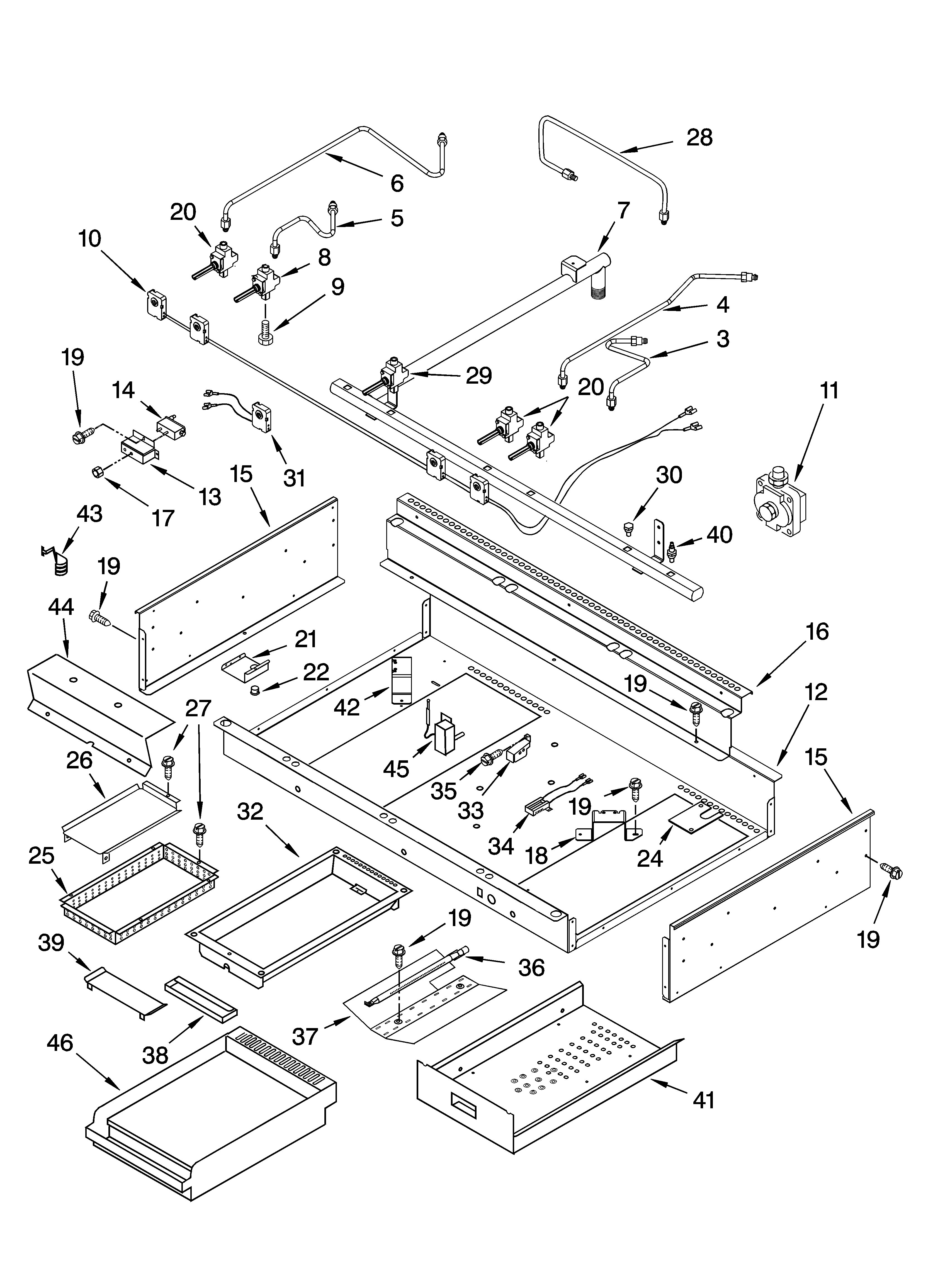

Burner box, gas valves, and switches, optional parts diagram
Burner Tube
Part #8284966
The manufacturer no longer makes this part, and there's no substitute part
Burner box, gas valves, and switches, optional parts diagram
Drip Tray
Part #W10157581
The manufacturer no longer makes this part, and there's no substitute part

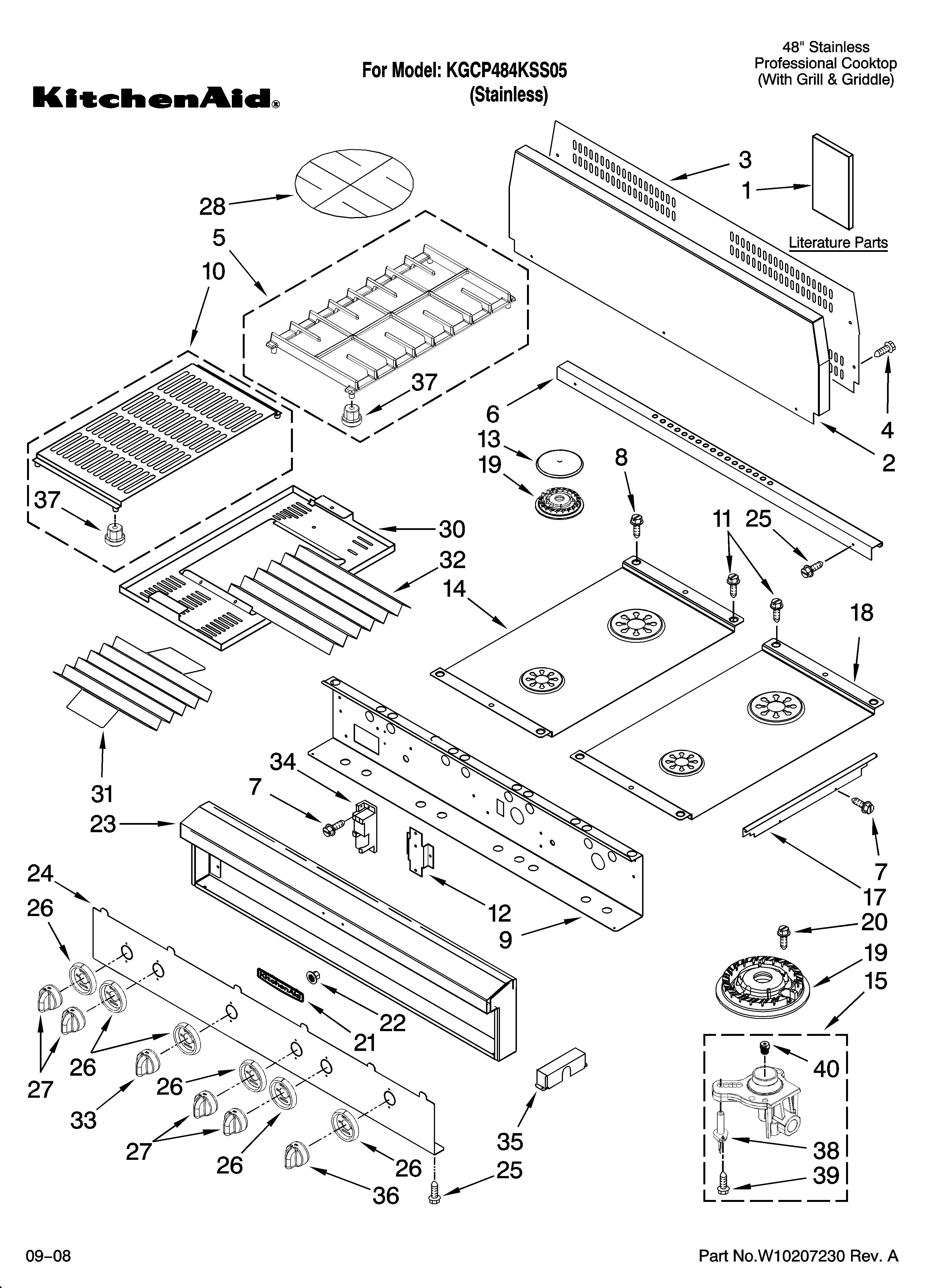

Cooktop, burner and grate parts diagram
Cover
Part #8285038
The manufacturer no longer makes this part, and there's no substitute part
Burner box, gas valves, and switches, optional parts diagram
Conversion Kit
Part #8284782
The manufacturer no longer makes this part, and there's no substitute part
Burner box, gas valves, and switches, optional parts diagram
Gas Tubing
Part #4455154
The manufacturer no longer makes this part, and there's no substitute part
Burner box, gas valves, and switches, optional parts diagram
Box
Part #8285488
The manufacturer no longer makes this part, and there's no substitute part
Cooktop, burner and grate parts diagram
Range Burner Head
Part #4455849
The manufacturer no longer makes this part, and there's no substitute part
Burner box, gas valves, and switches, optional parts diagram
Mounting Bracket
Part #8284993
The manufacturer no longer makes this part, and there's no substitute part
Burner box, gas valves, and switches, optional parts diagram
Wire Harness
Part #8285048
The manufacturer no longer makes this part, and there's no substitute part
Cooktop, burner and grate parts diagram
Panel Frame
Part #W10157551
The manufacturer no longer makes this part, and there's no substitute part
Most common symptoms to help you fix your cooktops
Choose a symptom to see related cooktop repairs.
Main causes: lack of electrical power, gas supply failure, bad pressure regulator, control system failure…
Repair guides for gas cooktops
How to replace a spark module on a gas cooktop
No flame on your gas cooktop? Installing a new spark module could be the fix you need.…
Repair time and Difficulty
30 minutes or less
How to replace a spark igniter switch on a gas cooktop
Follow these step-by-step instructions to fix the surface burner ignition system on your gas cooktop by replacing the sp…
Repair time and Difficulty
45 minutes or less
