Model # PF1MNC024000AAAA Official Payne air handler

Here are the diagrams and repair parts for Official Payne PF1MNC024000AAAA air handler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 134 parts  |
Central Air Conditioner Air Handler Blower Motor Relay (replaces Hn61pc003) HN61PC002
#NI

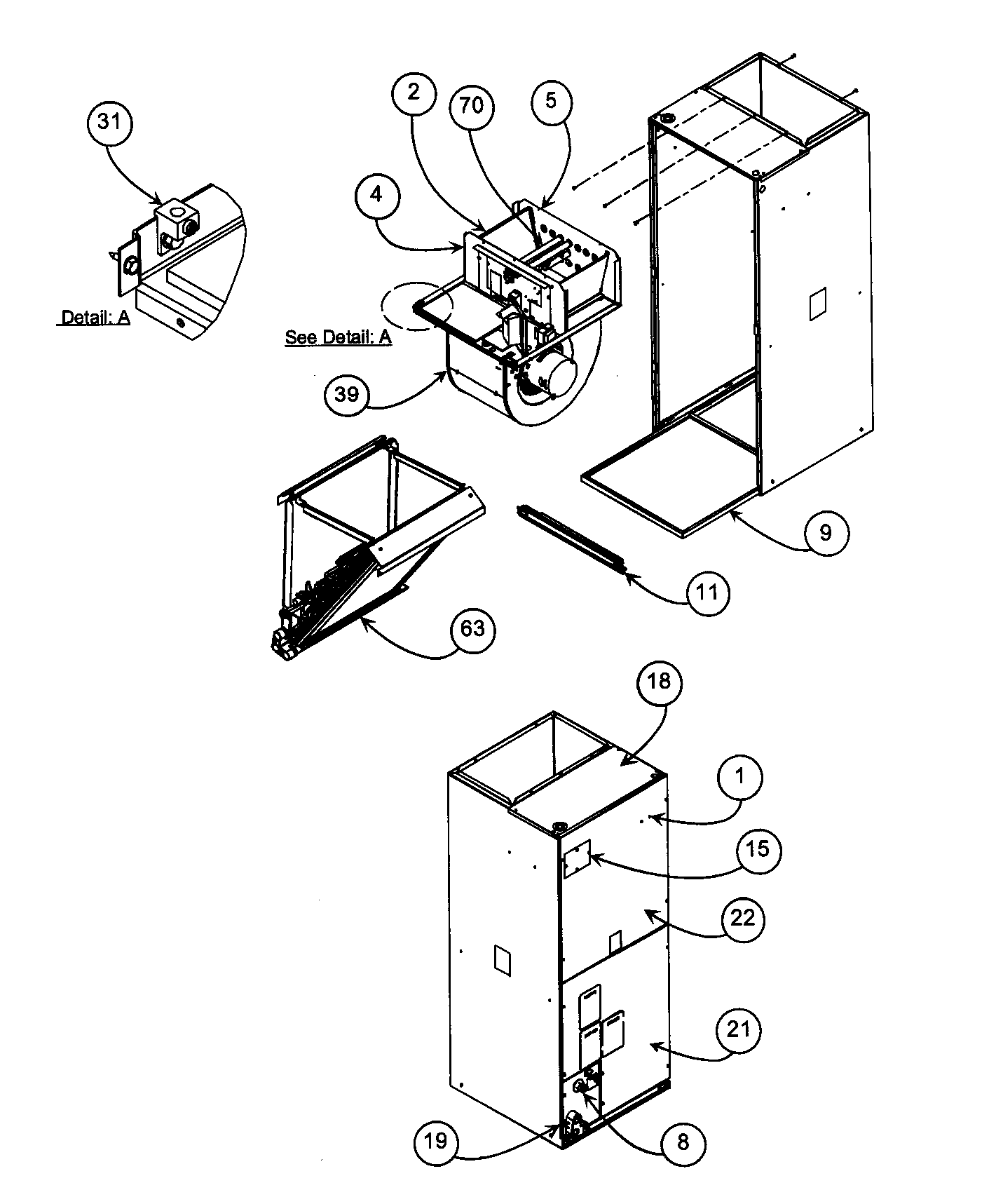

Cabinet parts diagram

Central air conditioner air handler blower motor relay (replaces hn61pc003)

Part #HN61PC002

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Air Handler Fan Control Board HK61EA006
#29

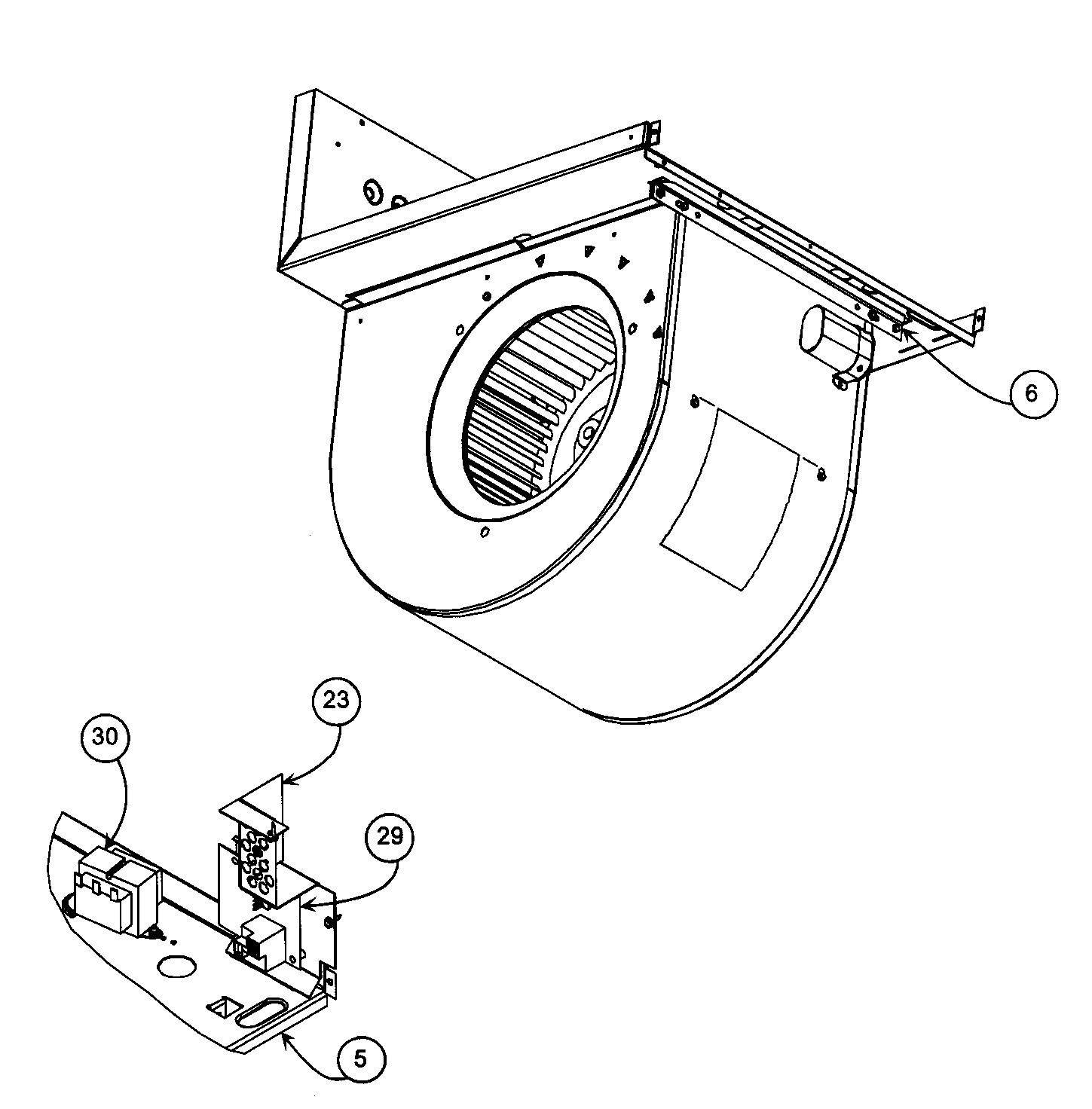

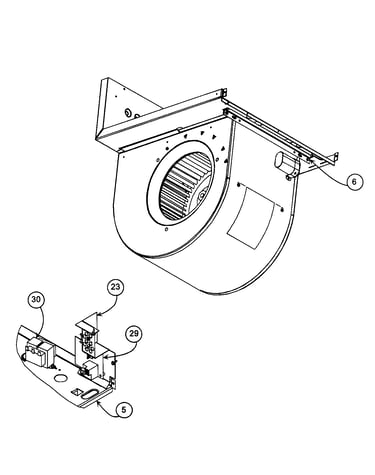

Blower assy diagram

Central air conditioner air handler fan control board

Part #HK61EA006

This item is not returnable
$93.96 |
5% OFF Phone Price : $98.96
In Stock
Diode Board HK61EA003
#NI

Cabinet parts diagram

Diode board

Part #HK61EA003

The manufacturer no longer makes this part, and there's no substitute part

Harness 322027-701
#NI

Cabinet parts diagram

Harness

Part #322027-701

$25.20
In Stock
Carrier 1 1/2-3ton Downflow Conv Kit KFADC0201SLP
#NI

Cabinet parts diagram

Carrier 1 1/2-3ton downflow conv kit

Part #KFADC0201SLP

$137.24
In Stock
Connector HY90AZ021
#NI

Cabinet parts diagram

Connector

Part #HY90AZ021

This item is not returnable
$6.40
In Stock
125,kit E/heat 10kw-fused KFCEH0901N10
#NI

Cabinet parts diagram

125,kit e/heat 10kw-fused

Part #KFCEH0901N10

$446.53
In Stock
Mtr Mnt Band P251-0078
#NI

Cabinet parts diagram

Mtr mnt band

Part #P251-0078

$24.58
In Stock
Pcb Assembly HK61EA004
#NI

Cabinet parts diagram

Pcb assembly

Part #HK61EA004

The manufacturer no longer makes this part, and there's no substitute part

Central Air Conditioner Air Handler Transformer (replaces Ht01bd208) HT01CN241
#30

Blower assy diagram

Central air conditioner air handler transformer (replaces ht01bd208)

Part #HT01CN241

$104.52
In Stock
