Model # 536905902 Official Craftsman 20" snow blower

Here are the diagrams and repair parts for Official Craftsman 536905902 20" snow blower, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

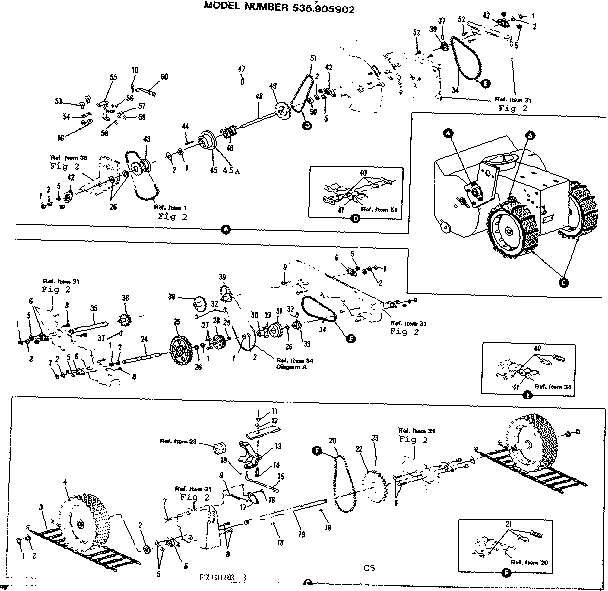

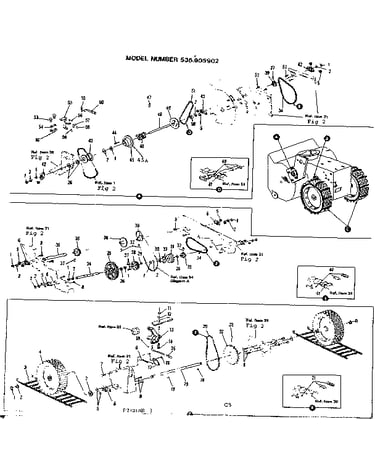

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 178 parts  |
Retaining Ring 36625
Retaining ring

Part #36625

Replaced by #812000029

?
Manufacturer substitution
This part replaces 36625. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$3.50 |
22% OFF Phone Price : $4.50
In Stock
Lock Nut 9424215
Lock nut

Part #9424215

Replaced by #703251

?
Manufacturer substitution
This part replaces 9424215. Substitute parts can look different from the original.
$8.07 |
11% OFF Phone Price : $9.07
In Stock
Lock Nut 9413447
Lock nut

Part #9413447

The manufacturer no longer makes this part, and there's no substitute part

Locknut 18 271184
Locknut 18

Part #271184

The manufacturer no longer makes this part, and there's no substitute part

Hex Head Screw 122007
#31

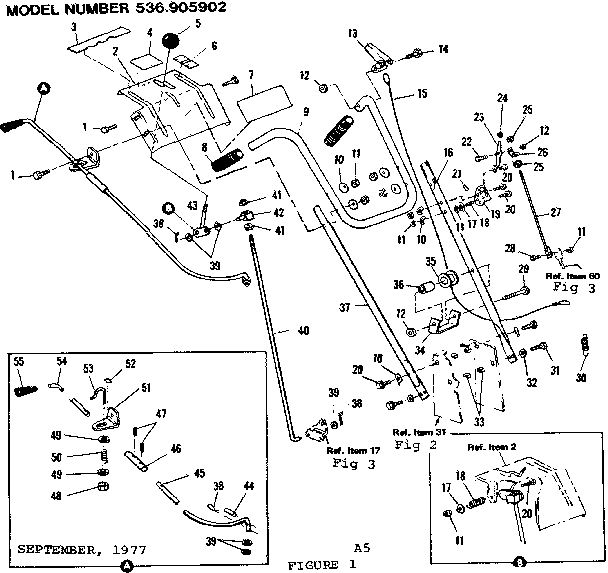

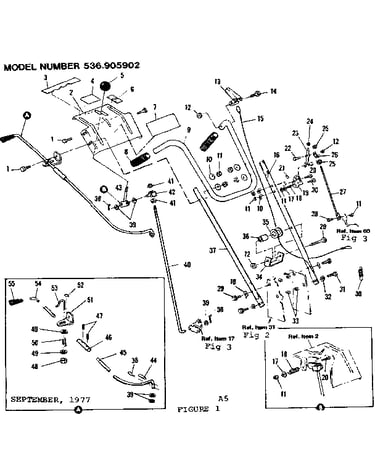

Handle assembly diagram

Hex head screw

Part #122007

The manufacturer no longer makes this part, and there's no substitute part

Formd Washer 22025
#10

Handle assembly diagram

Formd washer

Part #22025

Replaced by #311936MA

?
Manufacturer substitution
This part replaces 22025. Substitute parts can look different from the original.
This item is not returnable
$12.71 |
14% OFF Phone Price : $14.71
In Stock
Screw 35497
#36

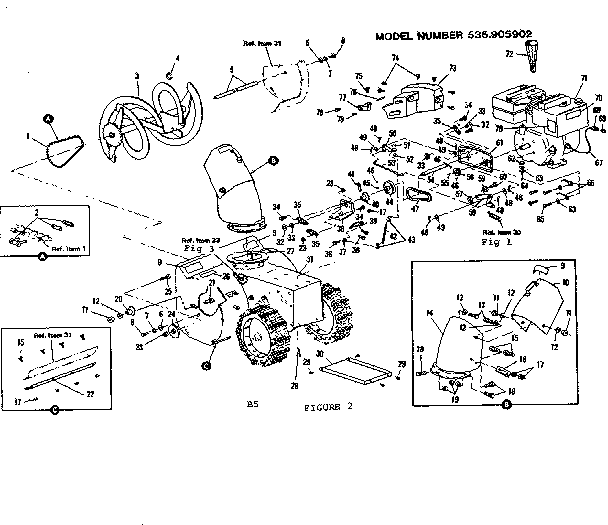

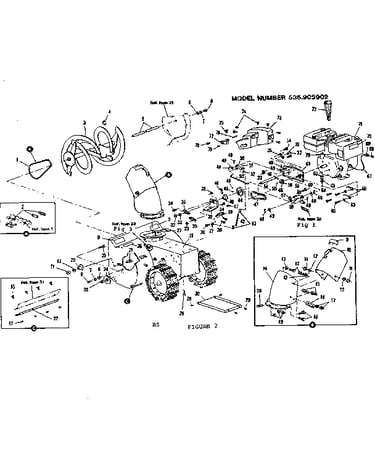

Engine diagram

Screw

Part #35497

Replaced by #703985

?
Manufacturer substitution
This part replaces 35497. Substitute parts can look different from the original.
This item is not returnable
$6.89 |
13% OFF Phone Price : $7.89
In Stock
Split Lockwr 120638
Split lockwr

Part #120638

The manufacturer no longer makes this part, and there's no substitute part

Lock Washer 120382
#7

Engine diagram

Lock washer

Part #120382

The manufacturer no longer makes this part, and there's no substitute part

Decal 67173
#9

Engine diagram

Decal

Part #67173

Replaced by #48X5580MA

?
Manufacturer substitution
This part replaces 67173. Substitute parts can look different from the original.
$28.37
In Stock
