Thermador
Wall Oven/Microwave Combo

Model #MEMCW301ES01 Official Thermador built-in oven with microwave

Here are the diagrams and repair parts for Thermador MEMCW301ES01 built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

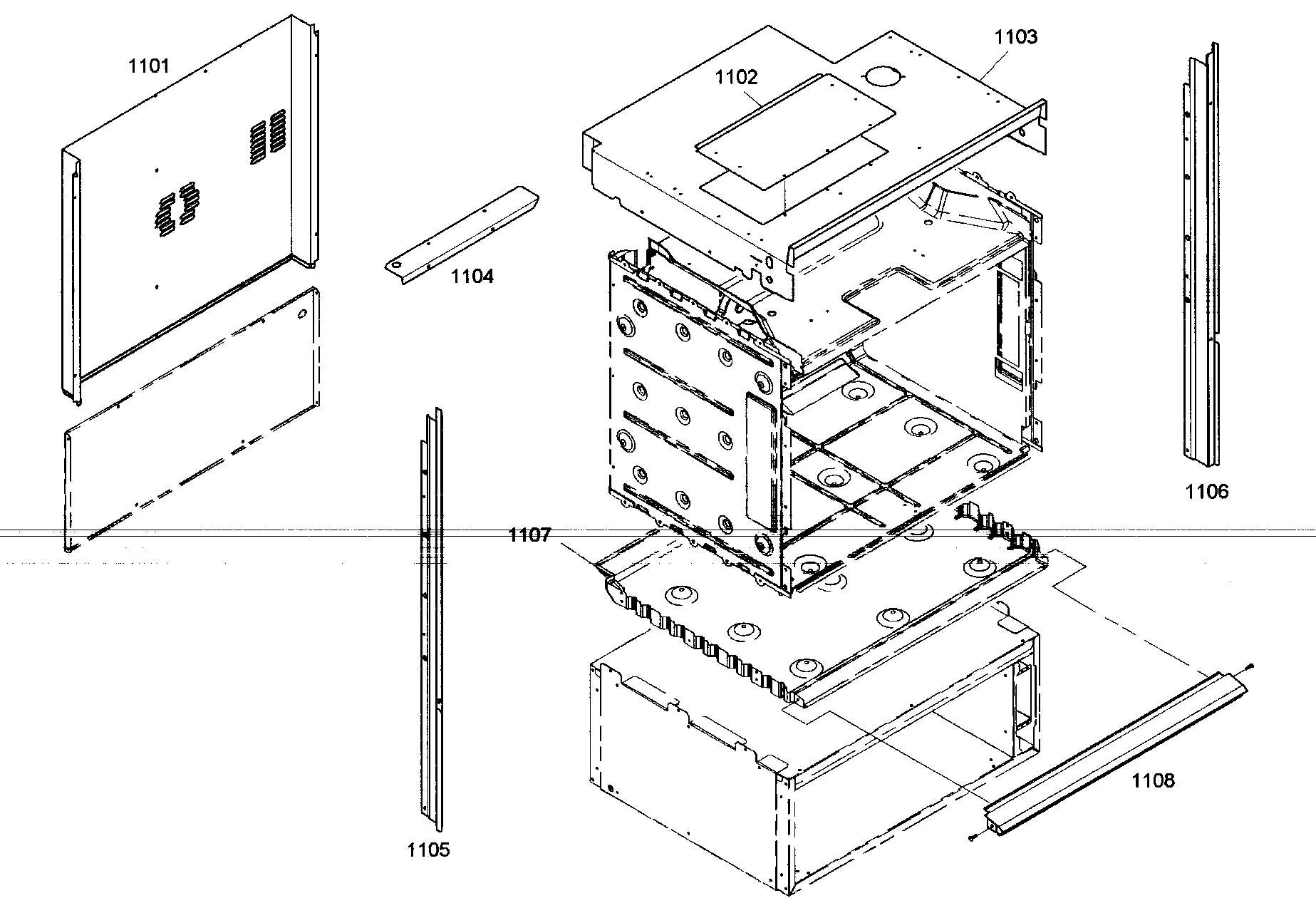

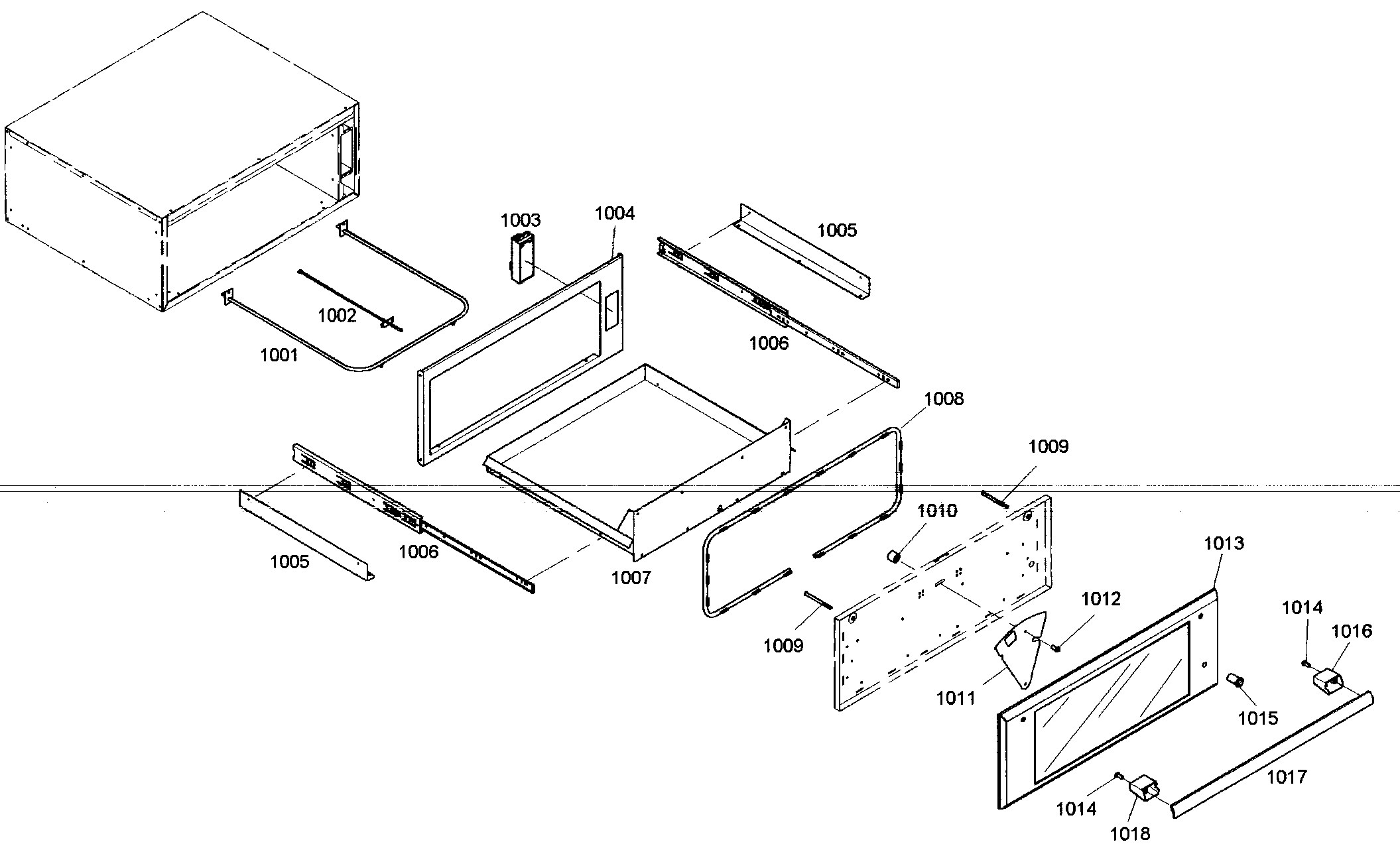

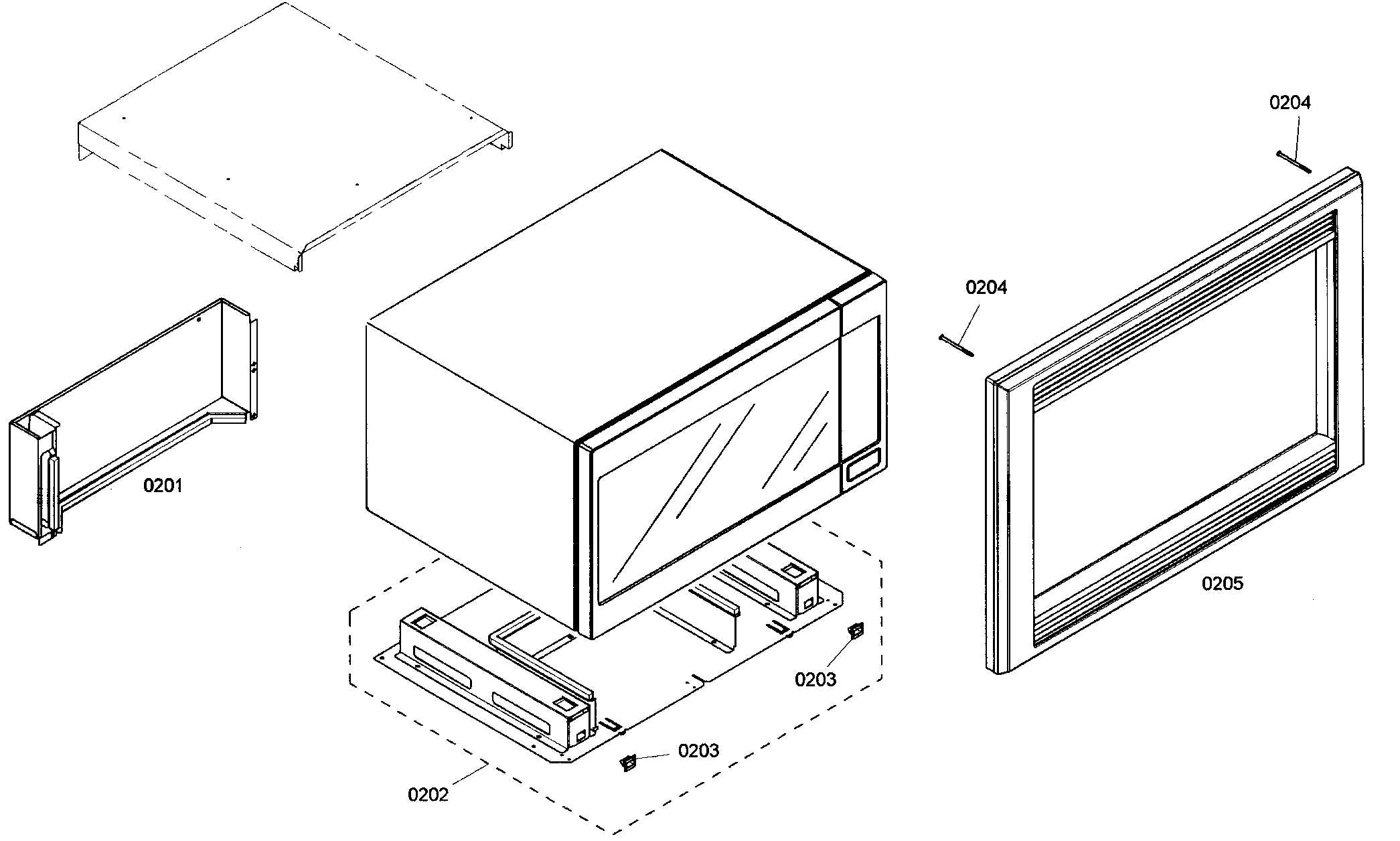

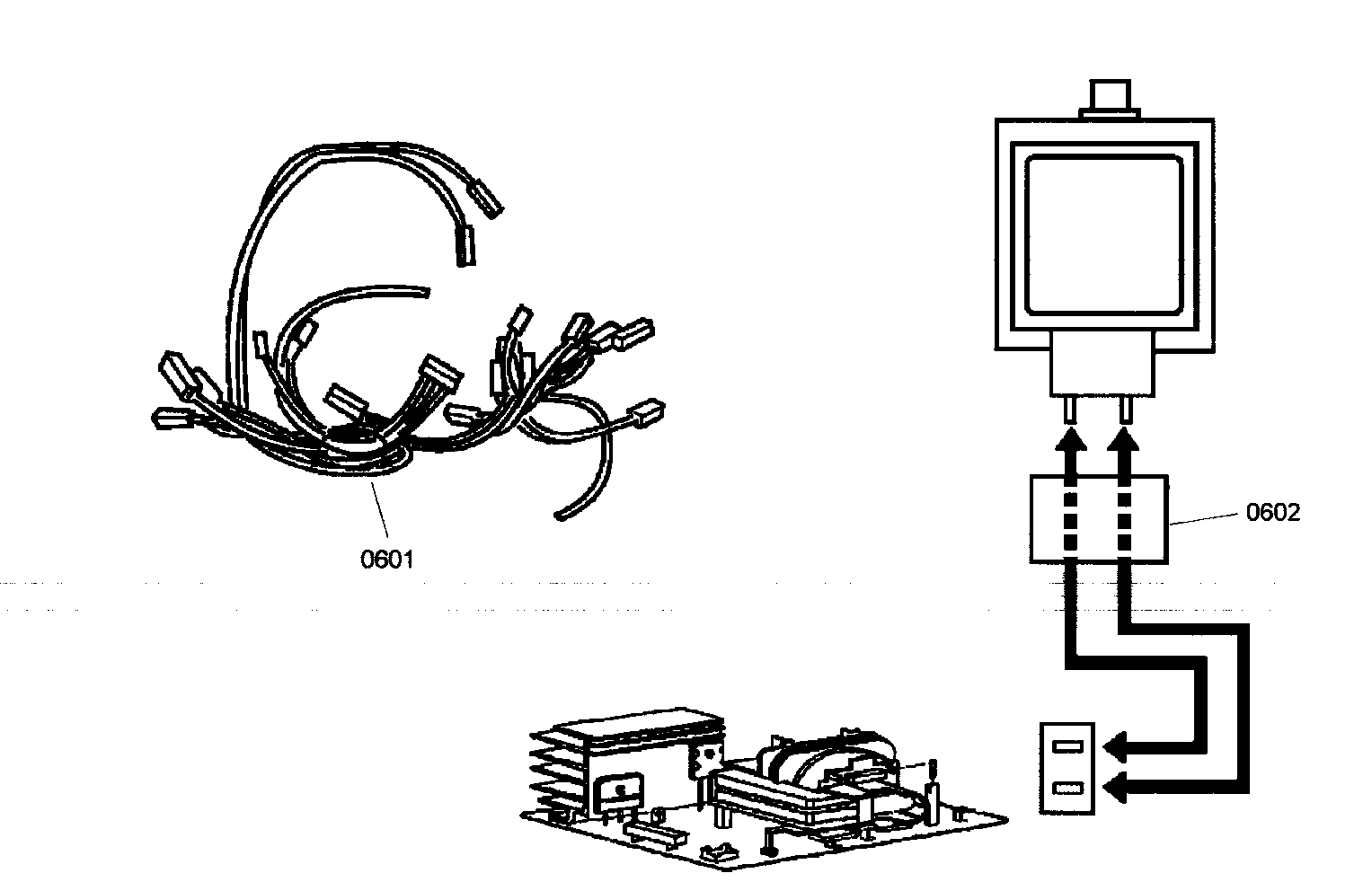

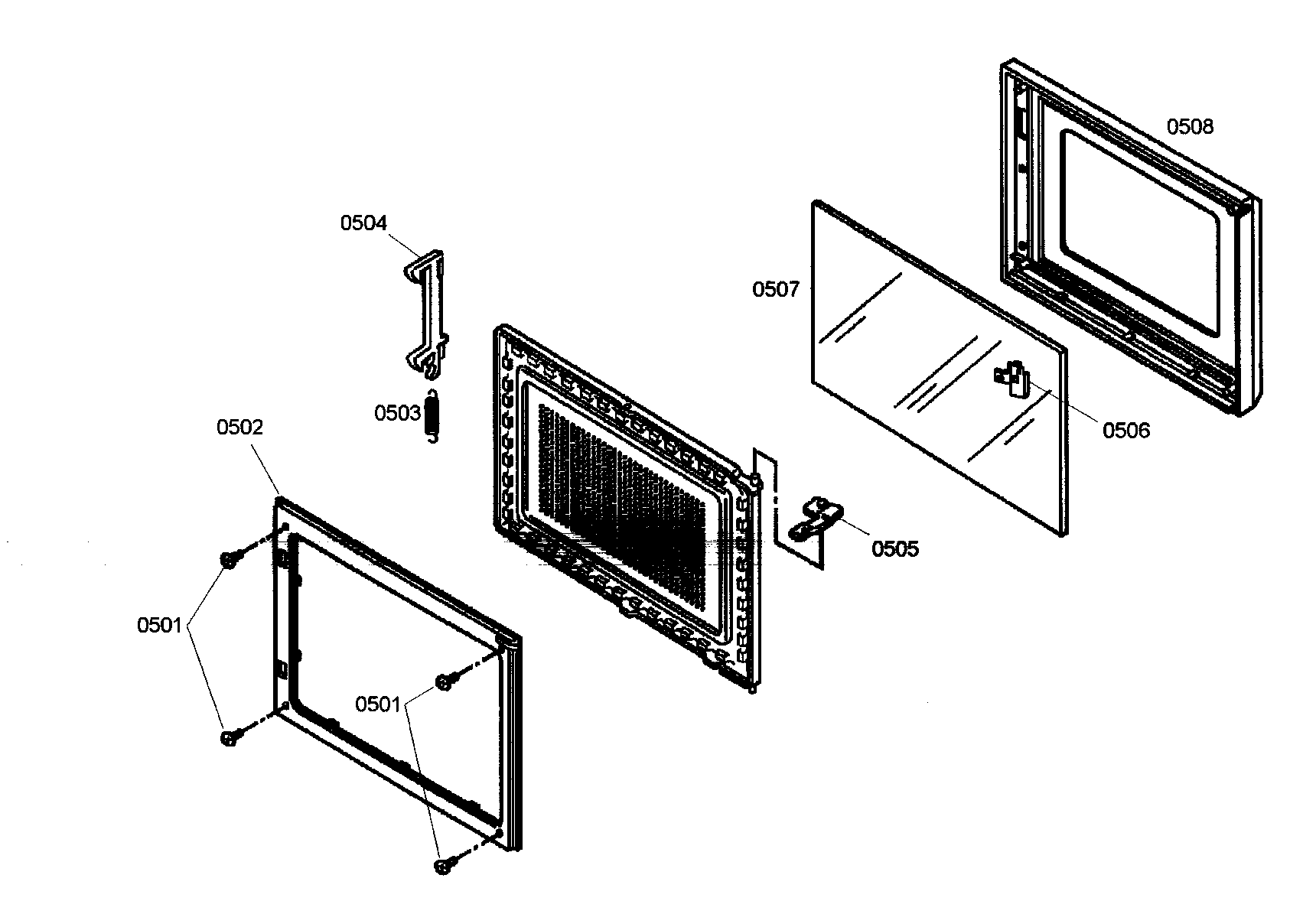

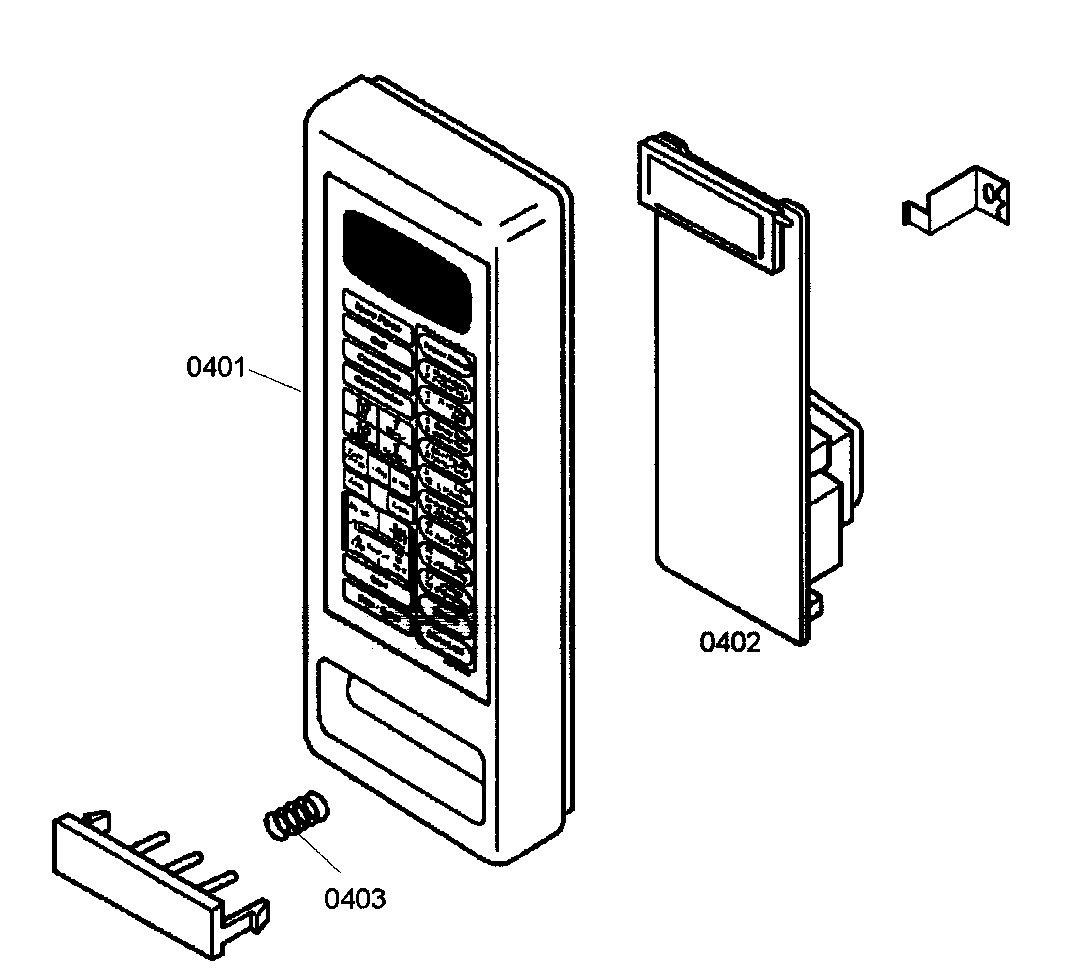

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guideOwner’s manual

Showing 10 of 124 parts

Wall Oven Temperature Sensor#808

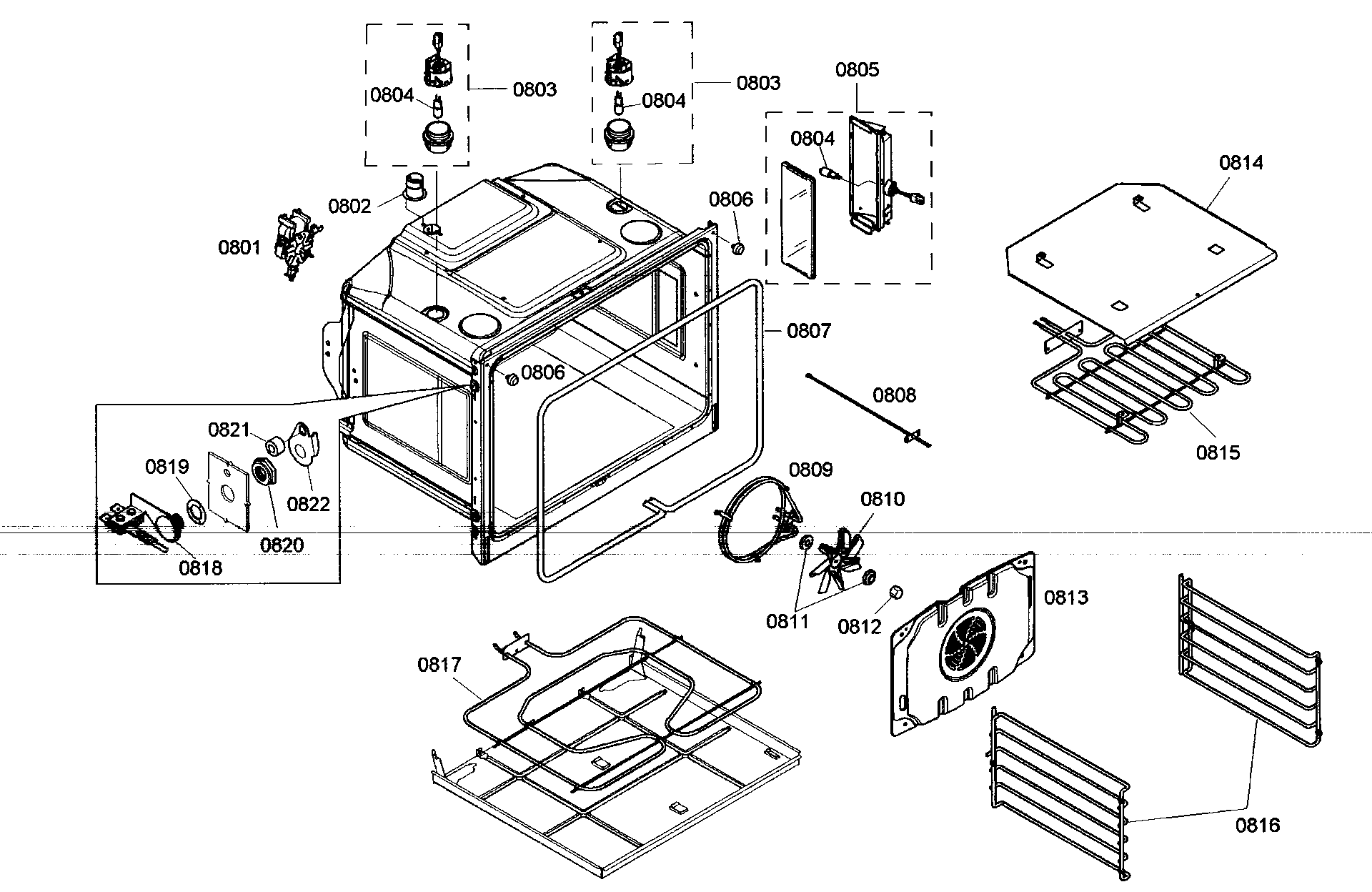

Oven cabinet parts Diagram

Sensor

Part #642855
Replaced by #00642855
?
Manufacturer substitution
This part replaces 642855. Substitute parts can look different from the original.
In Stock
$64.49 |
7% OFF
Phone Price: $69.49
Wall Oven High-Limit Thermostat#702

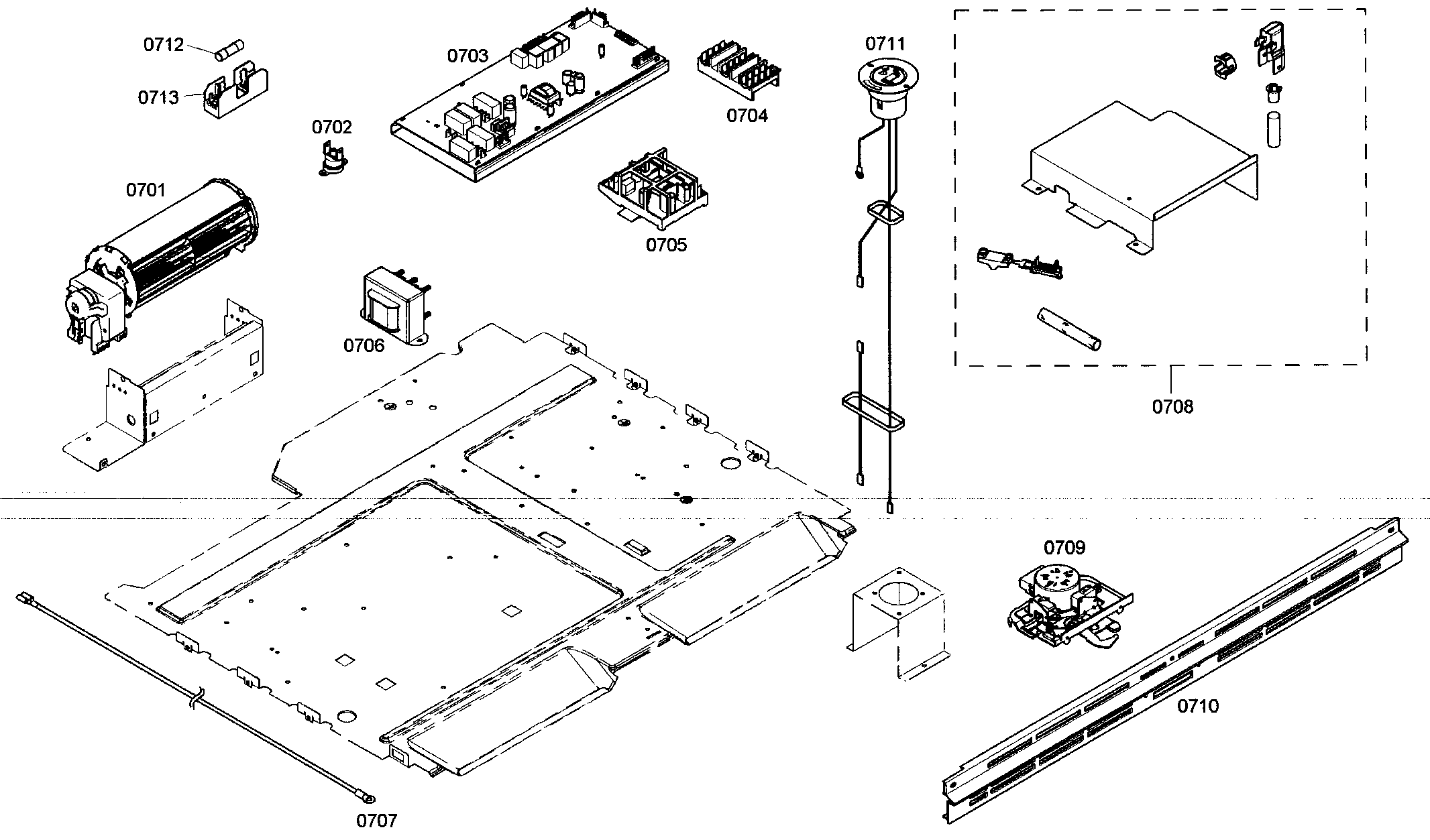

Control assy Diagram

Limiter

Part #642844
Replaced by #00617877
?
Manufacturer substitution
This part replaces 642844. Substitute parts can look different from the original.
In Stock
$29.94
Microwave Inverter Board#310

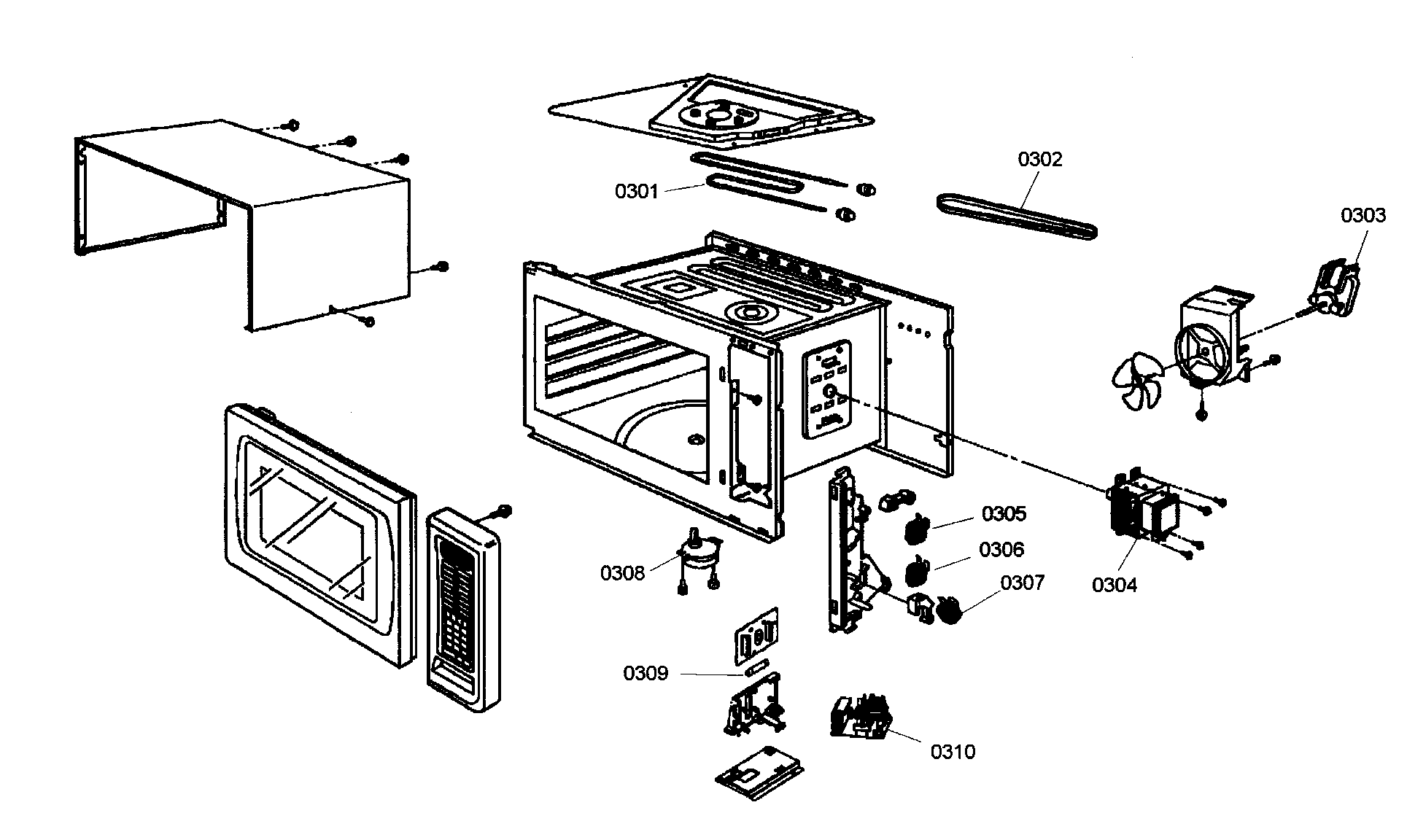

Microwave cabinet parts Diagram

Power supply

Part #643049
Replaced by #00641857
?
Manufacturer substitution
This part replaces 643049. Substitute parts can look different from the original.
In Stock
$415.80 |
$10.00 OFF
Phone Price: $425.80

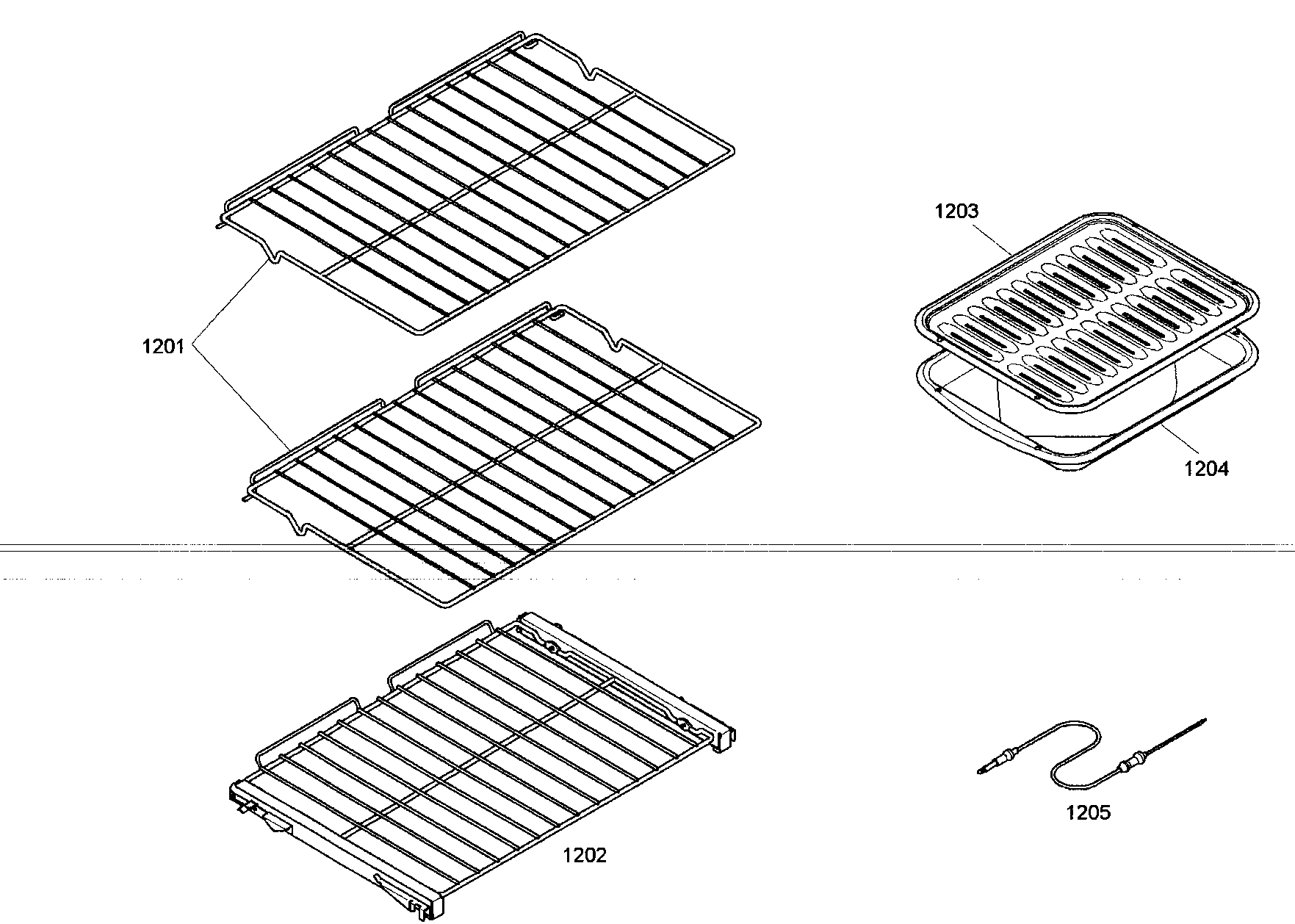

Range Oven Meat Probe Sensor#1205

Racks Diagram

Plug

Part #492332
Replaced by #00755060
?
Manufacturer substitution
This part replaces 492332. Substitute parts can look different from the original.
In Stock
$89.61 |
5% OFF
Phone Price: $94.61

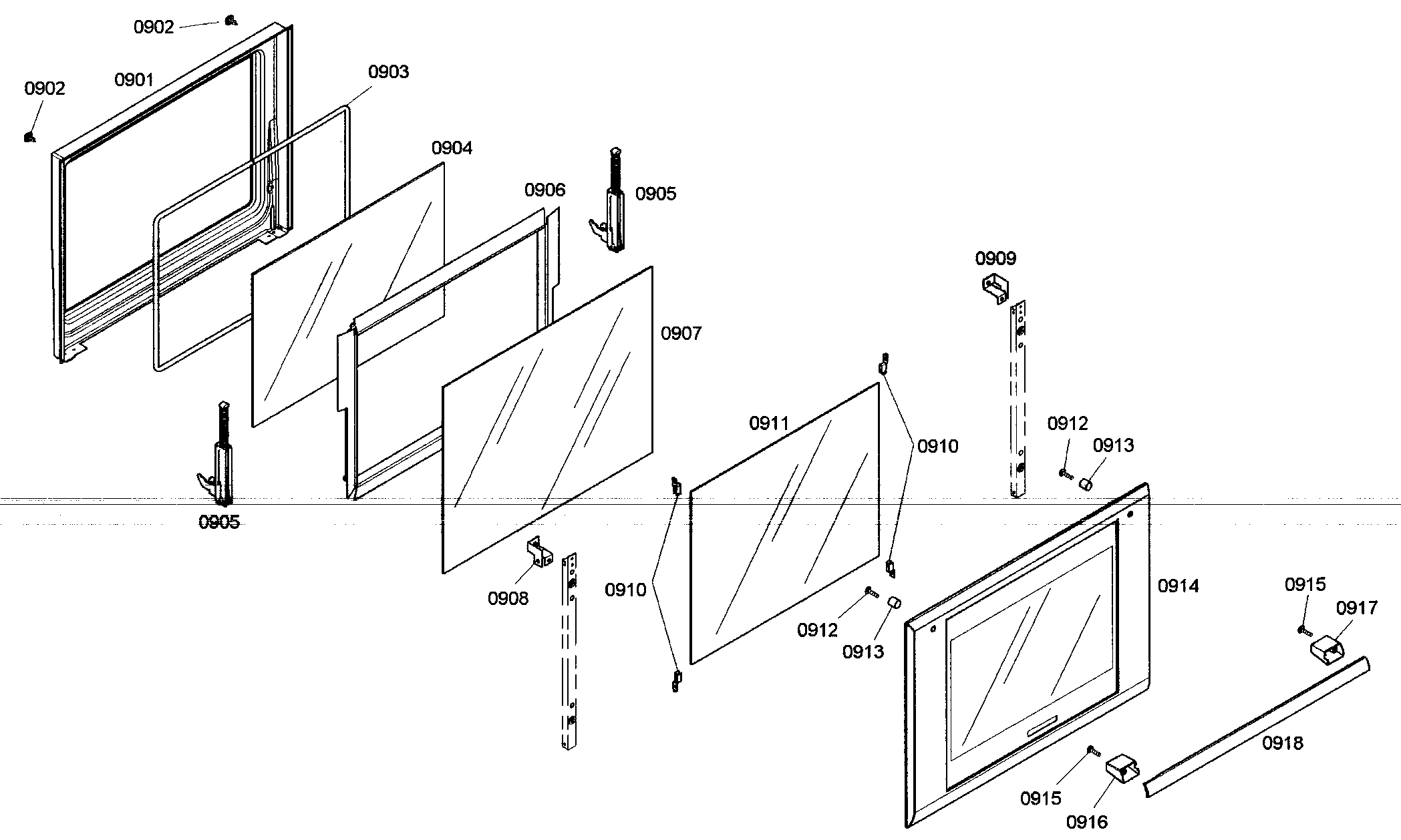

Wall Oven Door Middle Glass#907

Oven door assy Diagram

Glass panel

Part #478310
Replaced by #00478310
?
Manufacturer substitution
This part replaces 478310. Substitute parts can look different from the original.
In Stock
$162.31
Range Oven Door Inner Glass#904

Oven door assy Diagram

Glass panel

Part #478309
Replaced by #00770023
?
Manufacturer substitution
This part replaces 478309. Substitute parts can look different from the original.
In Stock
$182.39 |
5% OFF
Phone Price: $192.39
Wall Oven Cooling Fan Assembly#701

Control assy Diagram

Fan

Part #643600
Replaced by #00643600
?
Manufacturer substitution
This part replaces 643600. Substitute parts can look different from the original.
In Stock
$223.69 |
$10.00 OFF
Phone Price: $233.69
Wall Oven Microwave Fuse Holder#713

Control assy Diagram

Fuse

Part #413607
Replaced by #00627939
?
Manufacturer substitution
This part replaces 413607. Substitute parts can look different from the original.
In Stock
$77.33
Spacer#821

Oven cabinet parts Diagram

Spacer

Part #608200
Replaced by #00608200
?
Manufacturer substitution
This part replaces 608200. Substitute parts can look different from the original.
In Stock
$22.41
Nut#820

Oven cabinet parts Diagram

Nut

Part #608199
Replaced by #00608199
?
Manufacturer substitution
This part replaces 608199. Substitute parts can look different from the original.
In Stock
$7.54
