Caloric
Electric Cooktop

Model # EDR648 Official Caloric electric downdraft cooktop - r series

Here are the diagrams and repair parts for Official Caloric EDR648 electric downdraft cooktop - r series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

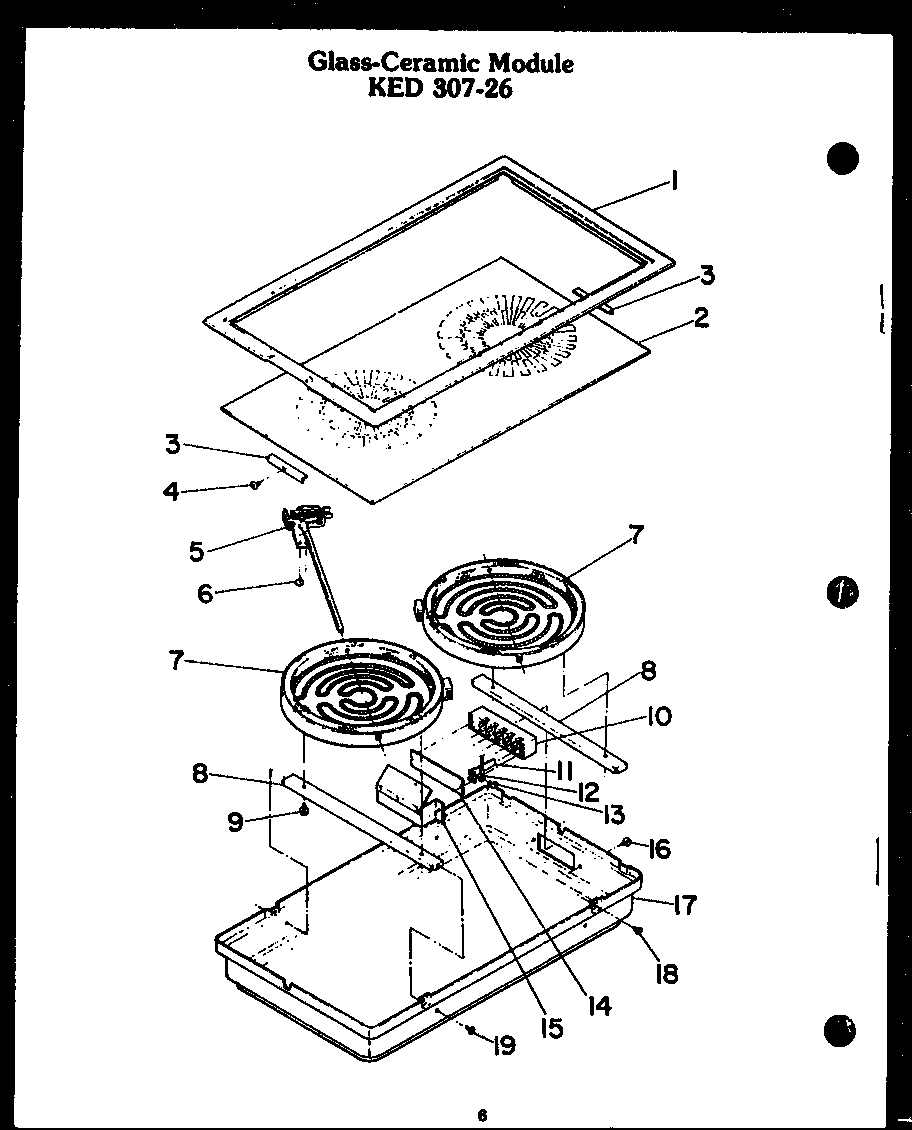

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Lg Pan 42144
#2

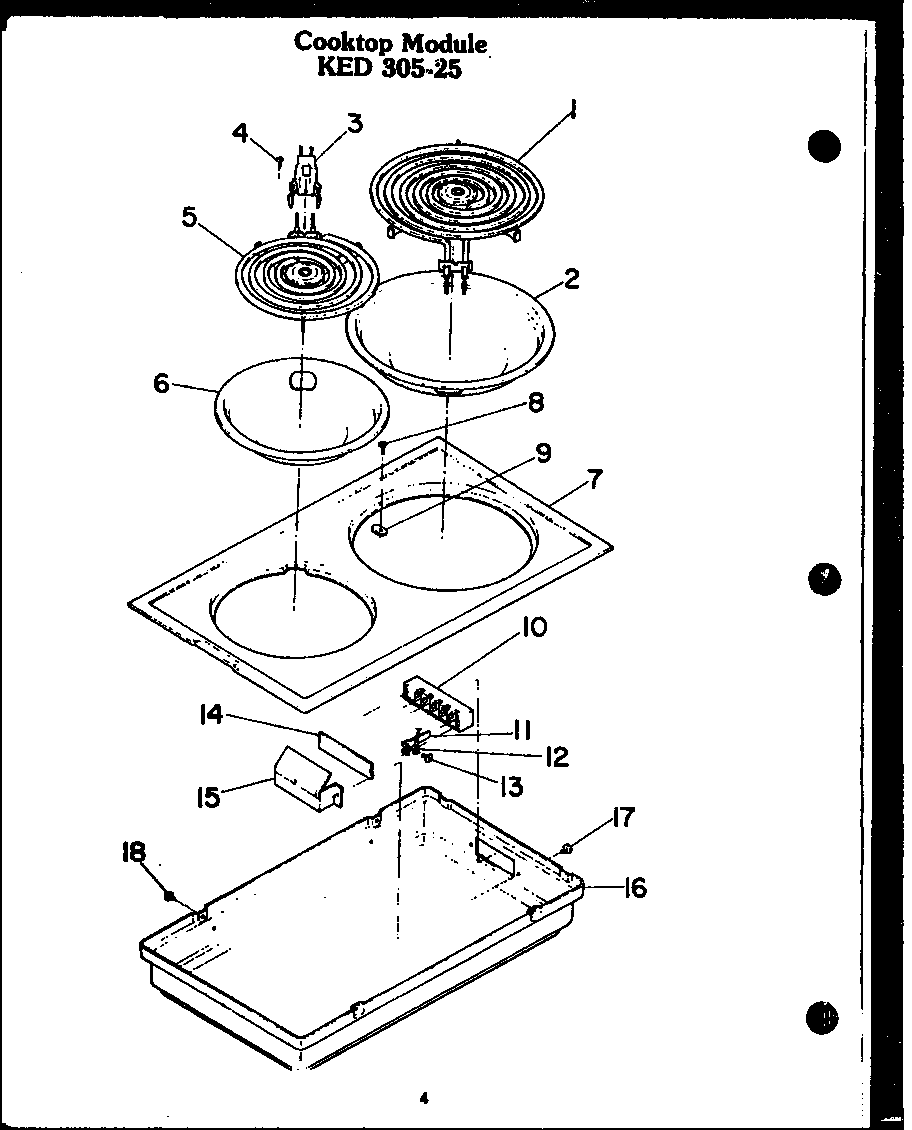

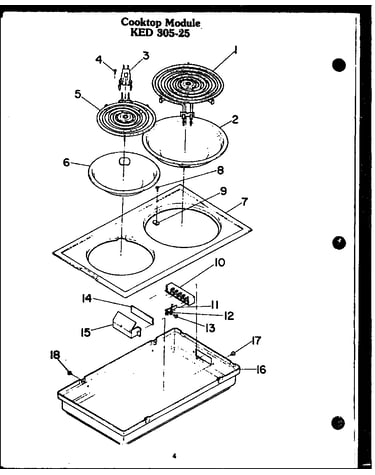

Cook top module ked 305-25 diagram

Lg pan

Part #42144

Replaced by #WPW10196405

?
Manufacturer substitution
This part replaces 42144. Substitute parts can look different from the original.
$8.52 |
11% OFF Phone Price : $9.52
In Stock
S Pan 42143
#6

Cook top module ked 305-25 diagram

S pan

Part #42143

Replaced by #W10196406RW

?
Manufacturer substitution
This part replaces 42143. Substitute parts can look different from the original.
$12.95 |
13% OFF Phone Price : $14.95
In Stock
Switch Gasket 41991
#8

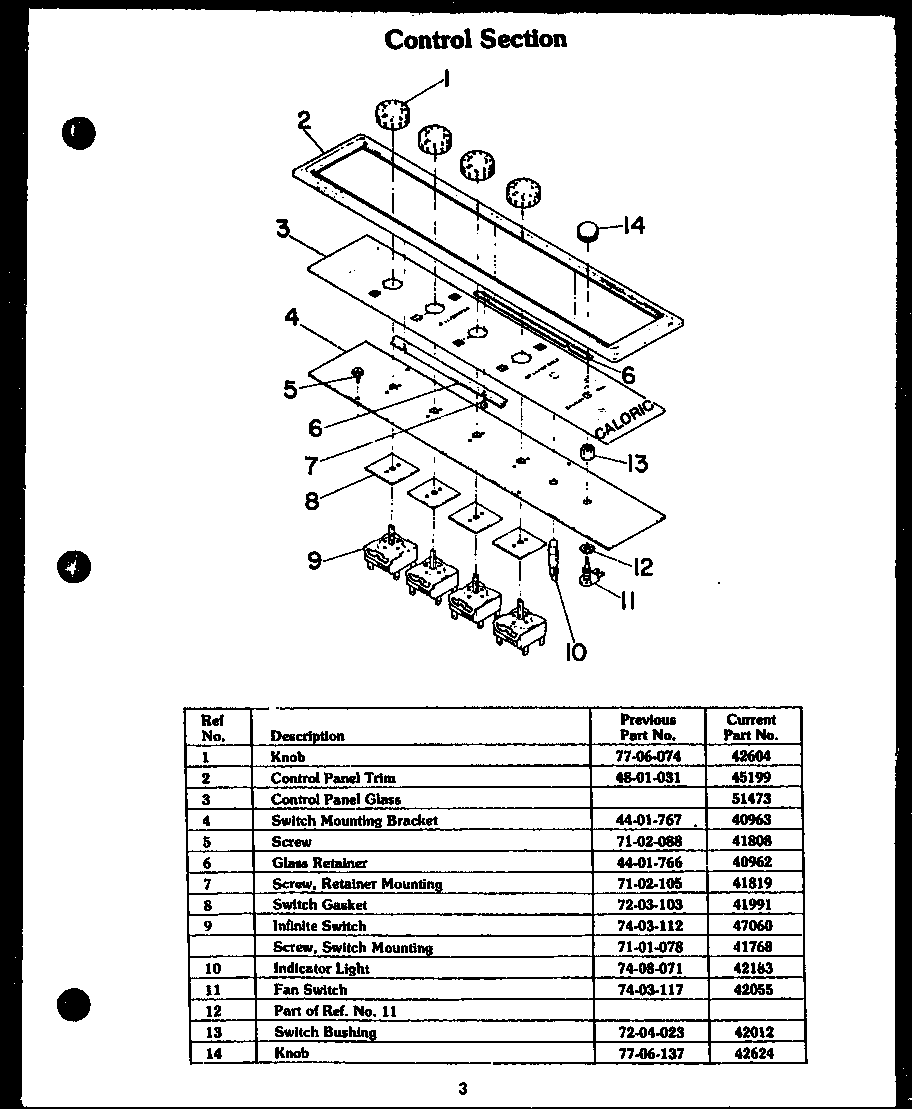

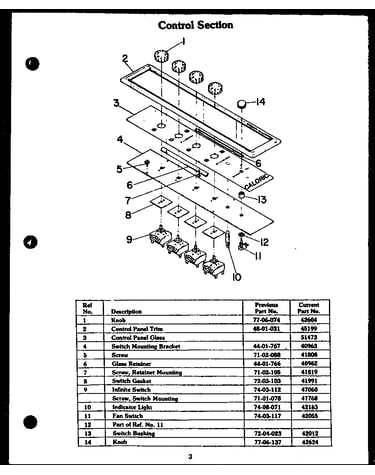

Control section diagram

Switch gasket

Part #41991

The manufacturer no longer makes this part, and there's no substitute part

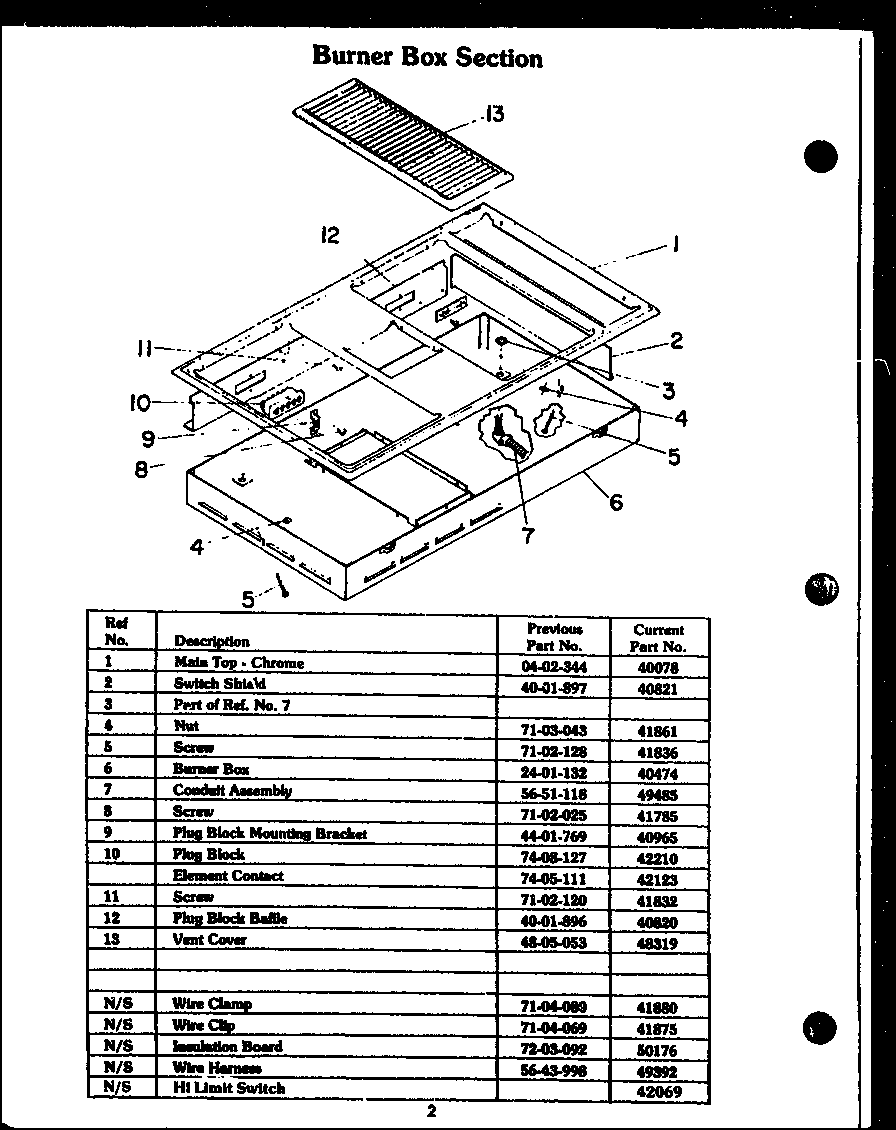

Wire Clip 41875

#NI

All parts diagram

Wire clip

Part #41875

The manufacturer no longer makes this part, and there's no substitute part

Motor 42229
#1

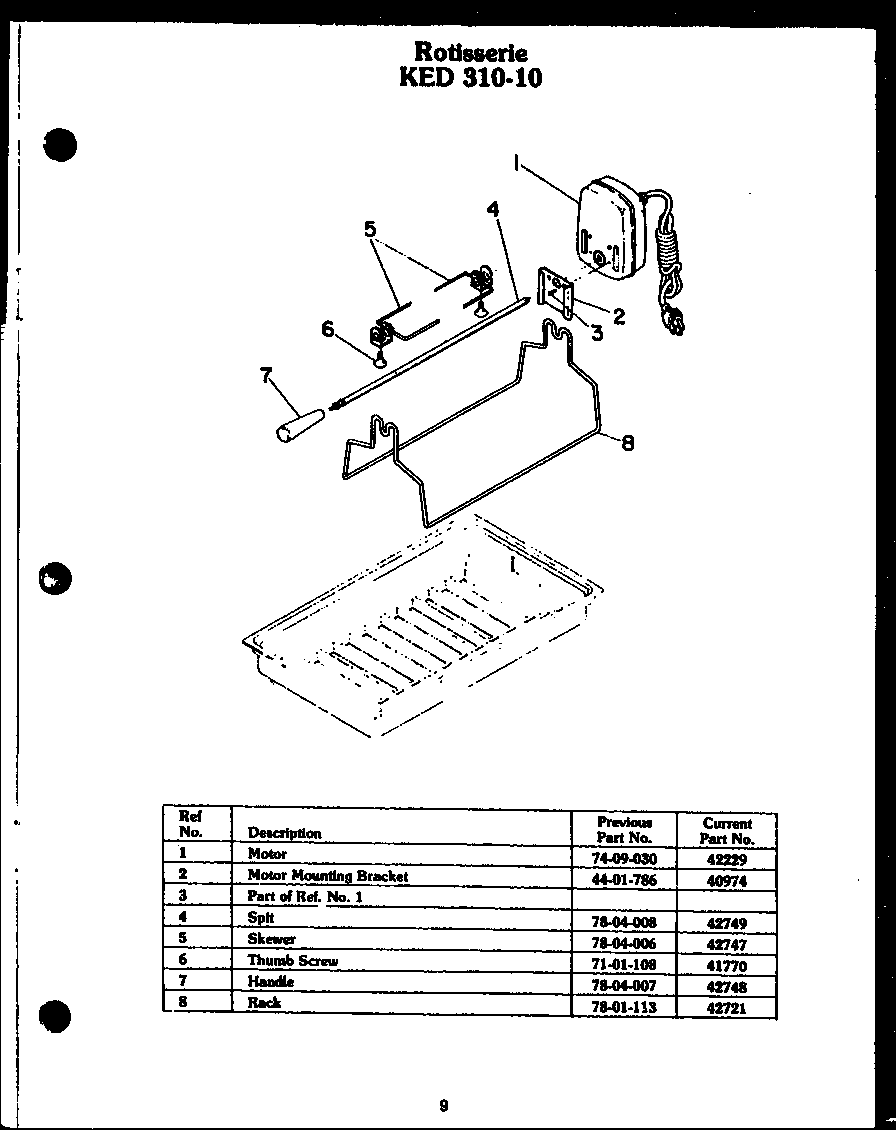

Rotisserie ked 310-10 diagram

Motor

Part #42229

The manufacturer no longer makes this part, and there's no substitute part

Fan Switch 42055
#11

Control section diagram

Fan switch

Part #42055

The manufacturer no longer makes this part, and there's no substitute part

Ceramic Plug 42211
Ceramic plug

Part #42211

The manufacturer no longer makes this part, and there's no substitute part

Cooktop Blower Wheel 42752
#6

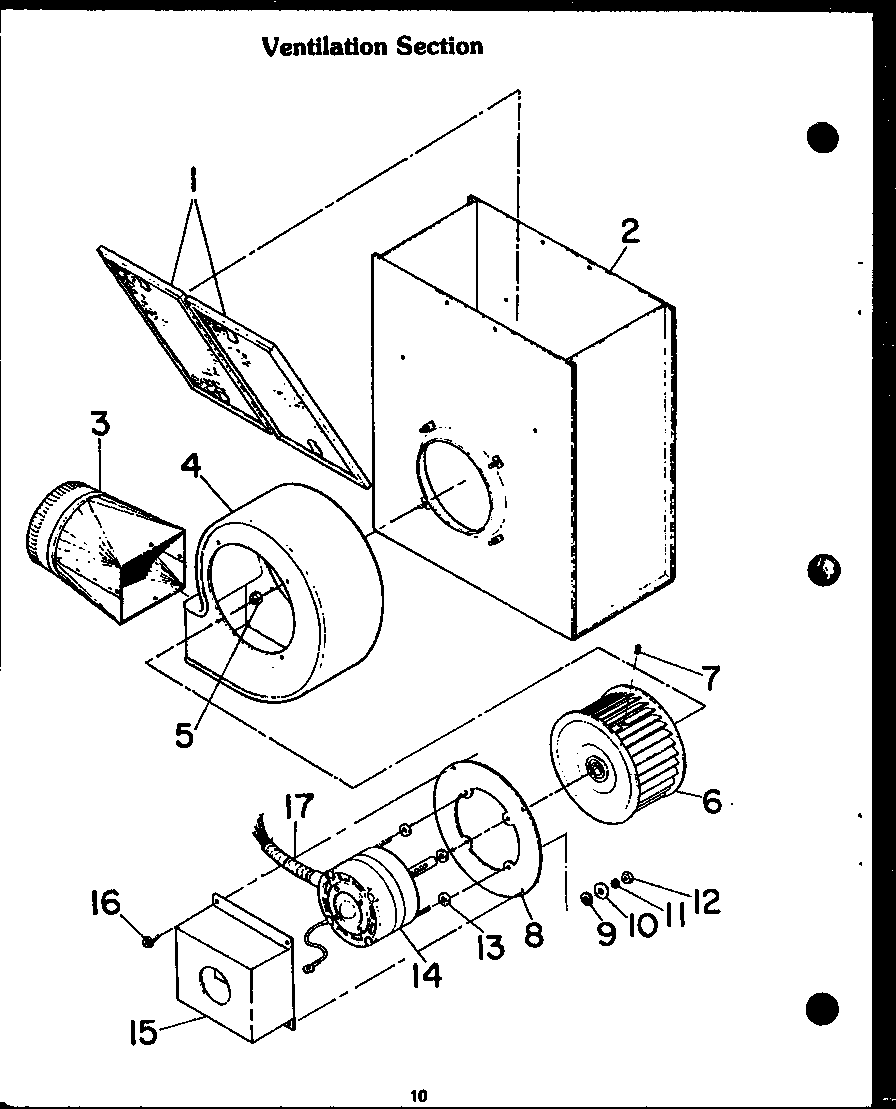

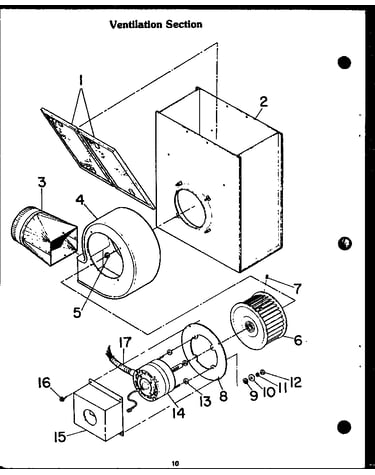

Ventillation section diagram

Cooktop blower wheel

Part #42752

The manufacturer no longer makes this part, and there's no substitute part

Handle 42748
#7

Rotisserie ked 310-10 diagram

Handle

Part #42748

The manufacturer no longer makes this part, and there's no substitute part

Grille 51433
#4

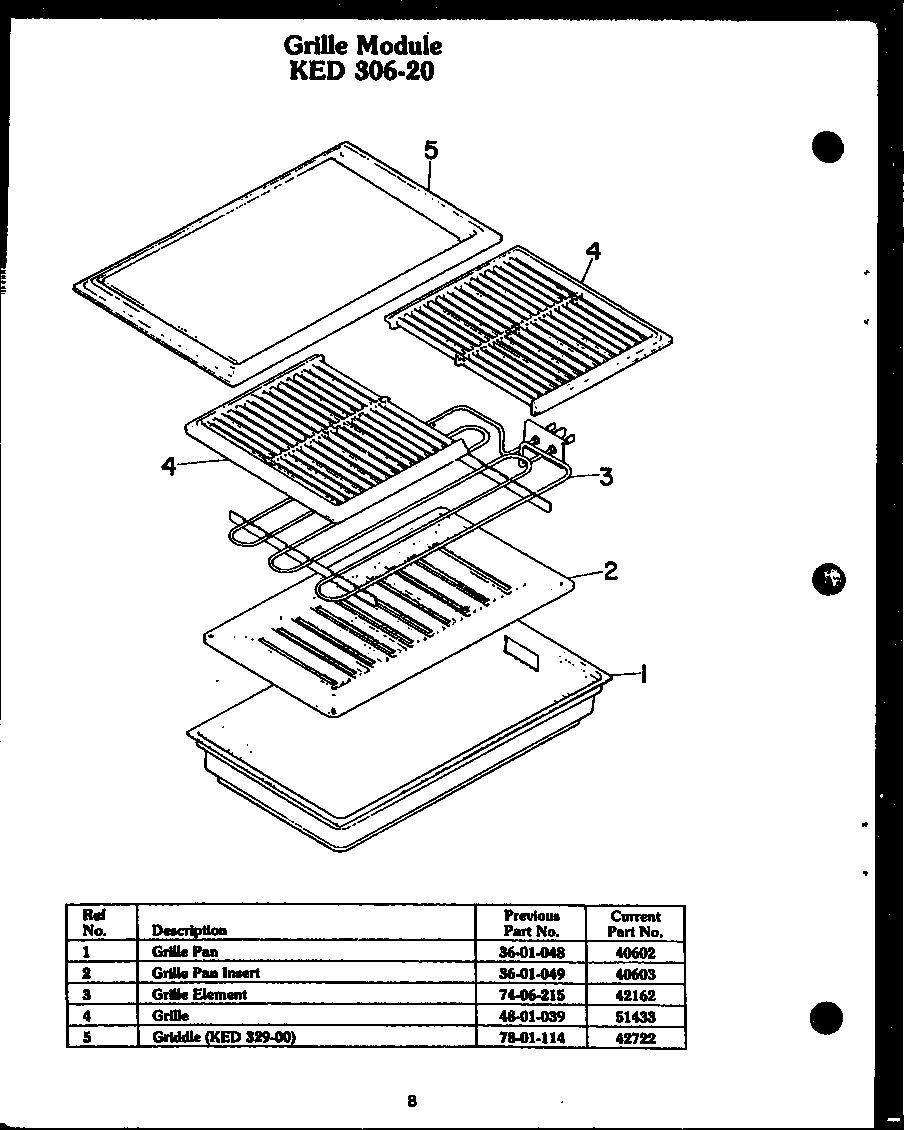

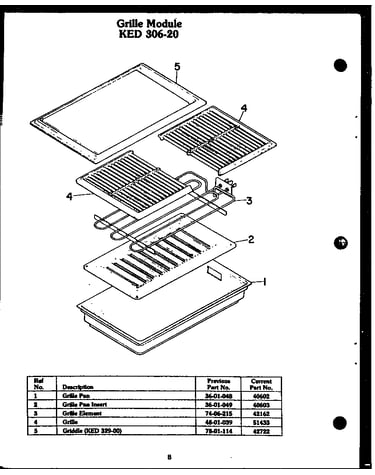

Grille module ked 306-20 diagram

Grille

Part #51433

The manufacturer no longer makes this part, and there's no substitute part
