Model # MAC CLASSIC Official Apple macintosh classic

Here are the diagrams and repair parts for Official Apple MAC-CLASSIC macintosh classic, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

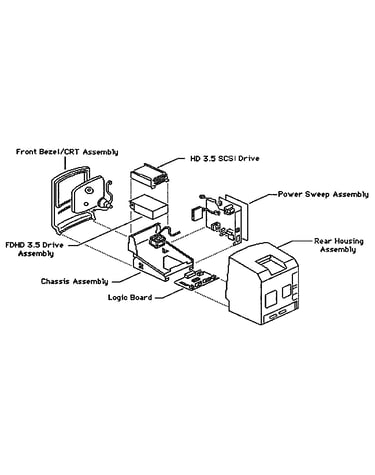

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 38 parts  |
Screw, (power/sweep To Chassis; Hda To Apple Superdrive) 490-0001
Screw, (power/sweep to chassis; hda to apple superdrive)

Part #490-0001

The manufacturer no longer makes this part, and there's no substitute part

Screw, Tap, M4.22 X 1.41 X 16, Torx, Zinc (case Top) 426-1007
#6

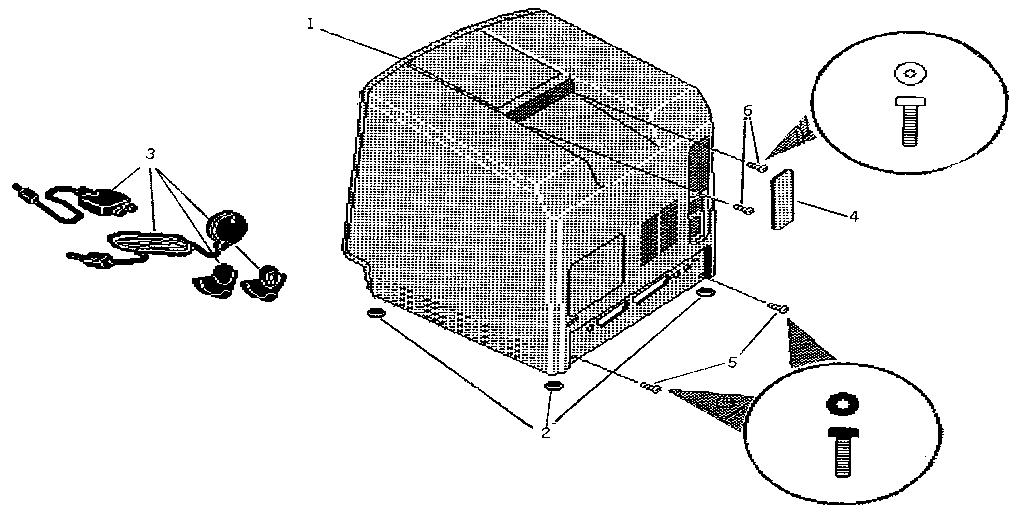

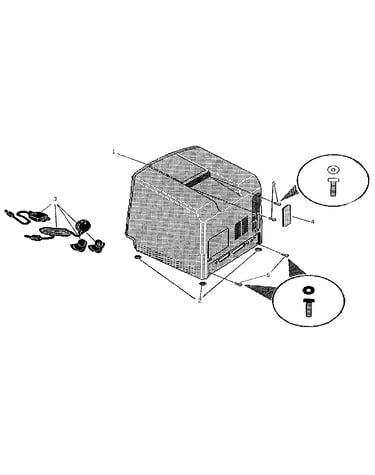

Rear housing assembly diagram

Screw, tap, m4.22 x 1.41 x 16, torx, zinc (case top)

Part #426-1007

The manufacturer no longer makes this part, and there's no substitute part

Crt And Yoke Assembly, Rev. A 076-0103
#1

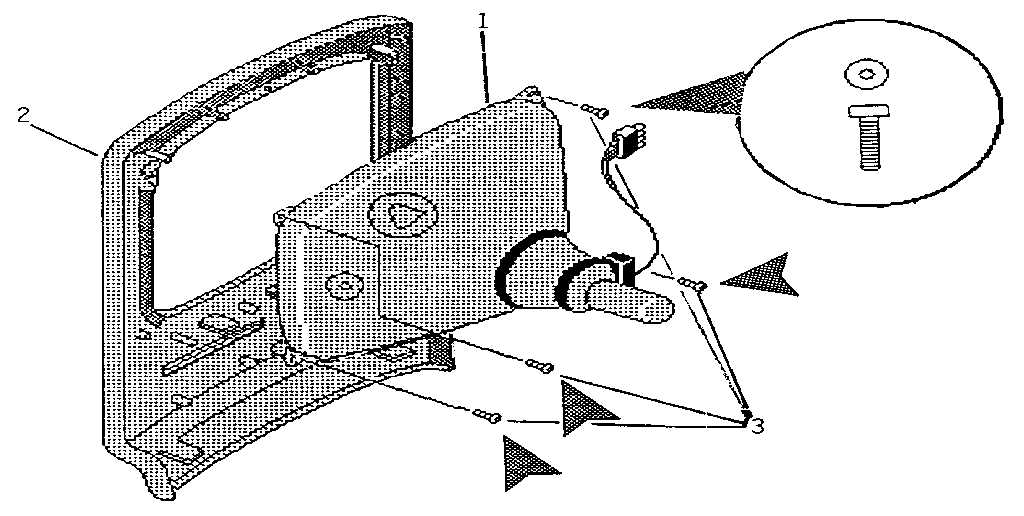

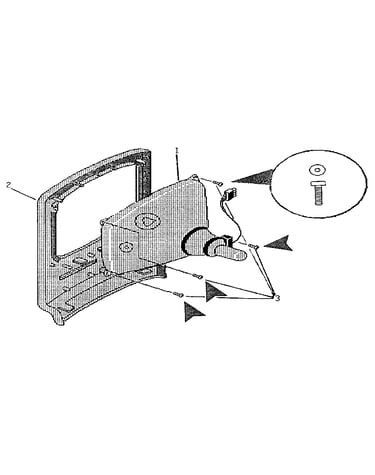

Front bezel crt assembly diagram

Crt and yoke assembly, rev. a

Part #076-0103

The manufacturer no longer makes this part, and there's no substitute part

Power Sweep Board, 110v, Rev. B, Classic/classic Ii 661-0651
#1A

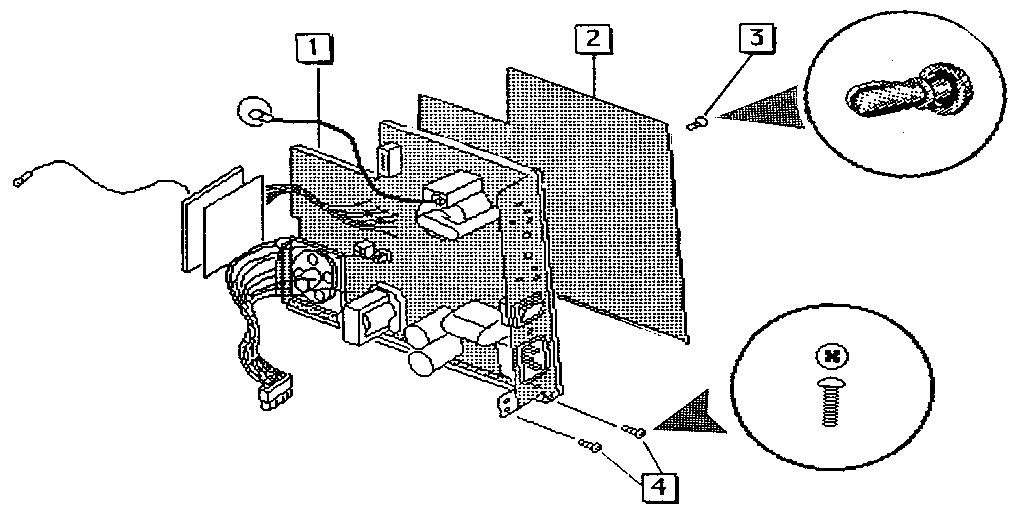

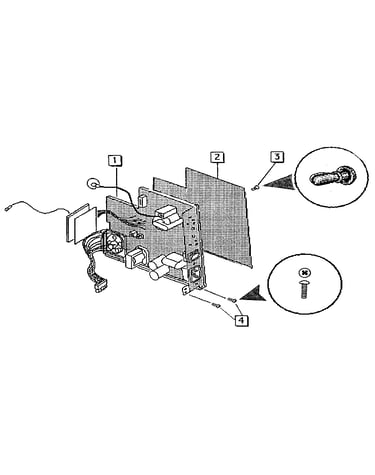

Power sweep assembly diagram

Power sweep board, 110v, rev. b, classic/classic ii

Part #661-0651

The manufacturer no longer makes this part, and there's no substitute part

Power Sweep Board 110v, Mac Classic, Rev. A 661-0597
#1

Power sweep assembly diagram

Power sweep board 110v, mac classic, rev. a

Part #661-0597

The manufacturer no longer makes this part, and there's no substitute part

1.44 Fdhd Apple Superdrive Disk Drive 661-0474
#1

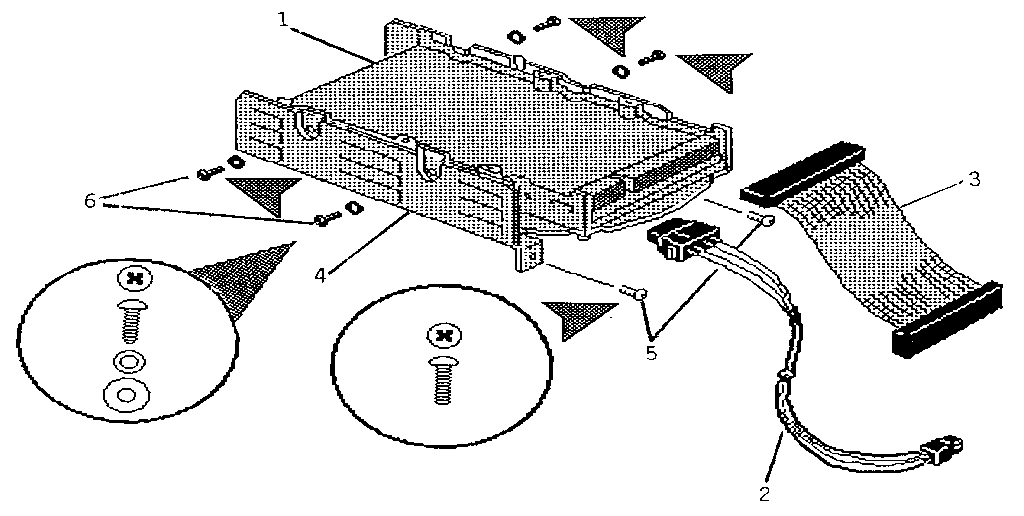

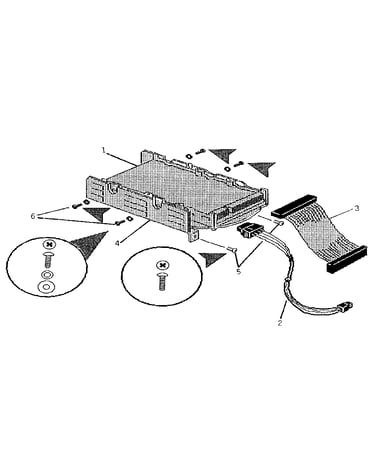

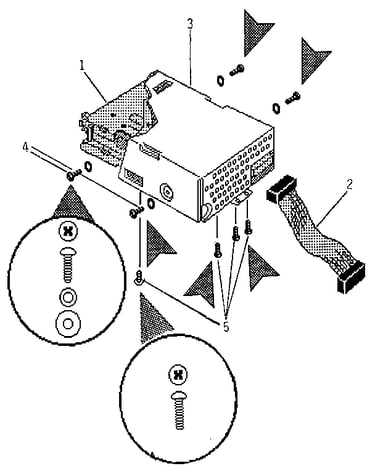

Fdhd assembly diagram

1.44 fdhd apple superdrive disk drive

Part #661-0474

The manufacturer no longer makes this part, and there's no substitute part

Memory Expansion Board W/1mb, Macintosh Classic 661-0598
#5

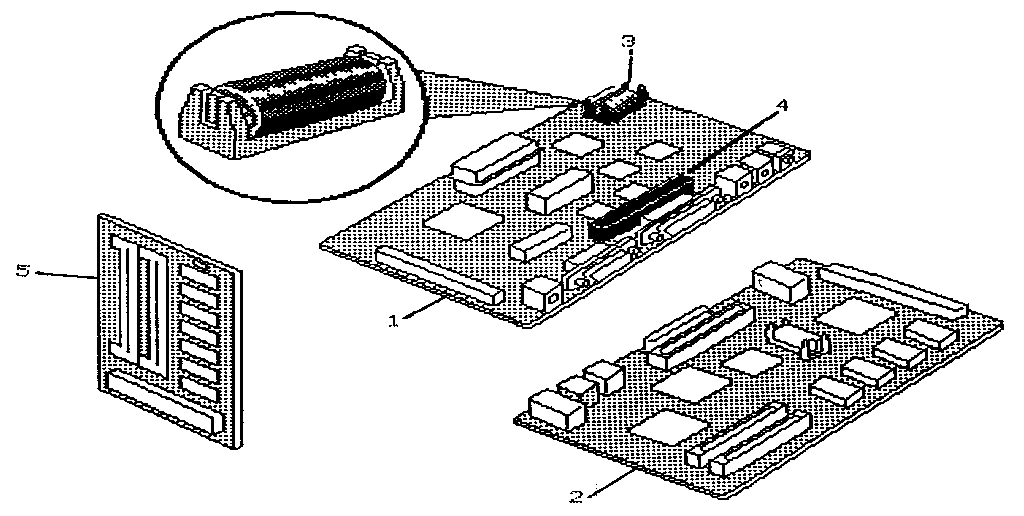

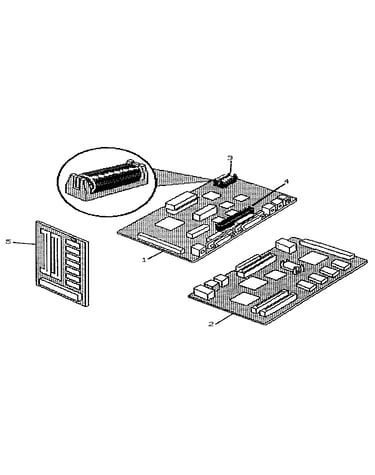

Logic board assembly diagram

Memory expansion board w/1mb, macintosh classic

Part #661-0598

The manufacturer no longer makes this part, and there's no substitute part

Rivet, Nylon Snap-in, Black 830-0270
#3

Power sweep assembly diagram

Rivet, nylon snap-in, black

Part #830-0270

The manufacturer no longer makes this part, and there's no substitute part

Chassis With Plenum 630-5818
#1

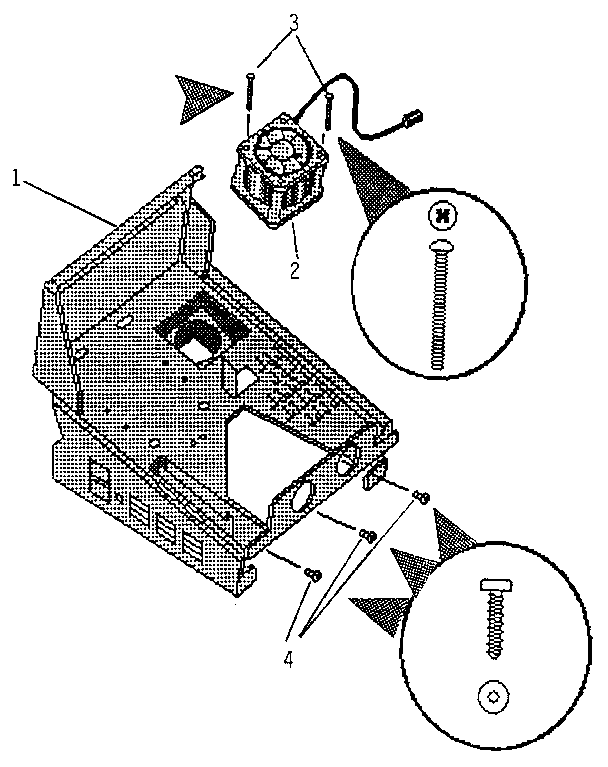

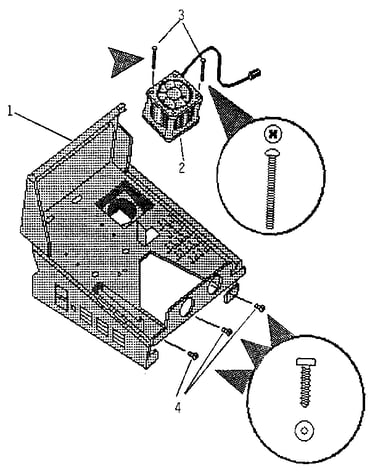

Chassis assembly diagram

Chassis with plenum

Part #630-5818

The manufacturer no longer makes this part, and there's no substitute part

Screw, Tap, M4.22 X 1.41 X 13, Torx, Zinc (crt & Chassis) 426-1001
Screw, tap, m4.22 x 1.41 x 13, torx, zinc (crt & chassis)

Part #426-1001

The manufacturer no longer makes this part, and there's no substitute part
