Craftsman
Drill/Driver

Model # 315274790 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 315274790 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

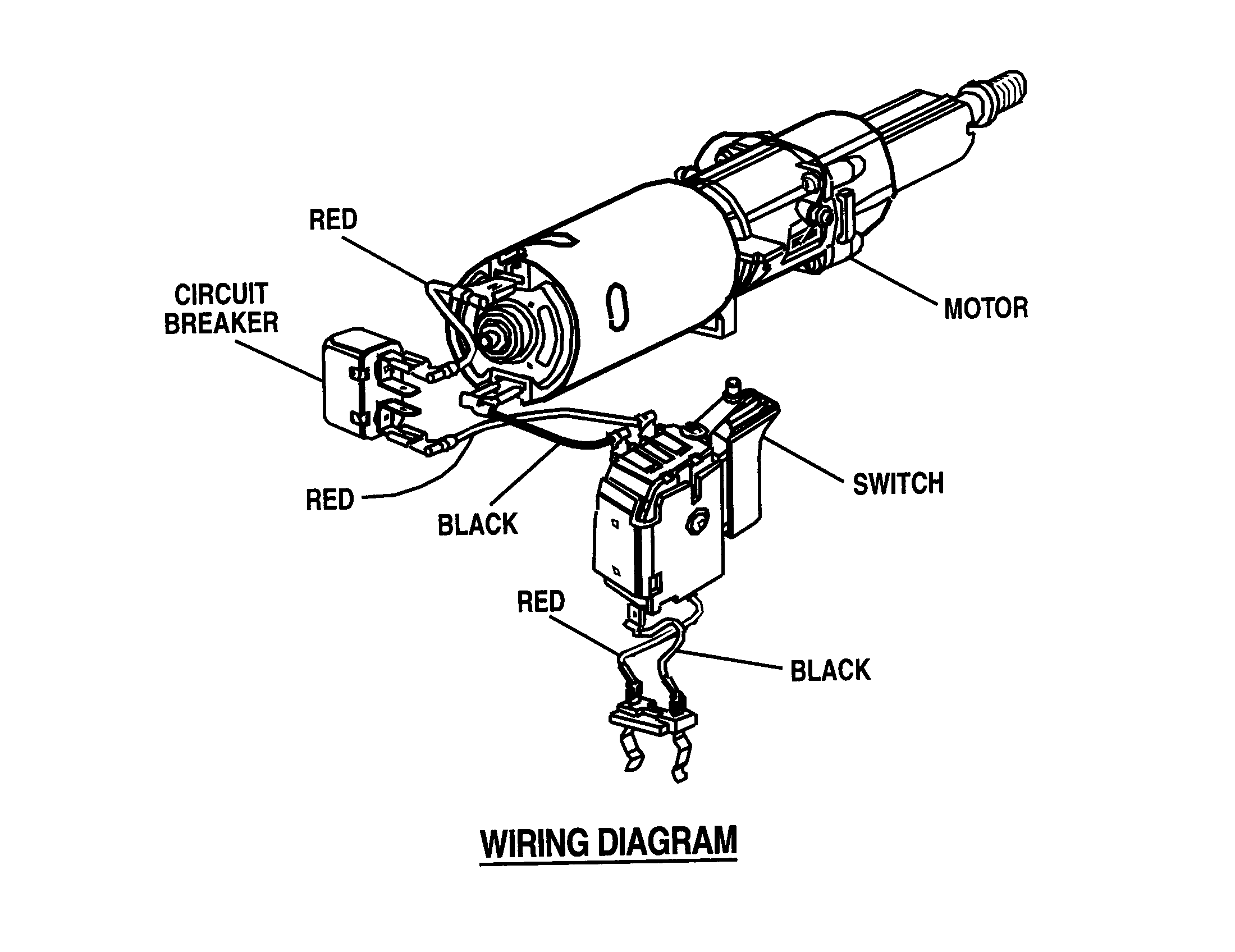

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 32 parts  |
Switch 975440-000
#5

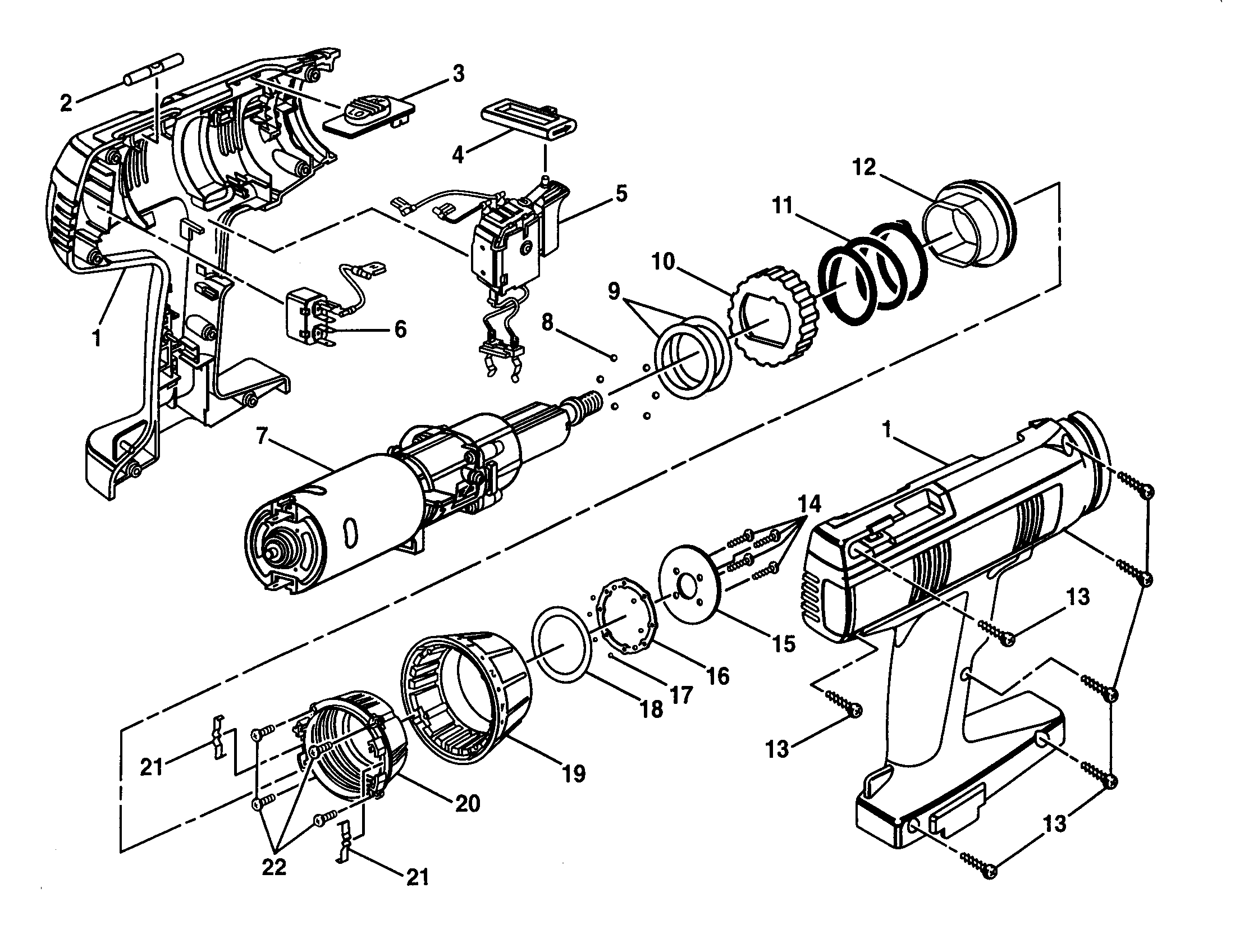

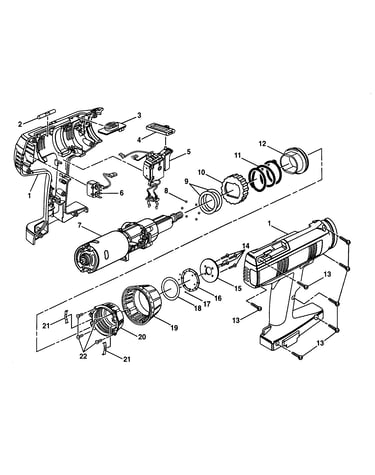

Housing/motor diagram

Switch

Part #975440-000

The manufacturer no longer makes this part, and there's no substitute part

Cap 975465-000
#20

Housing/motor diagram

Cap

Part #975465-000

The manufacturer no longer makes this part, and there's no substitute part

Wr Strap 967216-001
#6

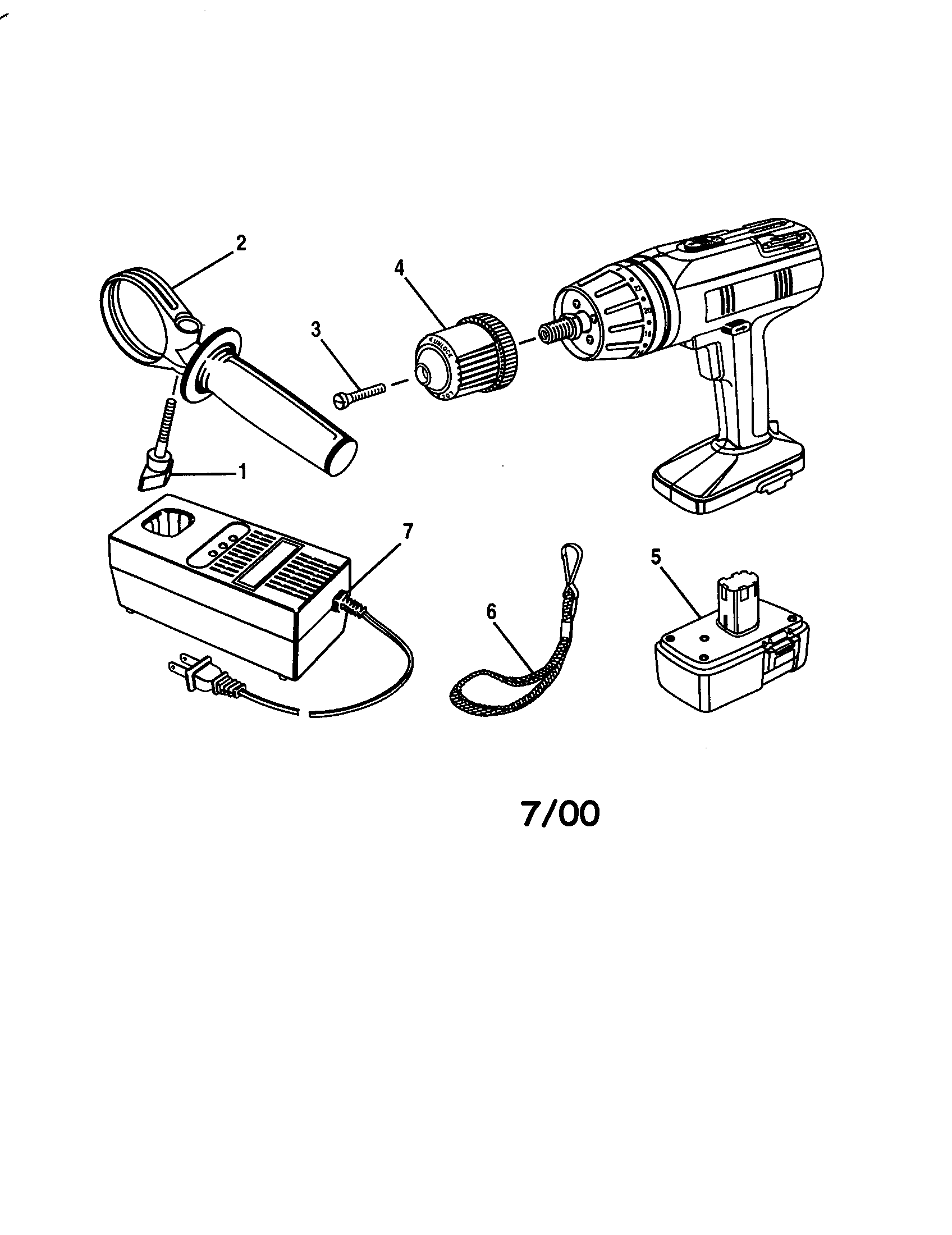

Battery charger/pack diagram

Wr strap

Part #967216-001

The manufacturer no longer makes this part, and there's no substitute part

Washer 974368-000
#18

Housing/motor diagram

Washer

Part #974368-000

The manufacturer no longer makes this part, and there's no substitute part

Retainer 974401-000
#15

Housing/motor diagram

Retainer

Part #974401-000

The manufacturer no longer makes this part, and there's no substitute part

Ckt Breakr 975459-000
#6

Housing/motor diagram

Ckt breakr

Part #975459-000

The manufacturer no longer makes this part, and there's no substitute part

Cl Balls 974366-000
#17

Housing/motor diagram

Cl balls

Part #974366-000

The manufacturer no longer makes this part, and there's no substitute part

Handle 975376-000
#2

Battery charger/pack diagram

Handle

Part #975376-000

The manufacturer no longer makes this part, and there's no substitute part

Screw 975464-000
#22

Housing/motor diagram

Screw

Part #975464-000

The manufacturer no longer makes this part, and there's no substitute part

Spring 975455-000
#11

Housing/motor diagram

Spring

Part #975455-000

The manufacturer no longer makes this part, and there's no substitute part
