Craftsman
Drill/Driver

Model # 315114510 Official Craftsman drill/driver

Here are the diagrams and repair parts for Official Craftsman 315114510 drill/driver, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

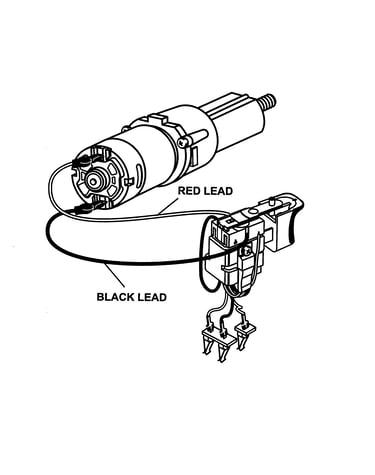

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 27 parts  |
Washer 6710501
#9

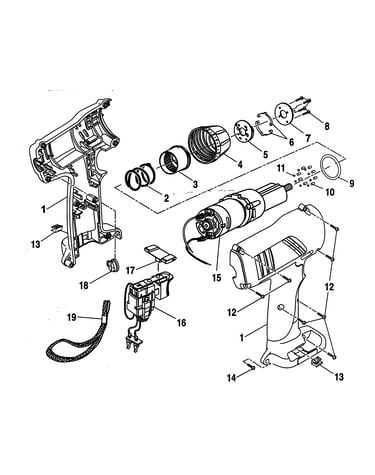

Housing assy diagram

Washer

Part #6710501

The manufacturer no longer makes this part, and there's no substitute part

Ball 6722001
#11

Housing assy diagram

Ball

Part #6722001

The manufacturer no longer makes this part, and there's no substitute part

Chuck 6903326
#2

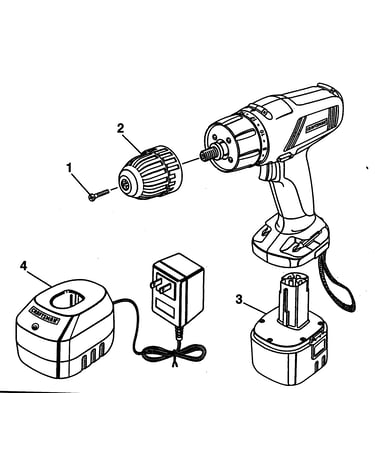

Drill diagram

Chuck

Part #6903326

The manufacturer no longer makes this part, and there's no substitute part

Switch 2701237
#16

Housing assy diagram

Switch

Part #2701237

The manufacturer no longer makes this part, and there's no substitute part

Motor&gear 984581-001
#15

Housing assy diagram

Motor&gear

Part #984581-001

The manufacturer no longer makes this part, and there's no substitute part

Clutch Cap 984688-001
#4

Housing assy diagram

Clutch cap

Part #984688-001

The manufacturer no longer makes this part, and there's no substitute part

Carry Case 3064304
#NI

Drill diagram

Carry case

Part #3064304

The manufacturer no longer makes this part, and there's no substitute part

Holder 5434609
#5

Housing assy diagram

Holder

Part #5434609

The manufacturer no longer makes this part, and there's no substitute part

Screw 6620501
#8

Housing assy diagram

Screw

Part #6620501

The manufacturer no longer makes this part, and there's no substitute part

Plate 6392201
#6

Housing assy diagram

Plate

Part #6392201

The manufacturer no longer makes this part, and there's no substitute part
