Model # 25791405800 Official LXI 8-track am/fm stereo system

Here are the diagrams and repair parts for Official LXI 25791405800 8-track am/fm stereo system, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

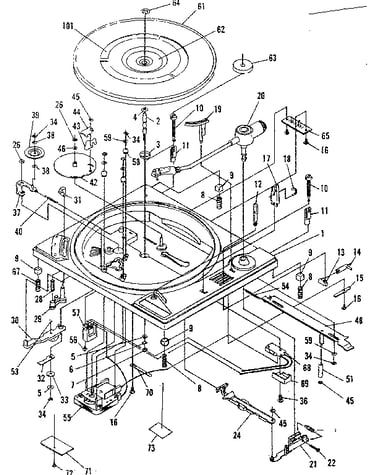

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 64 parts  |
Clip ETW-040030
#34

Replacement parts diagram

Clip

Part #ETW-040030

The manufacturer no longer makes this part, and there's no substitute part

Washer KPW-40-UF2
#5

Replacement parts diagram

Washer

Part #KPW-40-UF2

The manufacturer no longer makes this part, and there's no substitute part

Conctor TR-SRH-036
#57

Replacement parts diagram

Conctor

Part #TR-SRH-036

The manufacturer no longer makes this part, and there's no substitute part

Spindle FF-TTS-054
#2

Replacement parts diagram

Spindle

Part #FF-TTS-054

The manufacturer no longer makes this part, and there's no substitute part

Screw JNP30180-UFB
#36

Replacement parts diagram

Screw

Part #JNP30180-UFB

The manufacturer no longer makes this part, and there's no substitute part

Screw JNP35080-UFB
#72

Replacement parts diagram

Screw

Part #JNP35080-UFB

The manufacturer no longer makes this part, and there's no substitute part

Ring FF-NKP-012
#101

Replacement parts diagram

Ring

Part #FF-NKP-012

The manufacturer no longer makes this part, and there's no substitute part

Arm FF-SSB-033
#29

Replacement parts diagram

Arm

Part #FF-SSB-033

The manufacturer no longer makes this part, and there's no substitute part

Washer FZ-WAP-084
#46

Replacement parts diagram

Washer

Part #FZ-WAP-084

The manufacturer no longer makes this part, and there's no substitute part

Support FF-SPA-035
#37

Replacement parts diagram

Support

Part #FF-SPA-035

The manufacturer no longer makes this part, and there's no substitute part
