Amana
Countertop Microwave

Model # EMR3/P7450301M Official Amana microwave

Here are the diagrams and repair parts for Official Amana EMR3-P7450301M microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 133 parts  |
Nut M0282005
#38

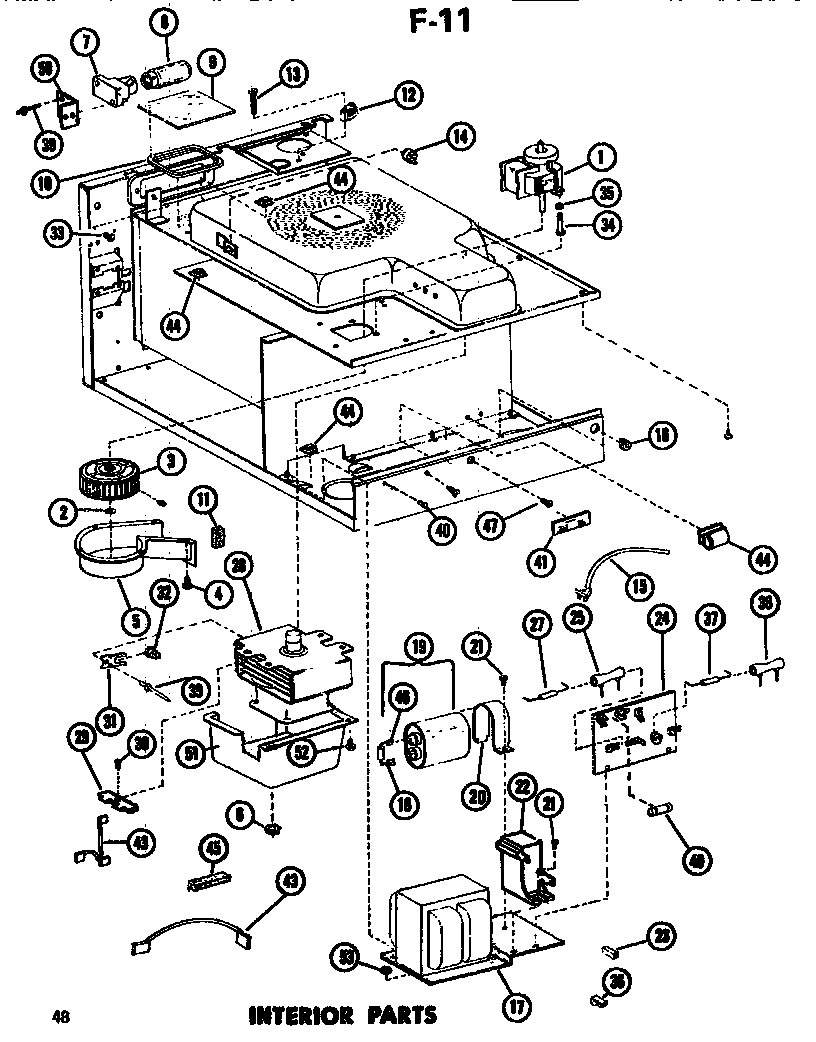

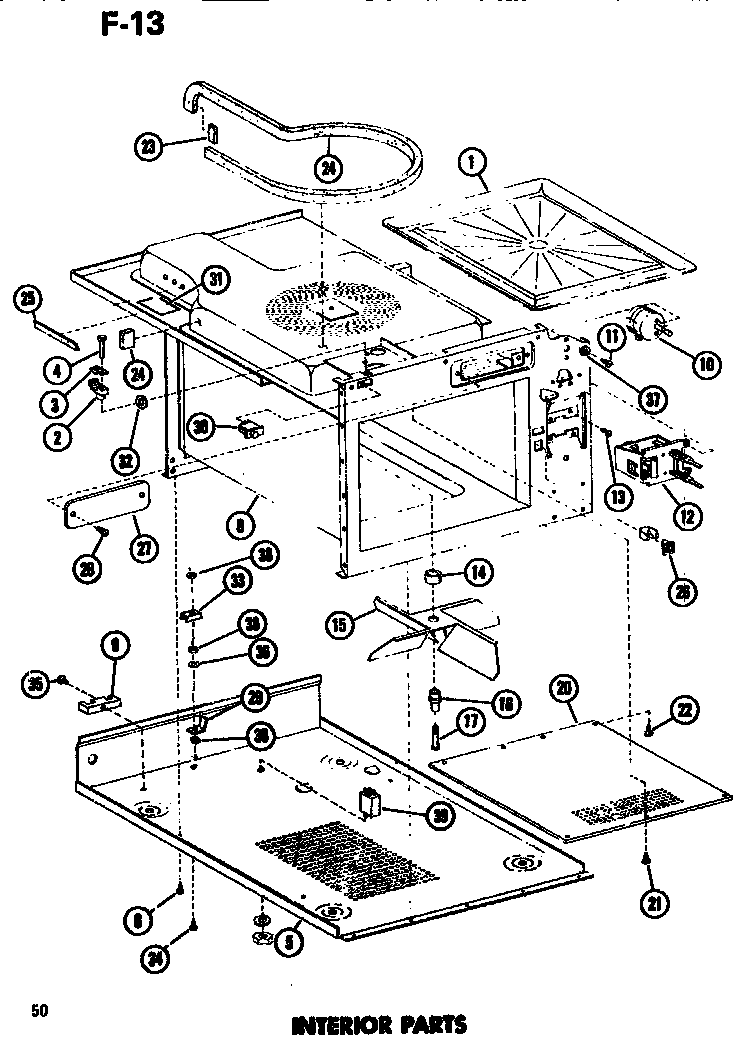

Interior diagram

Nut

Part #M0282005

Replaced by #M0282005

?
Manufacturer substitution
This part replaces M0282005. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Wire, Jumper (filament Transformer Term #8 To Mag. Term, D7292629
#10B

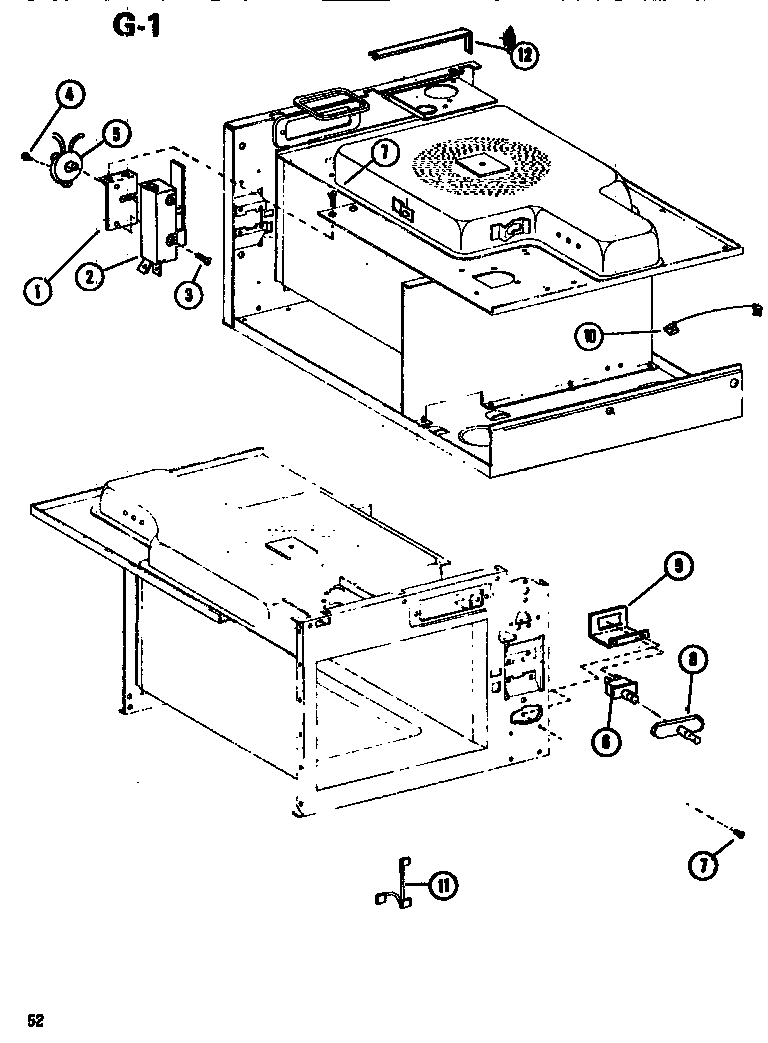

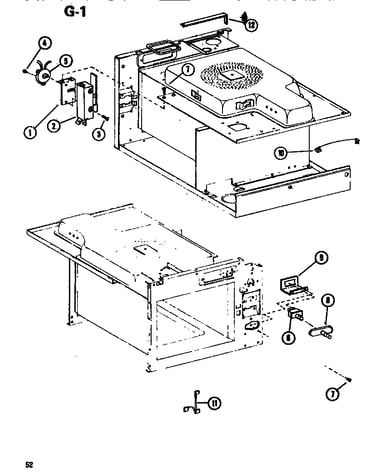

Defrost diagram

Wire, jumper (filament transformer term #8 to mag. term,

Part #D7292629

The manufacturer no longer makes this part, and there's no substitute part

Cover Window Light A3213701
#9

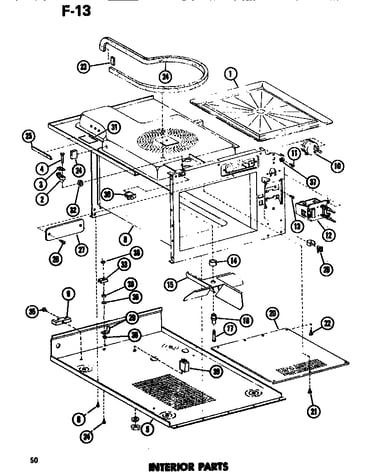

Interior diagram

Cover window light

Part #A3213701

The manufacturer no longer makes this part, and there's no substitute part

Chord, Clip M0104101
#44

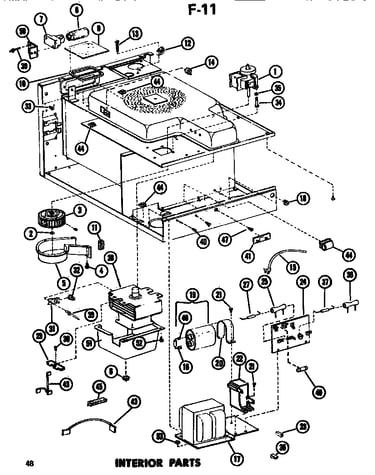

Interior diagram

Chord, clip

Part #M0104101

The manufacturer no longer makes this part, and there's no substitute part

Timer (15 Min.) C8809201
#10

Interior diagram

Timer (15 min.)

Part #C8809201

The manufacturer no longer makes this part, and there's no substitute part

Screw M0213516
#2

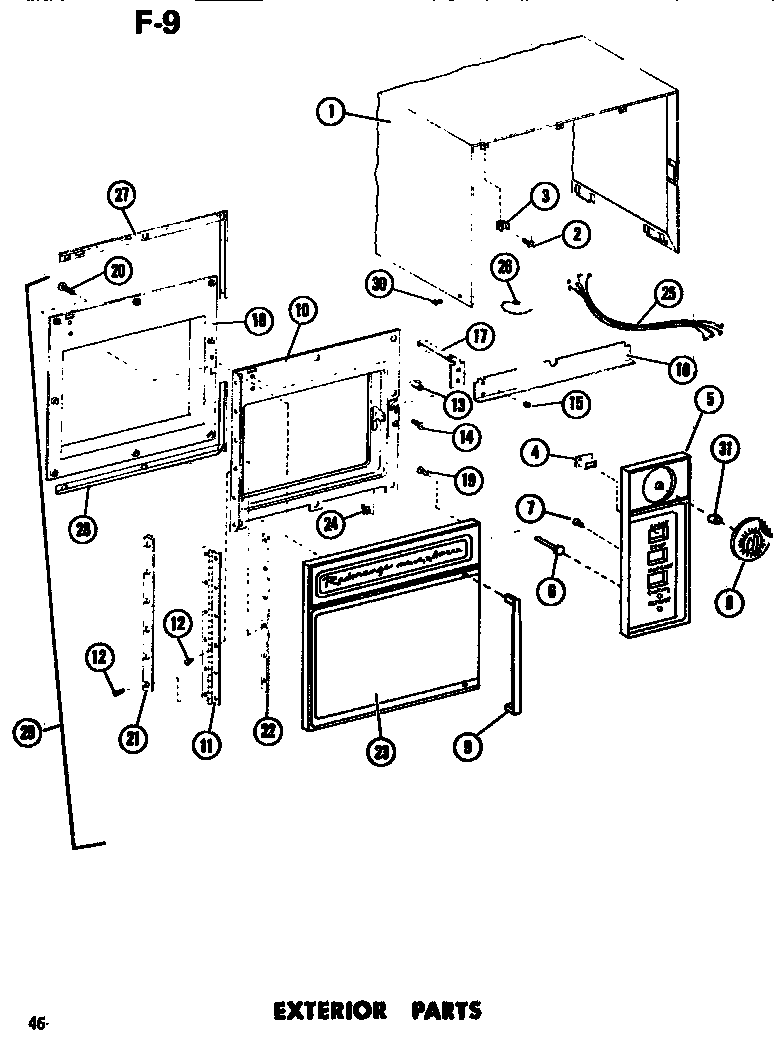

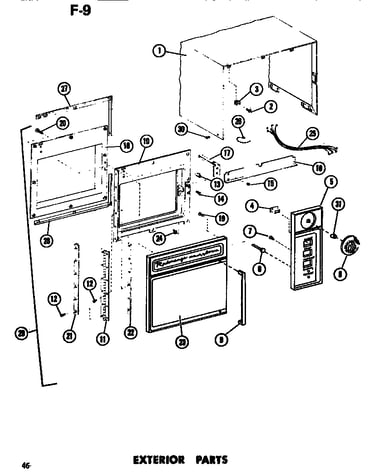

Exterior diagram

Screw

Part #M0213516

The manufacturer no longer makes this part, and there's no substitute part

Screw M0229005
#35

Interior diagram

Screw

Part #M0229005

The manufacturer no longer makes this part, and there's no substitute part

Harness Wiring D7432501
#25

Exterior diagram

Harness wiring

Part #D7432501

The manufacturer no longer makes this part, and there's no substitute part

Screw M0202530
#11

Interior diagram

Screw

Part #M0202530

The manufacturer no longer makes this part, and there's no substitute part

Wire, Jumper, H.v. Left Magnetron Lead D7365108
#10D

Defrost diagram

Wire, jumper, h.v. left magnetron lead

Part #D7365108

The manufacturer no longer makes this part, and there's no substitute part
