Model # 52872104 Official LXI television chassis

Here are the diagrams and repair parts for Official LXI 52872104 television chassis, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |

Gear 39-79-2
#11

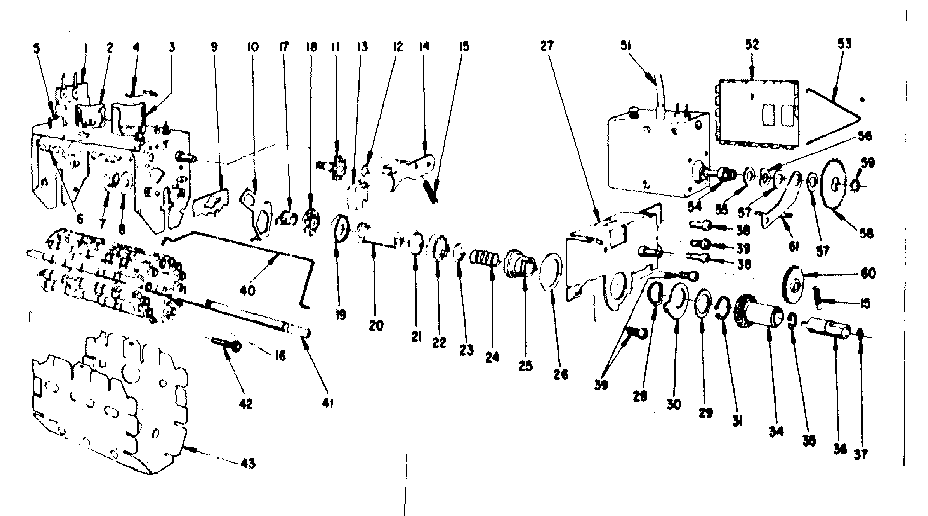

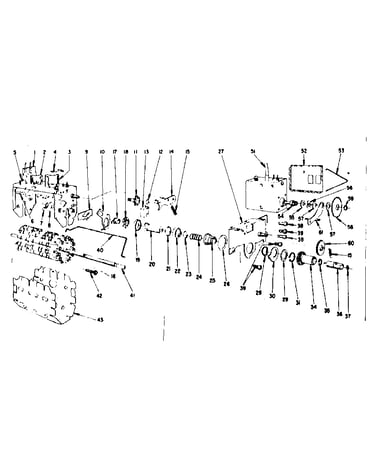

Replacement parts diagram

Gear

Part #39-79-2

The manufacturer no longer makes this part, and there's no substitute part

Fastener 22-402-0
#10

Replacement parts diagram

Fastener

Part #22-402-0

The manufacturer no longer makes this part, and there's no substitute part

Spring 70-787-0
Spring

Part #70-787-0

The manufacturer no longer makes this part, and there's no substitute part

Clutch 58-790
Clutch

Part #58-790

The manufacturer no longer makes this part, and there's no substitute part

Gear 39-77-2
#19

Replacement parts diagram

Gear

Part #39-77-2

The manufacturer no longer makes this part, and there's no substitute part

Sleeve 26-301
#17

Replacement parts diagram

Sleeve

Part #26-301

The manufacturer no longer makes this part, and there's no substitute part

Clip 46-227
#13

Replacement parts diagram

Clip

Part #46-227

The manufacturer no longer makes this part, and there's no substitute part

Gear 39-78-2
#18

Replacement parts diagram

Gear

Part #39-78-2

The manufacturer no longer makes this part, and there's no substitute part

Washer 46-583
#26

Replacement parts diagram

Washer

Part #46-583

The manufacturer no longer makes this part, and there's no substitute part

Plate 46-3133
#9

Replacement parts diagram

Plate

Part #46-3133

The manufacturer no longer makes this part, and there's no substitute part
