Craftsman
Painting Power Tool

Model # 106155810 Official Craftsman spray gun

Here are the diagrams and repair parts for Official Craftsman 106155810 spray gun, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 16 parts  |
Canister DH-540
#15

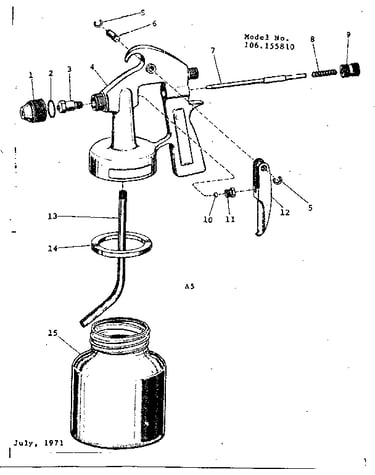

Replacement parts diagram

Canister

Part #DH-540

The manufacturer no longer makes this part, and there's no substitute part

Gasket XA-18
#14

Replacement parts diagram

Gasket

Part #XA-18

The manufacturer no longer makes this part, and there's no substitute part

Trigger Pin DH-106
#6

Replacement parts diagram

Trigger pin

Part #DH-106

The manufacturer no longer makes this part, and there's no substitute part

Packing DH-519
#10

Replacement parts diagram

Packing

Part #DH-519

The manufacturer no longer makes this part, and there's no substitute part

Trigger DH-118
#12

Replacement parts diagram

Trigger

Part #DH-118

The manufacturer no longer makes this part, and there's no substitute part

Air Cap DH-304
#1

Replacement parts diagram

Air cap

Part #DH-304

The manufacturer no longer makes this part, and there's no substitute part

Fluid Needle DH-3001
#7

Replacement parts diagram

Fluid needle

Part #DH-3001

The manufacturer no longer makes this part, and there's no substitute part

Packing Nut DH-520
#11

Replacement parts diagram

Packing nut

Part #DH-520

The manufacturer no longer makes this part, and there's no substitute part

O-ring STD-447
#2

Replacement parts diagram

O-ring

Part #STD-447

The manufacturer no longer makes this part, and there's no substitute part

Needle Sprng DH-302
#8

Replacement parts diagram

Needle sprng

Part #DH-302

The manufacturer no longer makes this part, and there's no substitute part
