Sharp
Countertop Microwave

Model # R-630DK Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-630DK microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

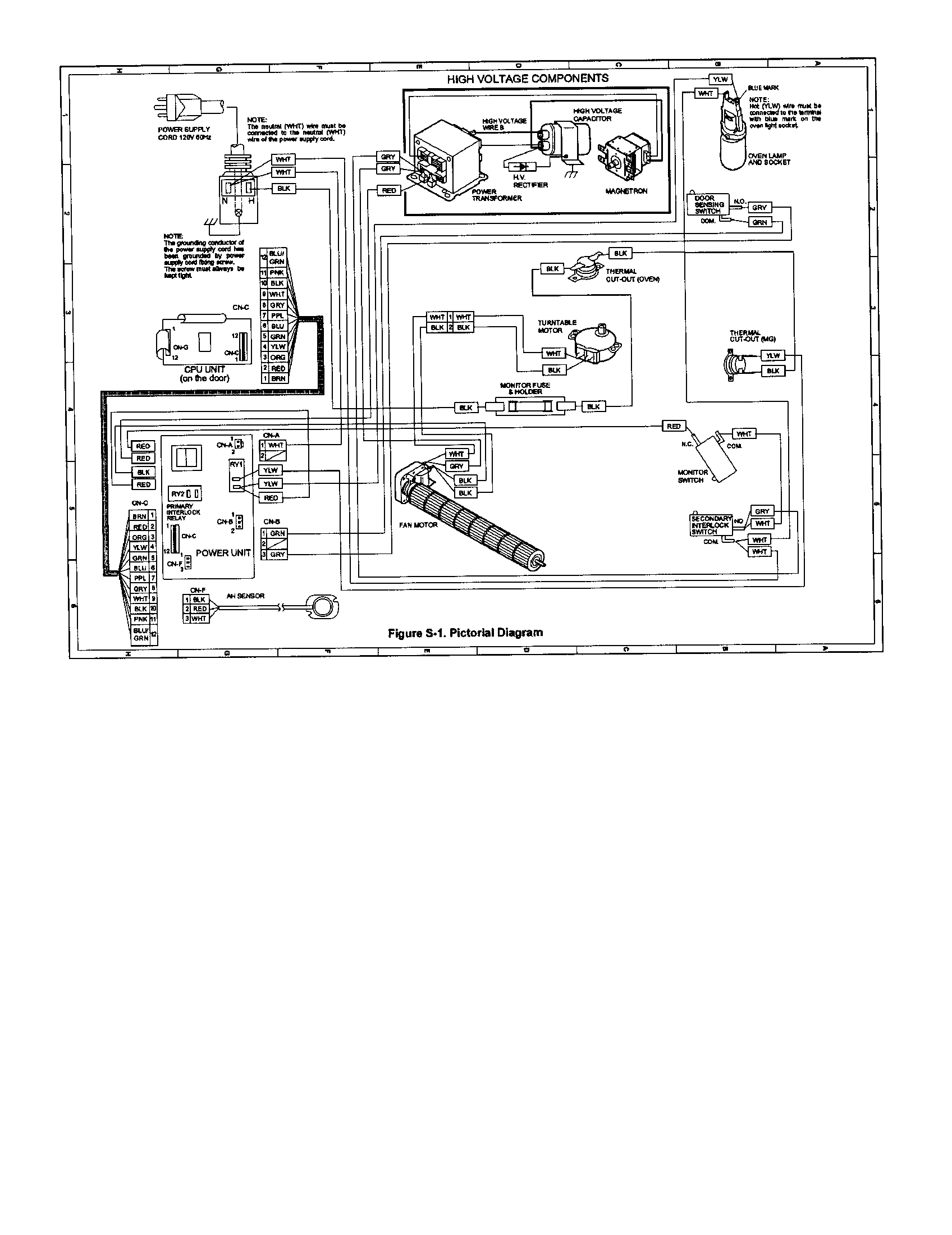

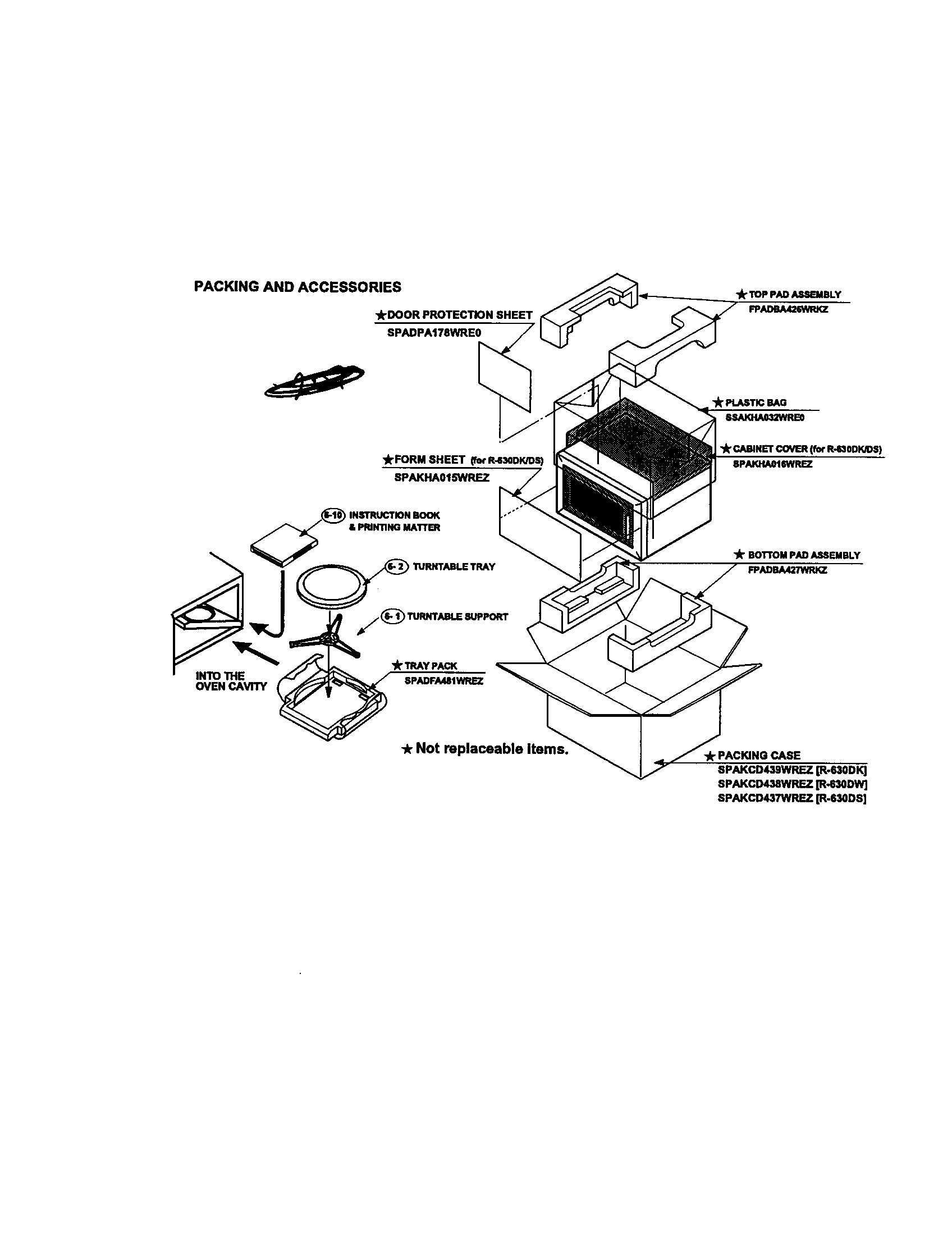

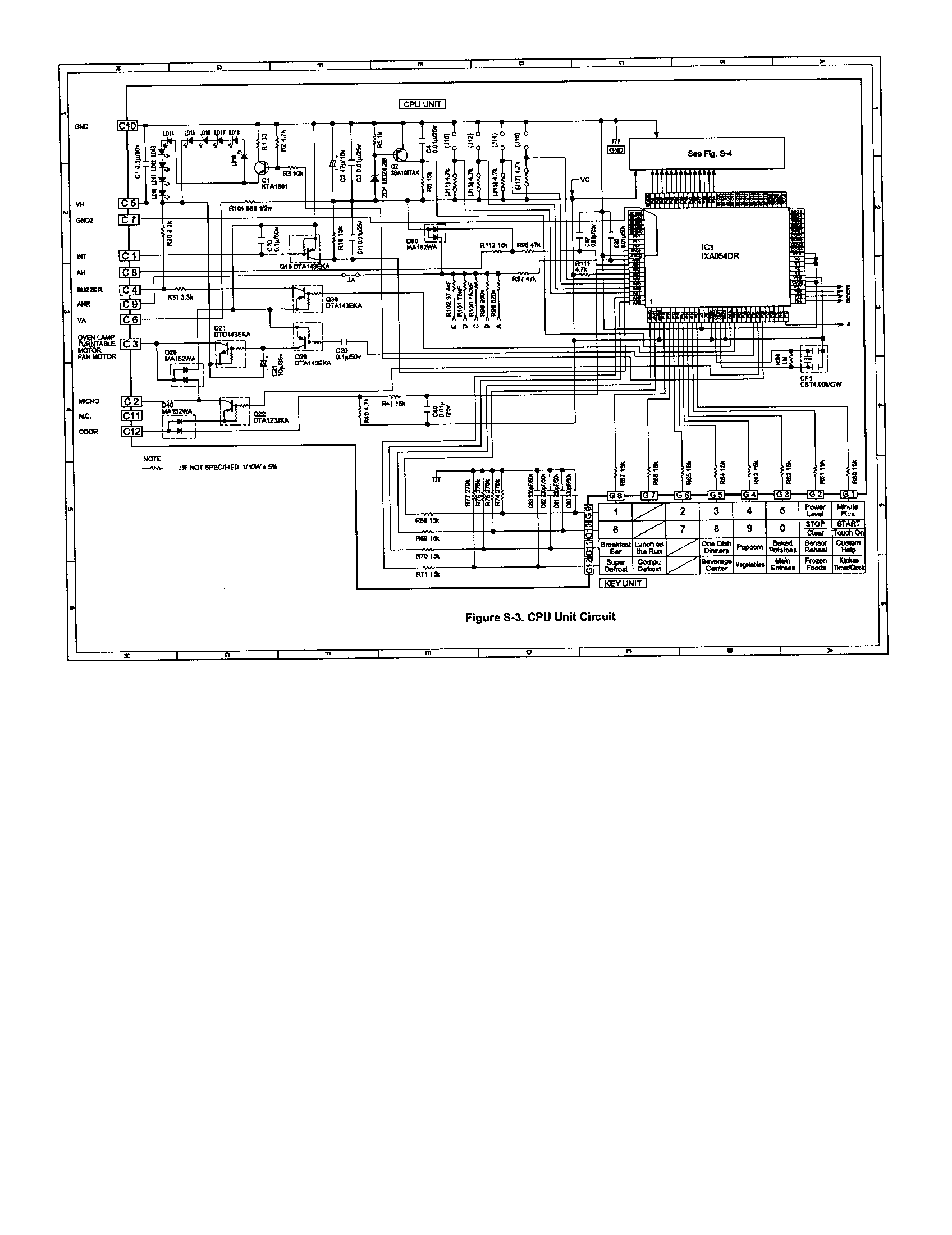

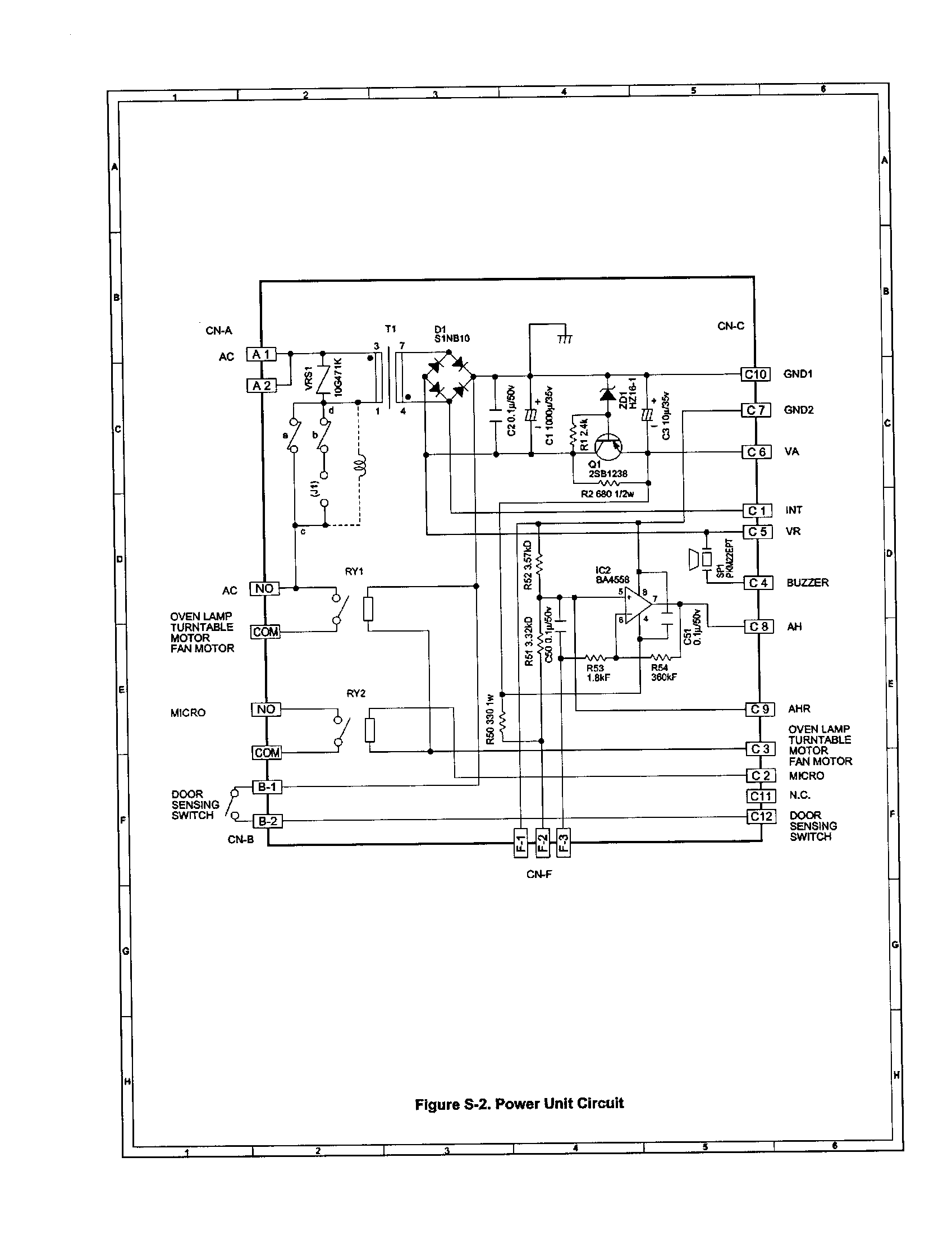

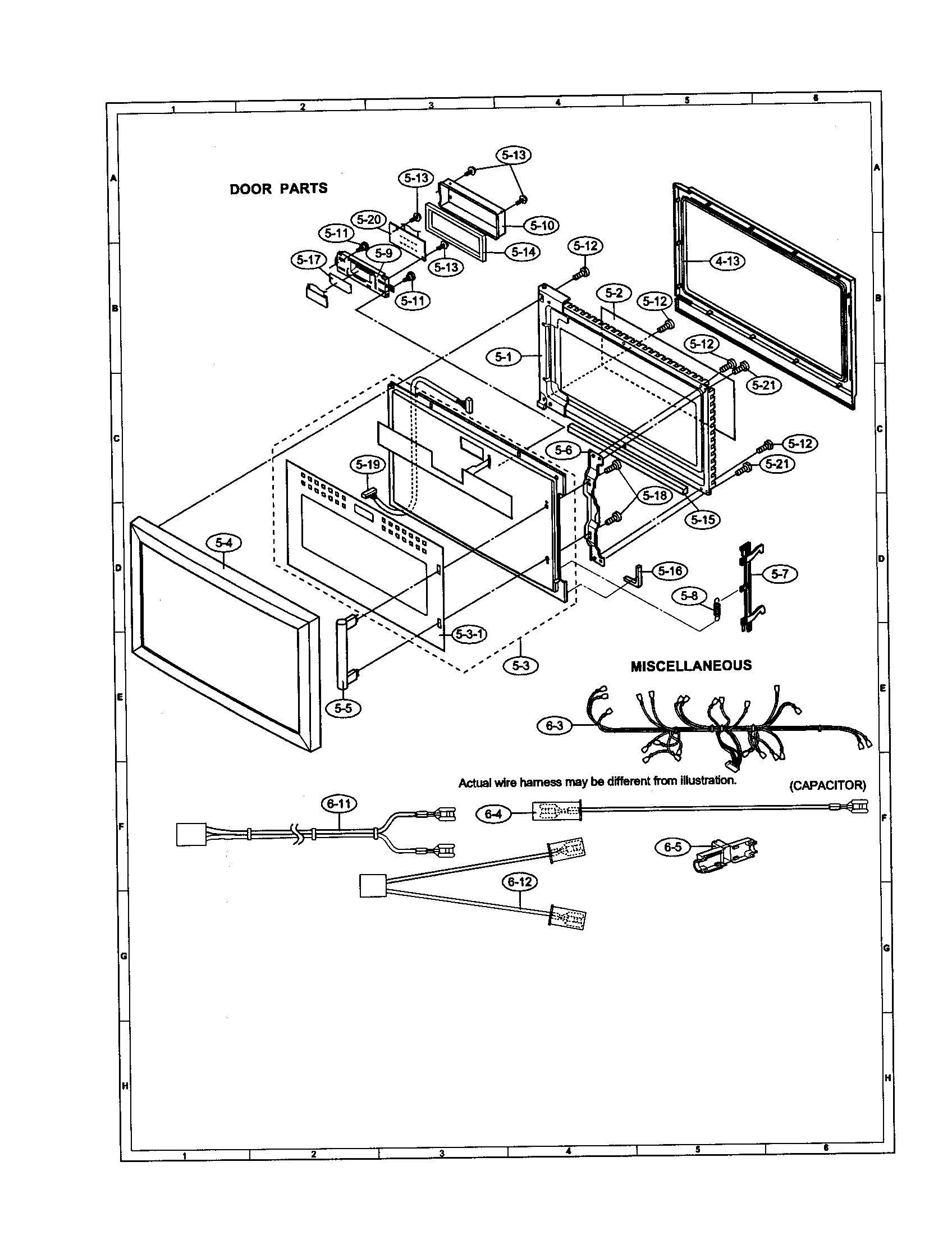

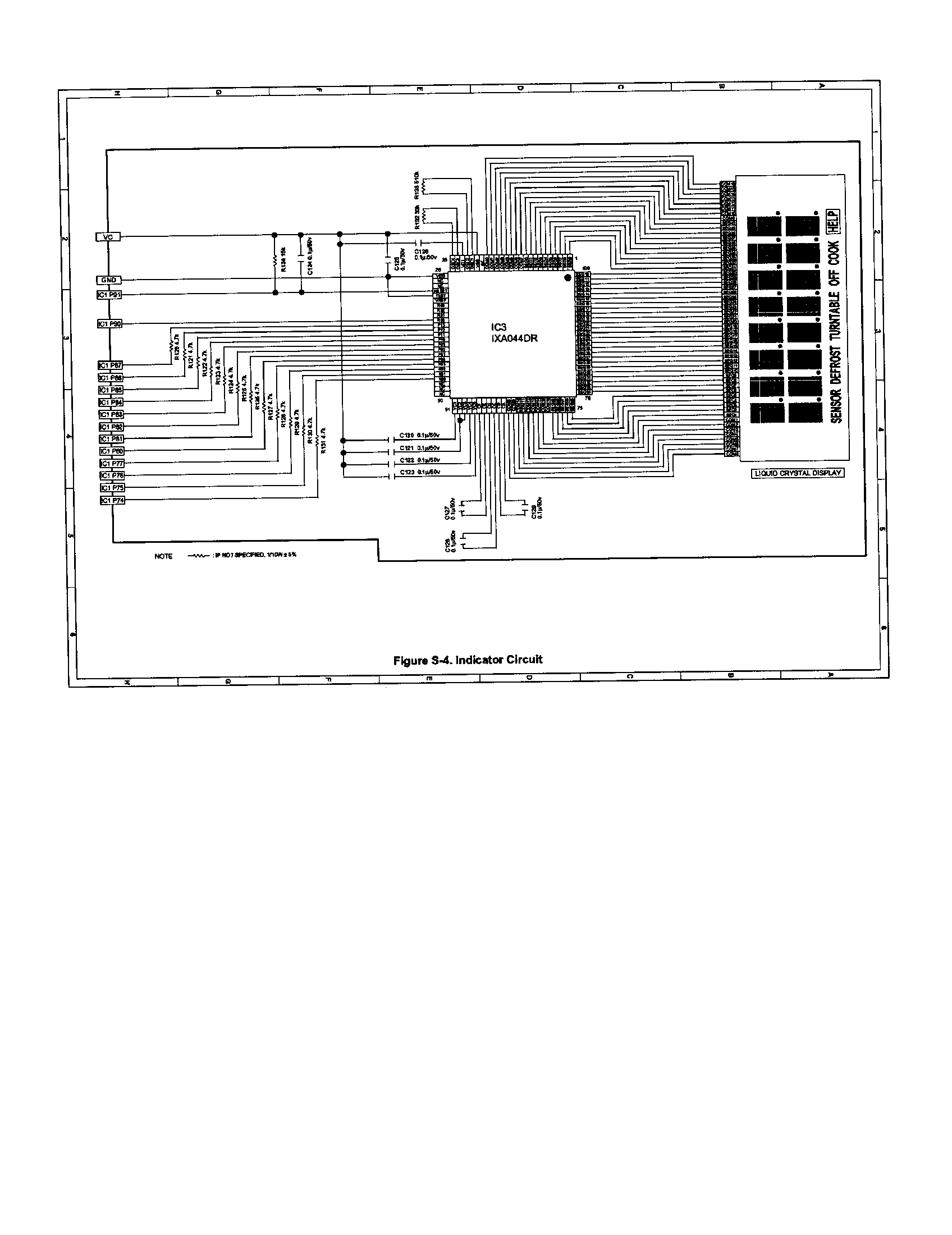

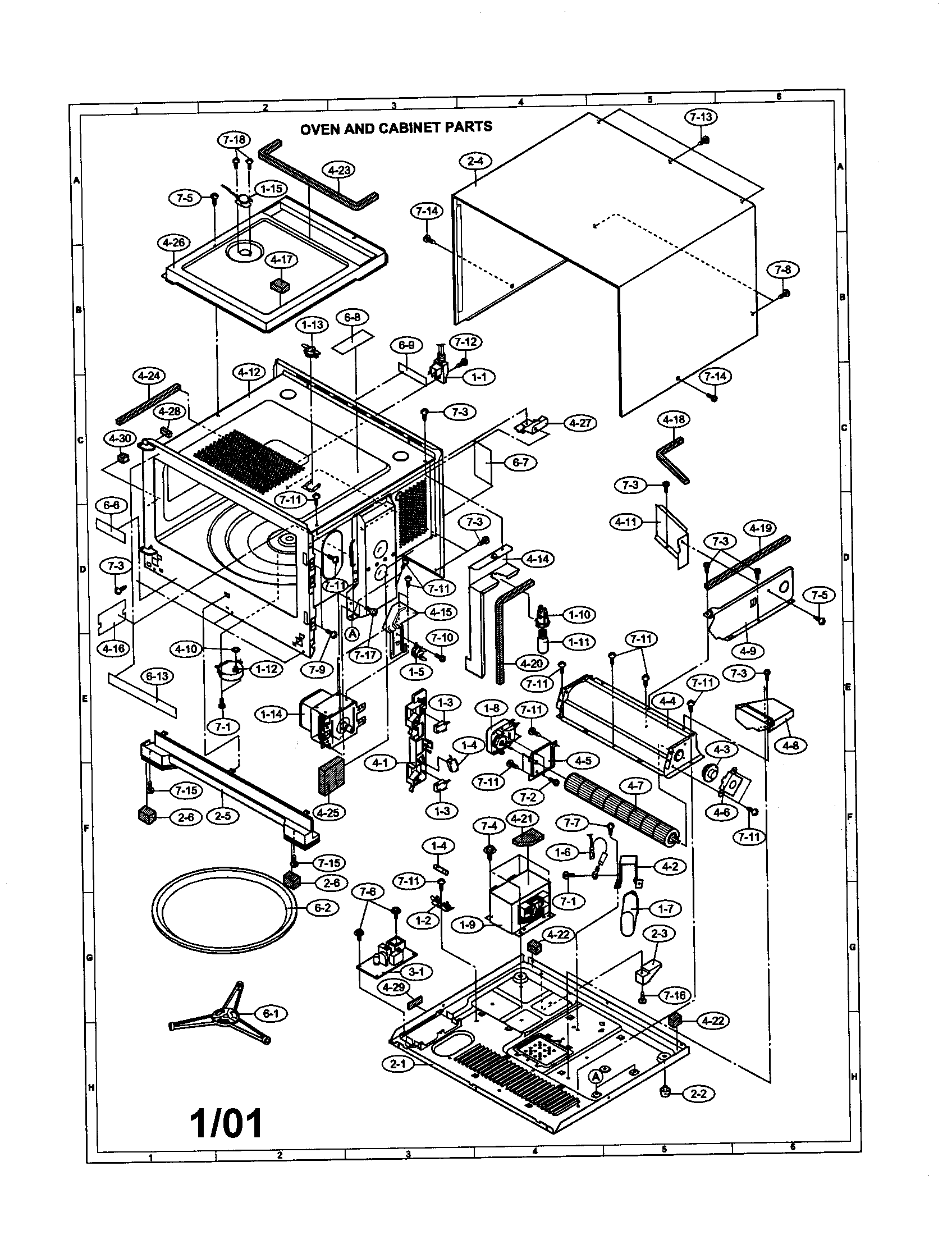

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 138 parts  |
Capacitor RC-QZA211WRE0

#1-07

All parts diagram

Capacitor

Part #RC-QZA211WRE0

The manufacturer no longer makes this part, and there's no substitute part

Holder LANGRA056WRWZ

#4-06

All parts diagram

Holder

Part #LANGRA056WRWZ

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACCDA083WRE0

#1-01

All parts diagram

Power cord

Part #FACCDA083WRE0

The manufacturer no longer makes this part, and there's no substitute part

Connector QCNCMA463DRZZ

#3-01C

All parts diagram

Connector

Part #QCNCMA463DRZZ

The manufacturer no longer makes this part, and there's no substitute part

Cover PCOVPA361WREZ

#4-16

All parts diagram

Cover

Part #PCOVPA361WREZ

The manufacturer no longer makes this part, and there's no substitute part

Spring MSPRTA187WRE0

#5-08

All parts diagram

Spring

Part #MSPRTA187WRE0

The manufacturer no longer makes this part, and there's no substitute part

Screw XOTSD40P08000

#7-03

All parts diagram

Screw

Part #XOTSD40P08000

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder QFSHDA009WRE0

#1-02

All parts diagram

Fuse holder

Part #QFSHDA009WRE0

The manufacturer no longer makes this part, and there's no substitute part

Connector QCNCMA446DRE0

#3-01A

All parts diagram

Connector

Part #QCNCMA446DRE0

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-CZA070WRE0

#7-08

All parts diagram

Screw

Part #LX-CZA070WRE0

The manufacturer no longer makes this part, and there's no substitute part
