Model # D25551KT1 Official DeWalt rotary tool

Here are the diagrams and repair parts for Official DeWalt D25551KT1 rotary tool, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 107 parts  |
Spring 323395-08
#187

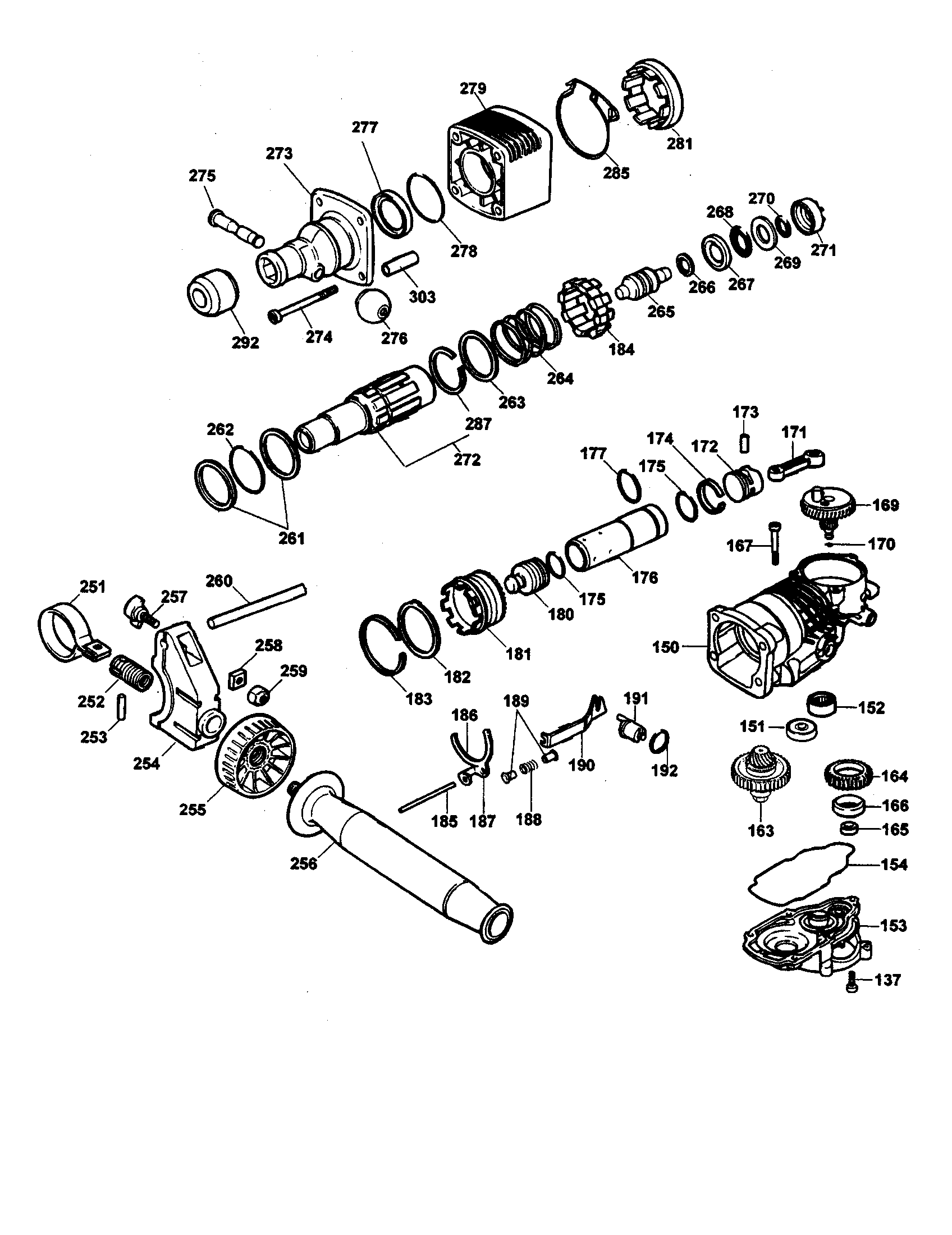

Gearcase cover/clutch/cylinder diagram

Spring

Part #323395-08

The manufacturer no longer makes this part, and there's no substitute part

Ring, O 323711-15
#278

Gearcase cover/clutch/cylinder diagram

Ring, o

Part #323711-15

The manufacturer no longer makes this part, and there's no substitute part

Screw 330065-11
#124

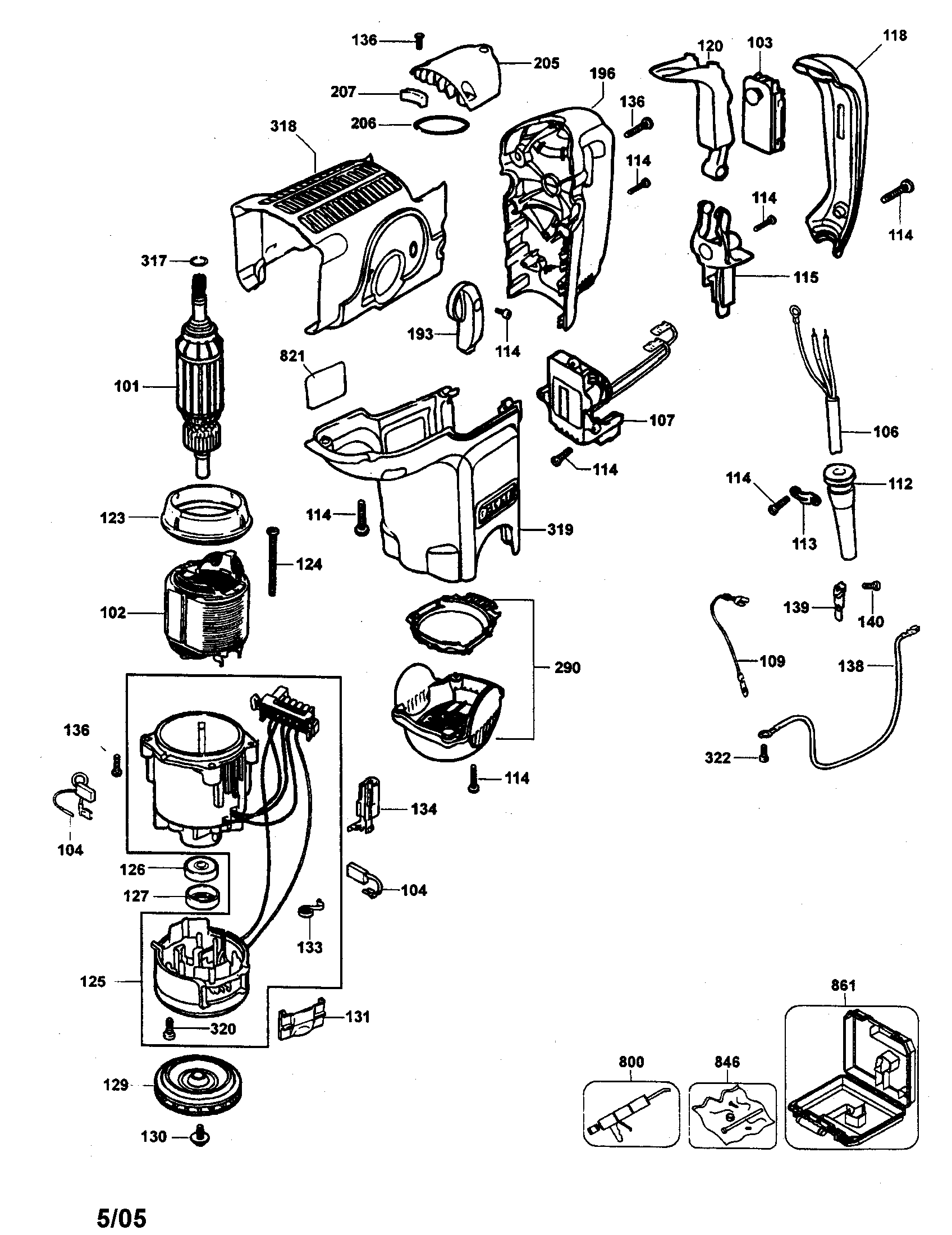

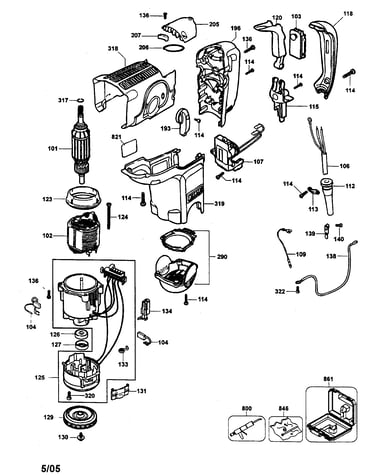

Top cover/armature/field case diagram

Screw

Part #330065-11

The manufacturer no longer makes this part, and there's no substitute part

Washer 323753-11
#261

Gearcase cover/clutch/cylinder diagram

Washer

Part #323753-11

The manufacturer no longer makes this part, and there's no substitute part

Fan 577736-00
#129

Top cover/armature/field case diagram

Fan

Part #577736-00

The manufacturer no longer makes this part, and there's no substitute part

Seal 325936-00
#154

Gearcase cover/clutch/cylinder diagram

Seal

Part #325936-00

The manufacturer no longer makes this part, and there's no substitute part

Gear Case 578487-02
#150

Top cover/armature/field case diagram

Gear case

Part #578487-02

The manufacturer no longer makes this part, and there's no substitute part

Seal 323711-07
#192

Gearcase cover/clutch/cylinder diagram

Seal

Part #323711-07

The manufacturer no longer makes this part, and there's no substitute part

Washer 323753-16
#269

Gearcase cover/clutch/cylinder diagram

Washer

Part #323753-16

The manufacturer no longer makes this part, and there's no substitute part

Eccentric 577718-00
#191

Gearcase cover/clutch/cylinder diagram

Eccentric

Part #577718-00

The manufacturer no longer makes this part, and there's no substitute part
