Kenmore
Charcoal Grill

Model # 2581058080 Official Kenmore gas outdoor grill

Here are the diagrams and repair parts for Official Kenmore 2581058080 gas outdoor grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 73 parts  |
F1 Washr Sae STD551006
#46

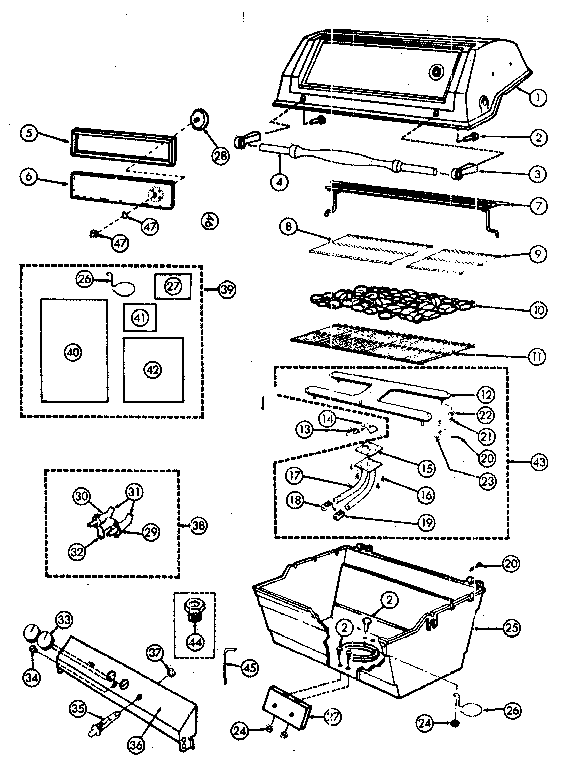

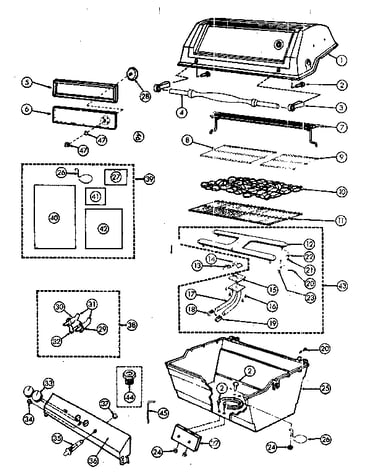

Grill and burner section diagram

F1 washr sae

Part #STD551006

The manufacturer no longer makes this part, and there's no substitute part

Shelf Board 10711-133
#65

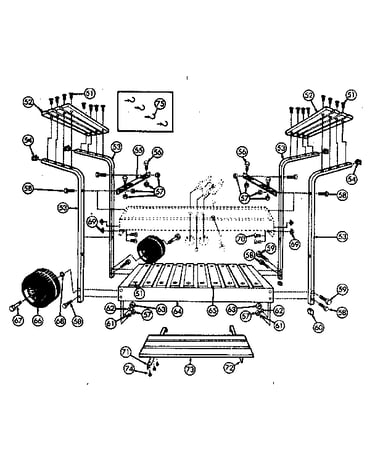

Cart diagram

Shelf board

Part #10711-133

The manufacturer no longer makes this part, and there's no substitute part

Cooking Rack 10225-269
#7

Grill and burner section diagram

Cooking rack

Part #10225-269

The manufacturer no longer makes this part, and there's no substitute part

Pal Nut Y-12650
#37

Grill and burner section diagram

Pal nut

Part #Y-12650

The manufacturer no longer makes this part, and there's no substitute part

Grill 10473-346
#1

Grill and burner section diagram

Grill

Part #10473-346

The manufacturer no longer makes this part, and there's no substitute part

Hardware Bag 10074-136
#39

Grill and burner section diagram

Hardware bag

Part #10074-136

The manufacturer no longer makes this part, and there's no substitute part

Manifold 10152-34
#32

Grill and burner section diagram

Manifold

Part #10152-34

The manufacturer no longer makes this part, and there's no substitute part

Switch 10342-21
#35

Grill and burner section diagram

Switch

Part #10342-21

The manufacturer no longer makes this part, and there's no substitute part

Control 10440-320
#38

Grill and burner section diagram

Control

Part #10440-320

The manufacturer no longer makes this part, and there's no substitute part

Support 10184-272-1
#55

Cart diagram

Support

Part #10184-272-1

The manufacturer no longer makes this part, and there's no substitute part
