Kenmore Elite
Outdoor Grill

Model # 14116737900 Official Kenmore Elite grill accessories

Here are the diagrams and repair parts for Official Kenmore Elite 14116737900 grill accessories, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 29 parts  |
Wrench P05515017L

#NI02

All parts diagram

Wrench

Part #P05515017L

The manufacturer no longer makes this part, and there's no substitute part

Slide P05516013C
#15

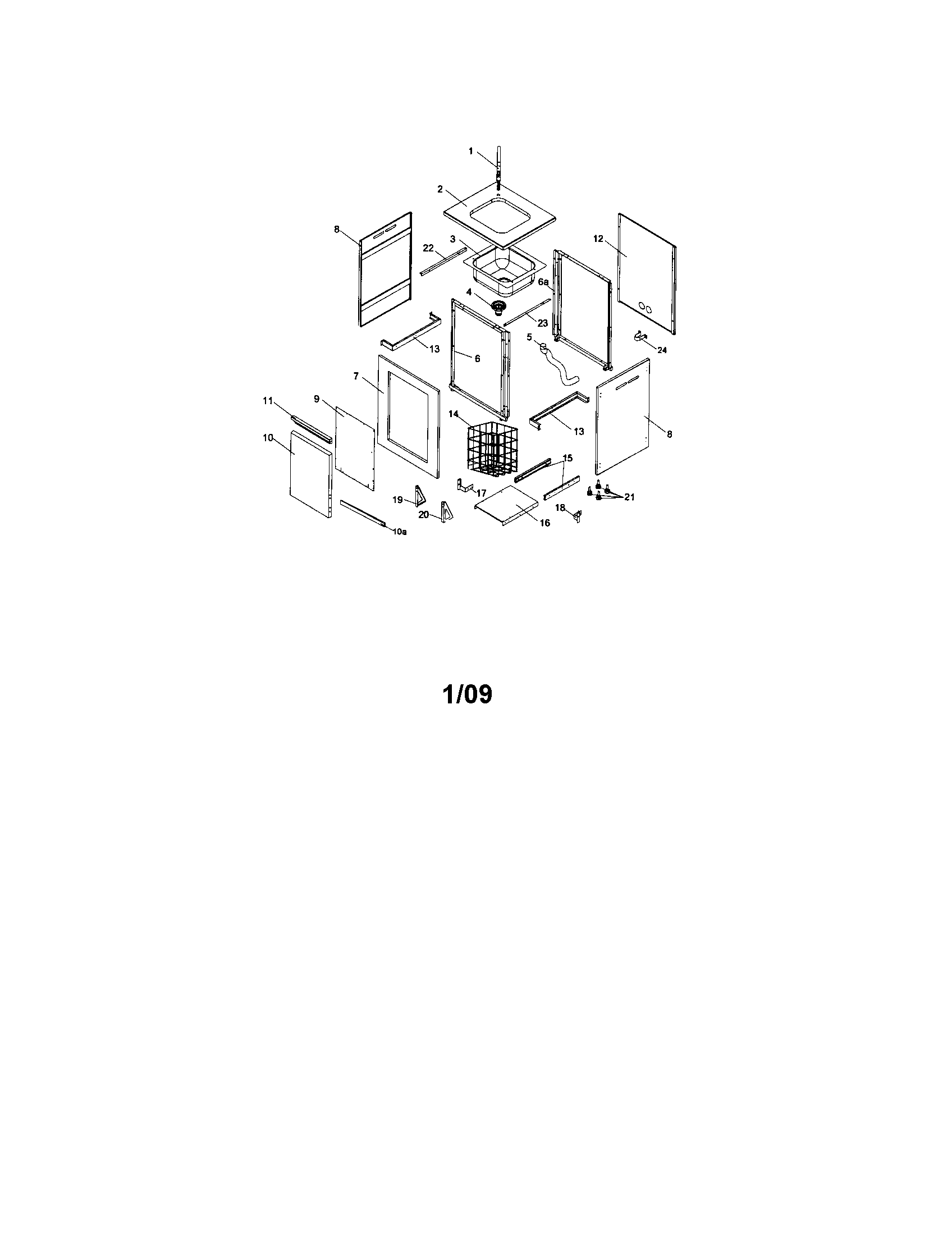

Sink module diagram

Slide

Part #P05516013C

The manufacturer no longer makes this part, and there's no substitute part

Drain Pipe P055120913
#5

Sink module diagram

Drain pipe

Part #P055120913

The manufacturer no longer makes this part, and there's no substitute part

Cart Basket P05203007G
#14

Sink module diagram

Cart basket

Part #P05203007G

The manufacturer no longer makes this part, and there's no substitute part

Door Trim Plate P07510003H
#9

Sink module diagram

Door trim plate

Part #P07510003H

The manufacturer no longer makes this part, and there's no substitute part

Door Bracket, Right P033270704
#20

Sink module diagram

Door bracket, right

Part #P033270704

The manufacturer no longer makes this part, and there's no substitute part

Pipe Bracket P05512016G
#24

Sink module diagram

Pipe bracket

Part #P05512016G

The manufacturer no longer makes this part, and there's no substitute part

Grill Cover P07005010B

#NI01

All parts diagram

Grill cover

Part #P07005010B

The manufacturer no longer makes this part, and there's no substitute part

Drain P05512090M
#4

Sink module diagram

Drain

Part #P05512090M

The manufacturer no longer makes this part, and there's no substitute part

Slide Set Br P03311034D
#13

Sink module diagram

Slide set br

Part #P03311034D

The manufacturer no longer makes this part, and there's no substitute part
