Samsung
Room Air Conditioner

Model # AW1800A/XAA Official Samsung air conditioner

Here are the diagrams and repair parts for Official Samsung AW1800A-XAA air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

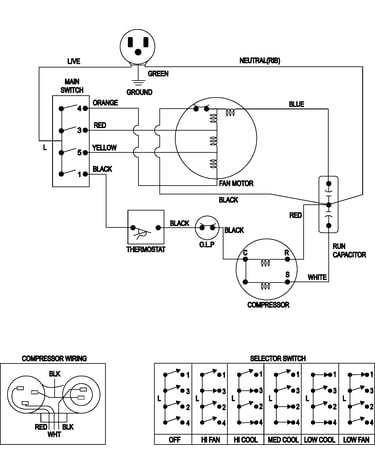

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 60 parts  |
Cap DB63-10365A
#36

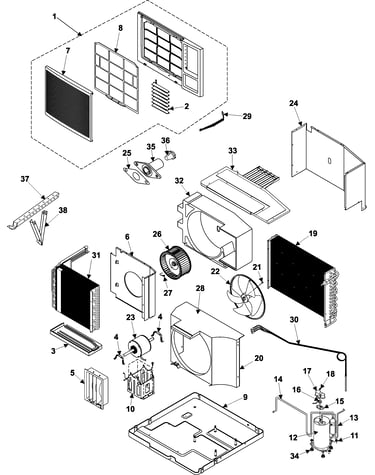

Chassis assembly diagram

Cap

Part #DB63-10365A

This item is not returnable
$2.59
In Stock
Flange Nut DB60-30018A
#21

Chassis assembly diagram

Flange nut

Part #DB60-30018A

This item is not returnable
$2.59
In Stock
Fan Propell DB67-00047A
#22

Chassis assembly diagram

Fan propell

Part #DB67-00047A

Replaced by #DB67-00047B

?
Manufacturer substitution
This part replaces DB67-00047A. Substitute parts can look different from the original.
$85.82 |
6% OFF Phone Price : $90.82
In Stock
Room Air Conditioner Control Knob (replaces Db64-50128a, Db64-50138e) DB64-50138A
#7

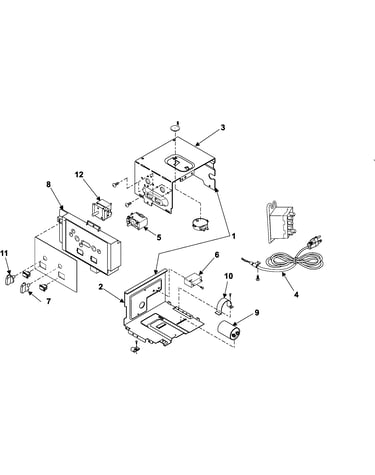

Control assembly diagram

Room air conditioner control knob (replaces db64-50128a, db64-50138e)

Part #DB64-50138A

The manufacturer no longer makes this part, and there's no substitute part

Shutter-an DB64-00048D
#1

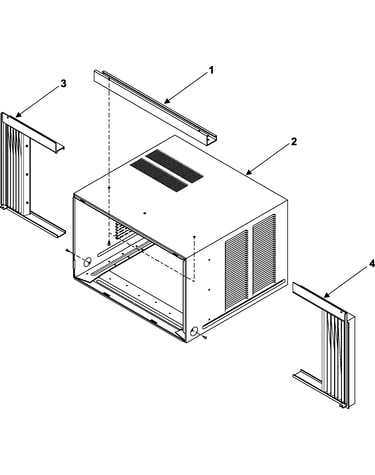

Outer case assembly diagram

Shutter-an

Part #DB64-00048D

The manufacturer no longer makes this part, and there's no substitute part

Cover Assembly DB90-40174A
#33

Chassis assembly diagram

Cover assembly

Part #DB90-40174A

The manufacturer no longer makes this part, and there's no substitute part

Samsung, Room Air SAM0111
#1

Supplemental information diagram

Samsung, room air

Part #SAM0111

The manufacturer no longer makes this part, and there's no substitute part

Case Evaporator DB61-10182A
#32

Chassis assembly diagram

Case evaporator

Part #DB61-10182A

The manufacturer no longer makes this part, and there's no substitute part

Evaporator Assembly DB96-01038A
#31

Chassis assembly diagram

Evaporator assembly

Part #DB96-01038A

The manufacturer no longer makes this part, and there's no substitute part

Condenser DB96-01048A
#19

Chassis assembly diagram

Condenser

Part #DB96-01048A

The manufacturer no longer makes this part, and there's no substitute part
