Model # PVM9005SJ4SS Official GE microwave/hood combo

Here are the diagrams and repair parts for Official GE PVM9005SJ4SS microwave/hood combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

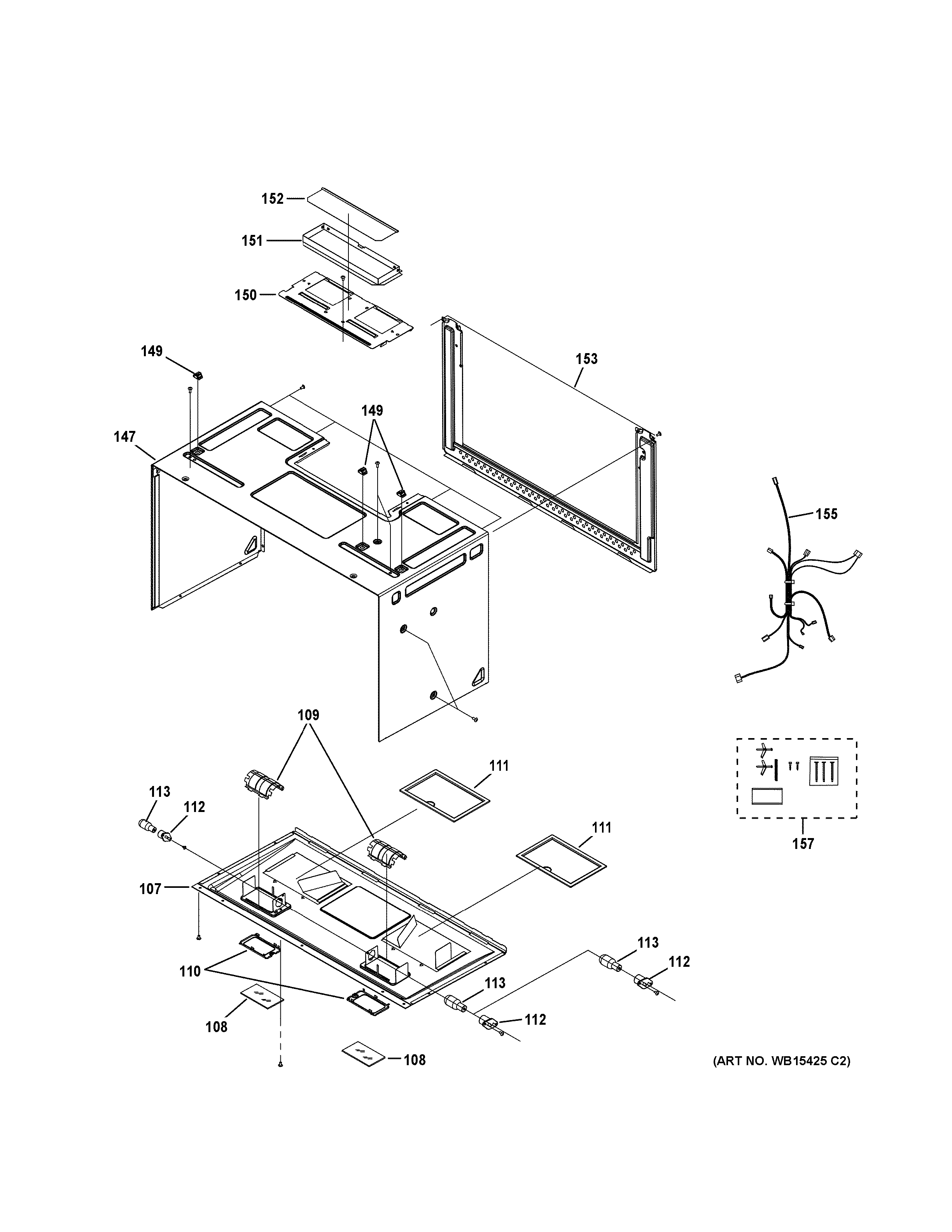

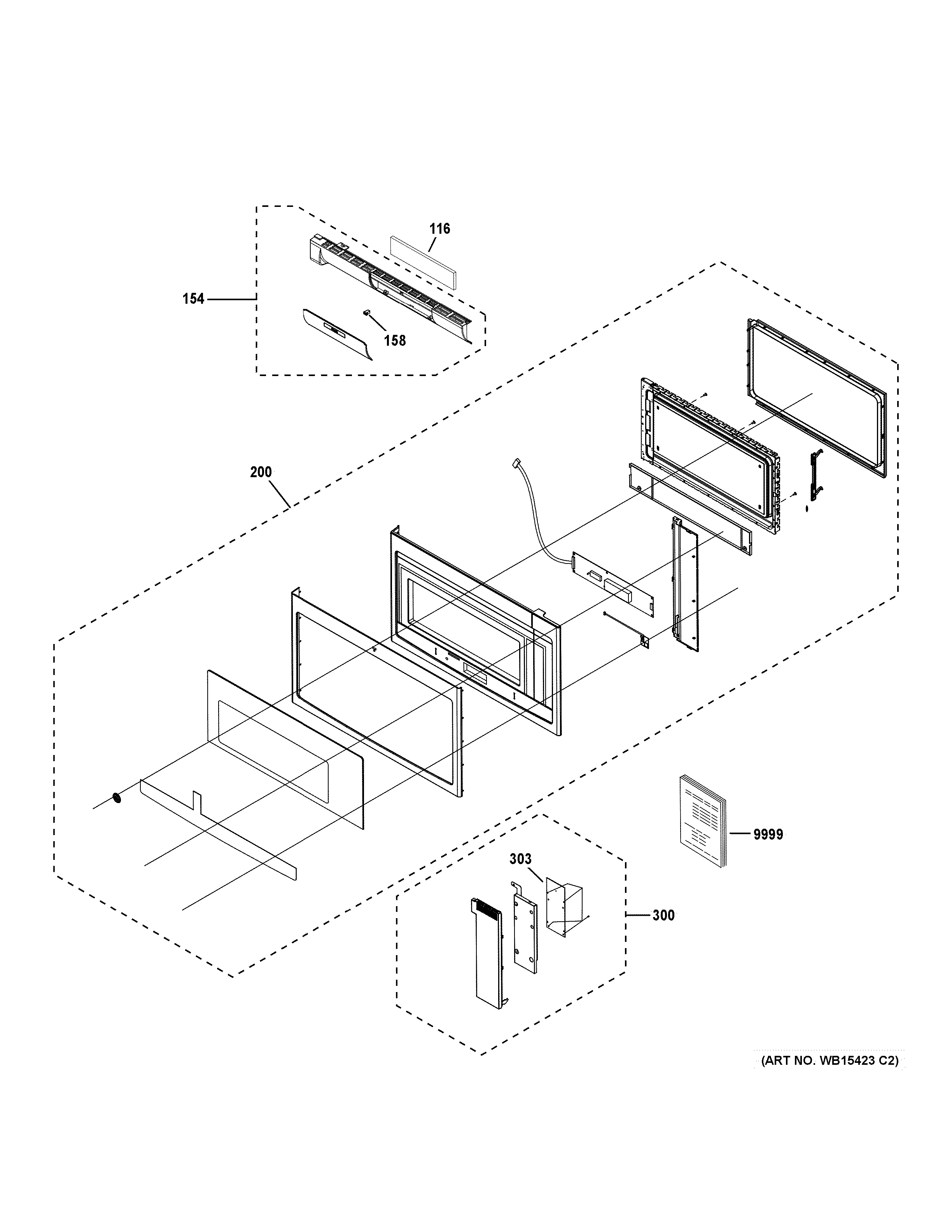

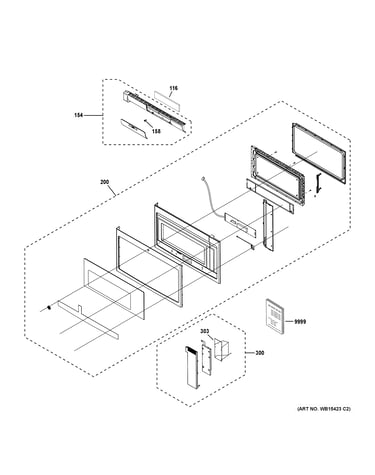

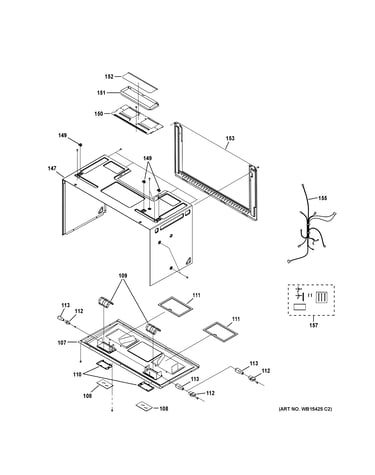

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 58 parts  |
Microwave Door Interlock Switch (replaces Wb24x28941) WB24X10146
#129

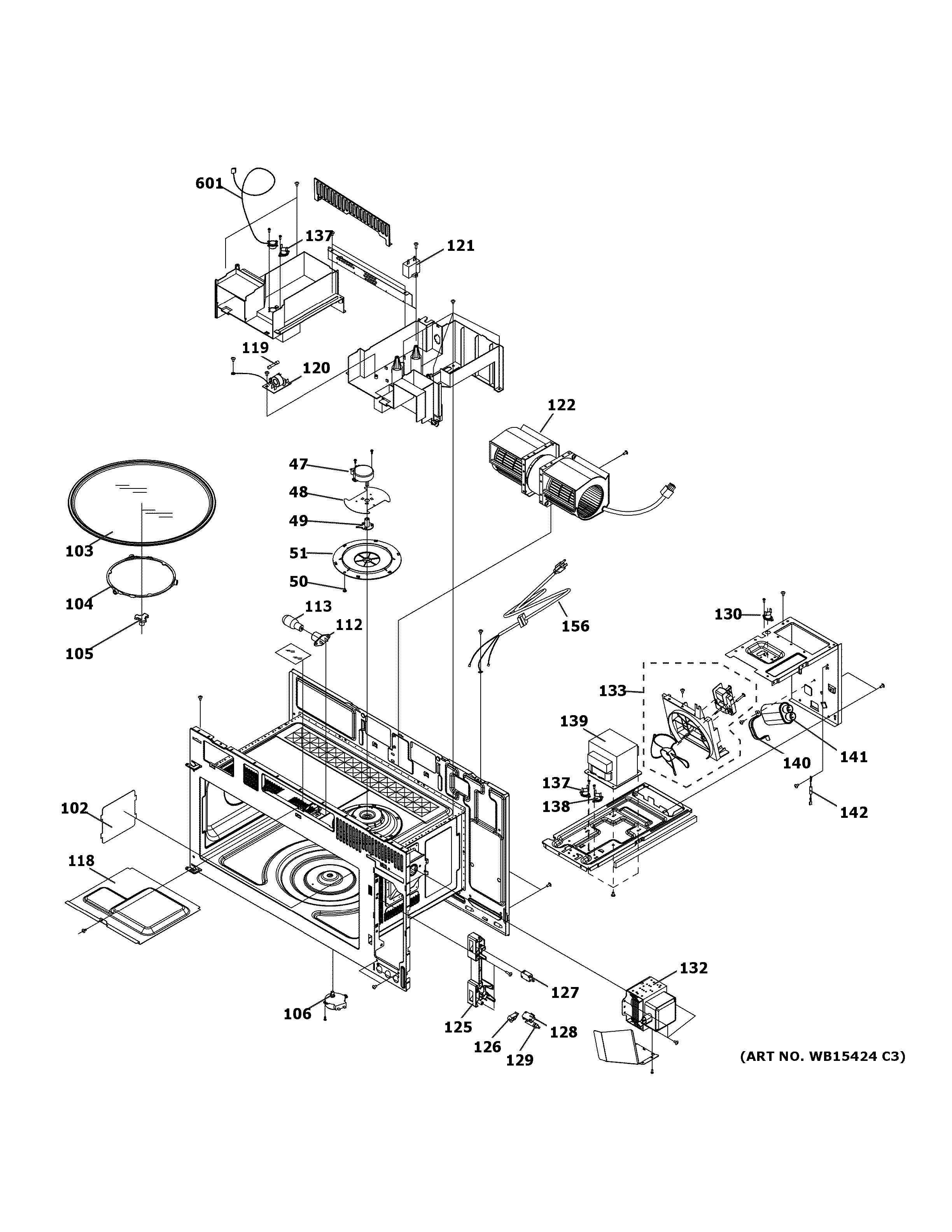

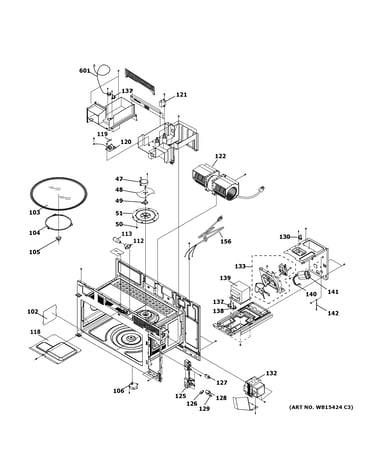

Oven cavity parts diagram

Microwave door interlock switch (replaces wb24x28941)

Part #WB24X10146

BEST SELLER
$32.79 |
13% OFF Phone Price : $37.79
In Stock
Microwave Door Monitor Switch (replaces Wb24x10147) WB24X10205
#128

Oven cavity parts diagram

Microwave door monitor switch (replaces wb24x10147)

Part #WB24X10205

BEST SELLER
$57.39 |
8% OFF Phone Price : $62.39
In Stock
Microwave Fuse WB27X11138
#119

Oven cavity parts diagram

Microwave fuse

Part #WB27X11138

BEST SELLER
$52.47 |
9% OFF Phone Price : $57.47
In Stock
Microwave Door Interlock Switch (replaces Wb24x10148, Wb24x28940) WB24X10204
#127

Oven cavity parts diagram

Microwave door interlock switch (replaces wb24x10148, wb24x28940)

Part #WB24X10204

BEST SELLER
$55.44 |
8% OFF Phone Price : $60.44
In Stock
Microwave Door Interlock Switch Lever WB03X10348
#126

Oven cavity parts diagram

Microwave door interlock switch lever

Part #WB03X10348

BEST SELLER
$31.87 |
14% OFF Phone Price : $36.87
In Stock
Microwave Thermostat WB27X11210
#130

Oven cavity parts diagram

Microwave thermostat

Part #WB27X11210

$69.28 |
7% OFF Phone Price : $74.28
In Stock
Microwave Noise Filter WB27X11140
#120

Oven cavity parts diagram

Microwave noise filter

Part #WB27X11140

$136.07 |
10% OFF Was : $151.19
In Stock
Microwave Door Latch Housing WB10X25607
#125

Oven cavity parts diagram

Microwave door latch housing

Part #WB10X25607

$56.04 |
8% OFF Phone Price : $61.04
In Stock
High-voltage Diode WB27X25616
#142

Oven cavity parts diagram

High-voltage diode

Part #WB27X25616

$47.34 |
10% OFF Phone Price : $52.34
In Stock
Microwave Turntable Motor WB26X10176
#106

Oven cavity parts diagram

Microwave turntable motor

Part #WB26X10176

Replaced by #WB26X32190

?
Manufacturer substitution
This part replaces WB26X10176. Substitute parts can look different from the original.
$51.05 |
9% OFF Phone Price : $56.05
In Stock
