Panasonic NN6523A microwave Parts

Name: Panasonic NN6523A Parts | Diagrams | Sears PartsDirect
Brand: Panasonic
SKU: NN6523A
Availability: InStock

Here are the diagrams and repair parts for Panasonic NN6523A microwave, as well as links to manuals and error code tables, if available.

By Schematic

SELECT DIAGRAM

Browse Parts for NN6523A Microwaves

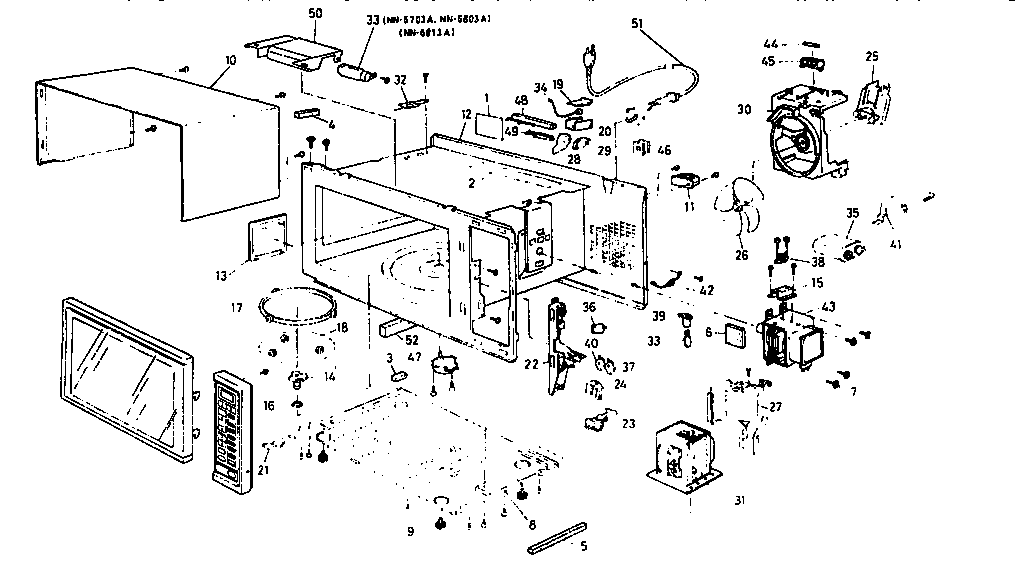

Microwave parts diagram
Fuse Holder
Part #A62314000AP
Replaced by #501152
Manufacturer substitution
This part replaces A62314000AP. Substitute parts can look different from the original.
This item is not returnable
In Stock
$4.99
Qty
Microwave parts diagram
Spacer B
Part #B31374830AP
Replaced by #A62384650AP
Manufacturer substitution
This part replaces B31374830AP. Substitute parts can look different from the original.
This item is not returnable
In Stock
$2.99
Qty
#NI
All parts diagram
300 Ohm 1/4w
Part #ERDS2TJ301T
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Capacitor
Part #ECBT1E103ZF5
The manufacturer no longer makes this part, and there's no substitute part
#NI
All parts diagram
Diode
Part #AEDNERA1502
Replaced by #501192
Manufacturer substitution
This part replaces AEDNERA1502. Substitute parts can look different from the original.
This item is not returnable
In Stock
$2.49
Qty
#NI
All parts diagram
Relay
Part #AEG5J1EG12B
Replaced by #502924
Manufacturer substitution
This part replaces AEG5J1EG12B. Substitute parts can look different from the original.
In Stock
$12.58
14% OFF Phone Price : $14.58
Qty

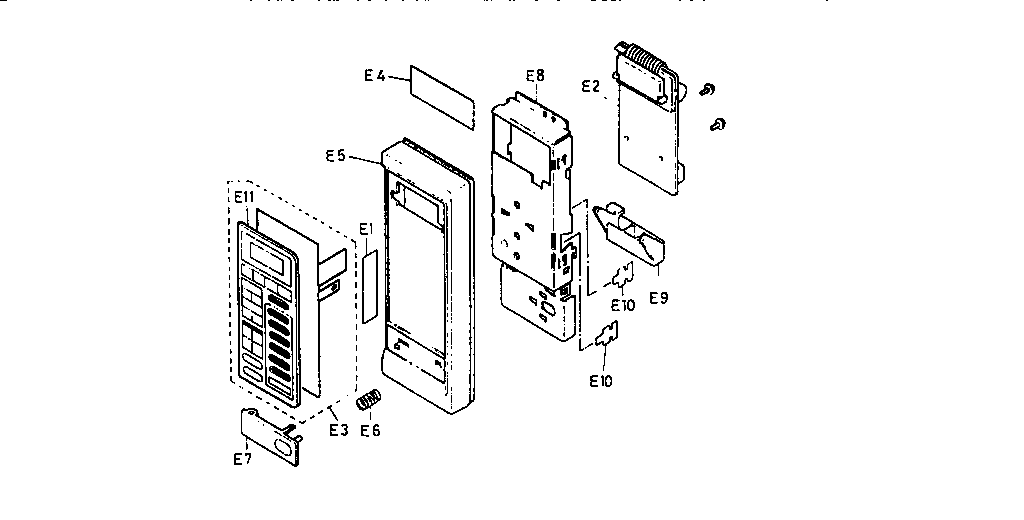

Escutcheon base assembly diagram
Panel
Part #A80347050AP
Replaced by #B80347050AP
Manufacturer substitution
This part replaces A80347050AP. Substitute parts can look different from the original.
In Stock
$26.49
Qty
#NI
All parts diagram
Integrated Circuit
Part #AN6752
Replaced by #501190
Manufacturer substitution
This part replaces AN6752. Substitute parts can look different from the original.
In Stock
$15.99
Qty
Microwave parts diagram
Magnetron
Part #2M210-M1E
The manufacturer no longer makes this part, and there's no substitute part

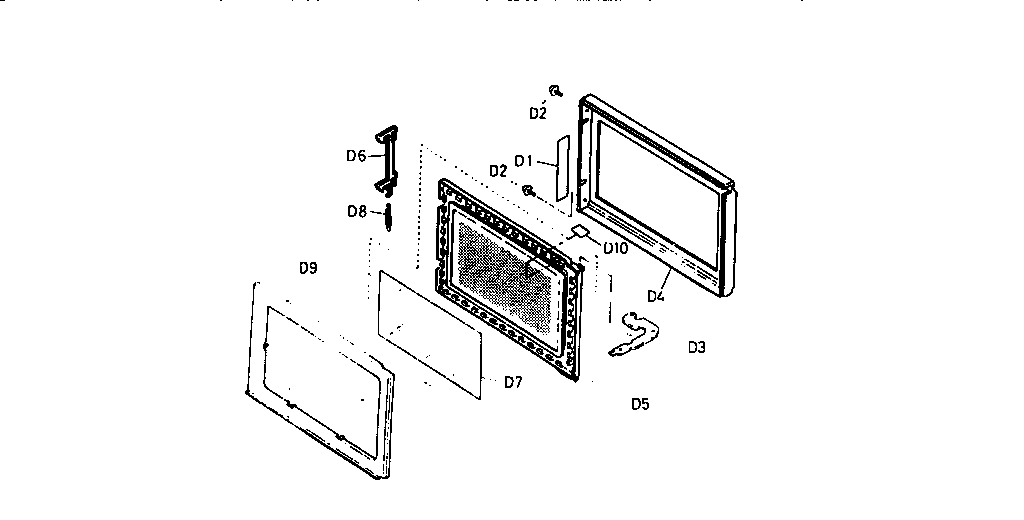

Door assembly diagram
Hinge
Part #B30067050AP
Replaced by #B30067051AP
Manufacturer substitution
This part replaces B30067050AP. Substitute parts can look different from the original.
This item is not returnable
In Stock
$3.49
Qty
