KitchenAid
Countertop Microwave

Model #KCMG125EAL0 Official KitchenAid microwave

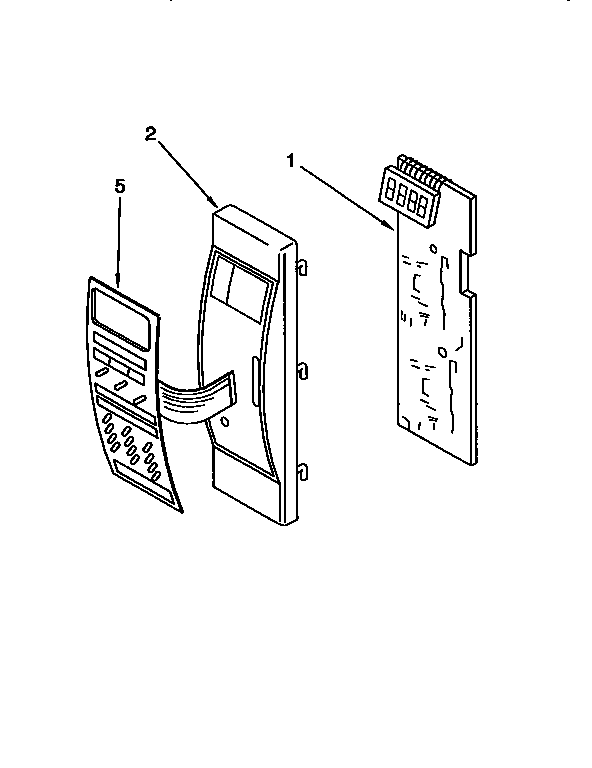

Here are the diagrams and repair parts for KitchenAid KCMG125EAL0 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Showing 10 of 76 parts

Microwave Crisping Tray#2

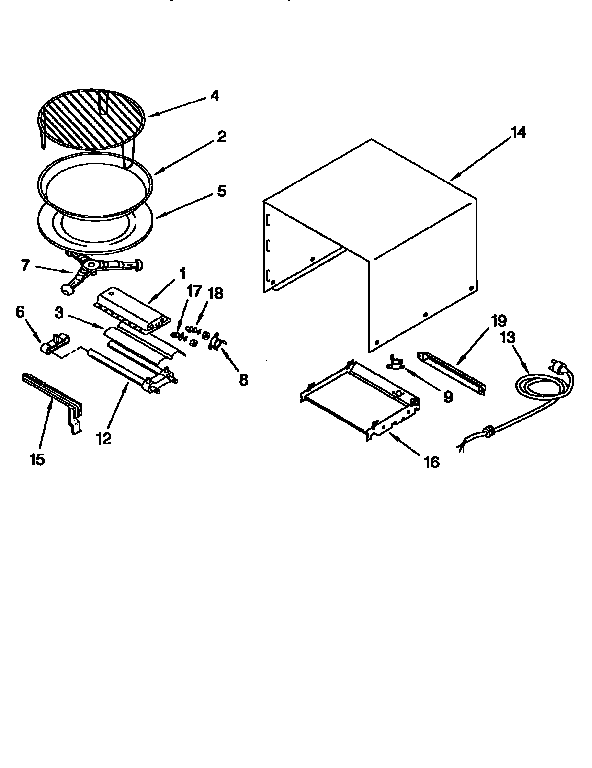

Turn table and grille Diagram

Crisper pan

Part #4375191
Replaced by #WPW10120480
?
Manufacturer substitution
This part replaces 4375191. Substitute parts can look different from the original.
In Stock
$59.19 |
8% OFF
Phone Price: $64.19
Microwave High-Voltage Capacitor#12

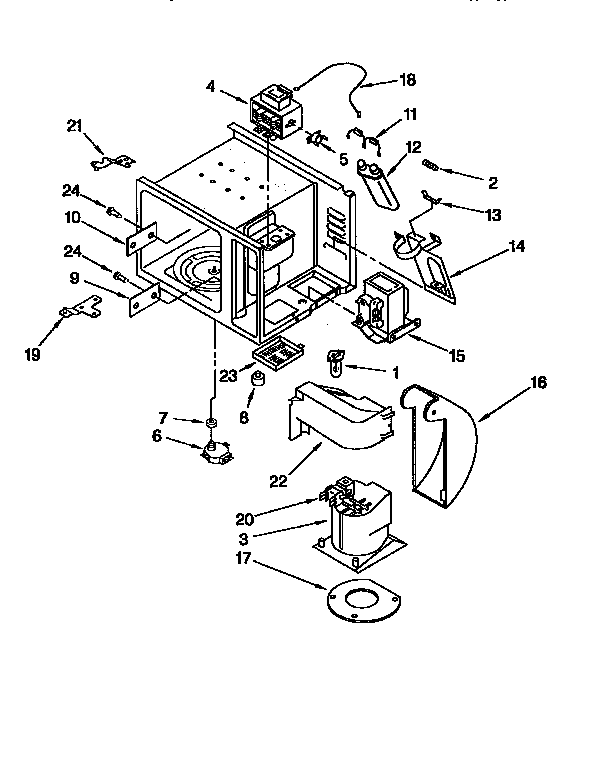

Magnetron and air flow Diagram

Microwave high-voltage capacitor

Part #4375020
Replaced by #WP4375020
?
Manufacturer substitution
This part replaces 4375020. Substitute parts can look different from the original.
In Stock
$108.39 |
8% OFF
Phone Price: $118.39
Microwave Crisping Tray Handle#15

Turn table and grille Diagram

Pan handle

Part #4378400
Replaced by #W10851464
?
Manufacturer substitution
This part replaces 4378400. Substitute parts can look different from the original.
This item is not returnable
In Stock
$15.59 |
11% OFF
Phone Price: $17.59
Gasket Element#17

Turn table and grille Diagram

Gasket element

Part #4375254
In Stock
$23.82
Microwave Cooling Fan Motor#20

Magnetron and air flow Diagram

In Stock
$167.96
Microwave Glass Turntable Tray#5

Turn table and grille Diagram

Cook tray

Part #4375274
Replaced by #W10818723
?
Manufacturer substitution
This part replaces 4375274. Substitute parts can look different from the original.
In Stock
$108.83 |
9% OFF
MSRP: $120.00
Screw#16

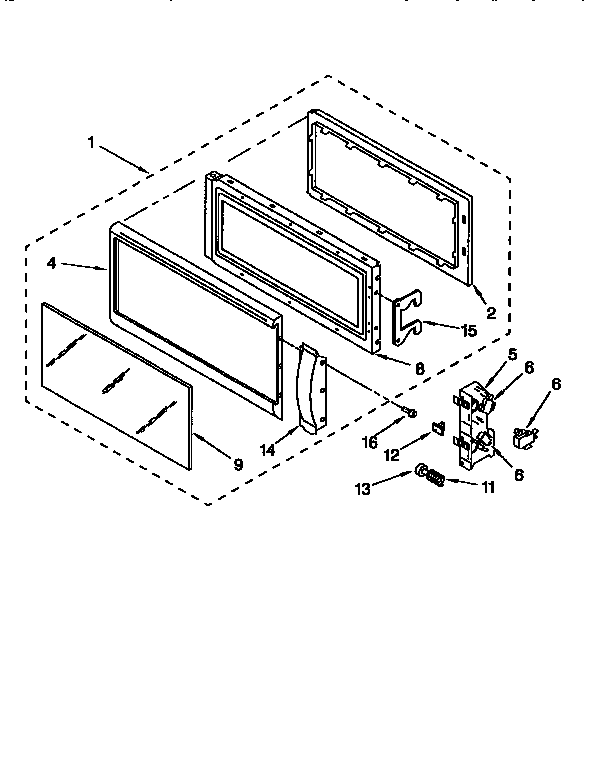

Door and latch Diagram

Screw

Part #4375202
Replaced by #461967825321
?
Manufacturer substitution
This part replaces 4375202. Substitute parts can look different from the original.
In Stock
$7.65
Microwave Fuse Holder#13

Magnetron and air flow Diagram

Fuse block

Part #4375231
Replaced by #W10245194
?
Manufacturer substitution
This part replaces 4375231. Substitute parts can look different from the original.
In Stock
$33.96
Magnetron#4

Magnetron and air flow Diagram

Magnetron

Part #4375072

The manufacturer no longer makes this part, and there's no substitute part

Microwave High-Voltage Transformer#15

Magnetron and air flow Diagram

Microwave high-voltage transformer

Part #4375286
Replaced by #WP4375286
?
Manufacturer substitution
This part replaces 4375286. Substitute parts can look different from the original.
In Stock
$265.58 |
10% OFF
Was: $295.09
