Model # 632650 Official Tractor Accessories carburetor

Here are the diagrams and repair parts for Official Tractor Accessories 632650 carburetor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 26 parts  |
Gasket 27110
#44

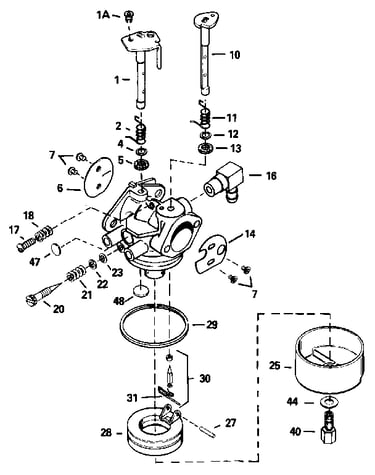

Carburetor 632650 (71/143) diagram

Gasket

Part #27110

Replaced by #27110A

?
Manufacturer substitution
This part replaces 27110. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Float 632019
#28

Carburetor 632650 (71/143) diagram

Float

Part #632019

Replaced by #632019A

?
Manufacturer substitution
This part replaces 632019. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.89 |
10% OFF Phone Price : $9.89
In Stock
Lawn & Garden Equipment Engine Carburetor Float Bowl (replaces 631025, 632808) 631867
#25

Carburetor 632650 (71/143) diagram

Lawn & garden equipment engine carburetor float bowl (replaces 631025, 632808)

Part #631867

This item is not returnable
$3.49 |
22% OFF Phone Price : $4.49
In Stock
Lawn & Garden Equipment Engine Carburetor Fuel Inlet Fitting 632527
#16

Carburetor 632650 (71/143) diagram

Lawn & garden equipment engine carburetor fuel inlet fitting

Part #632527

This item is not returnable
$9.59 |
9% OFF Phone Price : $10.59
In Stock
Lawn & Garden Equipment Engine Tension Spring 630766
Lawn & garden equipment engine tension spring

Part #630766

This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Engine Screw 650506
#7

Carburetor 632650 (71/143) diagram

Lawn & garden equipment engine screw

Part #650506

This item is not returnable
$2.16
In Stock
Spring 632244
#2

Carburetor 632650 (71/143) diagram

Spring

Part #632244

Replaced by #632685

?
Manufacturer substitution
This part replaces 632244. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Shaft & Lw 632472
#10

Carburetor 632650 (71/143) diagram

Shaft & lw

Part #632472

$8.20
In Stock
Shaft Lever 632649
#1

Carburetor 632650 (71/143) diagram

Shaft lever

Part #632649

$9.37
In Stock
Lawn & Garden Equipment Screw 632281
#20

Carburetor 632650 (71/143) diagram

Lawn & garden equipment screw

Part #632281

This item is not returnable
$4.14
In Stock
