Model # AHL10ASQ1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AHL10ASQ1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Axial Fan WJ73X20065
#22

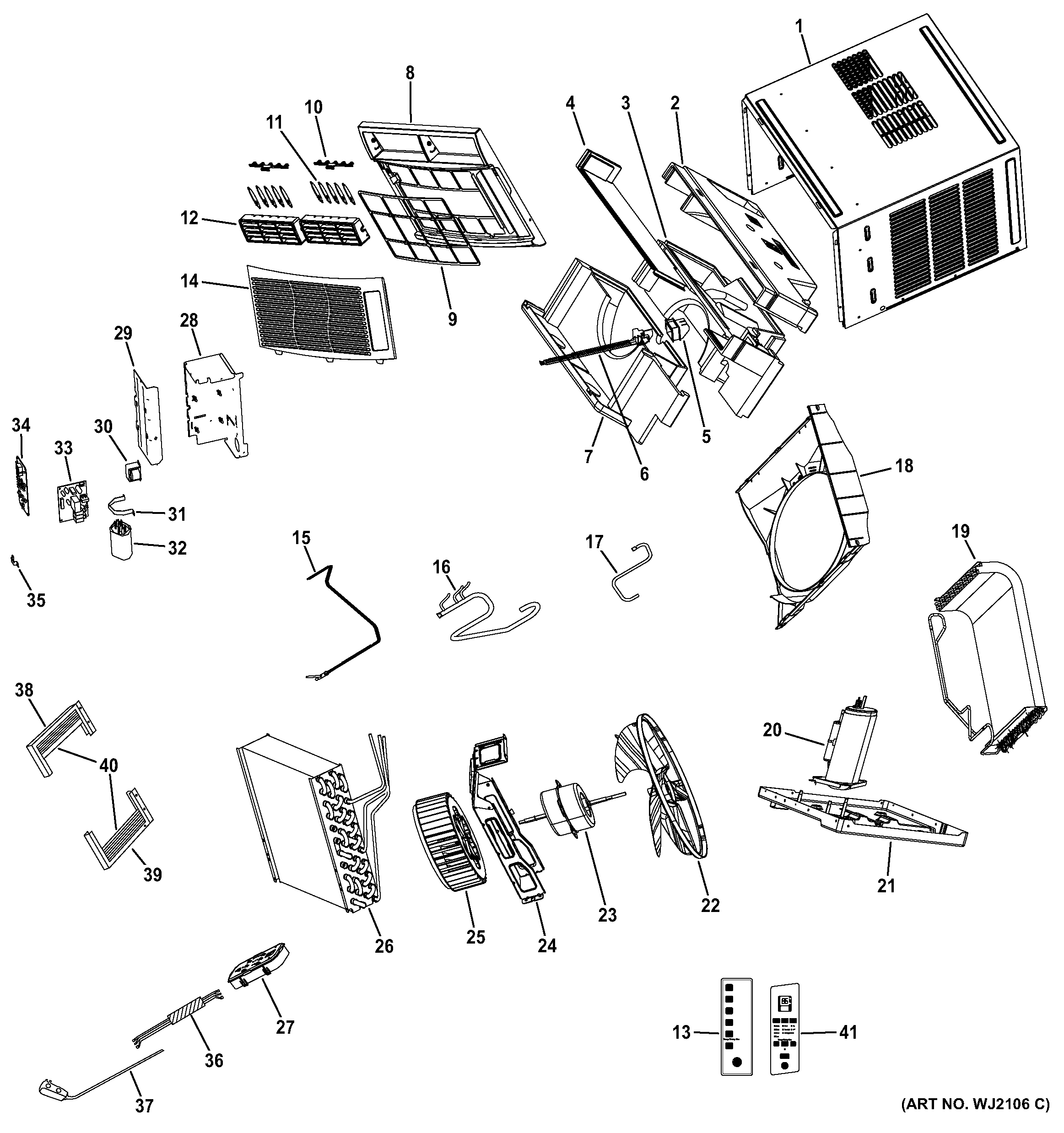

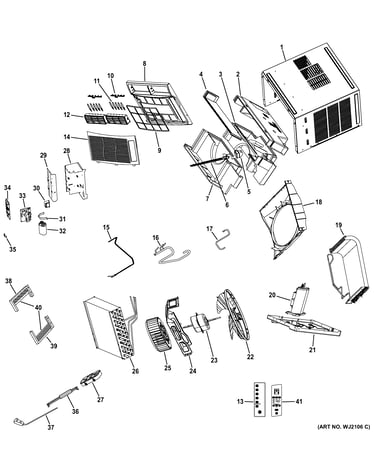

Room air conditioner diagram

Axial fan

Part #WJ73X20065

$40.84
In Stock
Room Air Conditioner Electronic Control Board WJ29X20075
#33

Room air conditioner diagram

Room air conditioner electronic control board

Part #WJ29X20075

$96.20 |
9% OFF Phone Price : $106.20
In Stock
Shutter WJ05X20096
#11

Room air conditioner diagram

Shutter

Part #WJ05X20096

Replaced by #WJ82X20780

?
Manufacturer substitution
This part replaces WJ05X20096. Substitute parts can look different from the original.
$68.89 |
7% OFF Phone Price : $73.89
In Stock
Transmission WJ05X20100
#10

Room air conditioner diagram

Transmission

Part #WJ05X20100

Replaced by #WJ82X20780

?
Manufacturer substitution
This part replaces WJ05X20100. Substitute parts can look different from the original.
$68.89 |
7% OFF Phone Price : $73.89
In Stock
Air Outlet G WJ71X20064
#12

Room air conditioner diagram

Air outlet g

Part #WJ71X20064

Replaced by #WJ82X20780

?
Manufacturer substitution
This part replaces WJ71X20064. Substitute parts can look different from the original.
$68.89 |
7% OFF Phone Price : $73.89
In Stock
Filter WJ71X20083
#9

Room air conditioner diagram

Filter

Part #WJ71X20083

Replaced by #WJ82X20780

?
Manufacturer substitution
This part replaces WJ71X20083. Substitute parts can look different from the original.
$68.89 |
7% OFF Phone Price : $73.89
In Stock
Panel WJ71X20086
#8

Room air conditioner diagram

Panel

Part #WJ71X20086

Replaced by #WJ82X20780

?
Manufacturer substitution
This part replaces WJ71X20086. Substitute parts can look different from the original.
$68.89 |
7% OFF Phone Price : $73.89
In Stock
Air Inlet Gr WJ71X20063
#14

Room air conditioner diagram

Air inlet gr

Part #WJ71X20063

Replaced by #WJ82X20780

?
Manufacturer substitution
This part replaces WJ71X20063. Substitute parts can look different from the original.
$68.89 |
7% OFF Phone Price : $73.89
In Stock
Curtain WJ05X20078
#40

Room air conditioner diagram

Curtain

Part #WJ05X20078

Replaced by #WJ86X23762

?
Manufacturer substitution
This part replaces WJ05X20078. Substitute parts can look different from the original.
This item is not returnable
$21.10 |
19% OFF Phone Price : $26.10
In Stock
Top Scroll C WJ76X20098
#2

Room air conditioner diagram

Top scroll c

Part #WJ76X20098

$37.03
In Stock
