GE
Room Air Conditioner

Model # AED08LVL1 Official GE room air conditioner

Here are the diagrams and repair parts for Official GE AED08LVL1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Room Air Conditioner Display Board WJ26X20184
#40

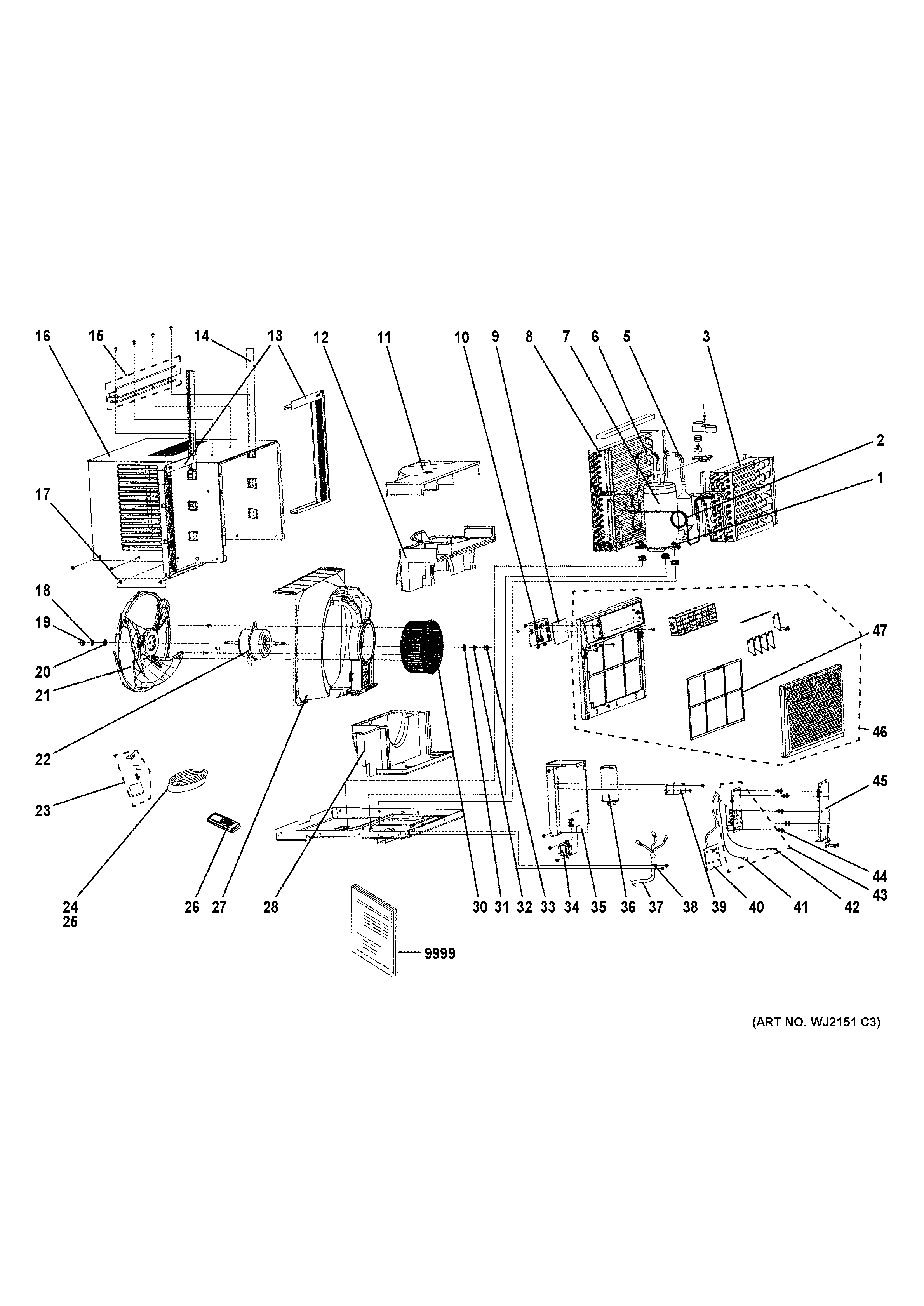

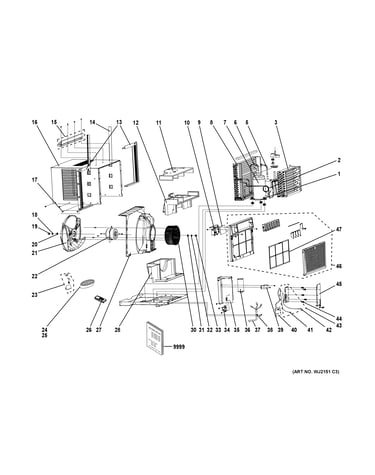

Room air conditioner diagram

Room air conditioner display board

Part #WJ26X20184

$65.75 |
7% OFF Phone Price : $70.75
In Stock
Room Air Conditioner Ambient Thermistor WJ27X10122
#42

Room air conditioner diagram

Room air conditioner ambient thermistor

Part #WJ27X10122

This item is not returnable
$16.70 |
11% OFF Phone Price : $18.70
In Stock
Spring Washer WJ01X10373
#32

Room air conditioner diagram

Spring washer

Part #WJ01X10373

$8.11
In Stock
Hardware Assembly WJ01X10422
#23

Room air conditioner diagram

Hardware assembly

Part #WJ01X10422

$7.01 |
12% OFF Phone Price : $8.01
In Stock
Gasket Seal WJ01X10426
#25

Room air conditioner diagram

Gasket seal

Part #WJ01X10426

$10.94 |
15% OFF Phone Price : $12.94
In Stock
Washer(dia 6 WJ01X10347
#31

Room air conditioner diagram

Washer(dia 6

Part #WJ01X10347

This item is not returnable
$5.00
In Stock
Electric Box WJ05X20229
#45

Room air conditioner diagram

Electric box

Part #WJ05X20229

This item is not returnable
$7.25
In Stock
Cabinet Assembly WJ90X20528
#16

Room air conditioner diagram

Cabinet assembly

Part #WJ90X20528

$132.86
In Stock
Capacitor Clamp WJ03X10089
#39

Room air conditioner diagram

Capacitor clamp

Part #WJ03X10089

This item is not returnable
$4.35
In Stock
Discharge Tube WJ49X20536
#6

Room air conditioner diagram

Discharge tube

Part #WJ49X20536

$34.84
In Stock
