Coleman
Gas Grill

Model # 9941-768 Official Coleman gas grill

Here are the diagrams and repair parts for Official Coleman 9941-768 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 24 parts  |

Gas Grill Water Pan 9941-3311
#4

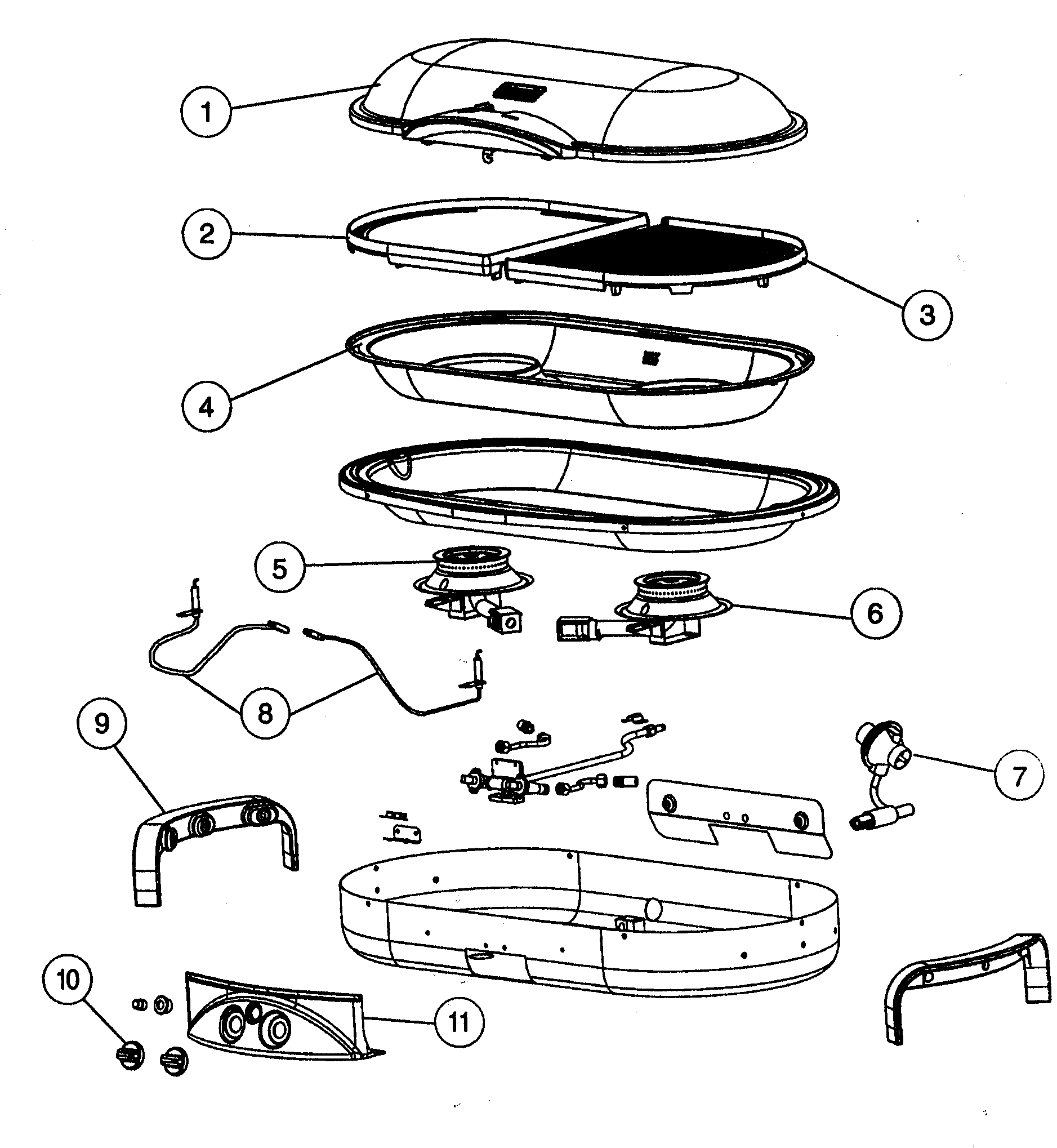

Grill diagram

Gas grill water pan

Part #9941-3311

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Side Burner 9941-5461
#6

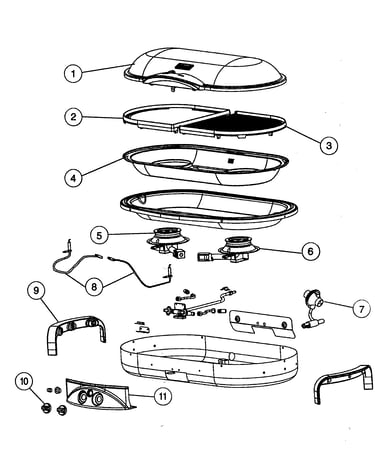

Grill diagram

Gas grill side burner

Part #9941-5461

The manufacturer no longer makes this part, and there's no substitute part

Igniter/el 9942-5851
#8

Grill diagram

Igniter/el

Part #9942-5851

The manufacturer no longer makes this part, and there's no substitute part

Leg Assembly 9941-5611
#2

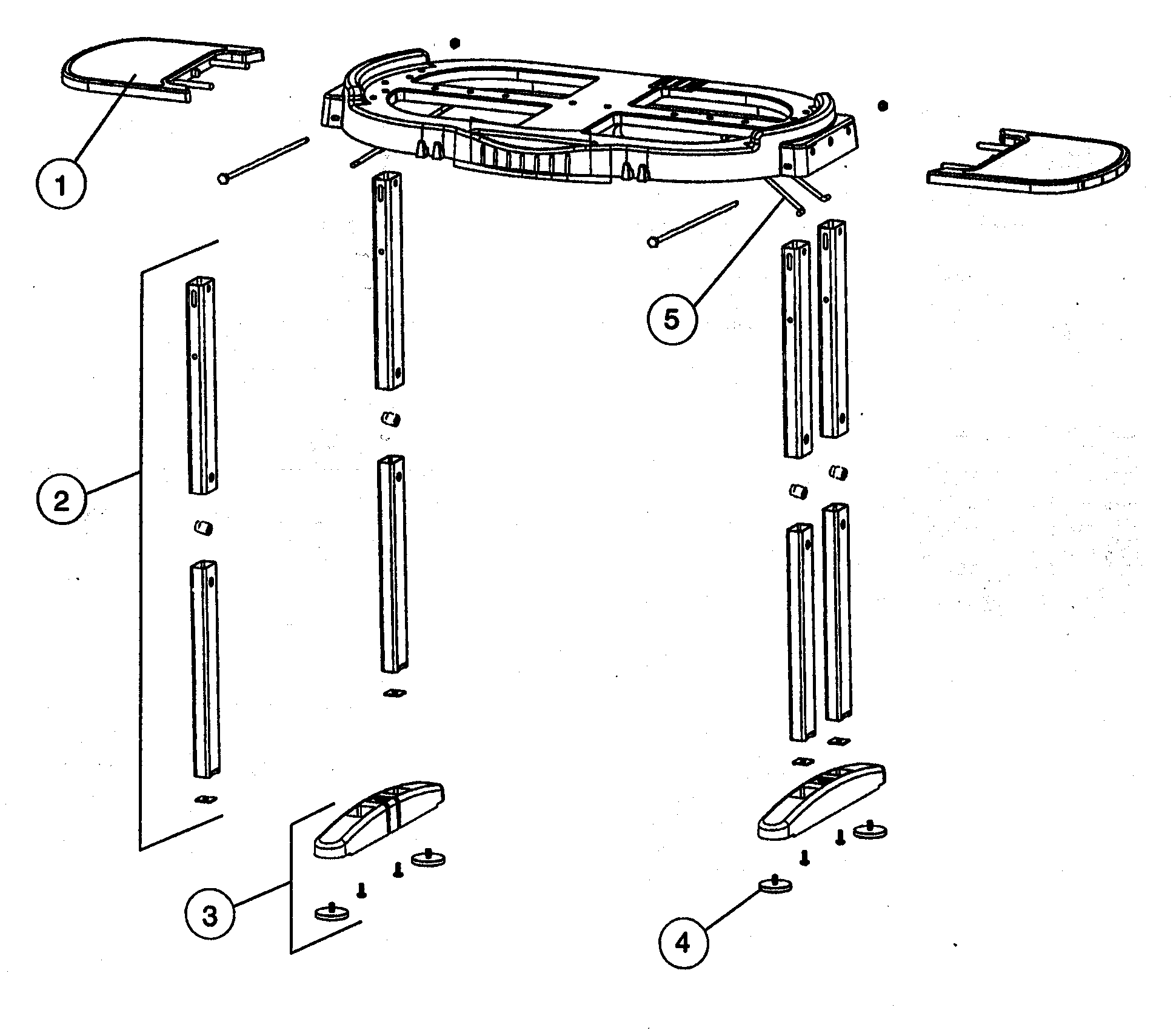

Grill stand diagram

Leg assembly

Part #9941-5611

The manufacturer no longer makes this part, and there's no substitute part

Foot Assembly 9941-5601
#3

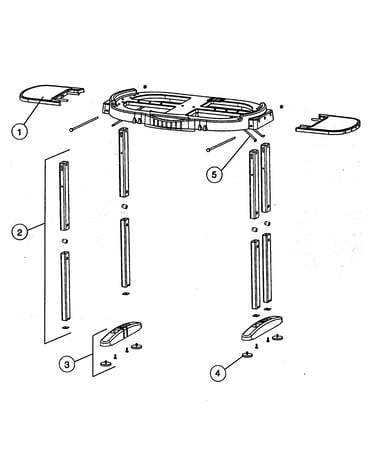

Grill stand diagram

Foot assembly

Part #9941-5601

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Regulator 9942-5251
#7

Grill diagram

Gas grill regulator

Part #9942-5251

The manufacturer no longer makes this part, and there's no substitute part

Wire Brace 9941-1751
#5

Grill stand diagram

Wire brace

Part #9941-1751

The manufacturer no longer makes this part, and there's no substitute part

Sidehandle 9942-3811
#9

Grill diagram

Sidehandle

Part #9942-3811

The manufacturer no longer makes this part, and there's no substitute part

Foot Pad 9941-1881
#4

Grill stand diagram

Foot pad

Part #9941-1881

The manufacturer no longer makes this part, and there's no substitute part

Gas Grill Burner, Left 9941-5471
#5

Grill diagram

Gas grill burner, left

Part #9941-5471

The manufacturer no longer makes this part, and there's no substitute part

Symptoms for gas grills

Choose a symptom to see related gas grill repairs.

Main causes: nearly empty fuel tank, faulty pressure regulator, burner tube clogs, bad burner tube alignment to gas valv…

Main causes: empty fuel tank, tripped flow-limiting device on the pressure regulator, faulty manifold valves, burner tub…

Main causes: damaged or dirty flame tamers, corroded firebox, accumulated grease and debris in the grease pan…

Main causes: clogged burner tubes, cracked insulators on igniter electrodes, wiring failures, bad ignition module, manif…
