Kenmore
Countertop Microwave

Model # 5668724980 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5668724980 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

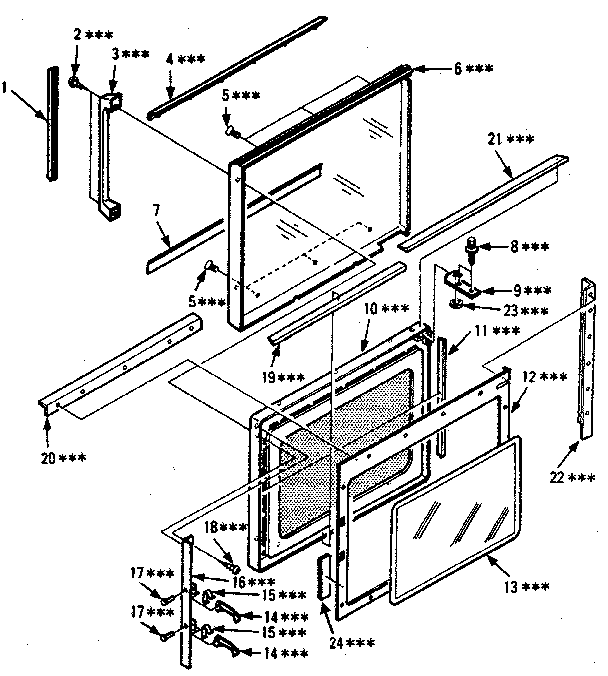

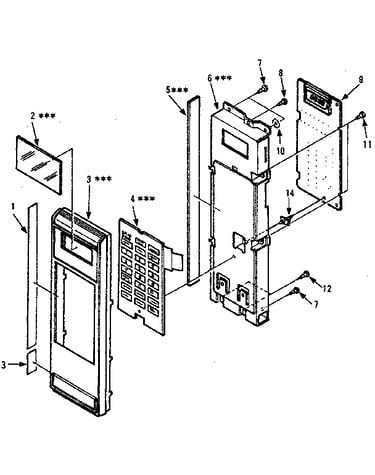

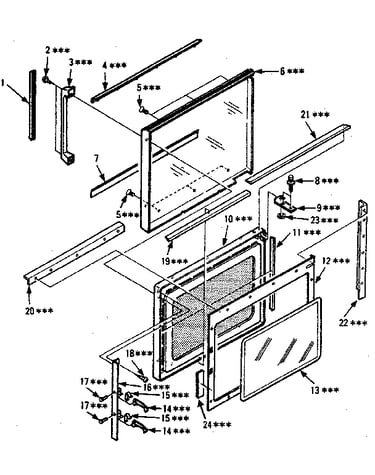

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 192 parts  |

Micro-switch 11243
#20

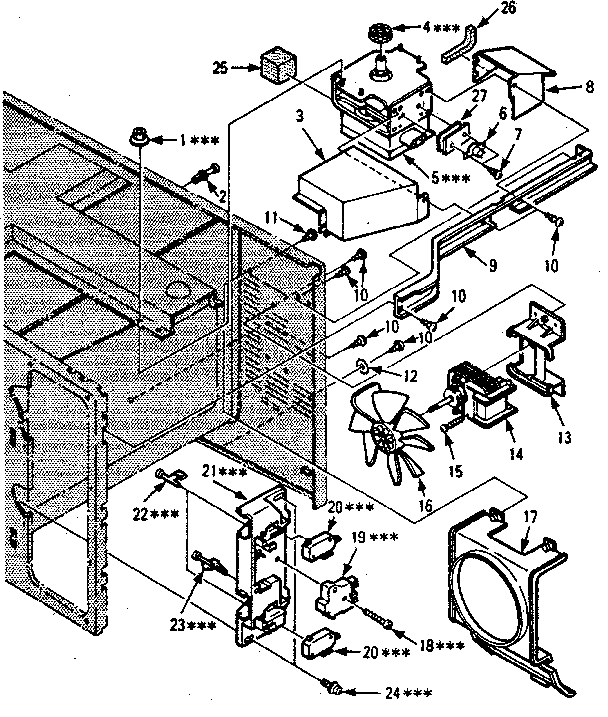

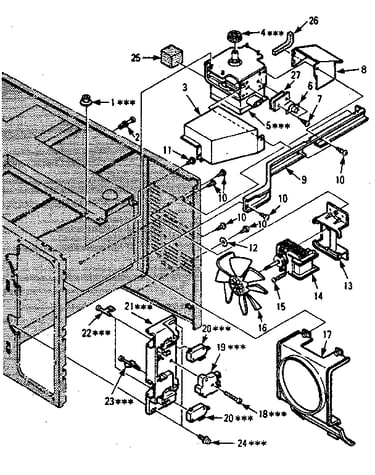

Switches and microwave parts diagram

Micro-switch

Part #11243

The manufacturer no longer makes this part, and there's no substitute part

Microwave Fuse, 15-amp 11255
#14

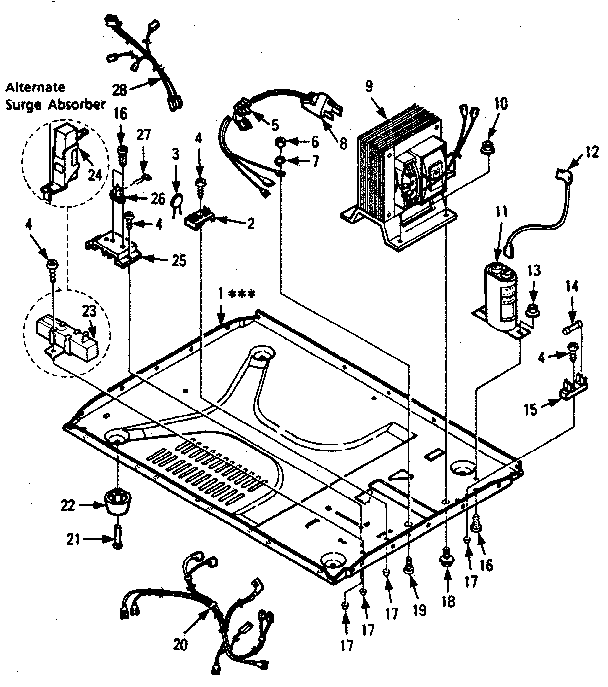

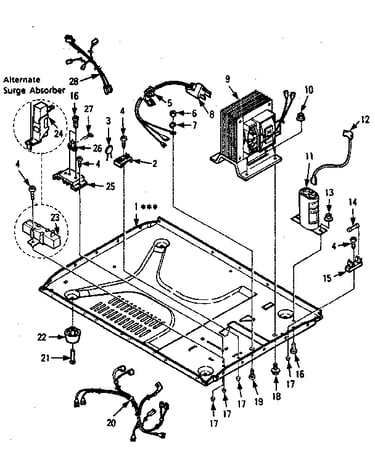

Microwave parts diagram

Microwave fuse, 15-amp

Part #11255

The manufacturer no longer makes this part, and there's no substitute part

Resistor 13851
#7B

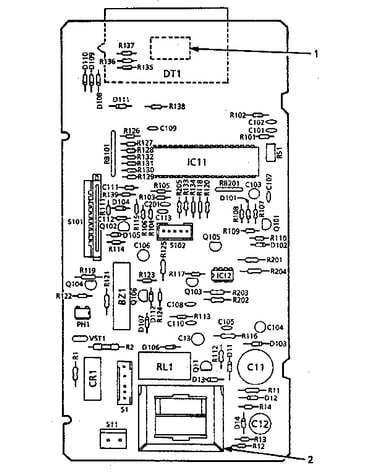

Power and control circuit board part 14175 diagram

Resistor

Part #13851

The manufacturer no longer makes this part, and there's no substitute part

Thermostat 11235
#35

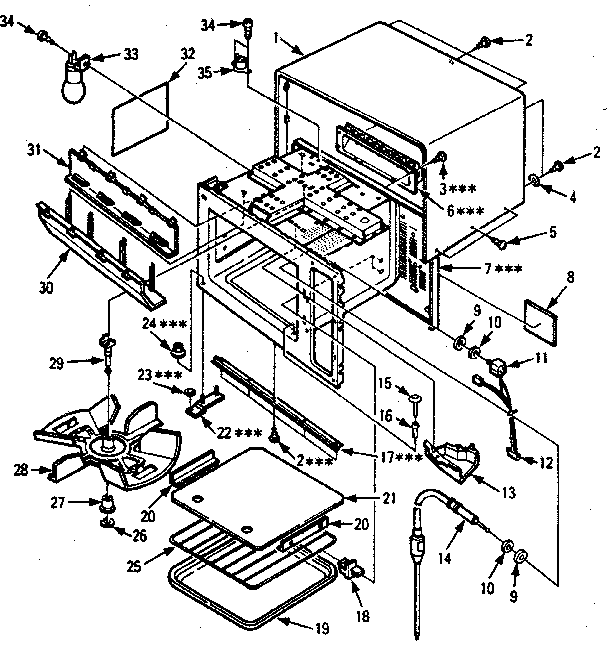

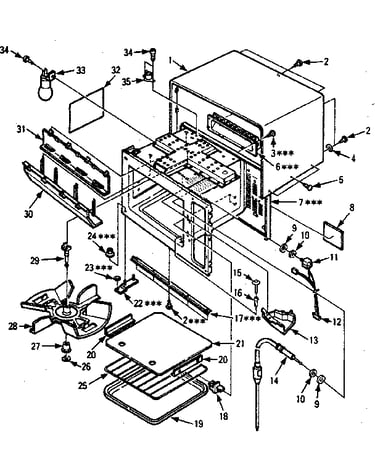

Cabinet parts diagram

Thermostat

Part #11235

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 11256
#15

Microwave parts diagram

Fuse holder

Part #11256

The manufacturer no longer makes this part, and there's no substitute part

Diode 13512
#5F

Power and control circuit board part 14175 diagram

Diode

Part #13512

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 12133
#6F

Power and control circuit board part 14175 diagram

Capacitor

Part #12133

The manufacturer no longer makes this part, and there's no substitute part

Intg Circuit 11557
#3C

Power and control circuit board part 14175 diagram

Intg circuit

Part #11557

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 11564
Capacitor

Part #11564

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 12544
#6I

Power and control circuit board part 14175 diagram

Capacitor

Part #12544

The manufacturer no longer makes this part, and there's no substitute part
