Model # DM46H-9 Official Maytag microwave

Here are the diagrams and repair parts for Official Maytag DM46H-9 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 71 parts  |
Screw 03020068
#28

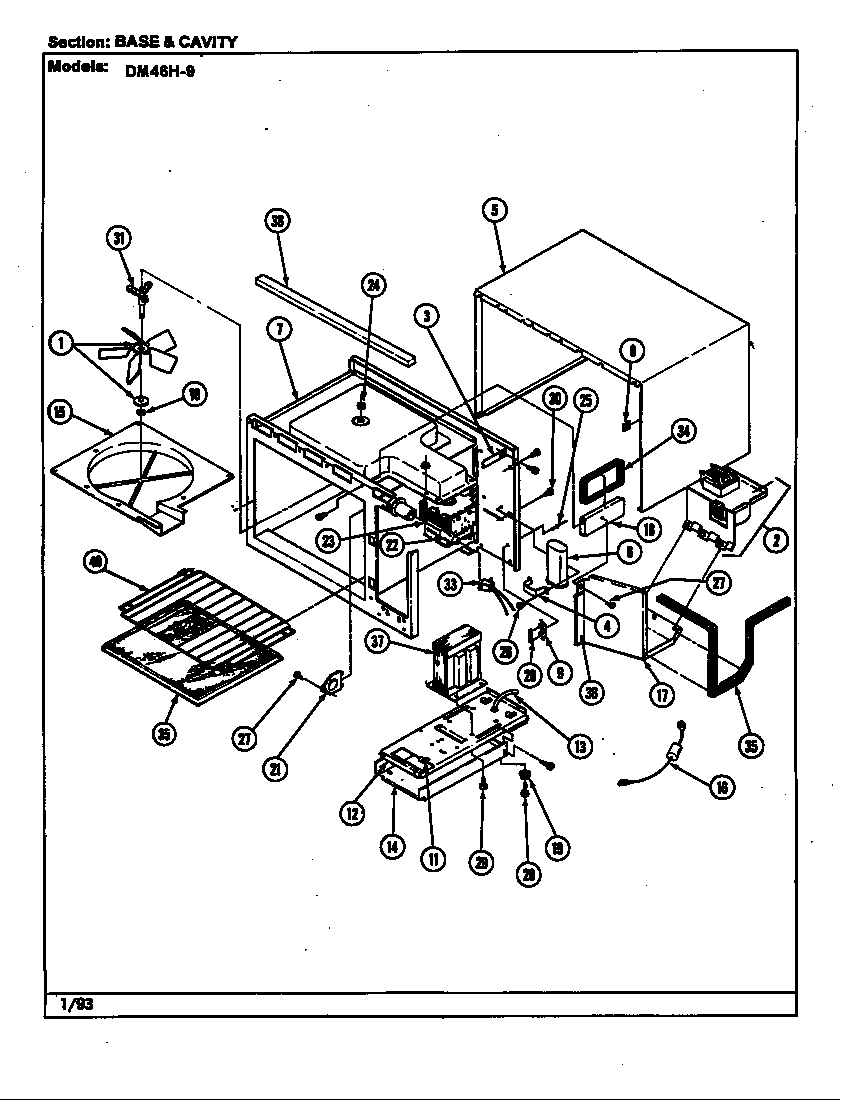

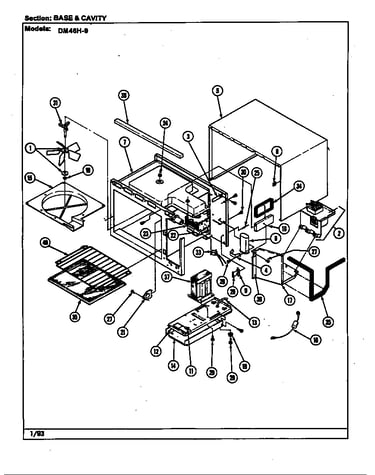

Base & cavity diagram

Screw

Part #03020068

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 03020068. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 03010144
#30

Base & cavity diagram

Screw

Part #03010144

Replaced by #WP8281227

?
Manufacturer substitution
This part replaces 03010144. Substitute parts can look different from the original.
This item is not returnable
$7.99 |
11% OFF Phone Price : $8.99
In Stock
Light Bulb 01060024
#22

Base & cavity diagram

Light bulb

Part #01060024

The manufacturer no longer makes this part, and there's no substitute part

Use And Care Manual 06010335
#6A

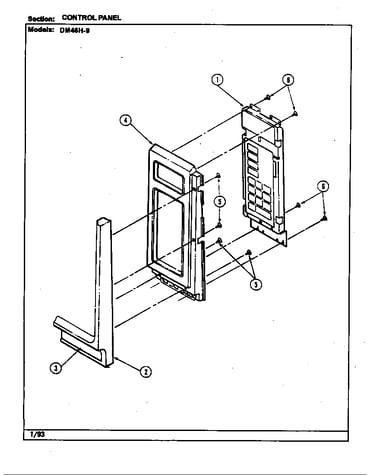

Control panel diagram

Use and care manual

Part #06010335

The manufacturer no longer makes this part, and there's no substitute part

"trim, Door B" 02100156
#5

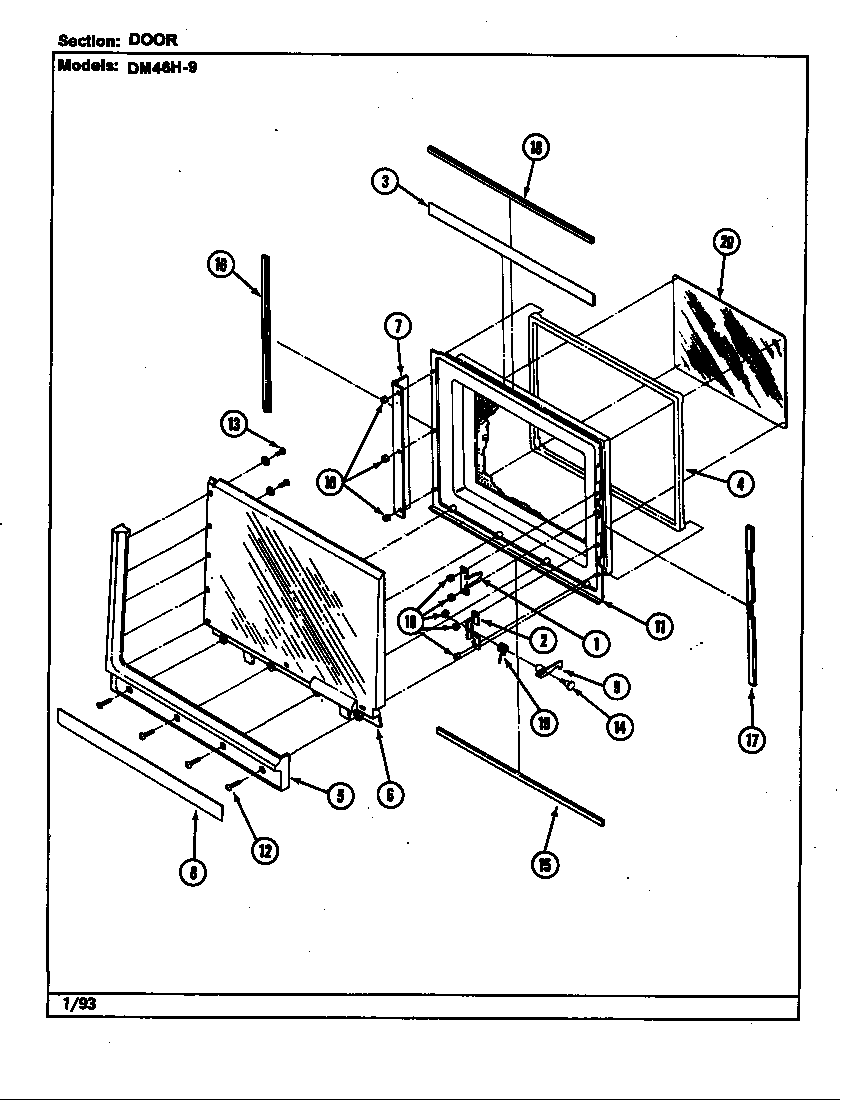

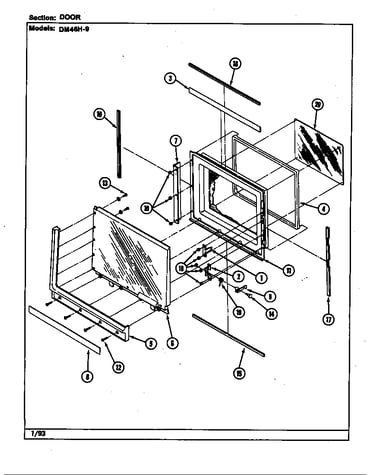

Door diagram

"trim, door b"

Part #02100156

The manufacturer no longer makes this part, and there's no substitute part

Lever Inner Panel 02180016
#4A

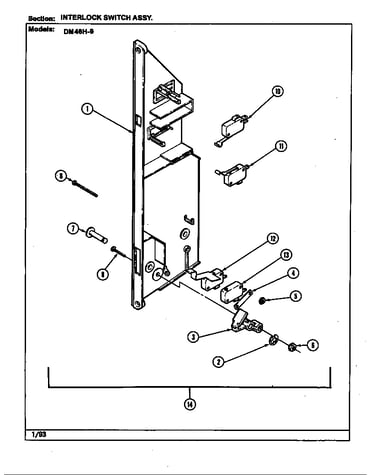

Interlock switches diagram

Lever inner panel

Part #02180016

The manufacturer no longer makes this part, and there's no substitute part

Buffer Tape 02310129
#3

Door diagram

Buffer tape

Part #02310129

The manufacturer no longer makes this part, and there's no substitute part

Wrapper 02140042
#5

Base & cavity diagram

Wrapper

Part #02140042

The manufacturer no longer makes this part, and there's no substitute part

Clip 03110059
#11

Base & cavity diagram

Clip

Part #03110059

The manufacturer no longer makes this part, and there's no substitute part

Door Latch 02190049
#3

Interlock switches diagram

Door latch

Part #02190049

The manufacturer no longer makes this part, and there's no substitute part
