GE
Wall Oven/Microwave Combo

Model # CT9800SH1SS Official GE built-in oven with microwave

Here are the diagrams and repair parts for Official GE CT9800SH1SS built-in oven with microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Owner’s manual

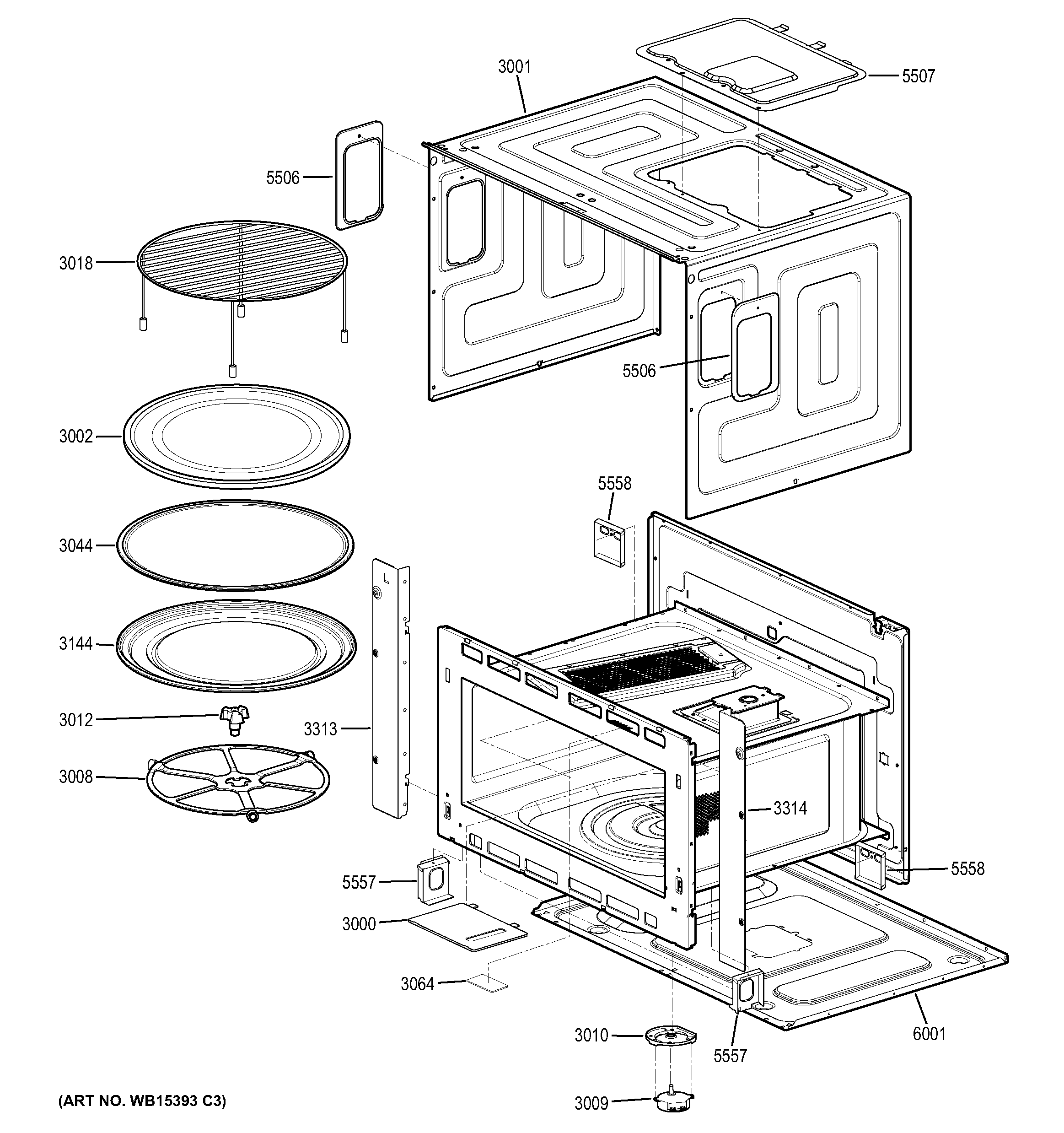

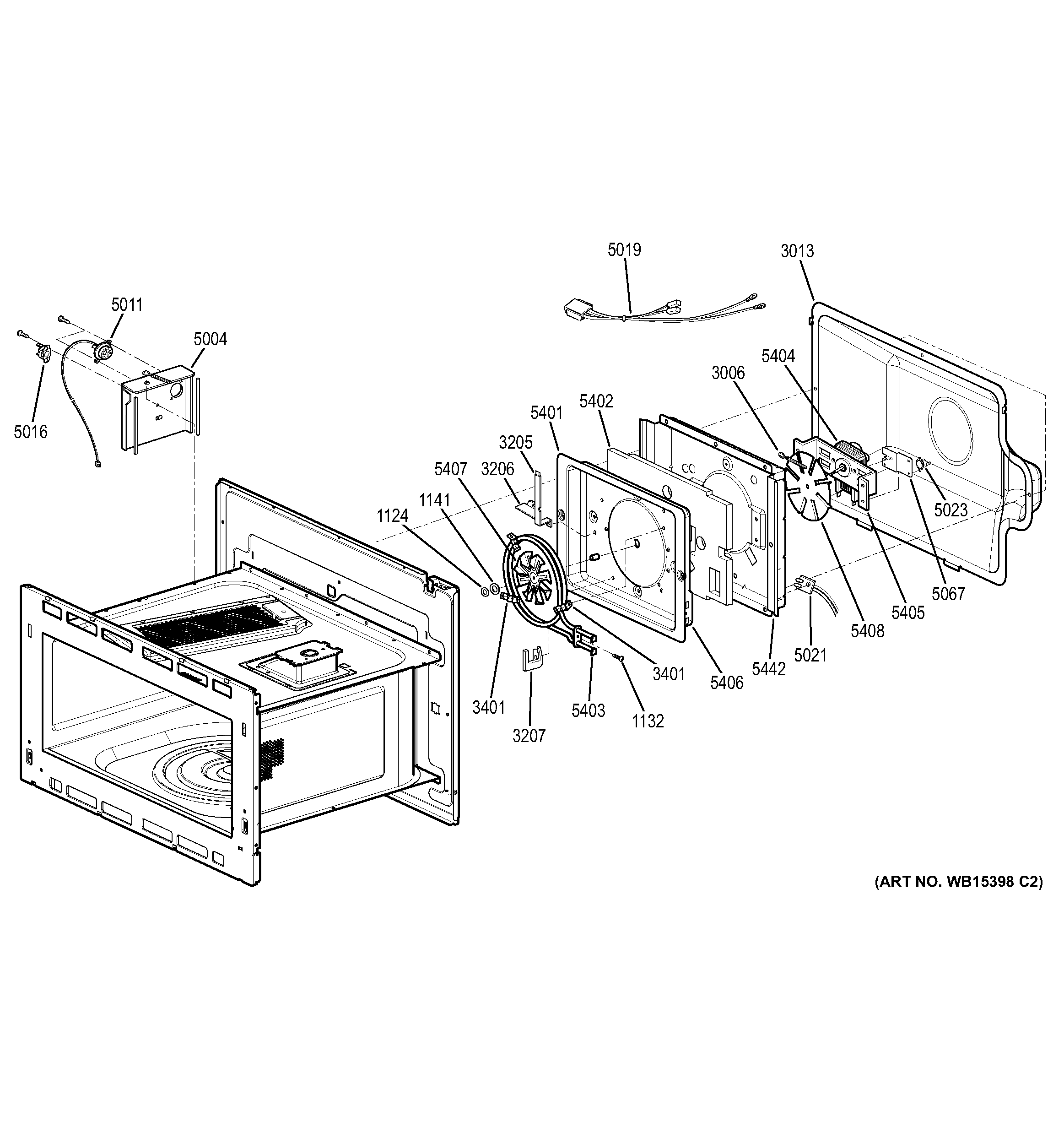

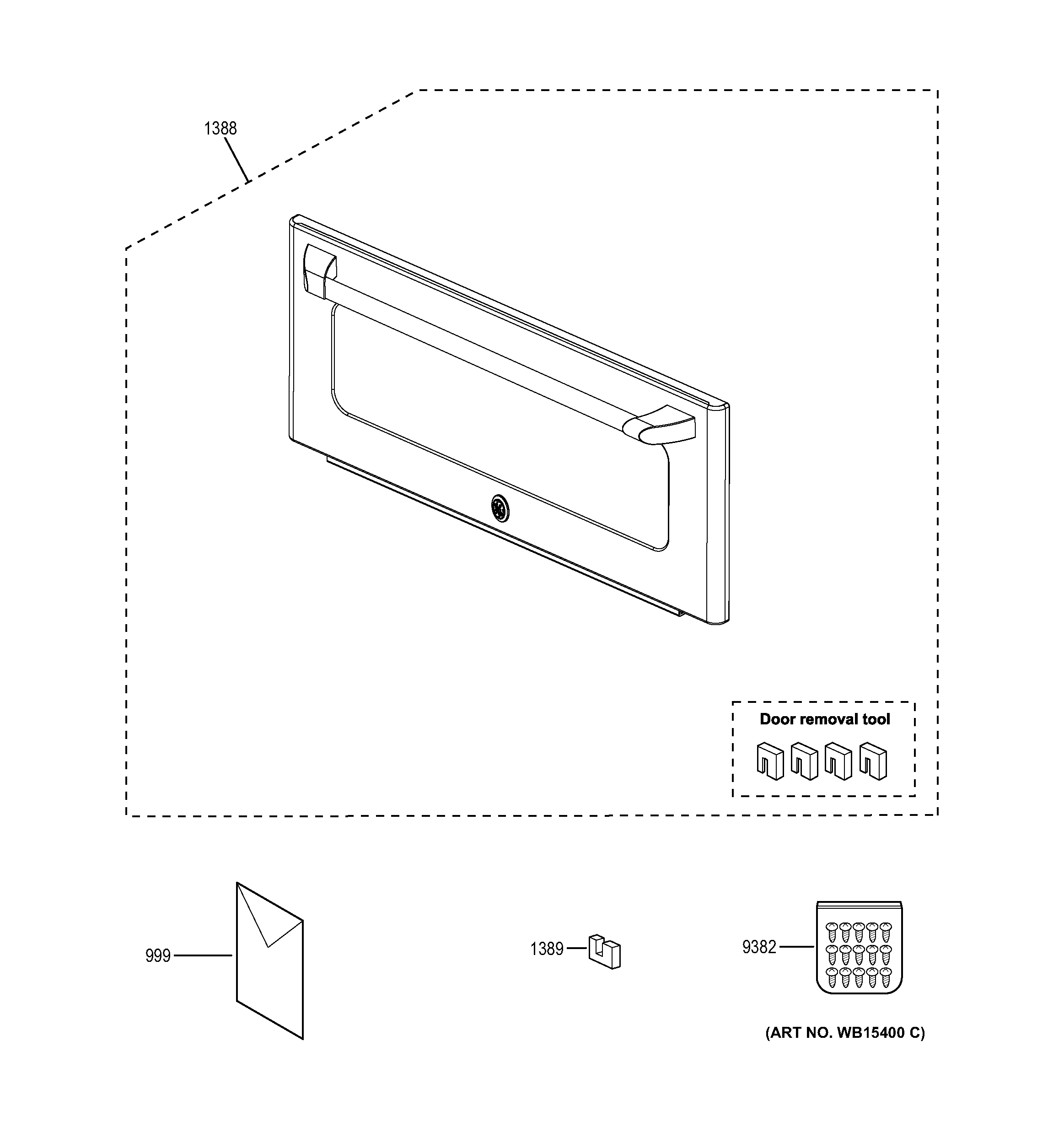

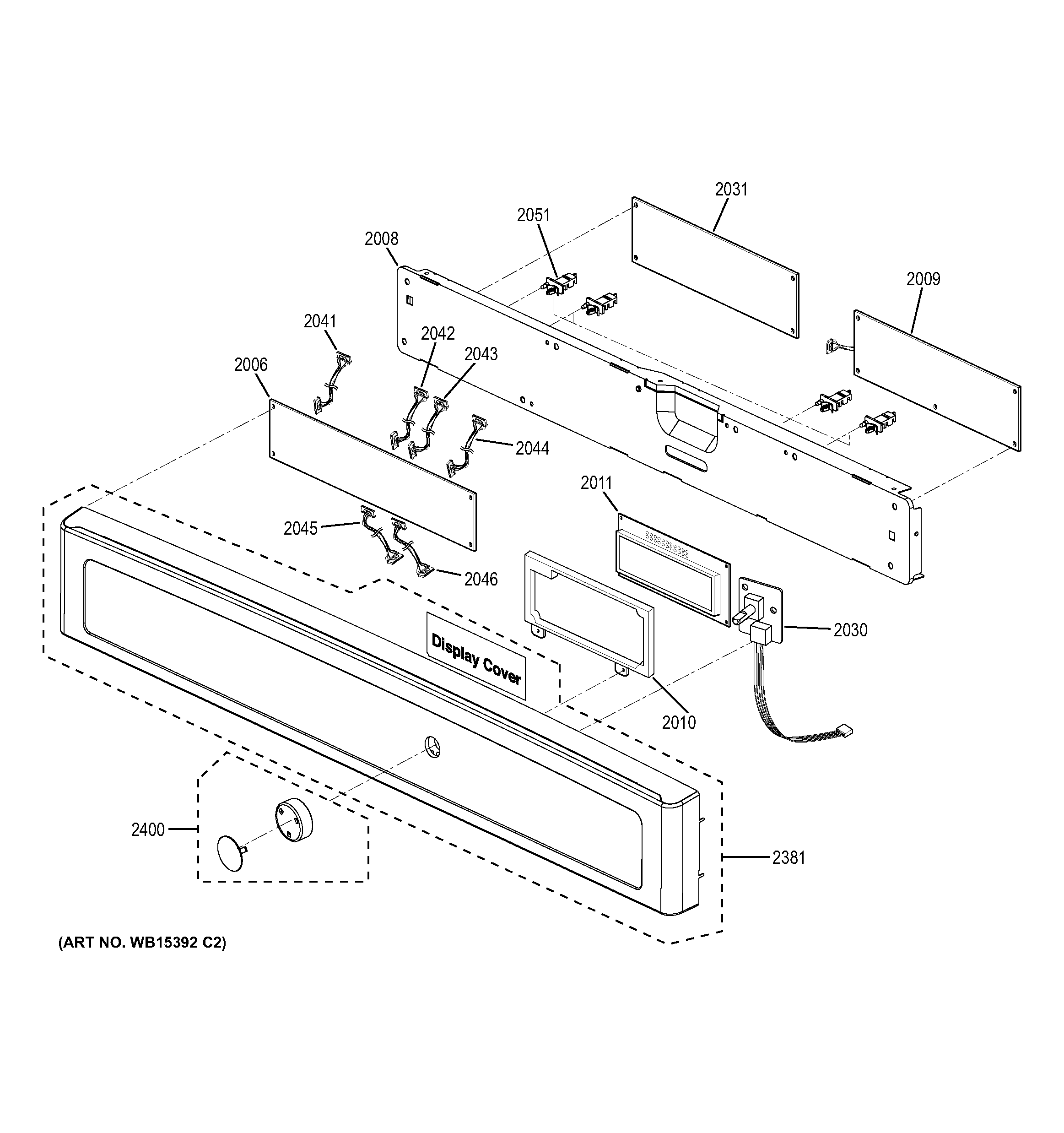

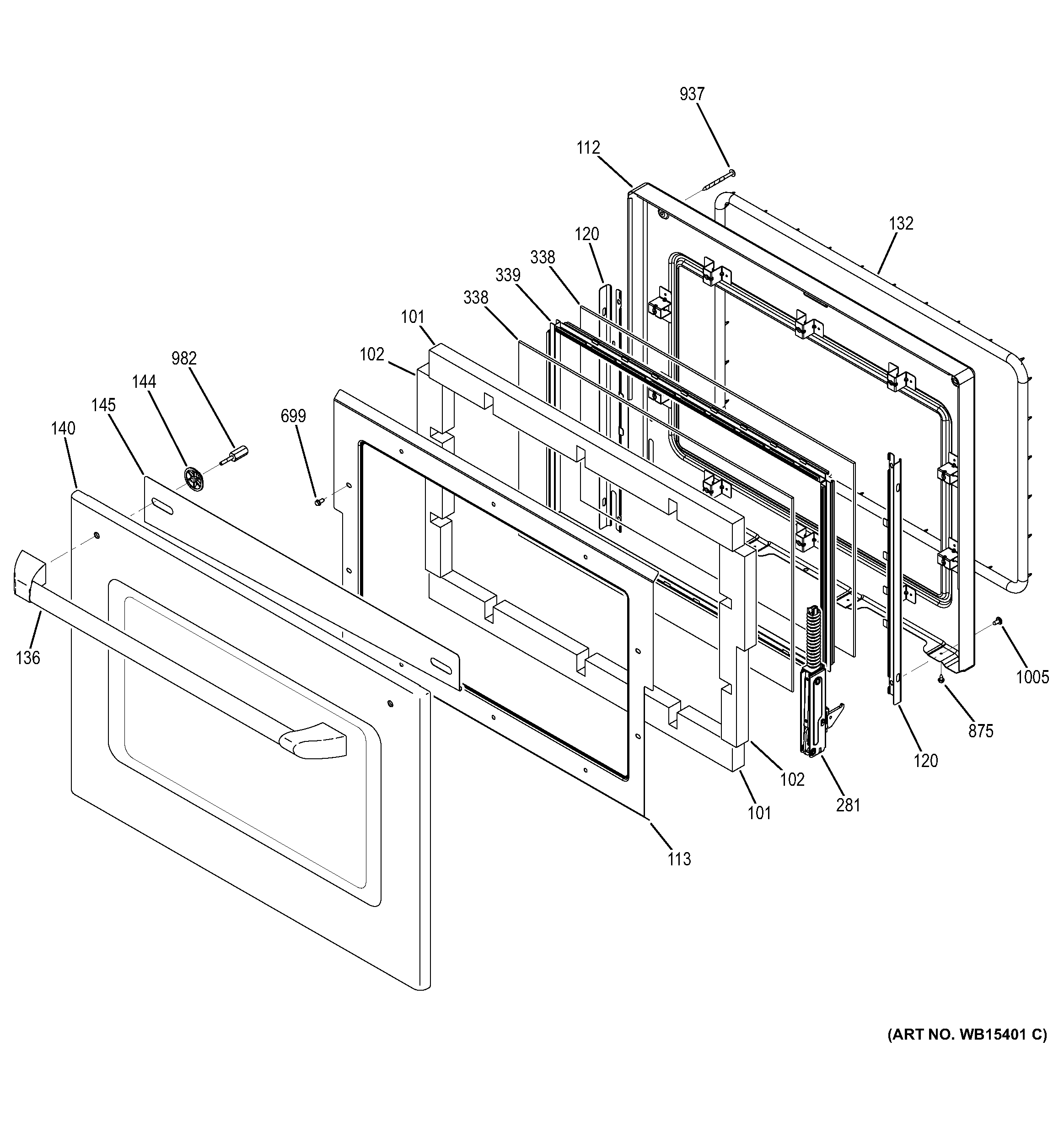

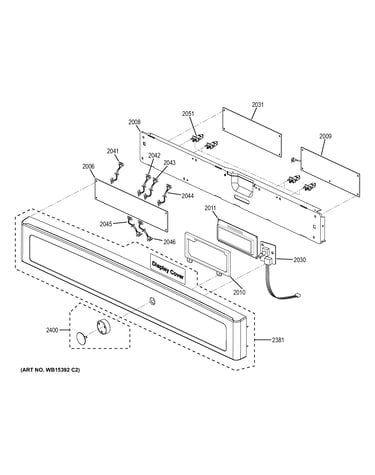

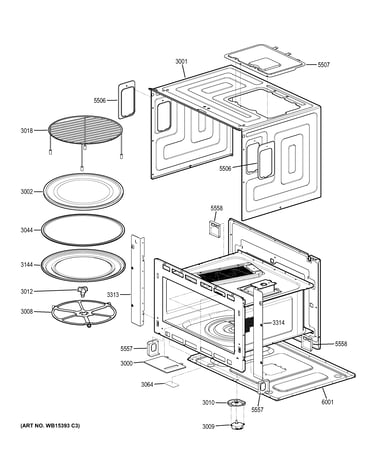

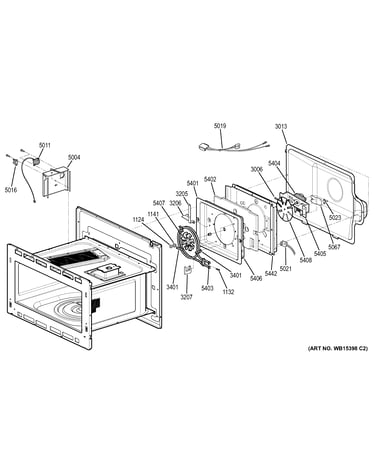

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 206 parts  |
Microwave Fuse WB27X10388
#5001

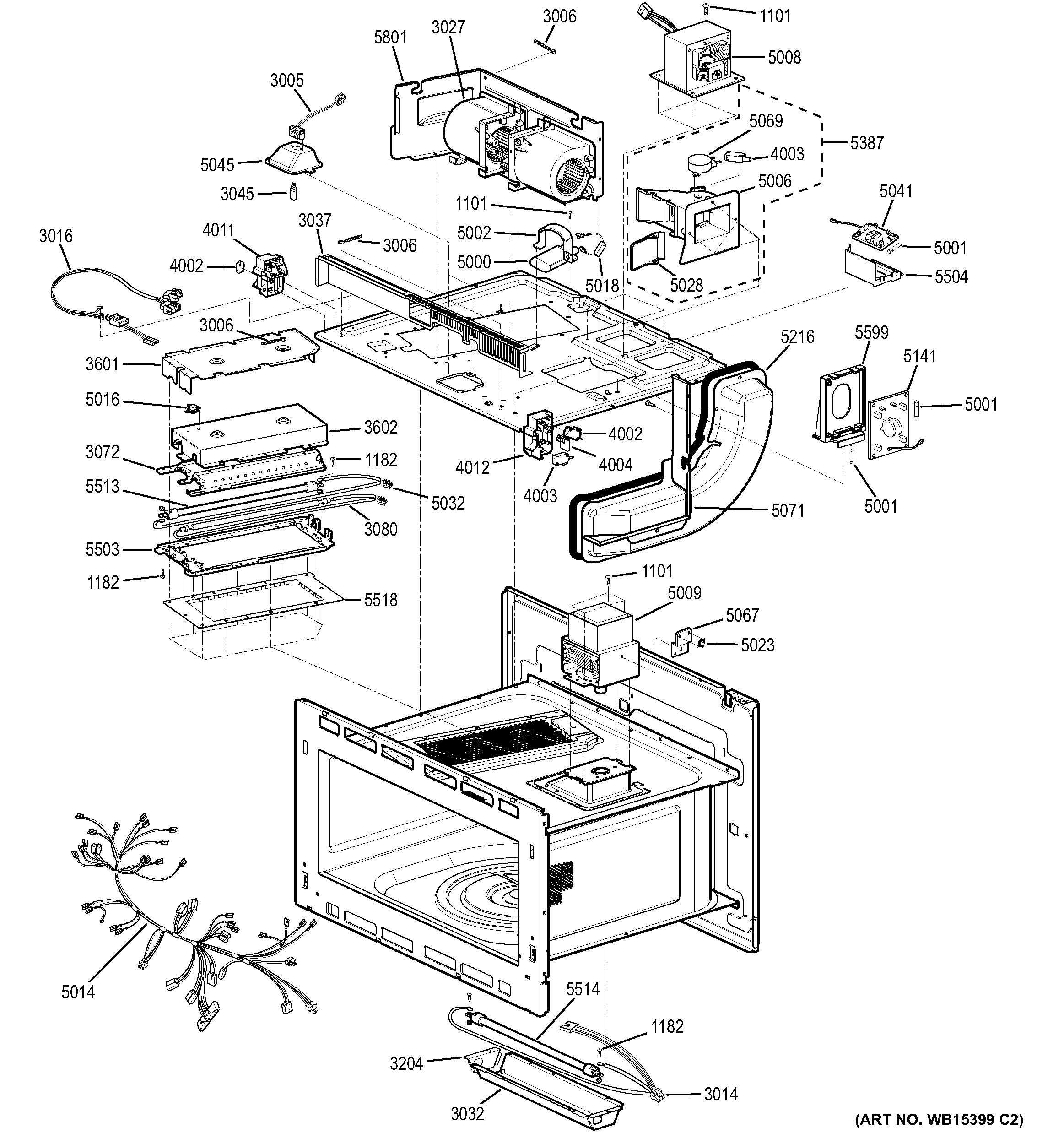

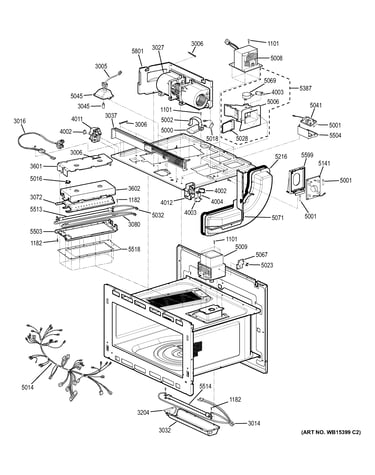

Insulator parts diagram

Microwave fuse

Part #WB27X10388

Replaced by #WB27X10928

?
Manufacturer substitution
This part replaces WB27X10388. Substitute parts can look different from the original.
BEST SELLER
$9.73 |
9% OFF Phone Price : $10.73
In Stock
Microwave Magnetron WB27X10305
#5009

Insulator parts diagram

Microwave magnetron

Part #WB27X10305

The manufacturer no longer makes this part, and there's no substitute part

Drive Capacitor WB27X10701
#5000

Insulator parts diagram

Drive capacitor

Part #WB27X10701

Replaced by #WB27X11033

?
Manufacturer substitution
This part replaces WB27X10701. Substitute parts can look different from the original.
BEST SELLER
$41.91 |
11% OFF Phone Price : $46.91
In Stock
Wall Oven Cooling Fan Sensor Board WB27T11463
#599

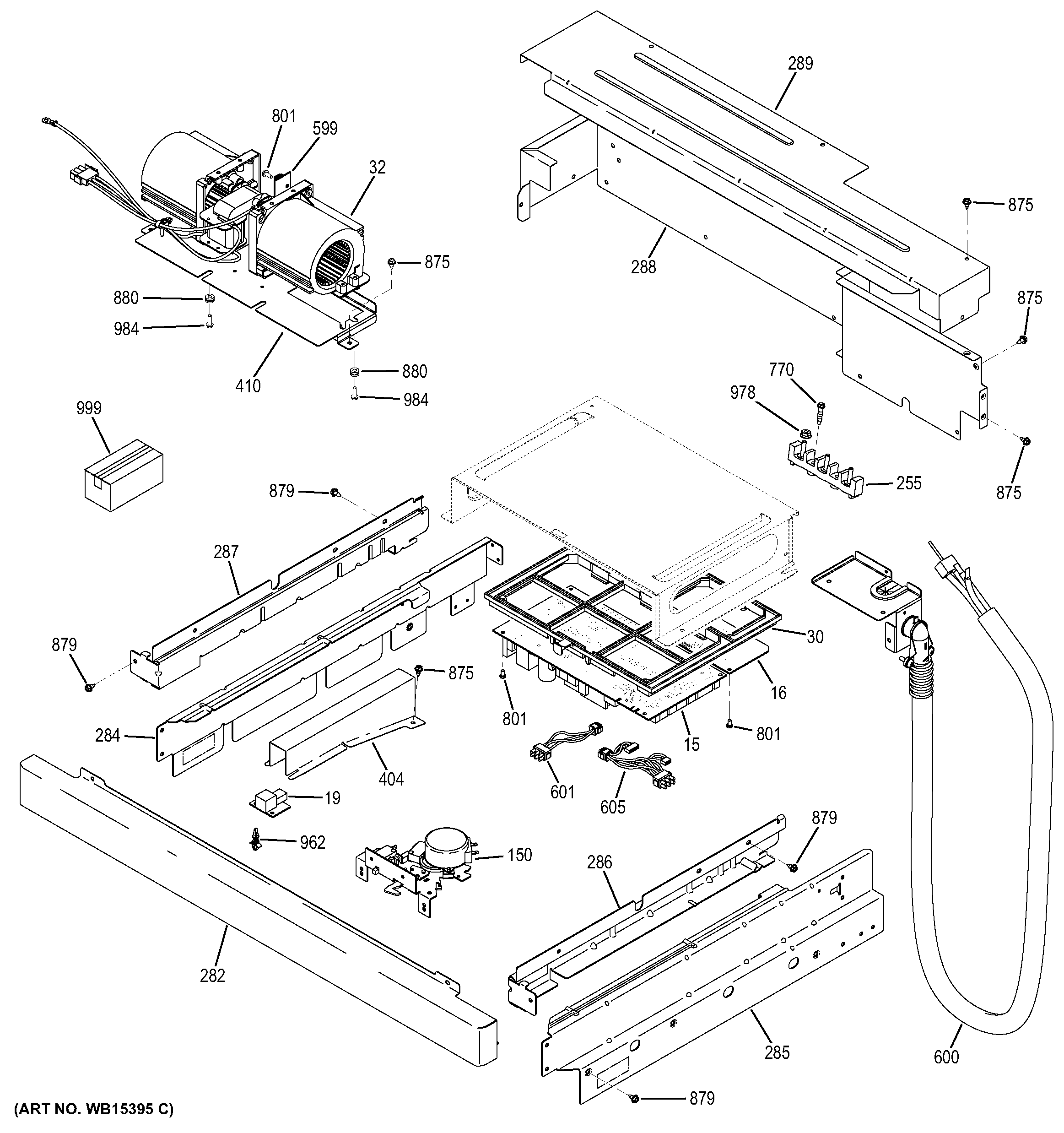

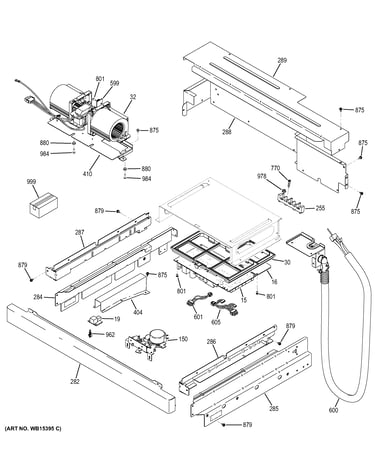

Pedestal diagram

Wall oven cooling fan sensor board

Part #WB27T11463

BEST SELLER
$55.77 |
8% OFF Phone Price : $60.77
In Stock
Microwave Door Interlock Switch WB24X817
#4003

Insulator parts diagram

Microwave door interlock switch

Part #WB24X817

Replaced by #WB24X25397

?
Manufacturer substitution
This part replaces WB24X817. Substitute parts can look different from the original.
BEST SELLER
$22.56 |
18% OFF Phone Price : $27.56
In Stock
Microwave High-voltage Diode (replaces Wb18x10286, Wb27x1033, Wb27x10330) WB27X10037
#5018

Insulator parts diagram

Microwave high-voltage diode (replaces wb18x10286, wb27x1033, wb27x10330)

Part #WB27X10037

BEST SELLER
$24.12 |
17% OFF Phone Price : $29.12
In Stock
Microwave Thermostat WB20X10048
Microwave thermostat

Part #WB20X10048

BEST SELLER
$12.29 |
14% OFF Phone Price : $14.29
In Stock
Range High-limit Thermostat WB24T10164
#157

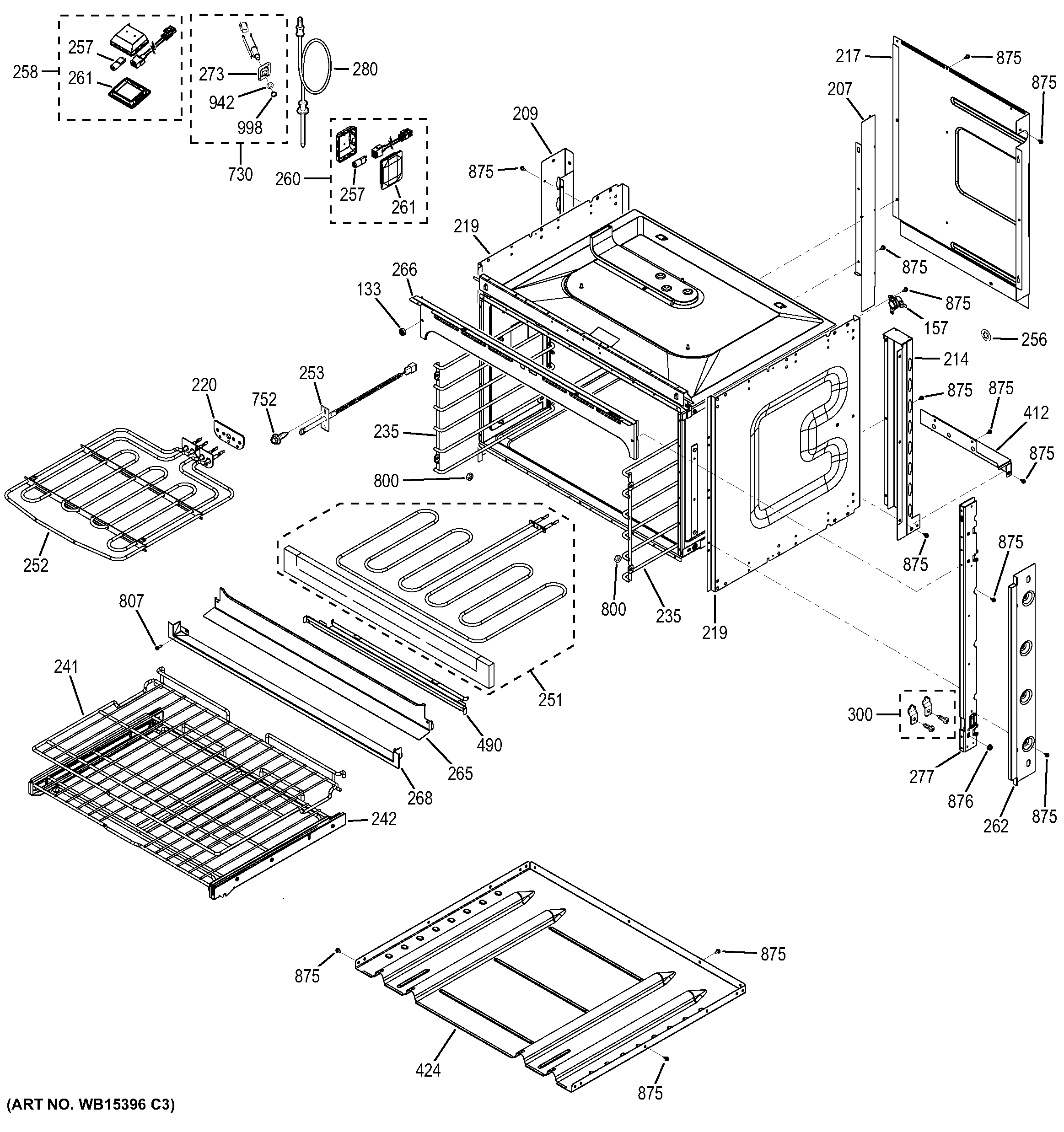

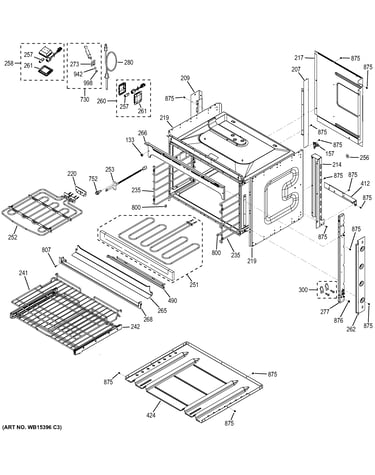

Body parts diagram

Range high-limit thermostat

Part #WB24T10164

BEST SELLER
$152.49 |
6% OFF Phone Price : $162.49
In Stock
Latch Assembly WB10X21642
#150

Pedestal diagram

Latch assembly

Part #WB10X21642

Replaced by #WB10X28391

?
Manufacturer substitution
This part replaces WB10X21642. Substitute parts can look different from the original.
BEST SELLER
$54.50 |
8% OFF Phone Price : $59.50
In Stock
Range Oven Meat Probe Sensor WB20T10025
#280

Body parts diagram

Range oven meat probe sensor

Part #WB20T10025

Replaced by #WB20T10024

?
Manufacturer substitution
This part replaces WB20T10025. Substitute parts can look different from the original.
BEST SELLER
$52.16 |
9% OFF Phone Price : $57.16
In Stock
