Model # 143572022 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143572022 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 189 parts  |

Tube 27627
#100

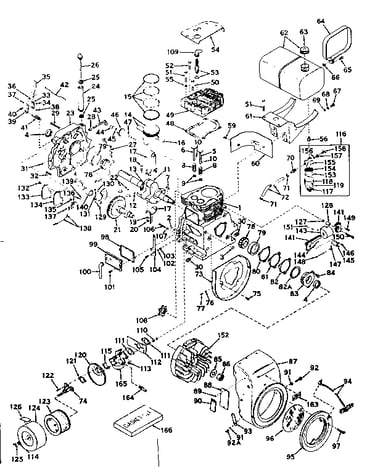

Basic engine diagram

Tube

Part #27627

The manufacturer no longer makes this part, and there's no substitute part

Camshaft 32245
#21

Basic engine diagram

Camshaft

Part #32245

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Link 31968
#42

Basic engine diagram

/gvnr link

Part #31968

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#25

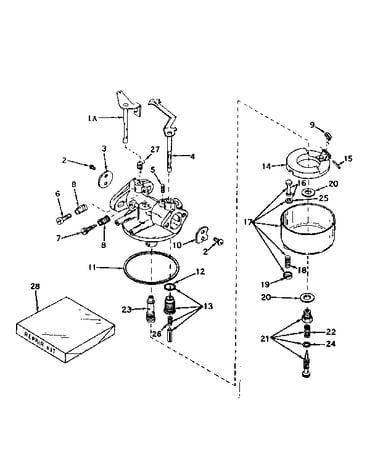

Carburetor no. 631251 diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

Gasket Set 31993A
#166

Basic engine diagram

Gasket set

Part #31993A

The manufacturer no longer makes this part, and there's no substitute part

Screw 28547
#77

Basic engine diagram

Screw

Part #28547

The manufacturer no longer makes this part, and there's no substitute part

Fitting 29634
Fitting

Part #29634

The manufacturer no longer makes this part, and there's no substitute part

Chmp J8 Plug 21943
#53

Basic engine diagram

Chmp j8 plug

Part #21943

The manufacturer no longer makes this part, and there's no substitute part

Spring 27113
#5

Carburetor no. 631251 diagram

Spring

Part #27113

The manufacturer no longer makes this part, and there's no substitute part

Bearing Cup 31928
#79

Basic engine diagram

Bearing cup

Part #31928

The manufacturer no longer makes this part, and there's no substitute part
