Whirlpool ACQ122XZ0 air conditioner Parts
Here are the diagrams and repair parts for Whirlpool ACQ122XZ0 air conditioner, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
By Part
SELECT DIAGRAM

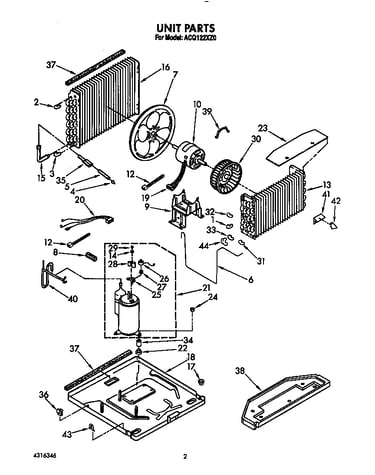

Browse Parts for ACQ122XZ0 Air Conditioner

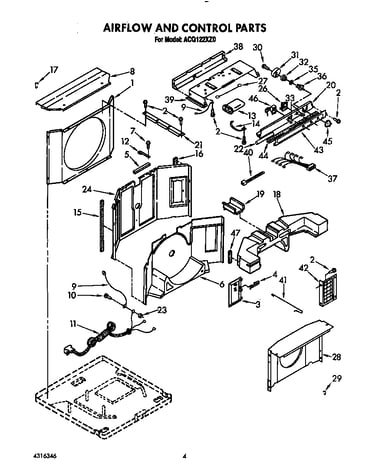

Airflow and control diagram
Control Box
Part #1156932
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control diagram
Grommet
Part #1162200
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control diagram
Shroud Clip
Part #1158257
The manufacturer no longer makes this part, and there's no substitute part

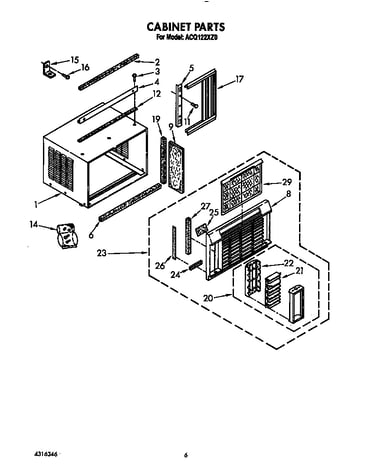

Cabinet diagram
Front Frame
Part #1156971
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control diagram
Cabinet Seal
Part #1158516
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control diagram
Power Cord
Part #1157194
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control diagram
Washer
Part #647881
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control diagram
Capacitor Bracket
Part #1156967
The manufacturer no longer makes this part, and there's no substitute part
Airflow and control diagram
Electronic Wire
Part #1156982
The manufacturer no longer makes this part, and there's no substitute part

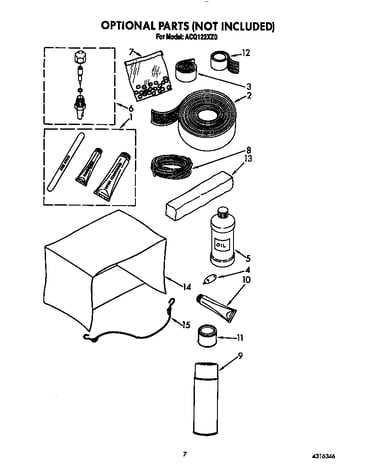

Optional diagram
Adhesive
Part #813684
The manufacturer no longer makes this part, and there's no substitute part
