Model # 486248474 Official Craftsman tractor front scoop

Here are the diagrams and repair parts for Official Craftsman 486248474 tractor front scoop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 83 parts  |
Lawn Tractor Attachment Lift Trigger And Cable (replaces 47555) 49912
#9

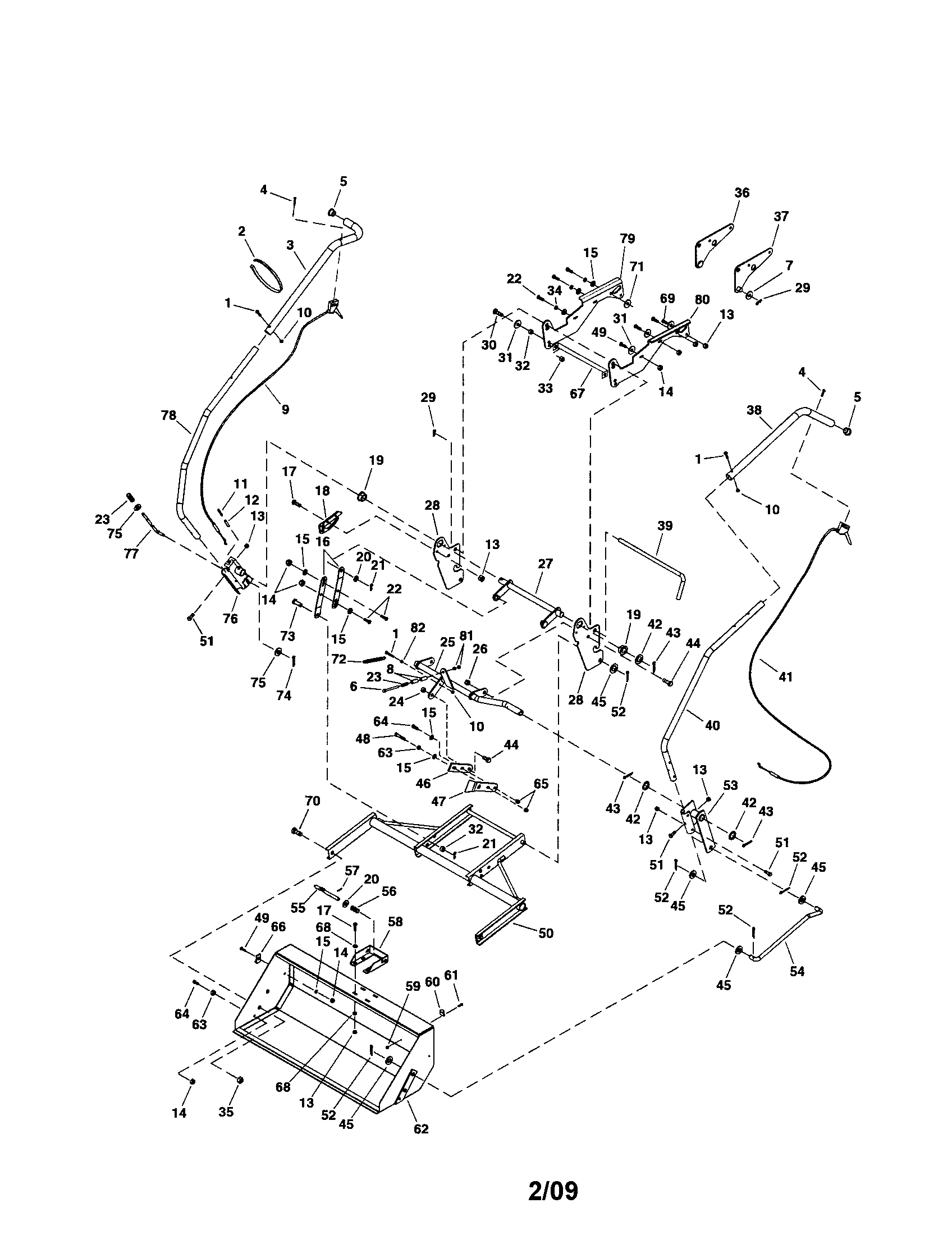

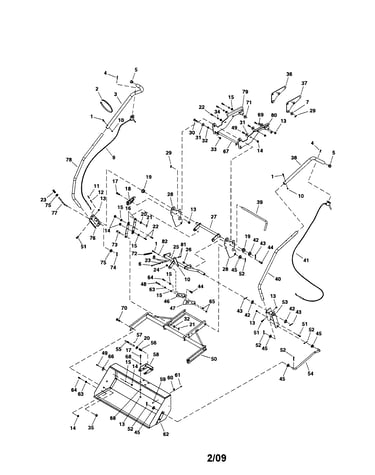

Front scoop diagram

Lawn tractor attachment lift trigger and cable (replaces 47555)

Part #49912

BEST SELLER
$26.16 |
16% OFF Phone Price : $31.16
In Stock
Lawn Tractor Nut 47810
#13

Front scoop diagram

Lawn tractor nut

Part #47810

BEST SELLER
This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Attachment Hitch Pin (replaces Af-43343) 43343
#29

Front scoop diagram

Lawn tractor attachment hitch pin (replaces af-43343)

Part #43343

BEST SELLER
This item is not returnable
$2.16
In Stock
Lawn & Garden Equipment Nut 47189
#10

Front scoop diagram

Lawn & garden equipment nut

Part #47189

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Lock Washer, 3/8-in 43003
#34

Front scoop diagram

Lawn & garden equipment lock washer, 3/8-in

Part #43003

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn & Garden Equipment Washer R19171616
#20

Front scoop diagram

Lawn & garden equipment washer

Part #R19171616

Replaced by #596040101

?
Manufacturer substitution
This part replaces R19171616. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Lawn Tractor Front Scoop Attachment Control Cable 40173
#41

Front scoop diagram

Lawn tractor front scoop attachment control cable

Part #40173

$29.19 |
15% OFF Phone Price : $34.19
In Stock
Lawn & Garden Equipment Cotter Pin, 1-in 43010
#52

Front scoop diagram

Lawn & garden equipment cotter pin, 1-in

Part #43010

This item is not returnable
$2.49 |
29% OFF Phone Price : $3.49
In Stock
Lawn Tractor Front Scoop Attachment Side Plate, Right 25562
#79

Front scoop diagram

Lawn tractor front scoop attachment side plate, right

Part #25562

Replaced by #25562BL3

?
Manufacturer substitution
This part replaces 25562. Substitute parts can look different from the original.
$70.29 |
7% OFF Phone Price : $75.29
In Stock
Lawn Tractor Front Scoop Attachment Side Plate, Left 25563
#80

Front scoop diagram

Lawn tractor front scoop attachment side plate, left

Part #25563

Replaced by #25563BL3

?
Manufacturer substitution
This part replaces 25563. Substitute parts can look different from the original.
$70.29 |
7% OFF Phone Price : $75.29
In Stock
