Model #718472820 Official Sears 26" 10-speed lightweight bicycle

Here are the diagrams and repair parts for Sears 718472820 26" 10-speed lightweight bicycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

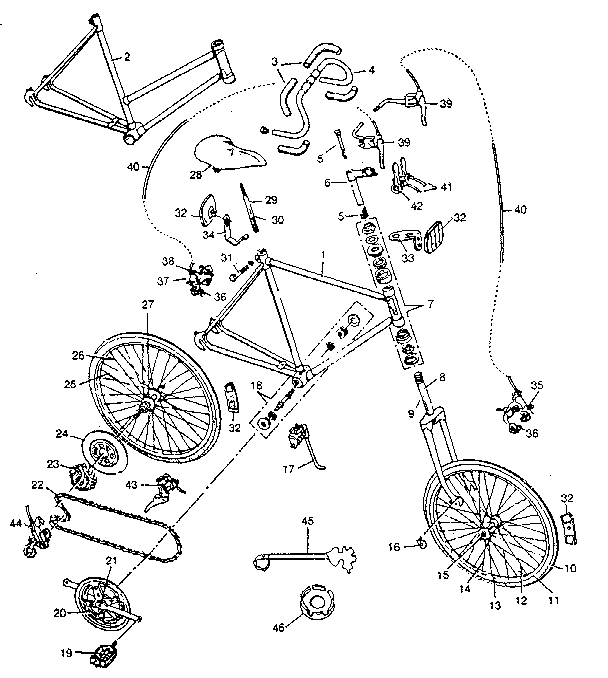

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 53 parts

    Refl Brkt#34

    Unit parts Diagram

    Refl brkt

    Part #082001

    The manufacturer no longer makes this part, and there's no substitute part

    Spoke/nipple#25

    Unit parts Diagram

    Spoke/nipple

    Part #049016

    The manufacturer no longer makes this part, and there's no substitute part

    Rear Axle and Bearing Set#27

    Unit parts Diagram

    Rear axle and bearing set

    Part #054001

    The manufacturer no longer makes this part, and there's no substitute part

    Rear Wheel Assembly#26

    Unit parts Diagram

    Rear wheel assembly

    Part #045502

    The manufacturer no longer makes this part, and there's no substitute part

    Tire#10

    Unit parts Diagram

    Tire

    Part #040002

    The manufacturer no longer makes this part, and there's no substitute part

    Bicycle Brake Shoe Set#36

    Unit parts Diagram

    Bicycle brake shoe set

    Part #104002

    The manufacturer no longer makes this part, and there's no substitute part

    Derailleur#44

    Unit parts Diagram

    Derailleur

    Part #085501

    The manufacturer no longer makes this part, and there's no substitute part

    Kickstand#17

    Unit parts Diagram

    Kickstand

    Part #076015

    The manufacturer no longer makes this part, and there's no substitute part

    Owner's Manual

    #NI

    All parts Diagram

    Owner's manual

    Part #102087

    The manufacturer no longer makes this part, and there's no substitute part

    Spkt Cluster#23

    Unit parts Diagram

    Spkt cluster

    Part #075001

    The manufacturer no longer makes this part, and there's no substitute part
