LG
Microwave/Hood Combo

Model # LMV2053SB/00 Official LG microwave

Here are the diagrams and repair parts for Official LG LMV2053SB-00 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

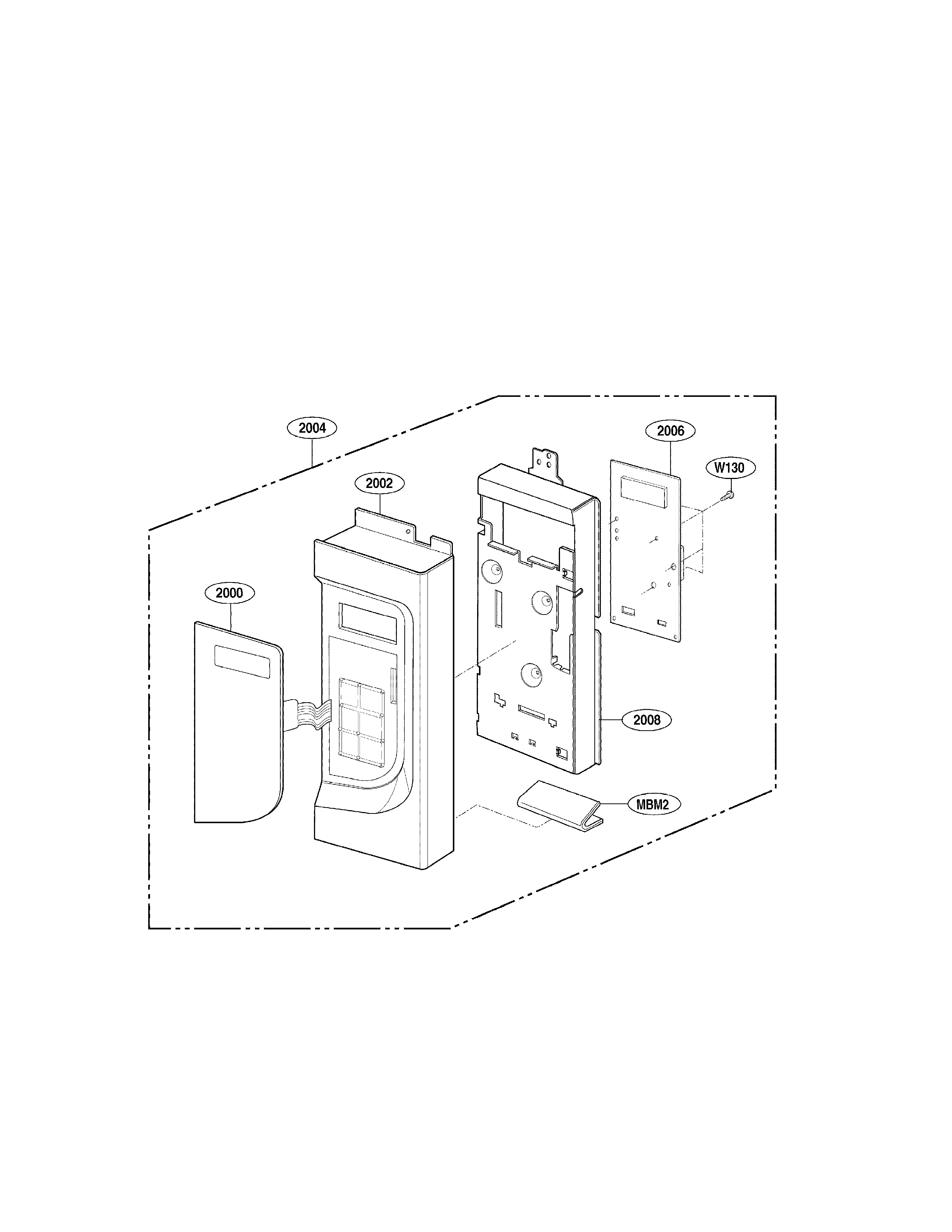

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 114 parts  |

Microwave Charcoal Filter 5230W1A003A
#5037

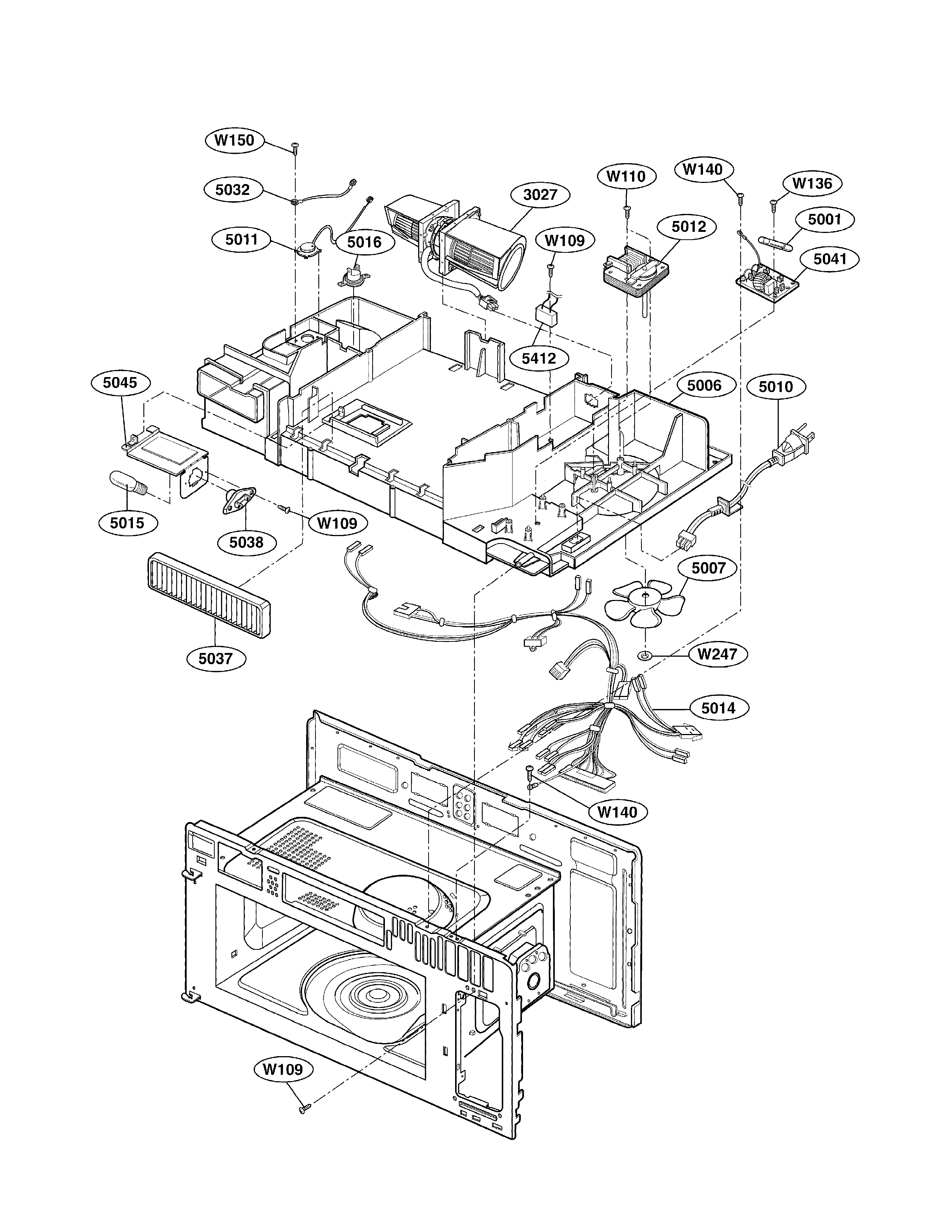

Interior parts (ii) diagram

Microwave charcoal filter

Part #5230W1A003A

BEST SELLER
$28.19
15% OFF Phone Price : $33.19
In Stock
Grease Filter 2B72705B
#3026

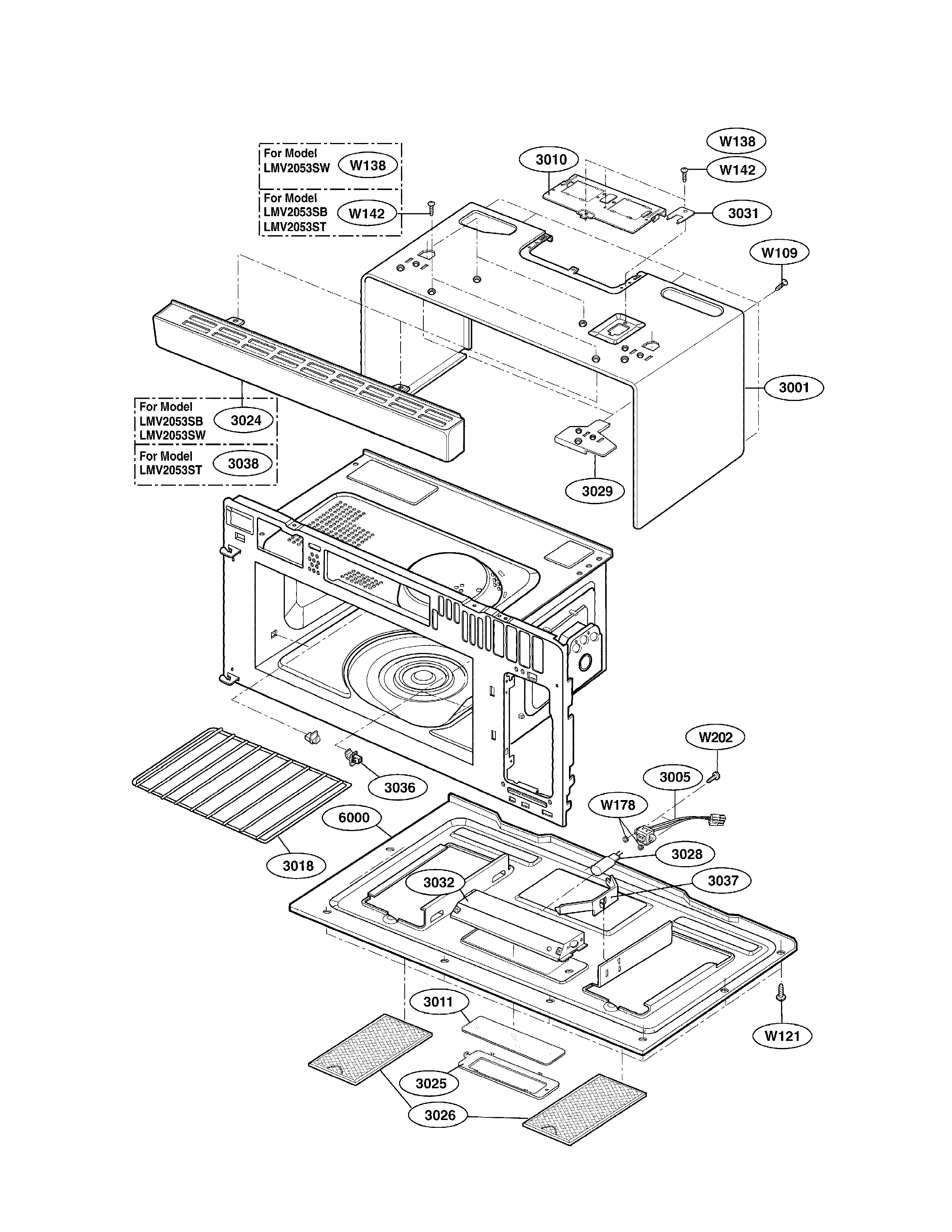

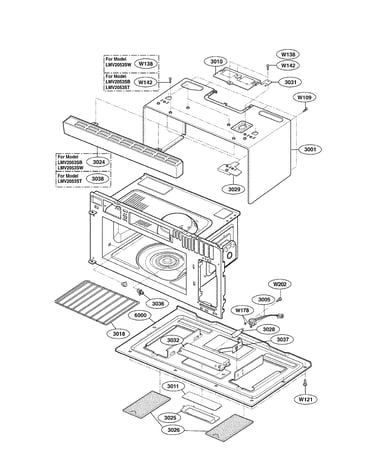

Oven cavity parts diagram

Grease filter

Part #2B72705B

Replaced by #5230W1A012B

?
Manufacturer substitution
This part replaces 2B72705B. Substitute parts can look different from the original.
BEST SELLER
$12.00
14% OFF Phone Price : $14.00
In Stock
Microwave/hood Lamp 6912W3Q001D
#5015A

Interior parts (ii) diagram

Microwave/hood lamp

Part #6912W3Q001D

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 6912W3Q001D. Substitute parts can look different from the original.
BEST SELLER
$9.42
10% OFF Phone Price : $10.42
In Stock
Oven Lamp 6912W3Q001A
#5015

Interior parts (ii) diagram

Oven lamp

Part #6912W3Q001A

Replaced by #6912W1Z004B

?
Manufacturer substitution
This part replaces 6912W3Q001A. Substitute parts can look different from the original.
BEST SELLER
$9.42
10% OFF Phone Price : $10.42
In Stock
Microwave Light Bulb (replaces 383ew1a077b, 383ew1a077c, 383ew1a077d) 6912A40002E
#3028

Oven cavity parts diagram

Microwave light bulb (replaces 383ew1a077b, 383ew1a077c, 383ew1a077d)

Part #6912A40002E

BEST SELLER
$15.82
11% OFF Phone Price : $17.82
In Stock
Microwave Door Latch Hook 4026W2A015A
#1006

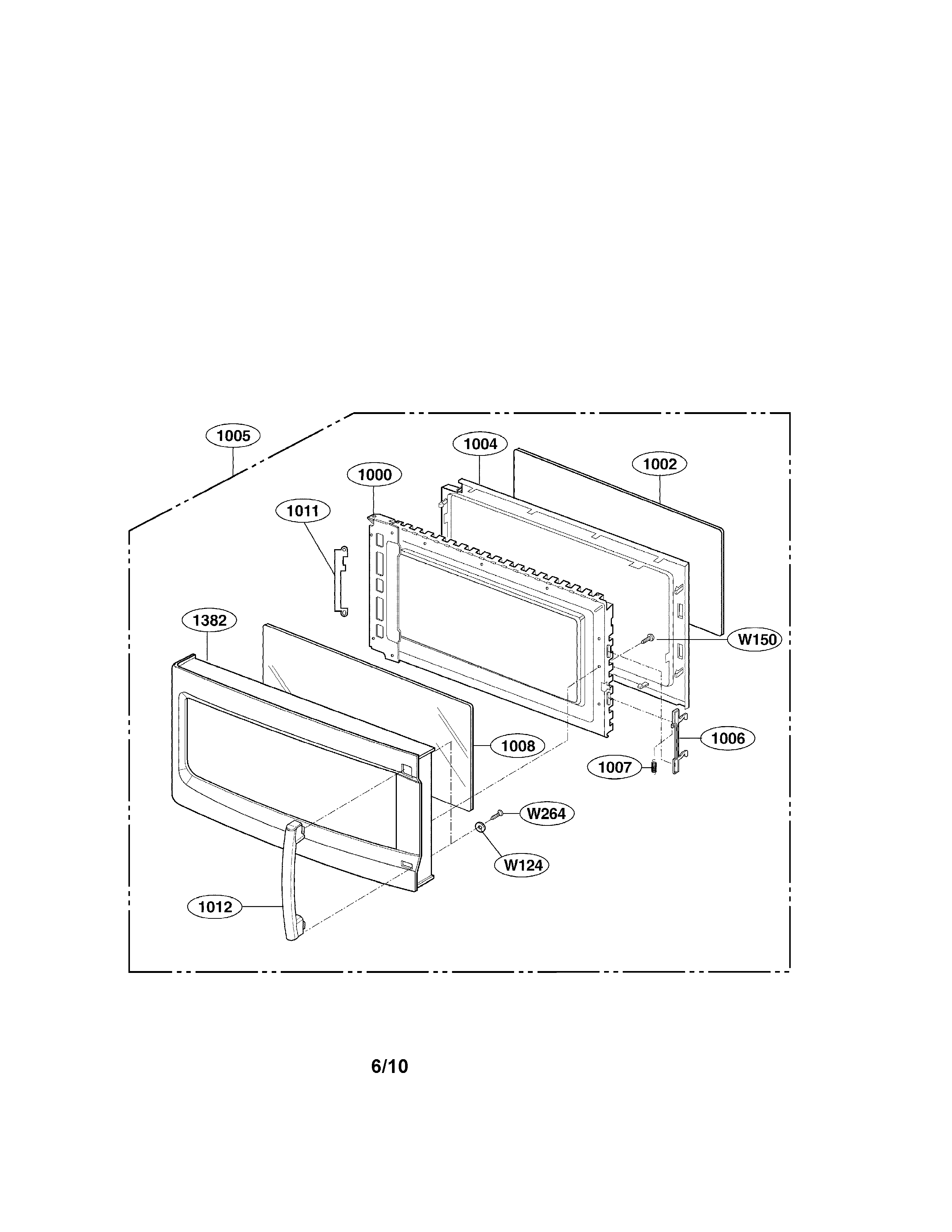

Door parts (i) diagram

Microwave door latch hook

Part #4026W2A015A

Replaced by #4026W2A019C

?
Manufacturer substitution
This part replaces 4026W2A015A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$5.48
15% OFF Phone Price : $6.48
In Stock
Microwave Micro-switch (replaces 46-692286-3) 3B73362F
#4002

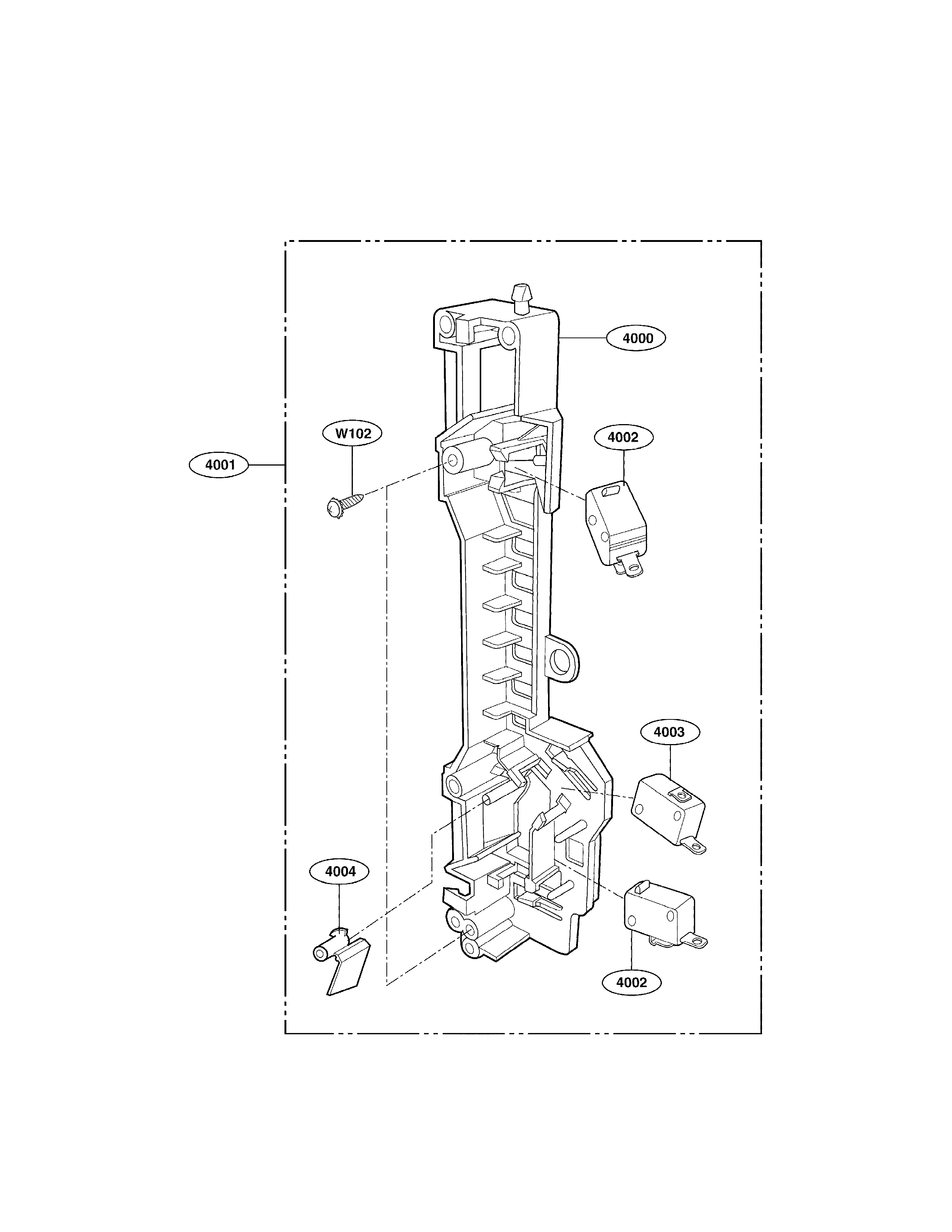

Latch board parts diagram

Microwave micro-switch (replaces 46-692286-3)

Part #3B73362F

BEST SELLER
This item is not returnable
$6.27
14% OFF Phone Price : $7.27
In Stock
Damper 3B71432A
#6011

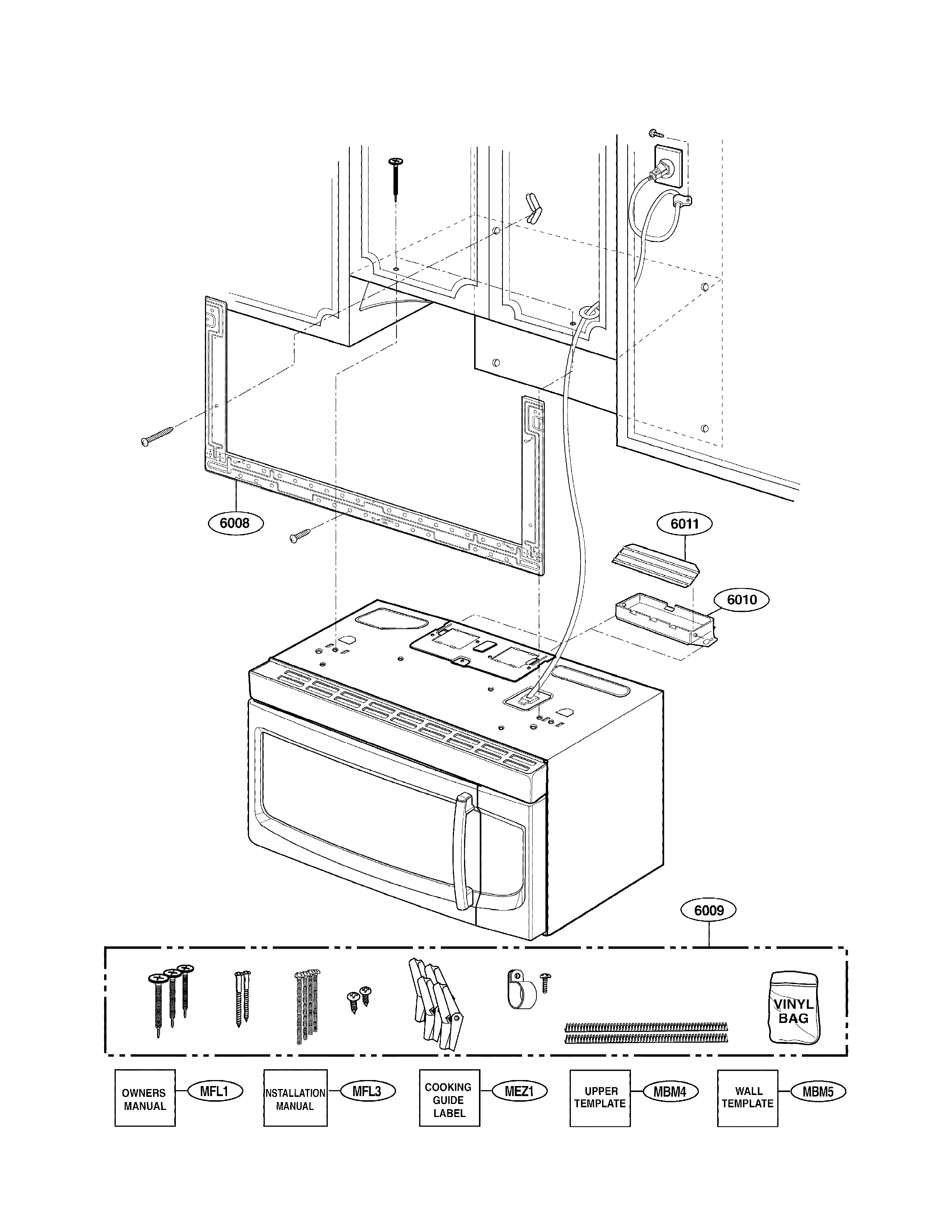

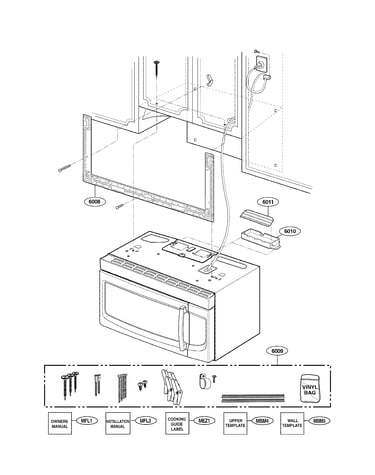

Installation parts diagram

Damper

Part #3B71432A

Replaced by #4900W1A001B

?
Manufacturer substitution
This part replaces 3B71432A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$8.52
11% OFF Phone Price : $9.52
In Stock
Microwave Exhaust Damper Bracket 3B72144A
#6010

Installation parts diagram

Microwave exhaust damper bracket

Part #3B72144A

Replaced by #4810W1A151A

?
Manufacturer substitution
This part replaces 3B72144A. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$12.43
14% OFF Phone Price : $14.43
In Stock
High-voltage Diode 6021W3B001Q
#5018A

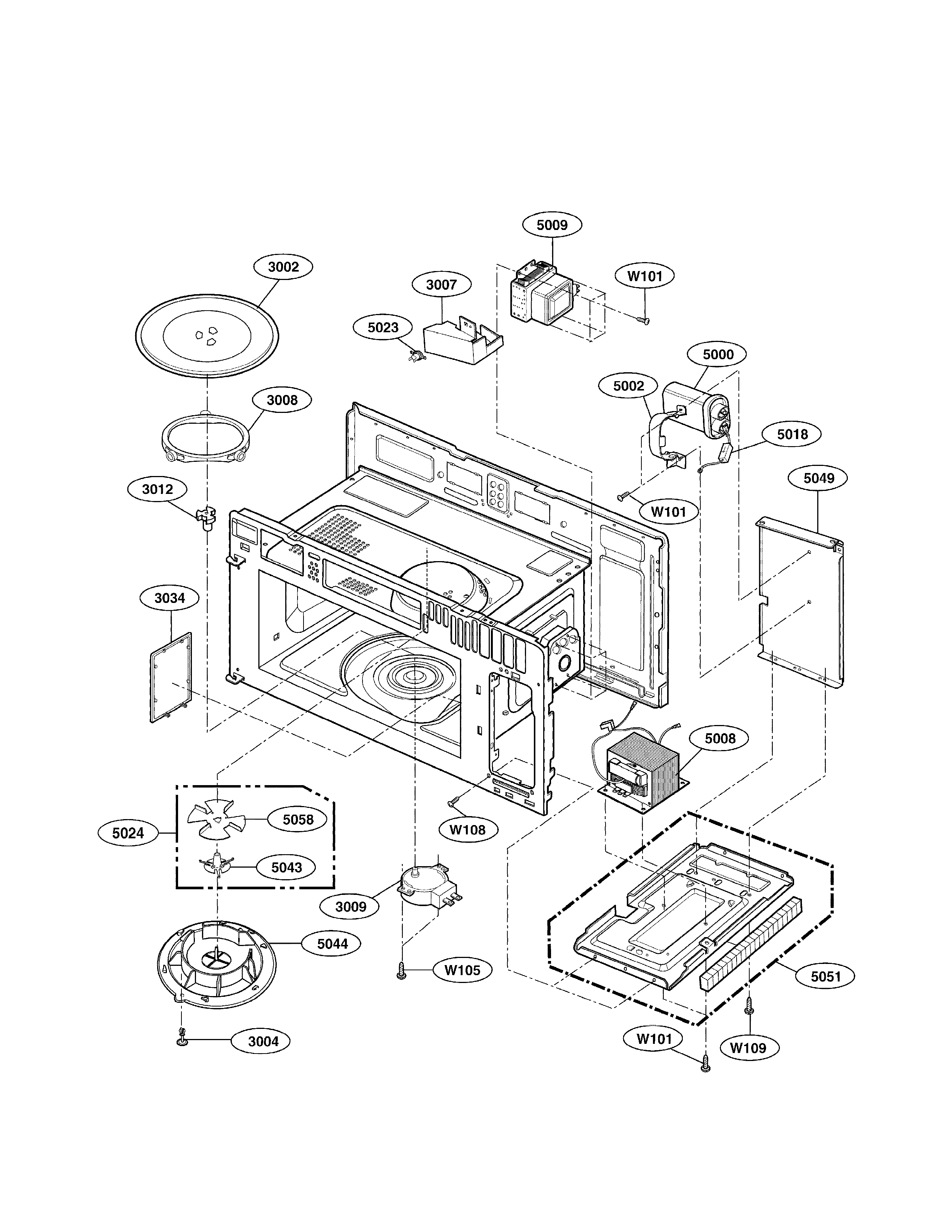

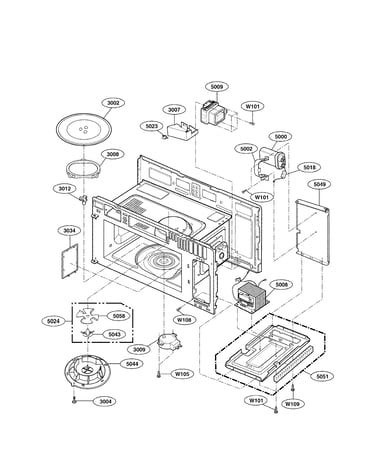

Interior parts (i) diagram

High-voltage diode

Part #6021W3B001Q

Replaced by #6021W3B001V

?
Manufacturer substitution
This part replaces 6021W3B001Q. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable
$6.92
13% OFF Phone Price : $7.92
In Stock
