Model # DW321KTY1 Official DeWalt jig saw

Here are the diagrams and repair parts for Official DeWalt DW321KTY1 jig saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

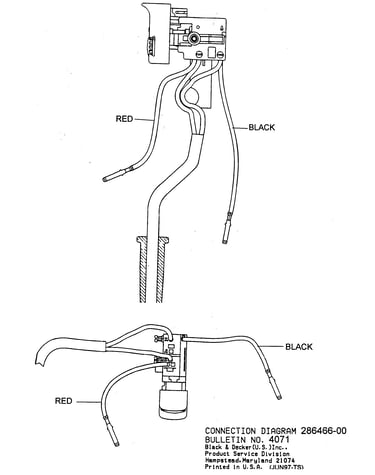

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 87 parts  |
Spring 402111-00
#158

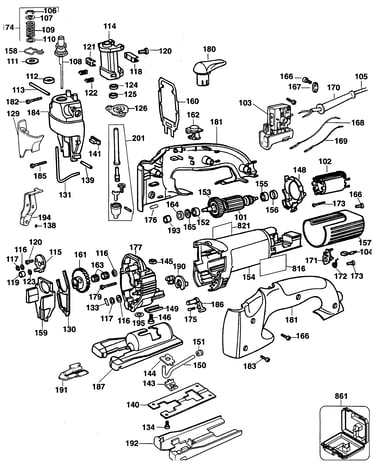

Saw diagram

Spring

Part #402111-00

The manufacturer no longer makes this part, and there's no substitute part

Lead 940988-63
#168

Saw diagram

Lead

Part #940988-63

The manufacturer no longer makes this part, and there's no substitute part

Washer 388957-00
#110

Saw diagram

Washer

Part #388957-00

The manufacturer no longer makes this part, and there's no substitute part

Felt Washer 949400-03
#164

Saw diagram

Felt washer

Part #949400-03

The manufacturer no longer makes this part, and there's no substitute part

Clip 949728-03
#138

Saw diagram

Clip

Part #949728-03

The manufacturer no longer makes this part, and there's no substitute part

Field 402051-01
#102

Saw diagram

Field

Part #402051-01

The manufacturer no longer makes this part, and there's no substitute part

Plug 941374-01
#176

Saw diagram

Plug

Part #941374-01

The manufacturer no longer makes this part, and there's no substitute part

Spring 402110-00
#109

Saw diagram

Spring

Part #402110-00

The manufacturer no longer makes this part, and there's no substitute part

Spring 930090-00
#172

Saw diagram

Spring

Part #930090-00

The manufacturer no longer makes this part, and there's no substitute part

Counterwht 402098-00
#159

Saw diagram

Counterwht

Part #402098-00

The manufacturer no longer makes this part, and there's no substitute part
