KitchenAid
Gas Cooktop

Model # KGCP482KSS1 Official KitchenAid cooktop

Here are the diagrams and repair parts for Official KitchenAid KGCP482KSS1 cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 82 parts  |
Range Screw 3368921
#20

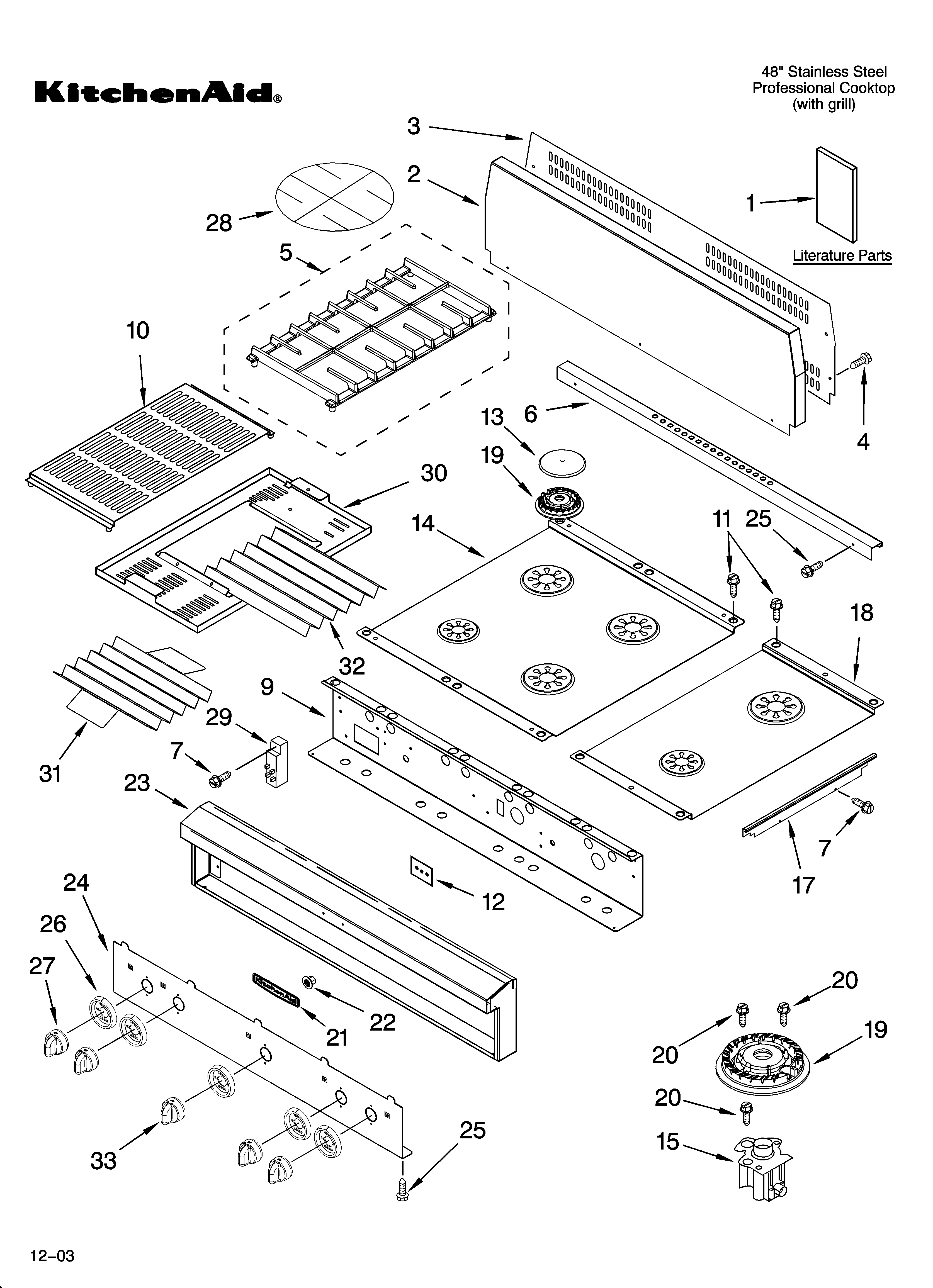

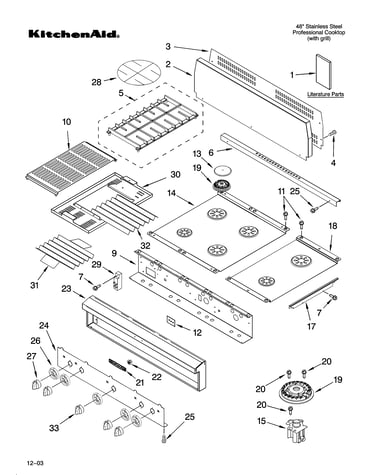

Cooktop, burner and grate parts diagram

Range screw

Part #3368921

Replaced by #WP3368921

?
Manufacturer substitution
This part replaces 3368921. Substitute parts can look different from the original.
BEST SELLER
$6.82 |
43% OFF MSRP : $12.00
In Stock
Spark Module 8522427
#29

Cooktop, burner and grate parts diagram

Spark module

Part #8522427

Replaced by #WPW10110486

?
Manufacturer substitution
This part replaces 8522427. Substitute parts can look different from the original.
$112.14 |
30% OFF MSRP : $160.00
In Stock
Screw 3196176
#25

Cooktop, burner and grate parts diagram

Screw

Part #3196176

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 3196176. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Screw 3196537
#4

Cooktop, burner and grate parts diagram

Screw

Part #3196537

Replaced by #WP3196557

?
Manufacturer substitution
This part replaces 3196537. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Knob 4454970
#27

Cooktop, burner and grate parts diagram

Knob

Part #4454970

Replaced by #WPW10078400

?
Manufacturer substitution
This part replaces 4454970. Substitute parts can look different from the original.
This item is not returnable
$4.78
In Stock
Holder Orifice 4456622
#15

Cooktop, burner and grate parts diagram

Holder orifice

Part #4456622

Replaced by #WPW10155786

?
Manufacturer substitution
This part replaces 4456622. Substitute parts can look different from the original.
$41.15 |
12% OFF MSRP : $47.00
In Stock
Range Surface Burner Cap 8284669
#13A

Cooktop, burner and grate parts diagram

Range surface burner cap

Part #8284669

Replaced by #WP8284669

?
Manufacturer substitution
This part replaces 8284669. Substitute parts can look different from the original.
$40.40 |
11% OFF Phone Price : $45.40
In Stock
Cooktop Grill Burner Valve 8284858
#14

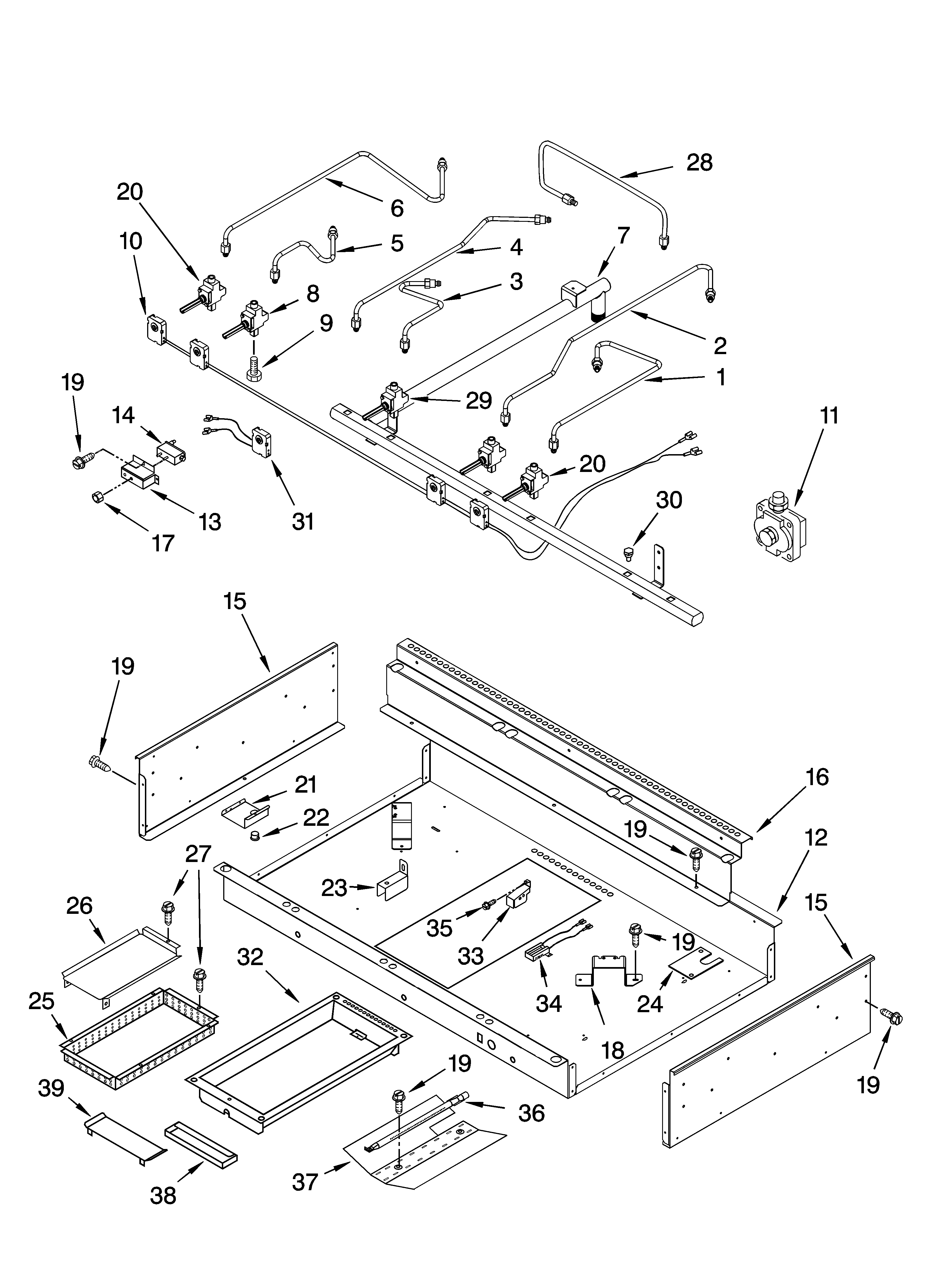

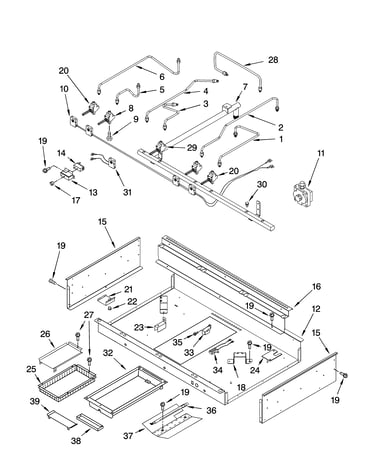

Burner box, gas valves, and switches diagram

Cooktop grill burner valve

Part #8284858

$173.69 |
9% OFF MSRP : $190.00
In Stock
Range Wire Harness 4456627
#NI

Burner box, gas valves, and switches diagram

Range wire harness

Part #4456627

$53.76
In Stock
Range Screw 3177991
Range screw

Part #3177991

Replaced by #WP3177991

?
Manufacturer substitution
This part replaces 3177991. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
