Amana
Microwave/Hood Combo

Model # 8276.A Official Amana microwave

Here are the diagrams and repair parts for Official Amana 8276A microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 148 parts  |
Replacememt Thermometer M95D11

#NI

All parts diagram

Replacememt thermometer

Part #M95D11

The manufacturer no longer makes this part, and there's no substitute part

Cavity Assembly (includes Ref. Nos. 2, 3, 4, 41) M77D151
#1

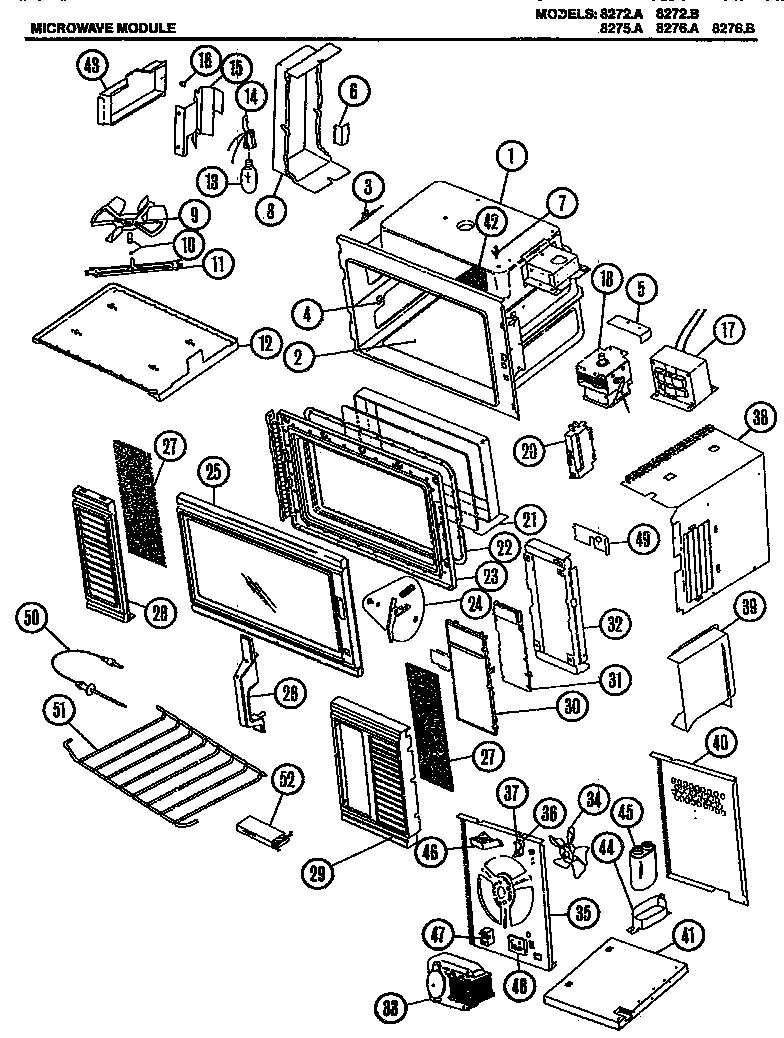

Microwave module diagram

Cavity assembly (includes ref. nos. 2, 3, 4, 41)

Part #M77D151

The manufacturer no longer makes this part, and there's no substitute part

R.t.c. Sealant - Shelf Mtg. M13D2
#2B

Microwave module diagram

R.t.c. sealant - shelf mtg.

Part #M13D2

The manufacturer no longer makes this part, and there's no substitute part

Bushing M2D576
#16

Microwave module diagram

Bushing

Part #M2D576

The manufacturer no longer makes this part, and there's no substitute part

Switch Barrier M8D357
#26A

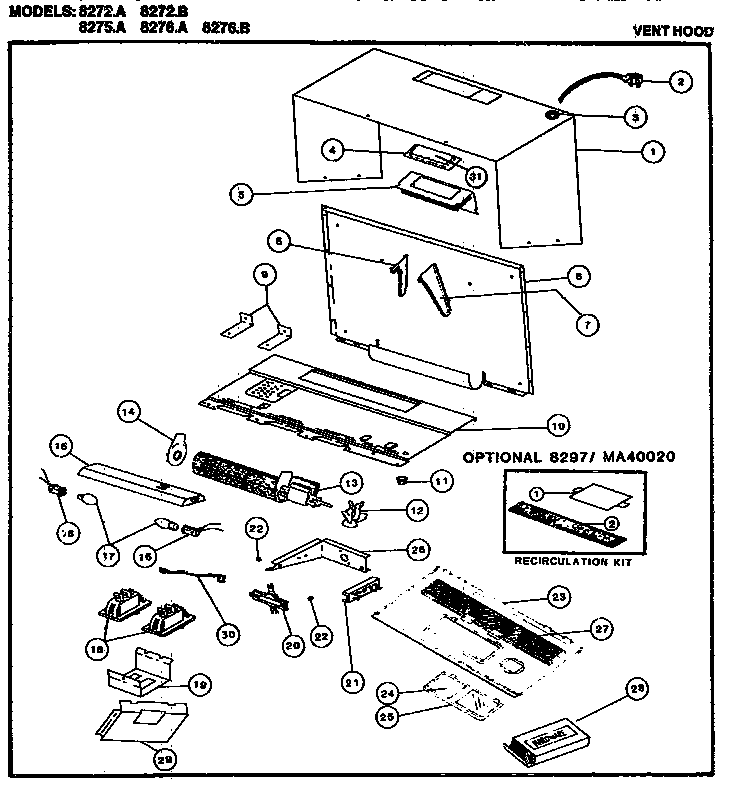

Vent hood diagram

Switch barrier

Part #M8D357

The manufacturer no longer makes this part, and there's no substitute part

Damper Shutter M20D242
#31

Vent hood diagram

Damper shutter

Part #M20D242

The manufacturer no longer makes this part, and there's no substitute part

Exhaust Bracket M8D355
#9A

Vent hood diagram

Exhaust bracket

Part #M8D355

The manufacturer no longer makes this part, and there's no substitute part

Baffle, Intrusion M8D361
#29A

Vent hood diagram

Baffle, intrusion

Part #M8D361

The manufacturer no longer makes this part, and there's no substitute part

Control Panel Frame M7D882
#29A

Microwave module diagram

Control panel frame

Part #M7D882

The manufacturer no longer makes this part, and there's no substitute part

Screw, Handle Mounting M1D942
#26C

Microwave module diagram

Screw, handle mounting

Part #M1D942

The manufacturer no longer makes this part, and there's no substitute part
