Jenn-Air CVEX4270B20 43" electric downdraft cooktop

Jenn-Air CVEX4270B20 43" electric downdraft cooktop Parts

Here are the diagrams and repair parts for Jenn-Air CVEX4270B20 43" electric downdraft cooktop, as well as links to manuals and error code tables, if available.

By Schematic
By Part

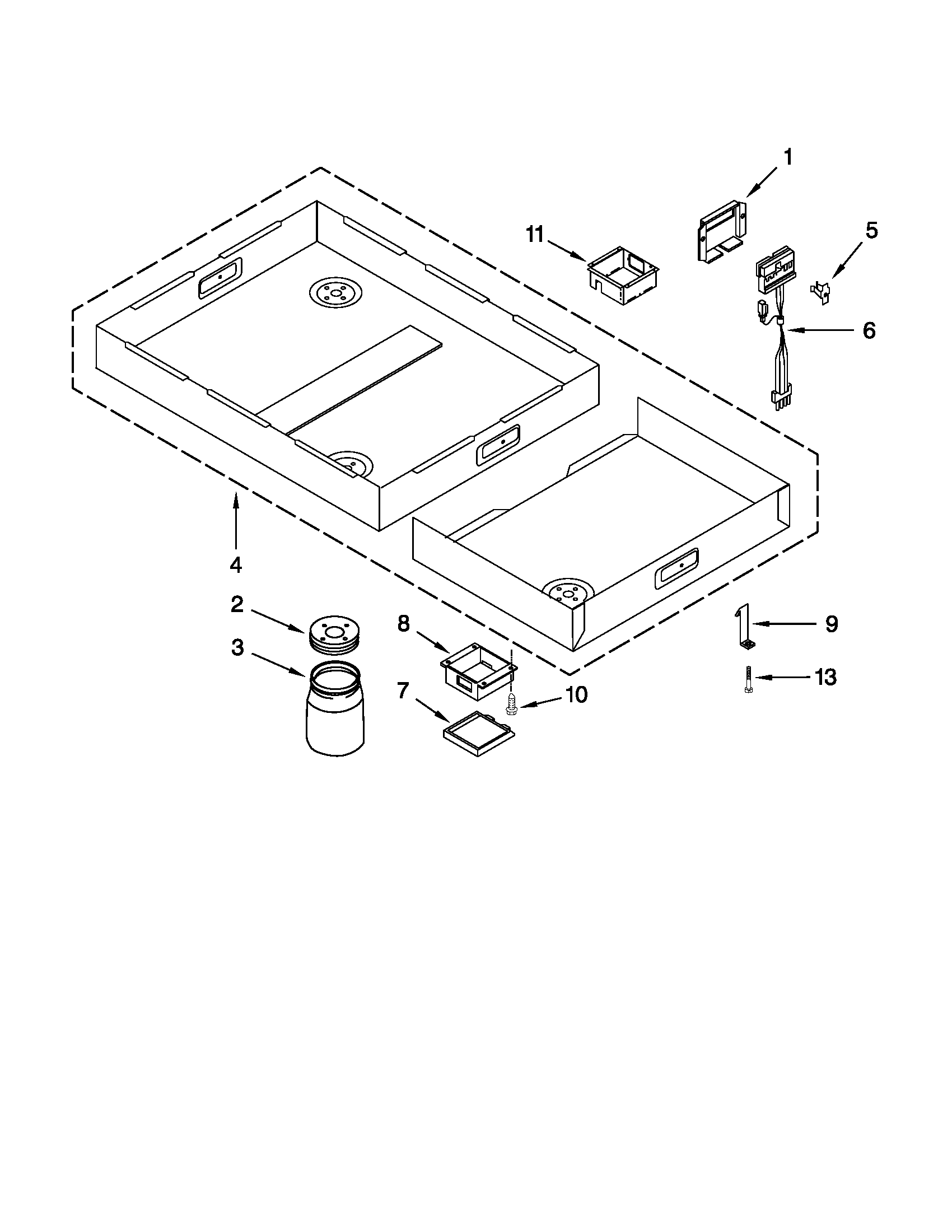

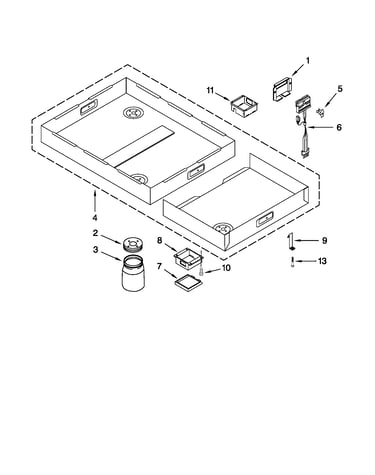

SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for CVEX4270B20 Cooktops

  • Cooktop Element Control Switch for Jenn-Air CVEX4270B20 - Part WPW10391800

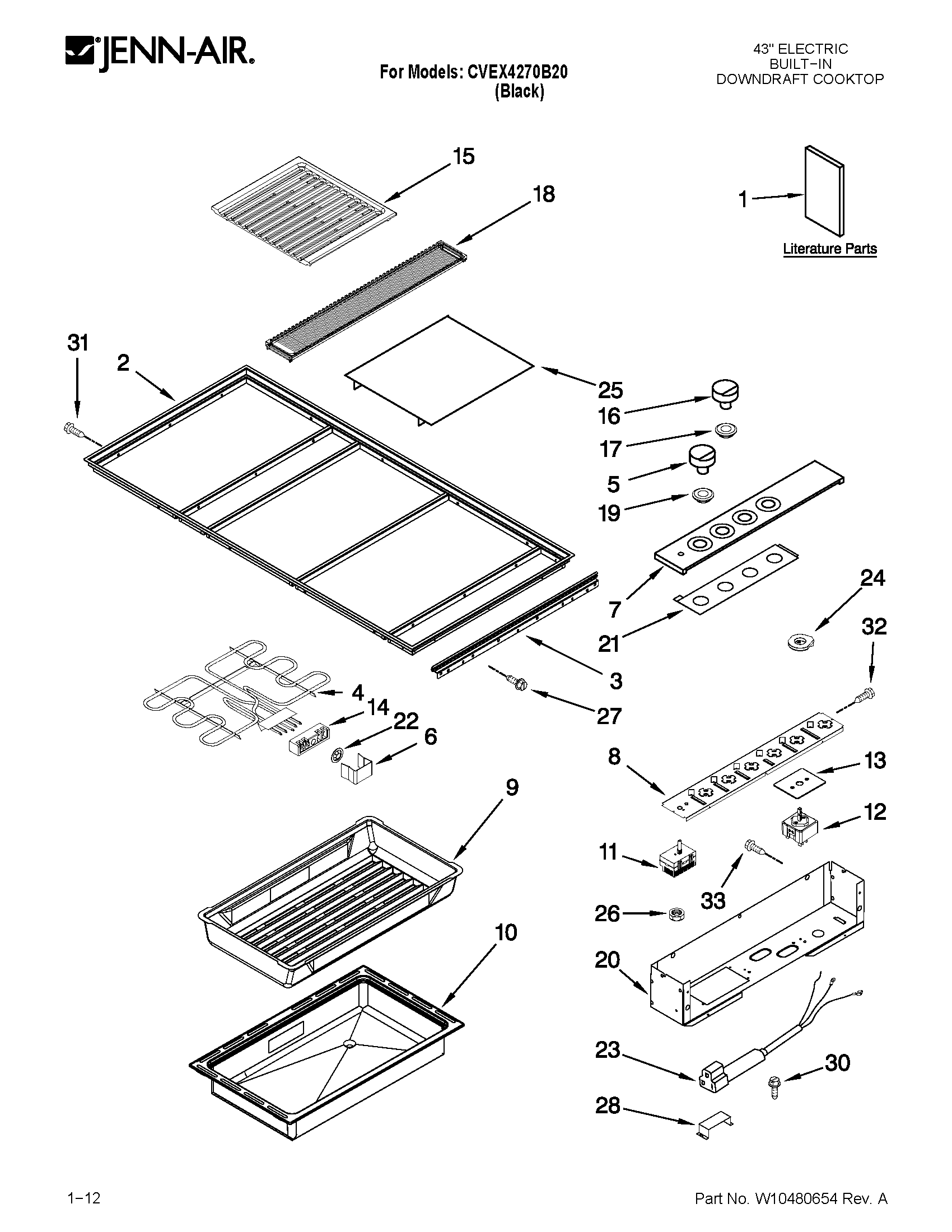

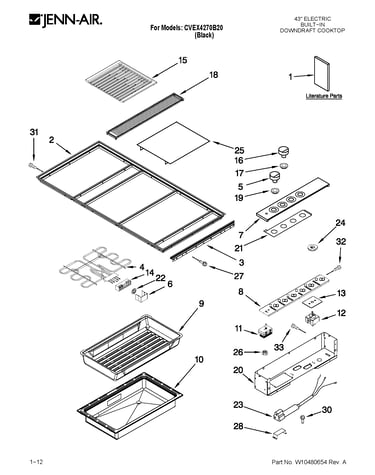

    Cooktop parts diagram

    Infinite Switch

    Part #W10391800

    Replaced by #WPW10391800

    Info Icon
    Manufacturer substitution
    This part replaces W10391800. Substitute parts can look different from the original.
    In Stock
    $138.35
    8% OFF Phone Price : $150.35Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Jenn-Air CVEX4270B20 - Part WPY706189

    Cooktop parts diagram

    Screw

    Part #7101P427-60

    Replaced by #WPY706189

    Info Icon
    Manufacturer substitution
    This part replaces 7101P427-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.21
    16% OFF Phone Price : $6.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Fan Control Knob (black) for Jenn-Air CVEX4270B20 - Part W11715914

    Cooktop parts diagram

    Cooktop Knob

    Part #W10410738

    Replaced by #W11715914

    Info Icon
    Manufacturer substitution
    This part replaces W10410738. Substitute parts can look different from the original.
    In Stock
    $65.39
    Minus Item
    Qty
    Plus Item
  • Wire Harness for Jenn-Air CVEX4270B20 - Part W10457900

    Optional parts diagram

    Wire Harness

    Part #W10457900
    In Stock
    $66.29
    Minus Item
    Qty
    Plus Item
  • Block- Ter for Jenn-Air CVEX4270B20 - Part 7401P061-60

    Cooktop parts diagram

    Block- Ter

    Part #7401P061-60
    In Stock
    $57.90
    Minus Item
    Qty
    Plus Item
  • Cooktop Blower Motor for Jenn-Air CVEX4270B20 - Part 5700D511-60

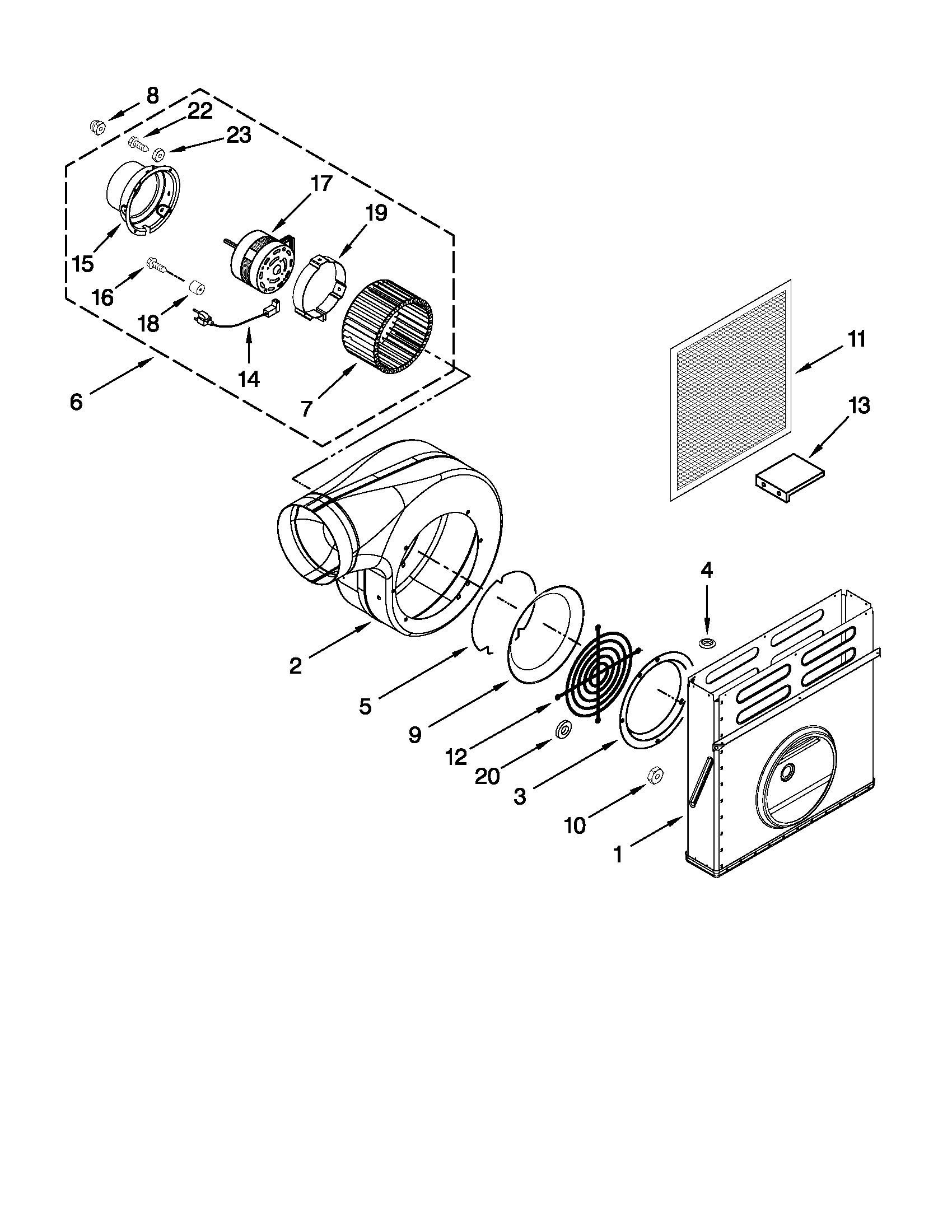

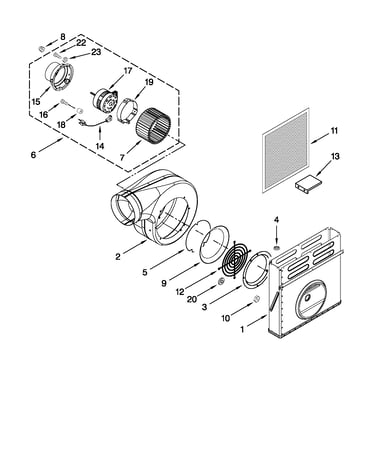

    Blower unit parts diagram

    Cooktop Blower Motor

    Part #5700D511-60
    In Stock
    $340.54
    Minus Item
    Qty
    Plus Item
  • Range Lock Nut for Jenn-Air CVEX4270B20 - Part WPY707702

    Blower unit parts diagram

    Lock Nut

    Part #7103P162-60

    Replaced by #WPY707702

    Info Icon
    Manufacturer substitution
    This part replaces 7103P162-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $5.21
    16% OFF Phone Price : $6.21Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Screw for Jenn-Air CVEX4270B20 - Part WP71001171

    Screw- Gro

    Part #7101P460-60

    Replaced by #WP71001171

    Info Icon
    Manufacturer substitution
    This part replaces 7101P460-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Hood Motor Isolator for Jenn-Air CVEX4270B20 - Part WP71003558

    Blower unit parts diagram

    Isolator

    Part #8038P002-60

    Replaced by #WP71003558

    Info Icon
    Manufacturer substitution
    This part replaces 8038P002-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $10.26
    16% OFF Phone Price : $12.26Info Icon
    Minus Item
    Qty
    Plus Item
  • Range Hex Nut for Jenn-Air CVEX4270B20 - Part WP7103P027-60

    Blower unit parts diagram

    Terminal Nut

    Part #7103P027-60

    Replaced by #WP7103P027-60

    Info Icon
    Manufacturer substitution
    This part replaces 7103P027-60. Substitute parts can look different from the original.
    This item is not returnable
    In Stock
    $4.91
    17% OFF Phone Price : $5.91Info Icon
    Minus Item
    Qty
    Plus Item
