Model # JP3021DP1BB Official GE electric cooktop

Here are the diagrams and repair parts for Official GE JP3021DP1BB electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

Click a diagram to see the parts shown on that diagram.
In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

ALL PARTS

Showing 10 of 24 parts |

#21

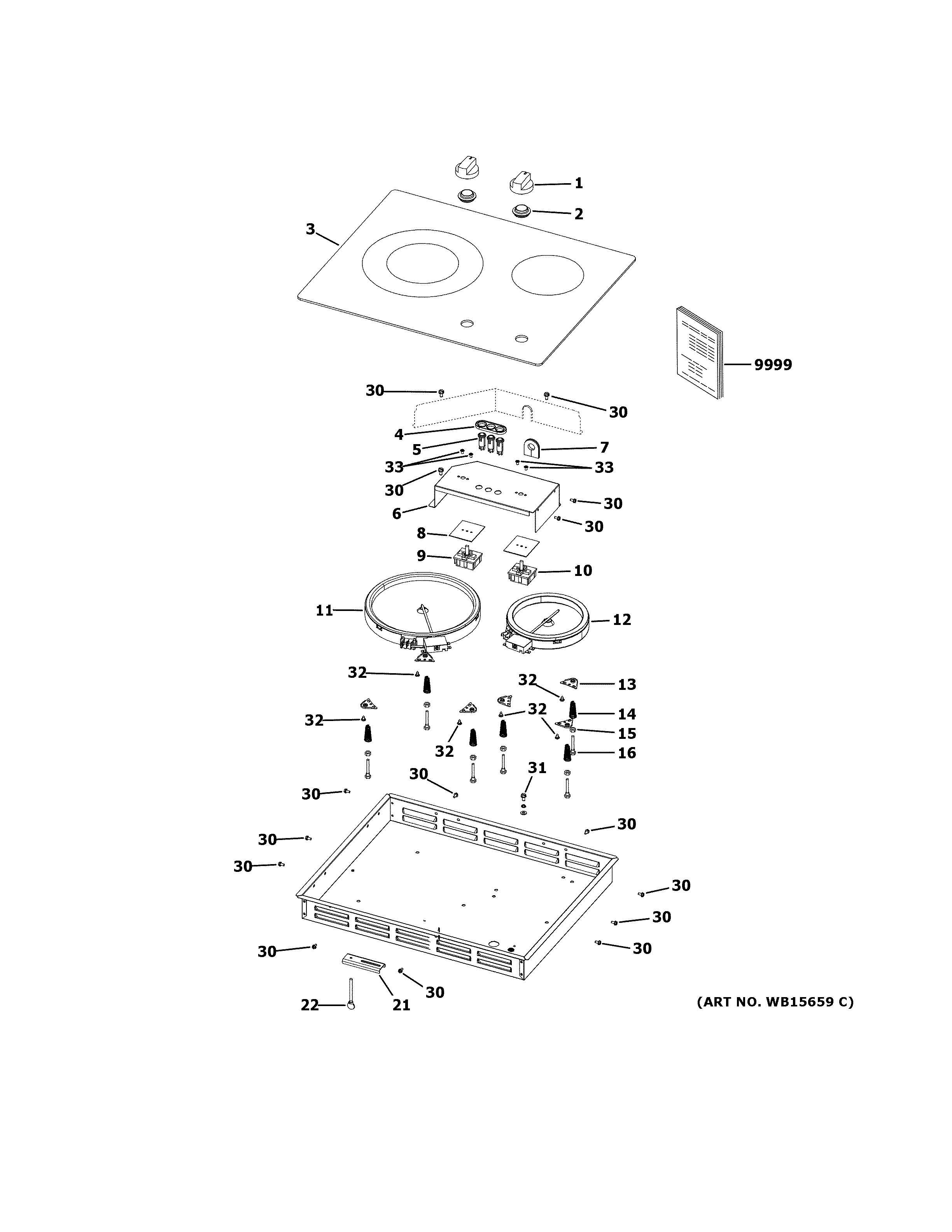

Control panel & cooktop diagram

Installation brkt hold

Part #WB21X37208

$10.51

In Stock

Qty

Control panel & cooktop diagram

Infinite swi

Part #WB35X30117

This item is not returnable

$4.35

In Stock

Qty

#10

Control panel & cooktop diagram

Switch infinite

Part #WB24X37217

$76.07

In Stock

Qty

#30

Control panel & cooktop diagram

Screw st4 2x

Part #WB01X30128

This item is not returnable

$5.00

In Stock

Qty

Control panel & cooktop diagram

Knob gasket

Part #WB35X30112

This item is not returnable

$5.00

In Stock

Qty

#31

Control panel & cooktop diagram

Ground screw

Part #WB01X30094

This item is not returnable

$4.35

In Stock

Qty

#16

Control panel & cooktop diagram

Stud

Part #WB01X37505

$12.00

In Stock

Qty

Control panel & cooktop diagram

Clip

Part #WB02X30104

This item is not returnable

$4.35

In Stock

Qty

#11

Control panel & cooktop diagram

Element radiant 9 dual

Part #WB03X37212

$101.86

In Stock

Qty

#14

Control panel & cooktop diagram

Spring stainless

Part #WB01X37216

$12.00

In Stock

Qty
