Kenmore
Heating & Cooling Combined Unit

Model #867815040 Kenmore combination heating & cooling unit

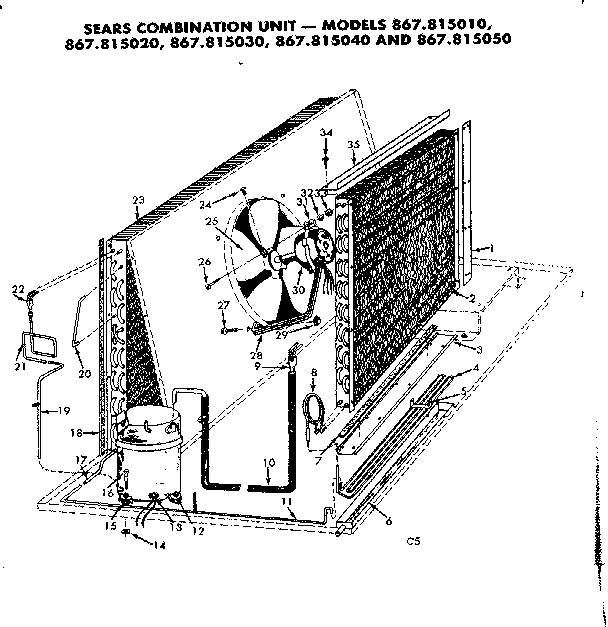

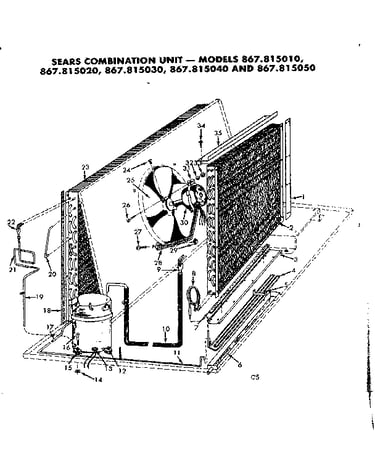

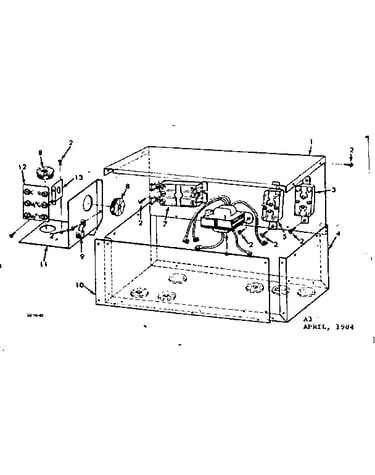

Here are the diagrams and repair parts for Kenmore 867815040 combination heating & cooling unit, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

    Showing 10 of 306 parts

    Nameplate

    #NI

    All parts Diagram

    Nameplate

    Part #606054
    This item is not returnable
    $6.49

    In Stock

    Plate

    #26C

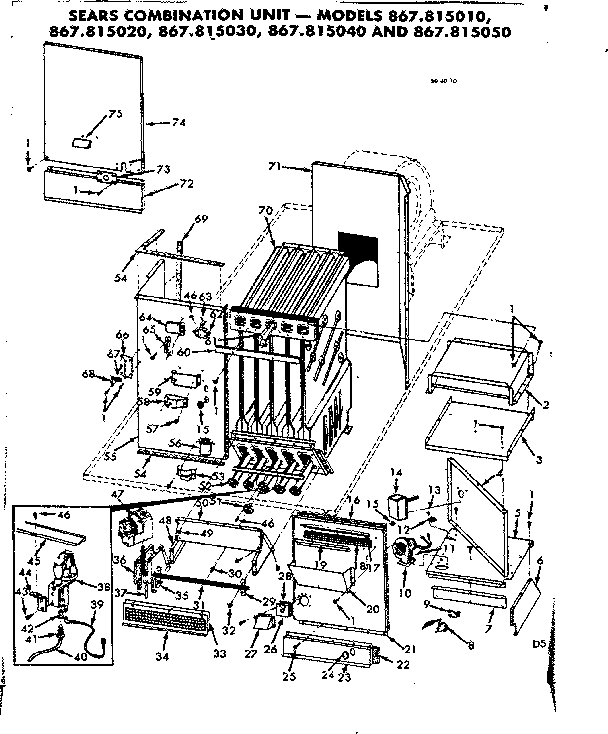

    Heat exchanger Diagram

    Plate

    Part #522104
    This item is not returnable
    $5.49

    In Stock

    Furnace Burner Roll-Out Limit Switch

    #12

    Heat exchanger Diagram

    $34.05

    In Stock

    Clamp

    #65A

    Heat exchanger Diagram

    Clamp

    Part #94364
    $45.23

    In Stock

    Insulation

    #36

    Heat exchanger Diagram

    Insulation

    Part #522045
    This item is not returnable
    $5.49

    In Stock

    Diffuser Air

    #14A

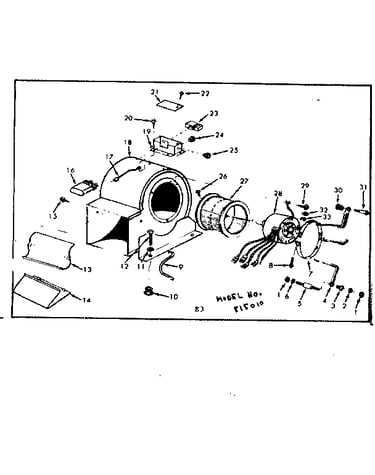

    Blower assembly Diagram

    Diffuser air

    Part #522134
    $9.31

    In Stock

    Panel Inlet

    #73

    Heat exchanger Diagram

    Panel inlet

    Part #522071
    $20.99

    In Stock

    Felt

    #67A

    Heat exchanger Diagram

    Felt

    Part #710555
    This item is not returnable
    $5.99

    In Stock

    Diffuser Air

    #14B

    Blower assembly Diagram

    Diffuser air

    Part #522135
    $14.99

    In Stock

    Insulation

    #12B

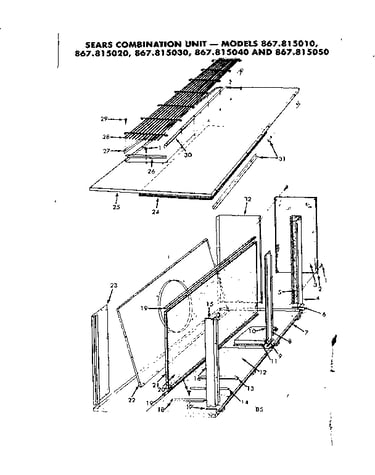

    Cabinet Diagram

    Insulation

    Part #522051
    $21.99

    In Stock
