Hoover
Carpet Cleaner

Model # F5857-909 Official Hoover carpet cleaner

Here are the diagrams and repair parts for Official Hoover F5857-909 carpet cleaner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 78 parts  |

Lens 39383106
#5

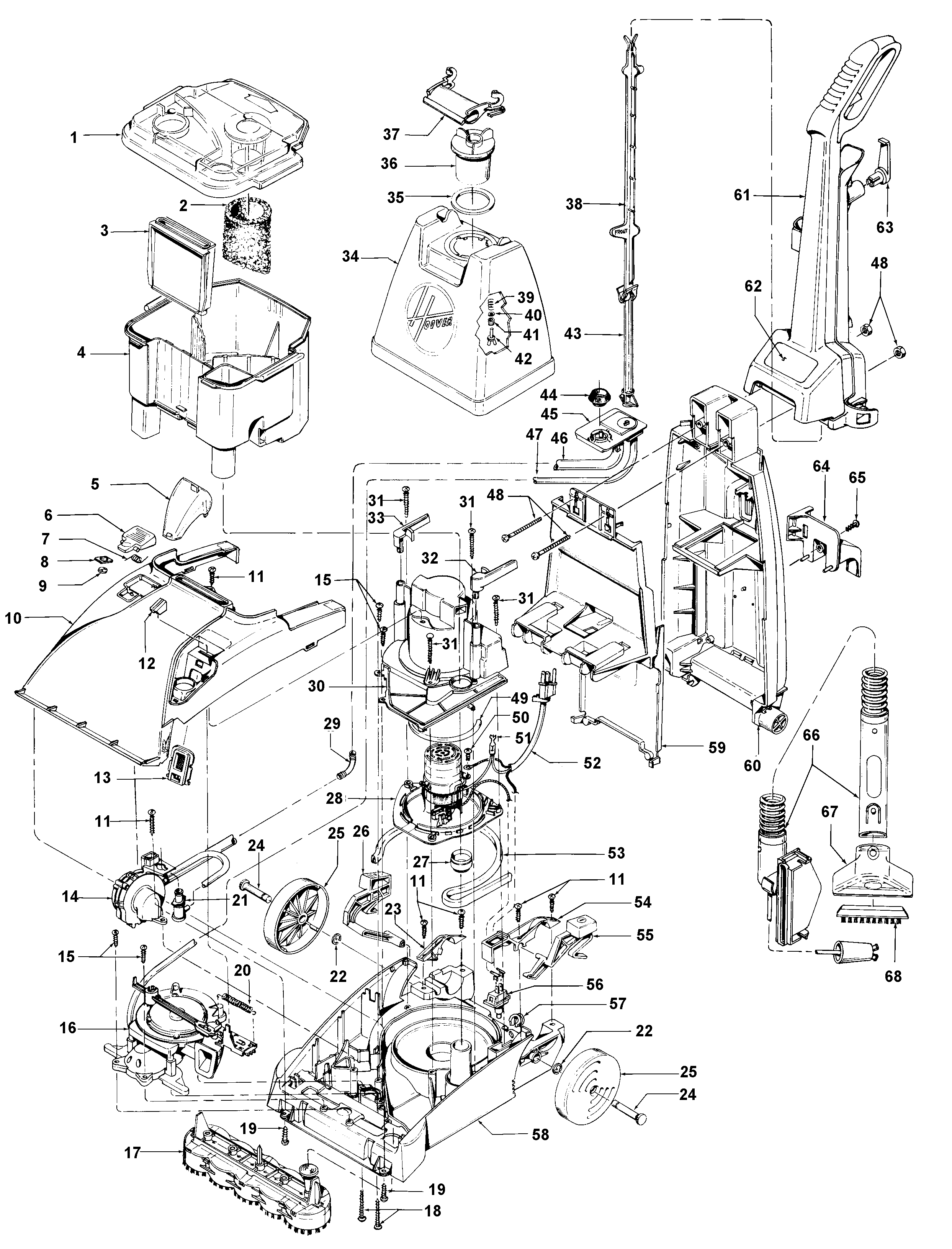

Mainhousing, motor, hose, handle diagram

Lens

Part #39383106

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Motor Seal 34113004
#49

Mainhousing, motor, hose, handle diagram

Carpet cleaner motor seal

Part #34113004

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Float Retainer 38719027
#69B

Mainhousing, motor, hose, handle diagram

Carpet cleaner float retainer

Part #38719027

The manufacturer no longer makes this part, and there's no substitute part

Spring 38333009
#20

Mainhousing, motor, hose, handle diagram

Spring

Part #38333009

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Screw And Nut 40201149
#48

Mainhousing, motor, hose, handle diagram

Vacuum screw and nut

Part #40201149

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw 21447246
#31

Mainhousing, motor, hose, handle diagram

Carpet cleaner screw

Part #21447246

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Screw 21479438
#18

Mainhousing, motor, hose, handle diagram

Carpet cleaner screw

Part #21479438

The manufacturer no longer makes this part, and there's no substitute part

Label 51865024
#69L

Mainhousing, motor, hose, handle diagram

Label

Part #51865024

The manufacturer no longer makes this part, and there's no substitute part

Carpet Cleaner Float Retainer Seal 38784070
#69C

Mainhousing, motor, hose, handle diagram

Carpet cleaner float retainer seal

Part #38784070

The manufacturer no longer makes this part, and there's no substitute part

Float 43538001
#69G

Mainhousing, motor, hose, handle diagram

Float

Part #43538001

The manufacturer no longer makes this part, and there's no substitute part
