Model # 308786180 Official Sears tent frame

Here are the diagrams and repair parts for Official Sears 308786180 tent frame, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 8 of 8 parts  |
Lock 909
#909

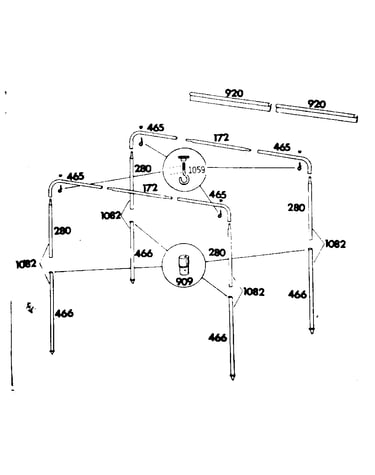

Frame assembly diagram

Lock

Part #909

The manufacturer no longer makes this part, and there's no substitute part

Ext Alum 5ft 920
#920

Frame assembly diagram

Ext alum 5ft

Part #920

The manufacturer no longer makes this part, and there's no substitute part

Ctr Ridge 172
#172

Frame assembly diagram

Ctr ridge

Part #172

The manufacturer no longer makes this part, and there's no substitute part

Upright 466
#466

Frame assembly diagram

Upright

Part #466

The manufacturer no longer makes this part, and there's no substitute part

Side Pole 1082
#1082

Frame assembly diagram

Side pole

Part #1082

The manufacturer no longer makes this part, and there's no substitute part

Upright 280
#280

Frame assembly diagram

Upright

Part #280

The manufacturer no longer makes this part, and there's no substitute part

Bolt Nut 1059
#1059

Frame assembly diagram

Bolt nut

Part #1059

The manufacturer no longer makes this part, and there's no substitute part

Cor-member 465
#465

Frame assembly diagram

Cor-member

Part #465

The manufacturer no longer makes this part, and there's no substitute part
