Husqvarna ST224-97046850101 snow thrower

Husqvarna ST224-97046850101 snow thrower Parts

Here are the diagrams and repair parts for Husqvarna ST224-97046850101 snow thrower, as well as links to manuals and error code tables, if available.

By Schematic
By Part
SELECT DIAGRAM
?

This is the number corresponding to the part on the diagram / schematic

Browse Parts for ST224-97046850101 Snowblowers

Husqvarna SNOW THROWER ST224-97046850101 FAQs

The Husqvarna ST224-97046850101 snow thrower uses unleaded regular gasoline with a maximum of 10% ethanol (E10). Using higher-ethanol fuel (such as E15 or E85) can cause hard starting, poor performance, and fuel-system damage.

What to use (and what to avoid)

  • Use fresh unleaded regular gasoline (E0 to E10).
  • Avoid gasoline with more than 10% ethanol (E15, E85).
  • Avoid old or stale fuel (especially fuel stored for months).
  • Do not mix oil into the gas (this is a 4-cycle engine).
  • Store fuel only in approved fuel containers.

Quick fuel guide

Fuel at the pump OK for ST224-97046850101? Why
Unleaded regular E0 Yes Clean, stable fuel choice
Unleaded regular E10 Yes Matches the specified maximum ethanol content
Unleaded E15 No Too much ethanol for the fuel system
E85 (flex fuel) No Very high ethanol content

Why it matters

Ethanol attracts moisture and can contribute to varnish and corrosion in small-engine fuel systems. Staying at E10 or less helps protect the carburetor, fuel lines, and starting performance.

Where to confirm fuel specs and safe handling

For the exact fuel type wording and fuel safety guidance for your machine, follow the ST224-97046850101 owner's manual.

Last updated: January 2026

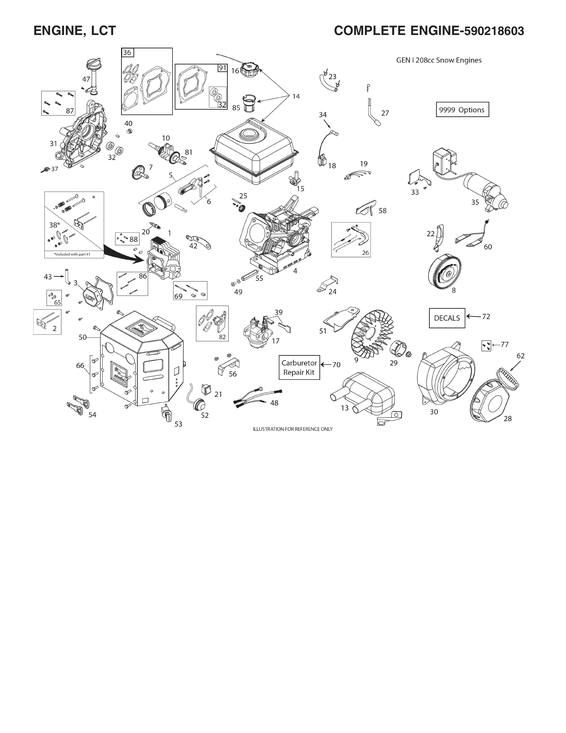

The Husqvarna ST224-97046850101 snow thrower uses an LCT engine with 208 cc displacement. For the exact engine details and specs used on your unit (fuel, oil, spark plug), match what’s listed in the ST224-97046850101 operator’s manual.

Engine details for the ST224

From the technical data for the ST 224 series, the engine specs include:

  • Engine brand/model: LCT
  • Displacement: 208 cc
  • Fuel type: Unleaded regular (maximum 10% ethanol)
  • Oil type (cold weather): SAE 5W30 (below 0°C (32°F))
  • Spark plug: F6RTC or F7RTC
  • Spark plug gap: 0.030 in (0.762 mm)

Quick spec table (ST 224)

Spec ST 224 value
Engine brand/model LCT
Displacement 208 cc
Fuel Unleaded regular (max 10% ethanol)
Oil (cold weather) SAE 5W30 below 32°F
Spark plug F6RTC or F7RTC

Why it matters

Knowing the exact engine (LCT 208 cc) helps you buy the right tune-up parts and fluids, and it prevents common cold-start and performance issues caused by the wrong oil viscosity, incorrect spark plug type, or stale fuel.

  • Use fresh fuel and avoid fuel with more than 10% ethanol
  • Change oil on schedule and use the correct winter-grade oil
  • Check spark plug condition and set the correct gap
  • Keep the auger and drive systems maintained so the engine is not overloaded

For step-by-step maintenance procedures, use the how to check a snowblower spark plug video and the how to change snowblower oil video.

Last updated: January 2026

A gas snowblower like the Husqvarna ST224-97046850101 typically lasts 10 to 20 years. With consistent maintenance (oil changes, correct operation, and off-season care), many owners get 15+ years of reliable snow throwing performance.

Typical lifespan by snowblower type

Snowblower type Typical lifespan What usually ends it first
Gas, mid to heavy duty 10 to 20 years Belts, friction drive wear, carburetor issues
Gas, light duty 8 to 15 years Corrosion, drivetrain wear
Electric (corded/battery) 5 to 10 years Motor/electronics, battery aging

What makes a snowblower last longer

We see the longest life when owners follow the operating and care basics in the ST224-97046850101 owner's manual. Key habits include:

  • Run the engine at full throttle or near full throttle while throwing snow.
  • Avoid running the auger dry; operating without snow can overheat and damage auger blades and the scraper bar.
  • Do not partially engage the drive or auger levers for long periods; that can prematurely wear or burn belts.
  • After use, remove packed snow and ice from the chute and controls to prevent freeze-up.
  • Store with fresh fuel practices and clean the machine before the off-season.

Quick maintenance checklist (high impact)

  • Change engine oil on schedule.
  • Check and replace worn belts when slipping starts (auger or drive).
  • Keep the chute and deflector moving freely; ice buildup strains controls.
  • Inspect shear pins, skid shoes, and scraper bar for wear.
  • Keep fasteners tight and look for vibration-related loosening.

Why it matters

A snowblower’s “life” is usually limited by wear parts and storage damage, not the housing itself. Good operating technique and freeze-up prevention reduce belt wear, protect the auger system, and help the machine start reliably season after season.

Last updated: January 2026

The Husqvarna ST224-97046850101 is best for typical residential snowfalls on driveways and walkways, and it performs well when you match your ground speed to conditions. For best results, we run the engine at full or near-full throttle and adjust speed as snow gets deeper or wetter.

Best snow conditions and surfaces

This snow thrower is designed to clear snow from fields, roads, walkways, and driveways, and it works best when the area is free of debris, dirt, and protruding stones.

  • Light, dry snow: use a faster drive speed and keep the engine near full throttle
  • Average snowfalls: steady pace, consistent chute direction, throw downwind when possible
  • Heavy or wet snow: slow down and take narrower passes to avoid overloading
  • Packed snow: take shallow cuts; let the augers work, do not force forward speed
  • Paved surfaces (asphalt/concrete): set skid plates so the housing rides slightly above the surface

For model-specific operating tips and control locations, use the ST224-97046850101 owner's manual.

Quick setup tips that improve performance

  • Set skid plates about 5 to 6 mm (0.2 to 0.25 in) off the ground on flat paved surfaces
  • Keep the chute and chute deflector clear; stop the machine before clearing a clog
  • Throw snow downwind to reduce blowback and improve distance
  • Clear snow soon after it falls; it is easier and more efficient
  • If the machine bogs down, reduce forward speed and reduce the width of the swath
Snow type What you will notice What to do
Light and fluffy Easy discharge, long throw Increase drive speed; keep throttle high
Wet and heavy Shorter throw, engine loads Slow down; take half-width passes
Deep drifts Housing wants to ride up Take layers; adjust skid plates as needed
Icy or packed Skips or scrapes Shallow cuts; steady pace

Why it matters

Using the right technique for the snow type helps prevent clogs, reduces belt and auger strain, and keeps throwing distance consistent. It also improves traction control and helps you avoid sudden stops that can feel like a drive issue.

Last updated: January 2026
