Frigidaire AR22NS5F1 room air conditioner - lf34088080 Parts
Here are the diagrams and repair parts for Frigidaire AR22NS5F1 room air conditioner - lf34088080, as well as links to manuals and error code tables, if available.
Error Codes
By Schematic
SELECT DIAGRAM

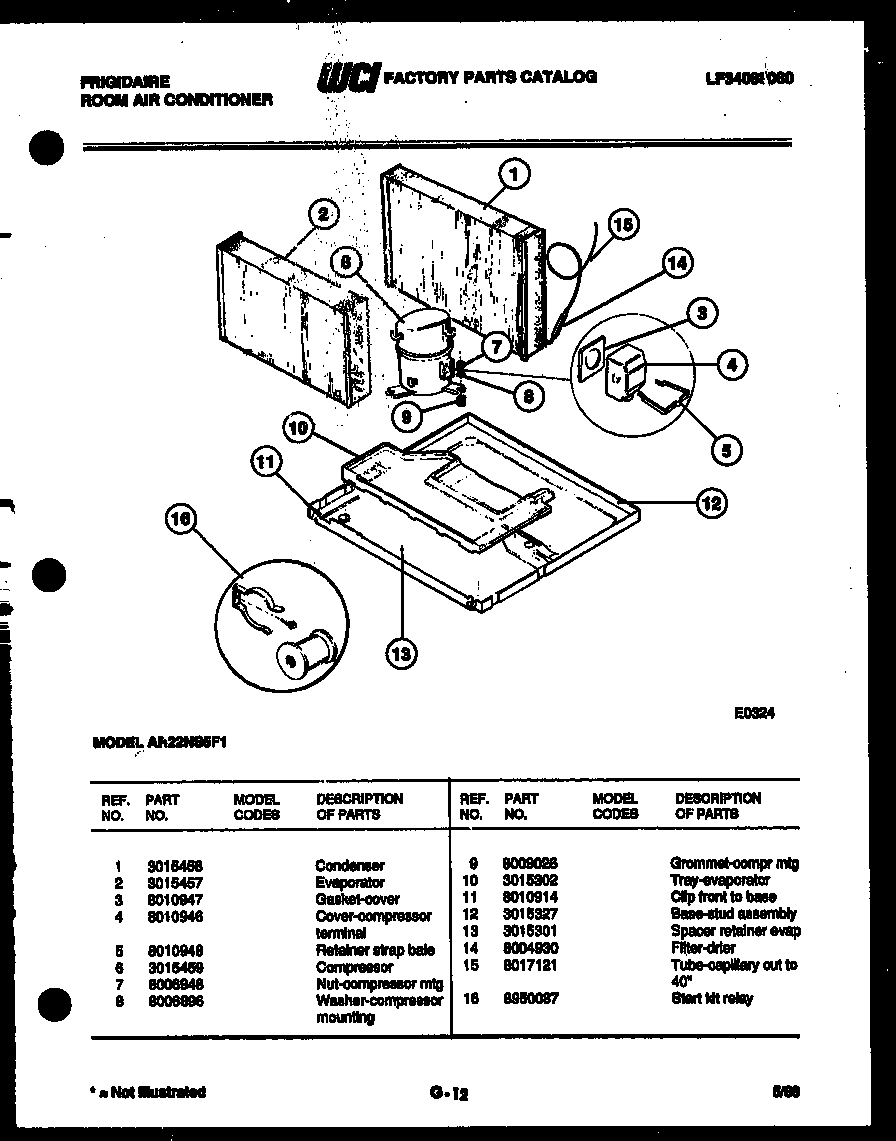

Browse Parts for AR22NS5F1 Room Air Conditioner - LF34088080

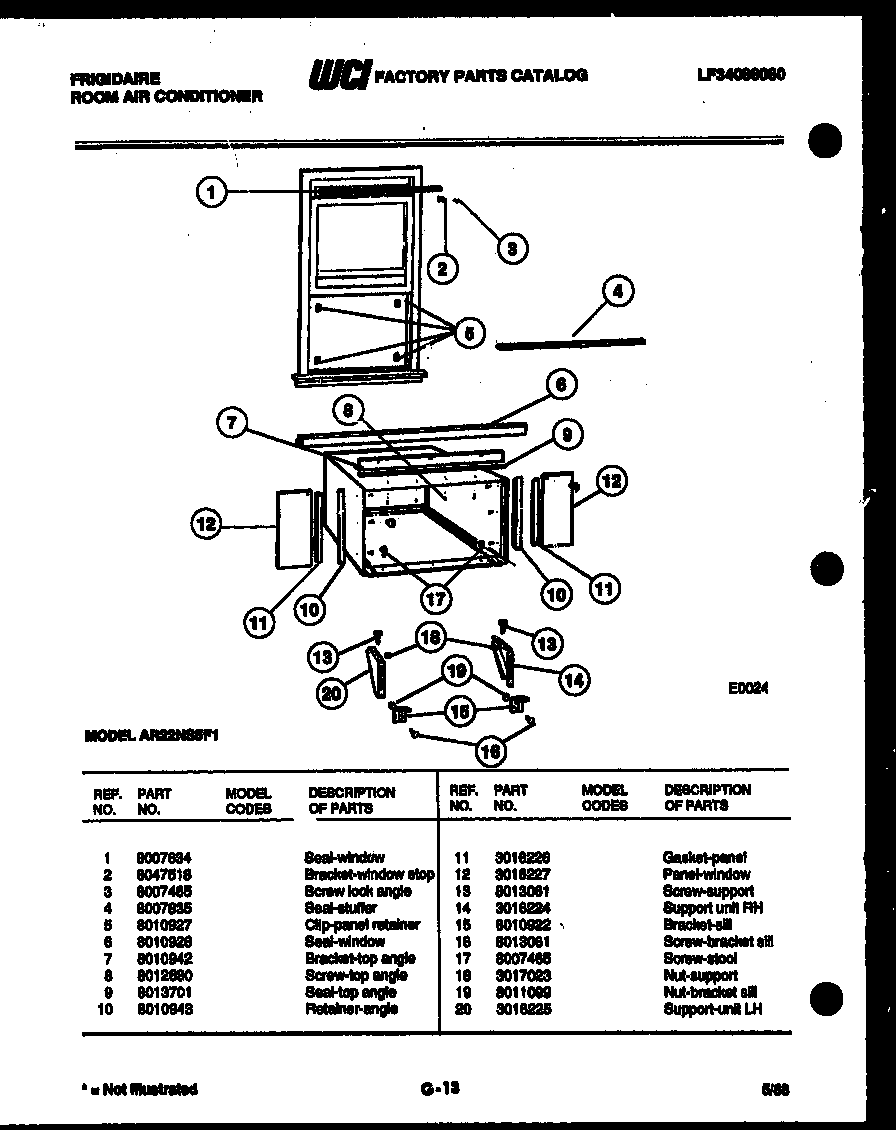

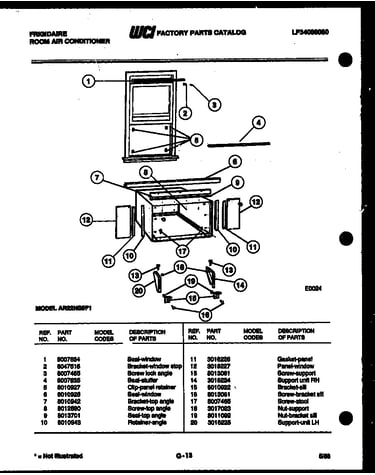

Window mounting parts diagram
Nut-hex
Part #3017023Replaced by #316205500
Manufacturer substitutionThis part replaces 3017023. Substitute parts can look different from the original.This item is not returnableIn Stock$36.62
Qty

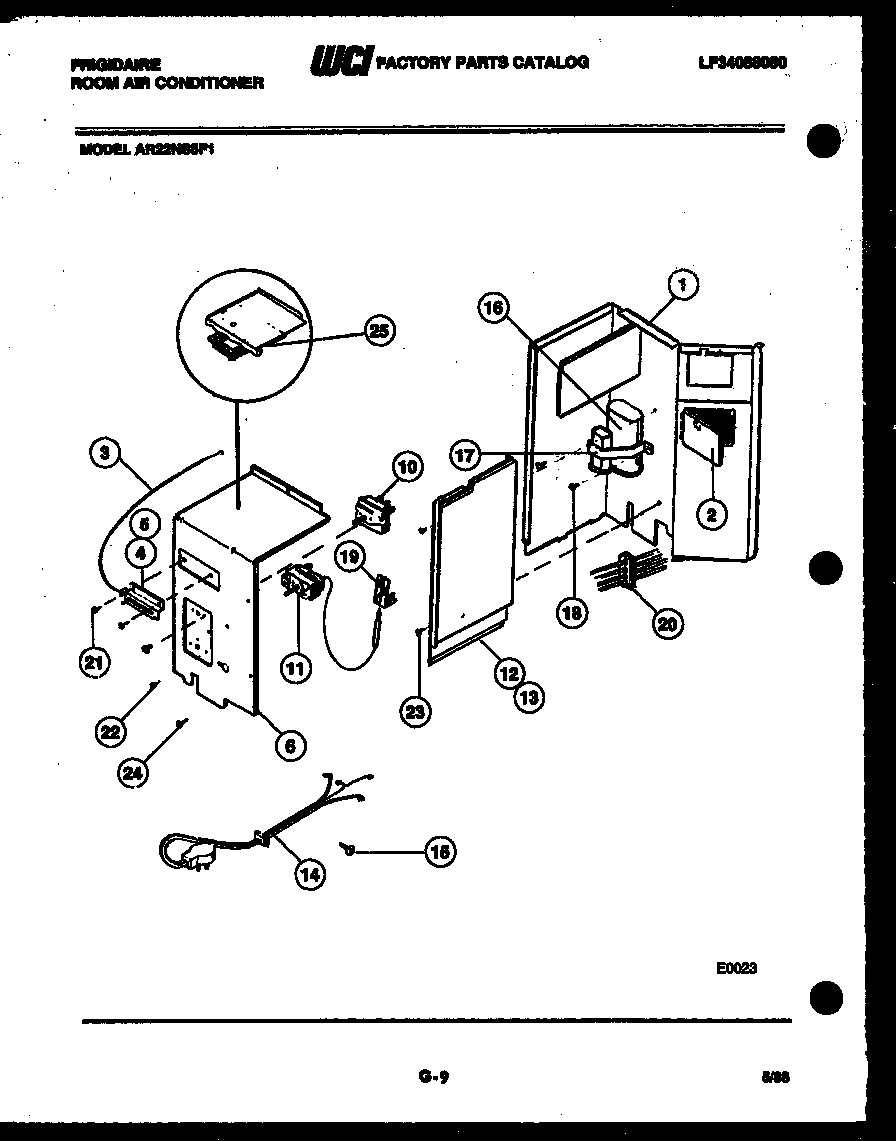

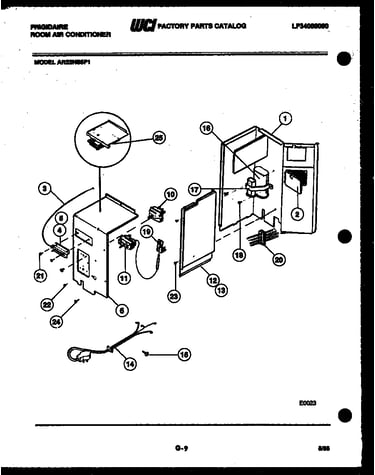

Electrical parts diagram
Insulation Panel
In Stock$26.04QtyElectrical parts diagram
Insulation
In Stock$27.95QtyElectrical parts diagram
Divider

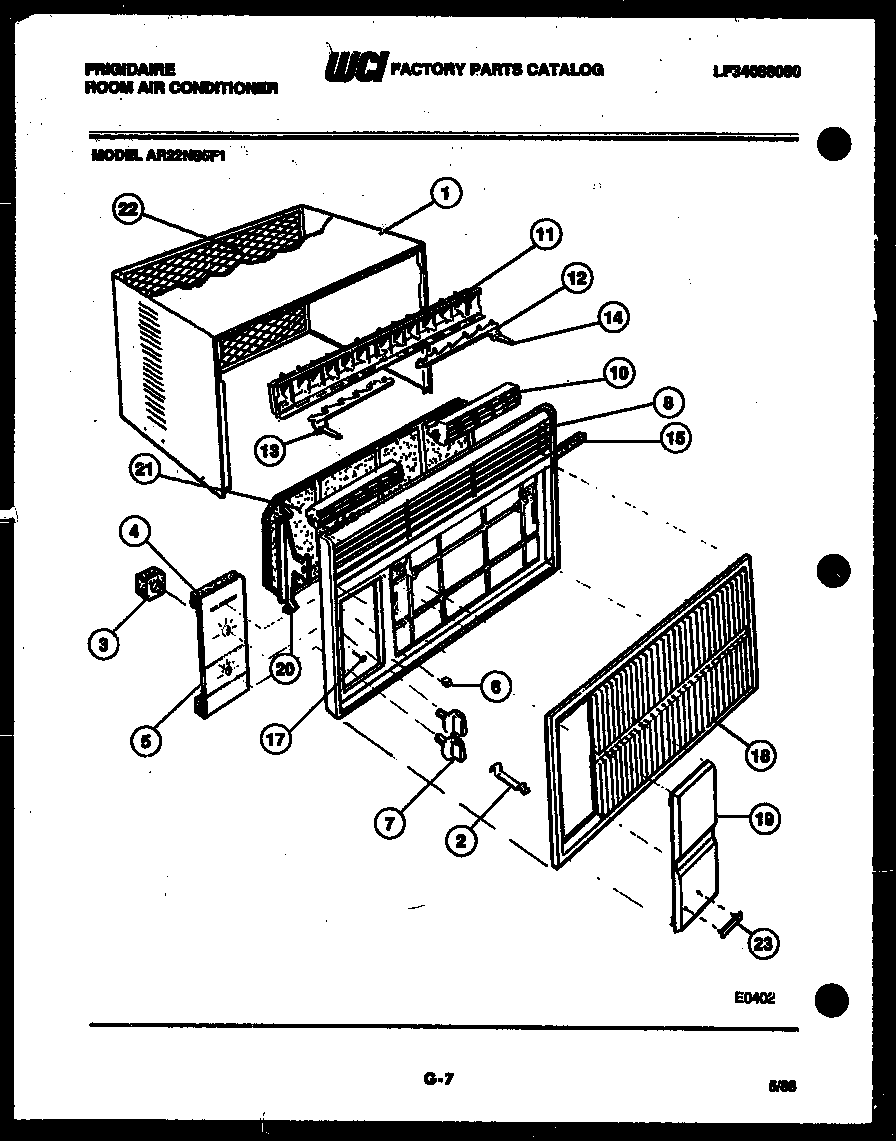

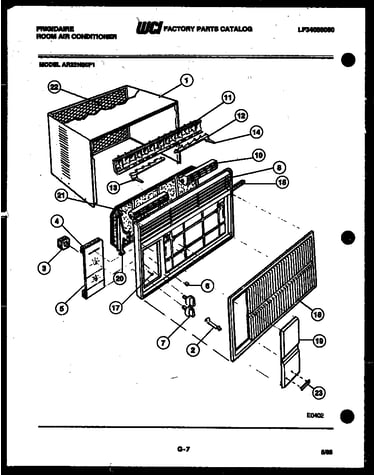

In Stock$31.35QtyCabinet parts diagram
Seal - Mullion

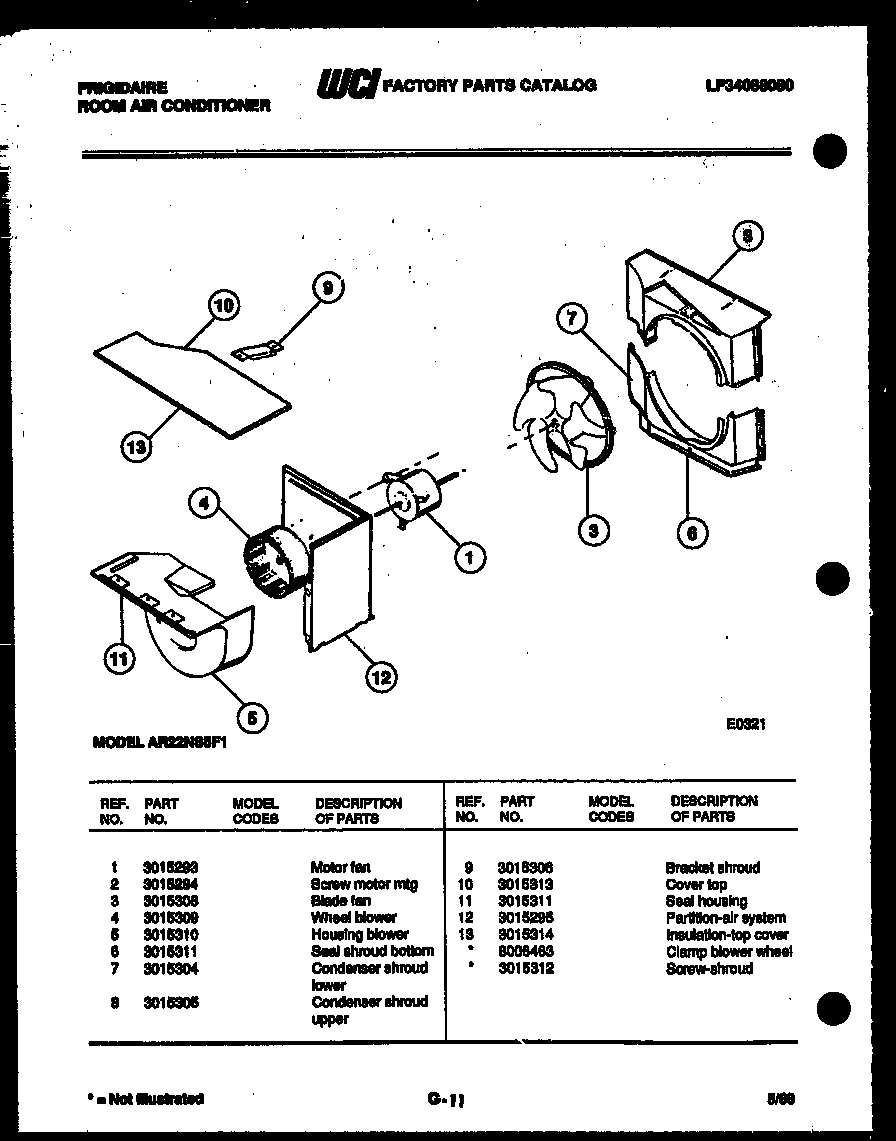

In Stock$32.06QtyAir handling parts diagram
Insulation
In Stock$34.83QtyAir handling parts diagram
Scroll
Part #3015310Replaced by #5303302723
Manufacturer substitutionThis part replaces 3015310. Substitute parts can look different from the original.In Stock$147.62QtyAir handling parts diagram
Shroud
Part #3015305Replaced by #5304421474
Manufacturer substitutionThis part replaces 3015305. Substitute parts can look different from the original.In Stock$105.28QtyElectrical parts diagram
Actuator Arm
Part #3015299Replaced by #5303015299
Manufacturer substitutionThis part replaces 3015299. Substitute parts can look different from the original.In Stock$35.74QtyCabinet parts diagram
Wrapper
Part #3016184Replaced by #5303303545
Manufacturer substitutionThis part replaces 3016184. Substitute parts can look different from the original.In Stock$227.08Qty
