Model # XBR-79X900B Official Sony lcd television

Here are the diagrams and repair parts for Official Sony XBR-79X900B lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

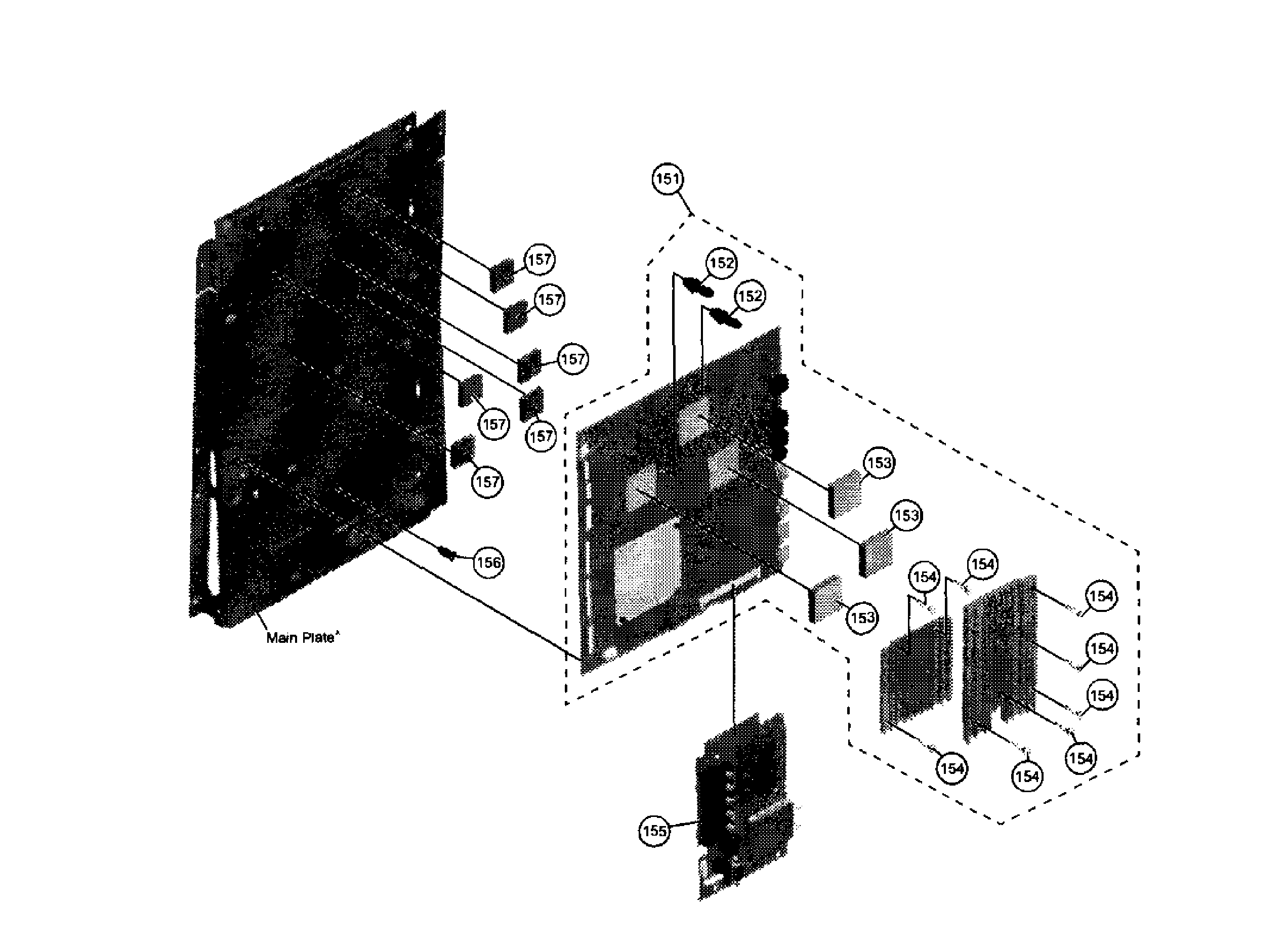

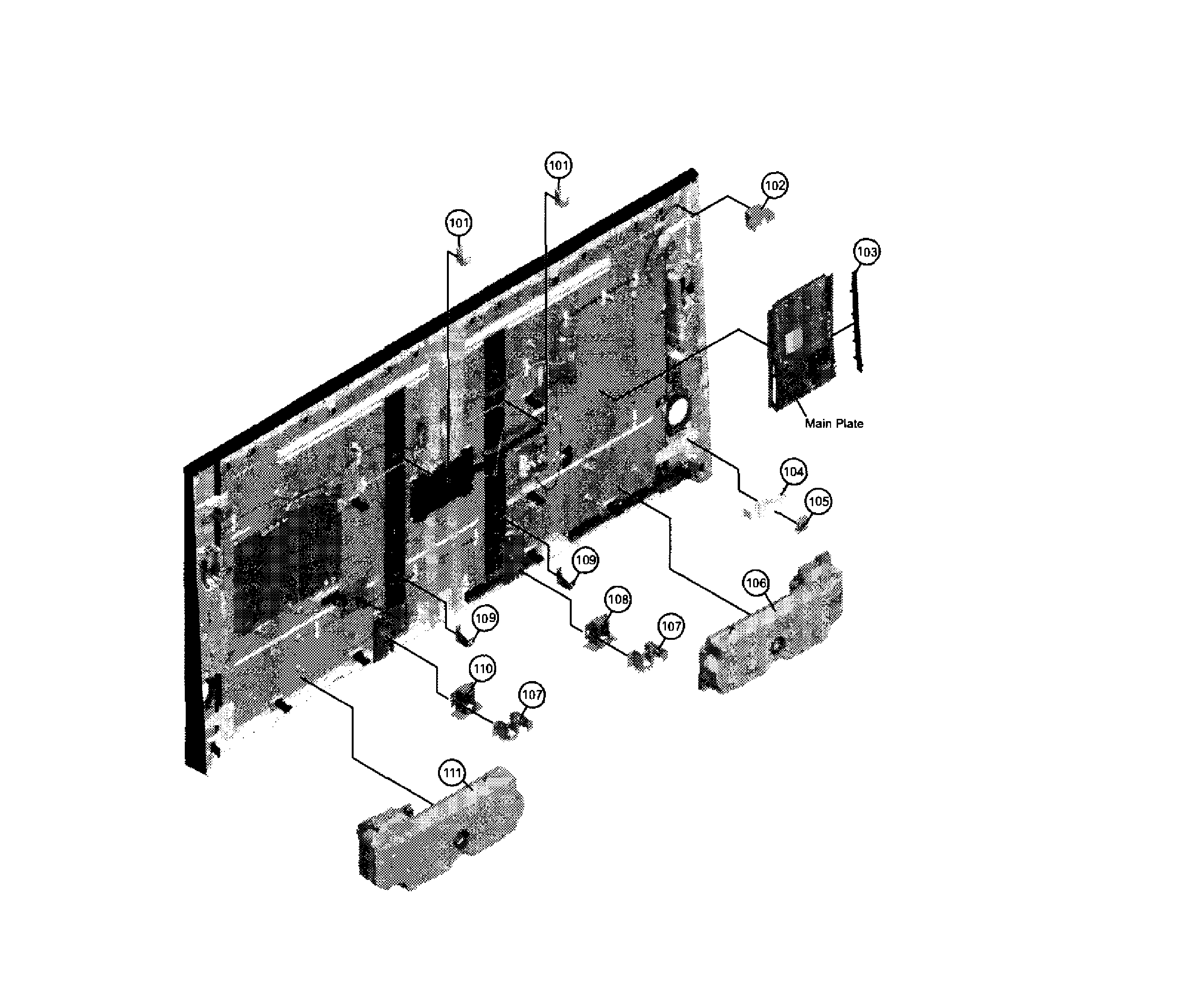

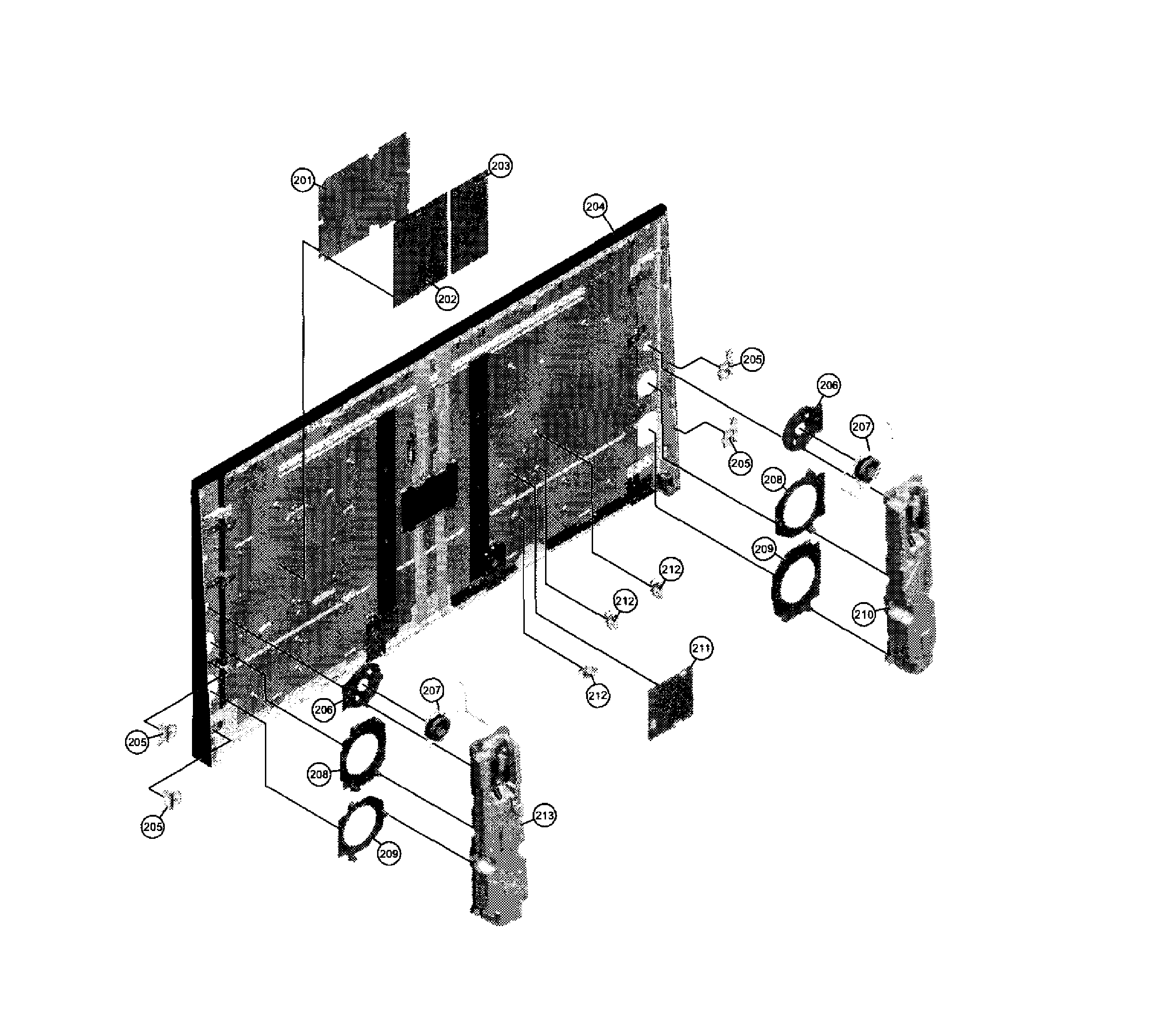

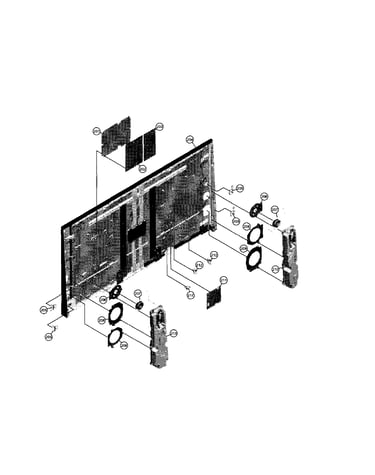

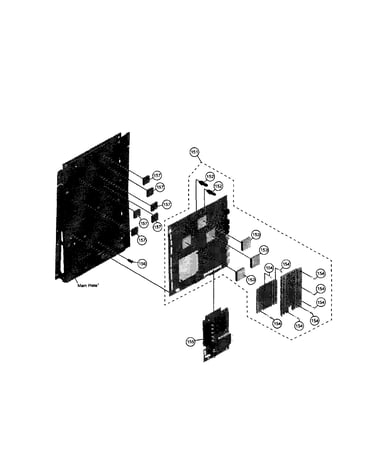

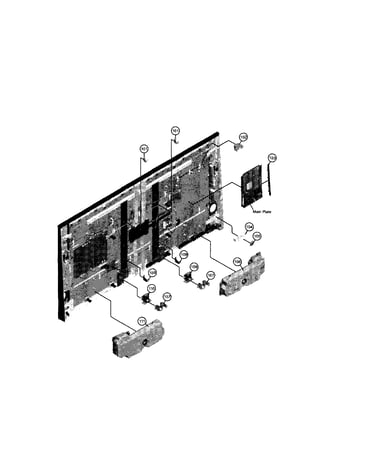

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Remote 149276611
#NI

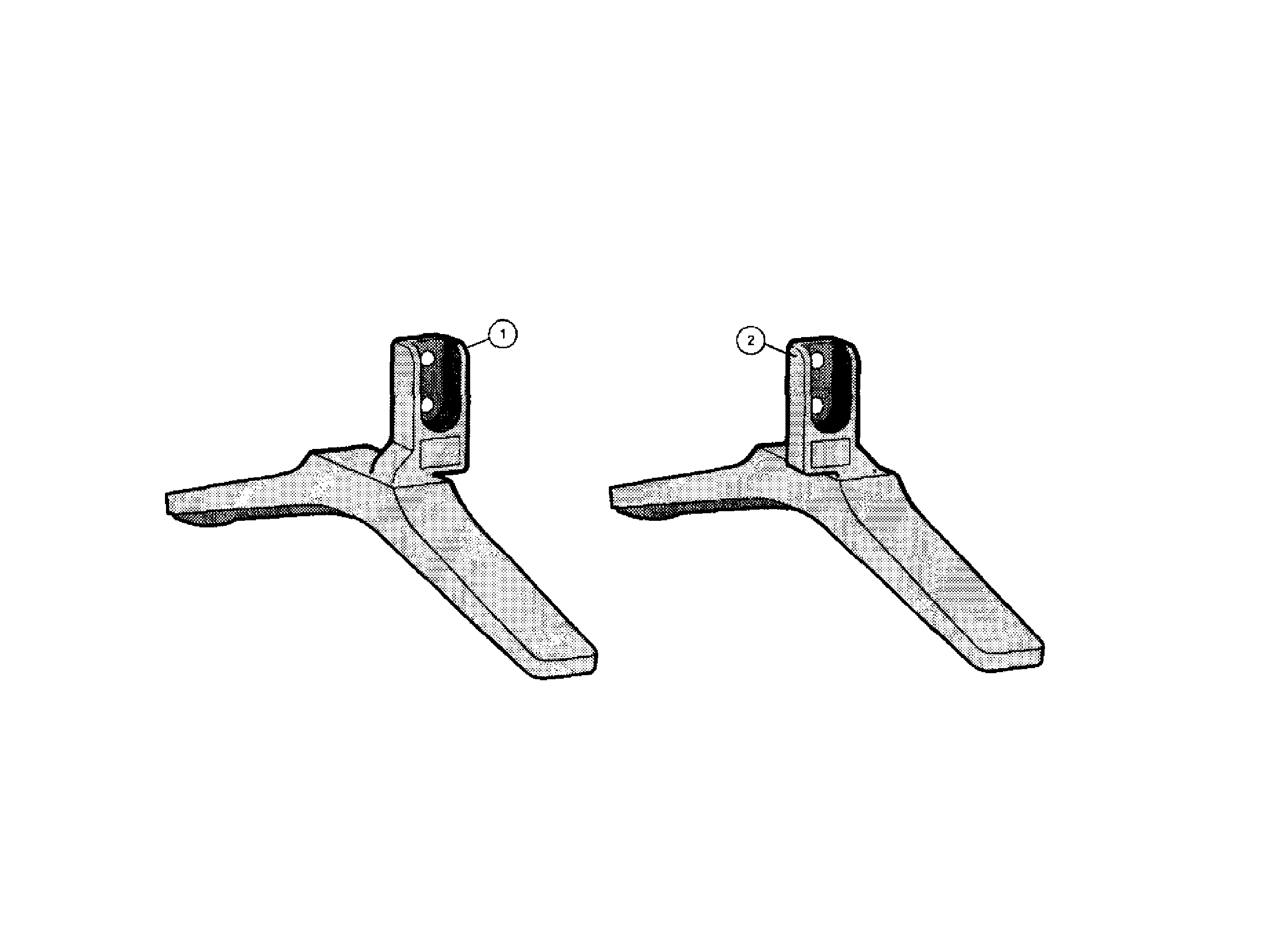

Stand assy diagram

Remote

Part #149276611

The manufacturer no longer makes this part, and there's no substitute part

Screw, M3 X 6 425639311
#NI

Stand assy diagram

Screw, m3 x 6

Part #425639311

The manufacturer no longer makes this part, and there's no substitute part

Scrw M6x12 426812602
#NI

Stand assy diagram

Scrw m6x12

Part #426812602

The manufacturer no longer makes this part, and there's no substitute part

Rear Cvr-l 447805702
#51

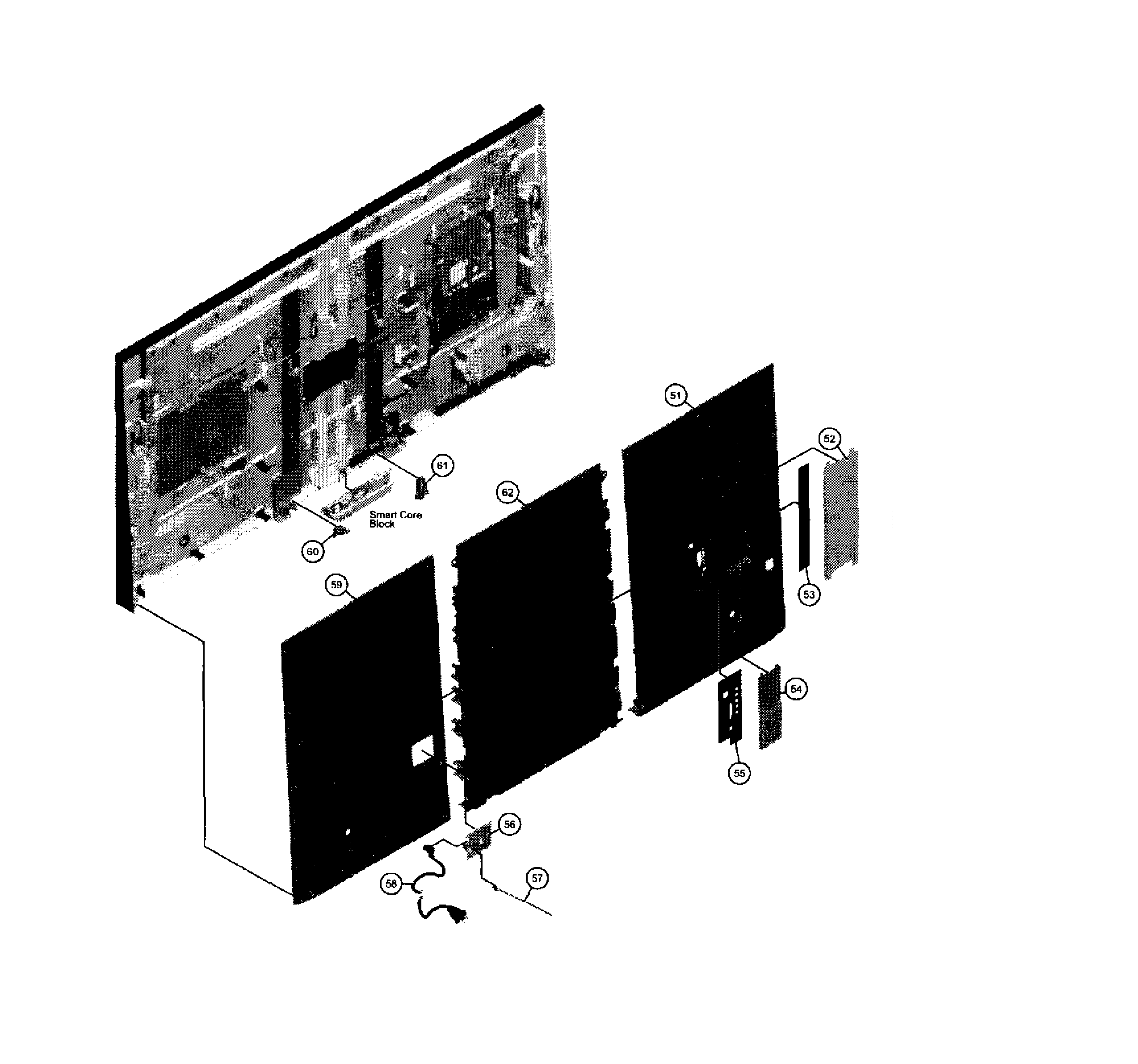

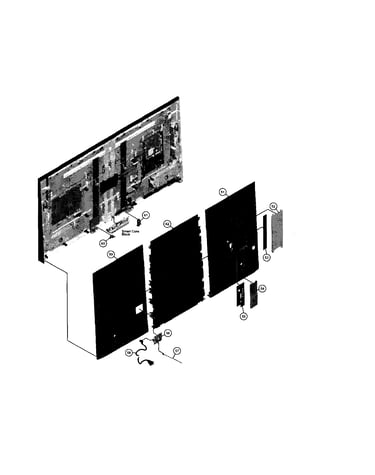

Rear cabinet diagram

Rear cvr-l

Part #447805702

The manufacturer no longer makes this part, and there's no substitute part

Stand 447811702
#1

Stand assy diagram

Stand

Part #447811702

The manufacturer no longer makes this part, and there's no substitute part

Cam Cover 453516801
#NI

Stand assy diagram

Cam cover

Part #453516801

The manufacturer no longer makes this part, and there's no substitute part

Cover 448041201
#258

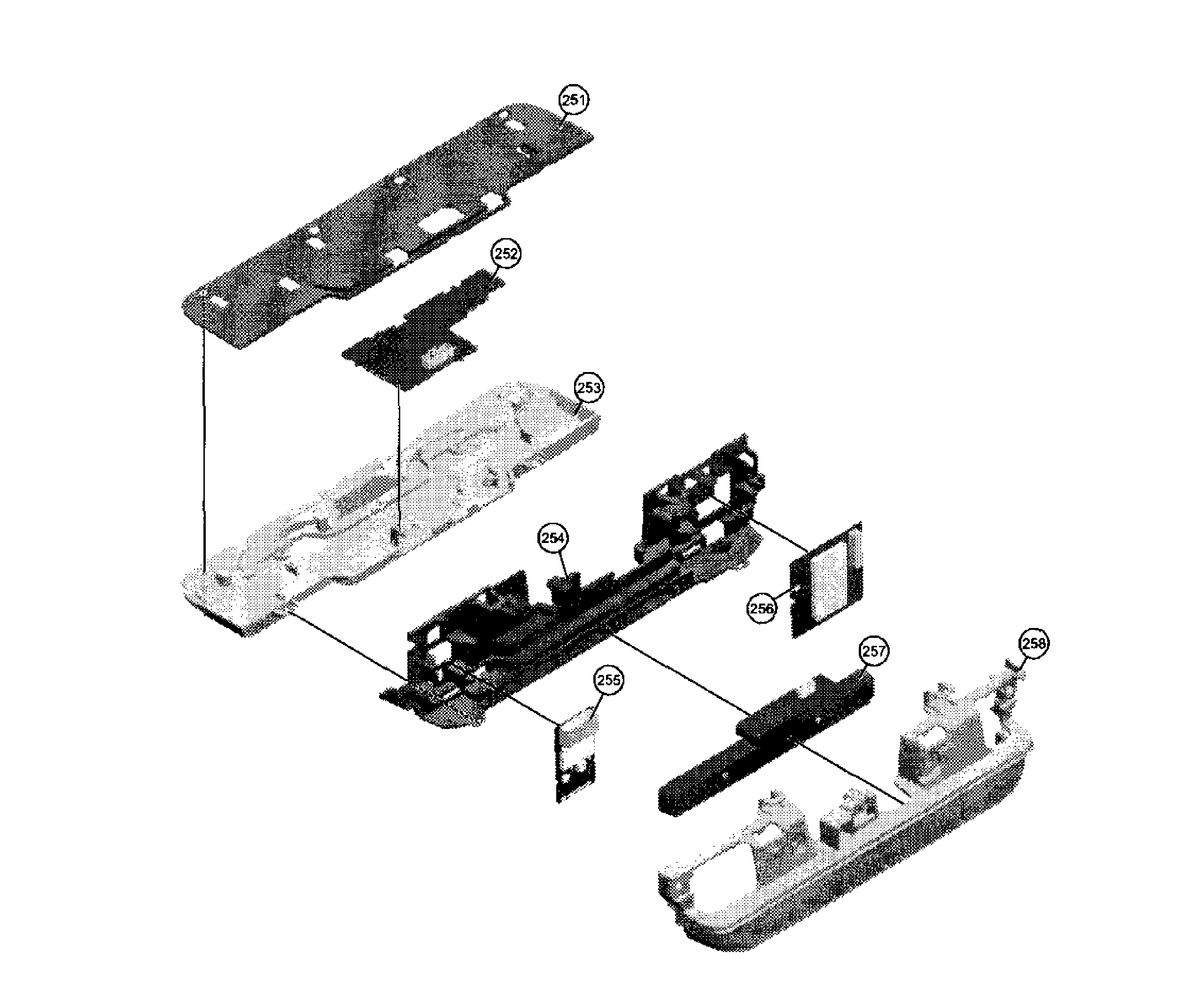

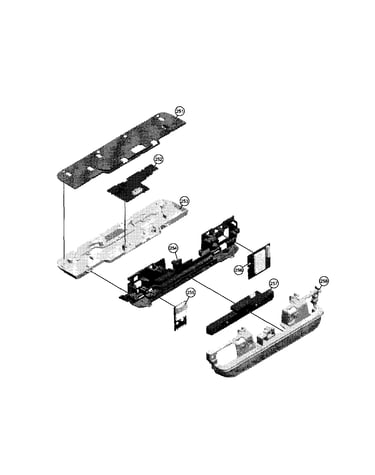

Smart core block diagram

Cover

Part #448041201

The manufacturer no longer makes this part, and there's no substitute part

Television Screw, 4 X 12-in 258063901
#NI

Stand assy diagram

Television screw, 4 x 12-in

Part #258063901

The manufacturer no longer makes this part, and there's no substitute part

Harness 191010931
#309

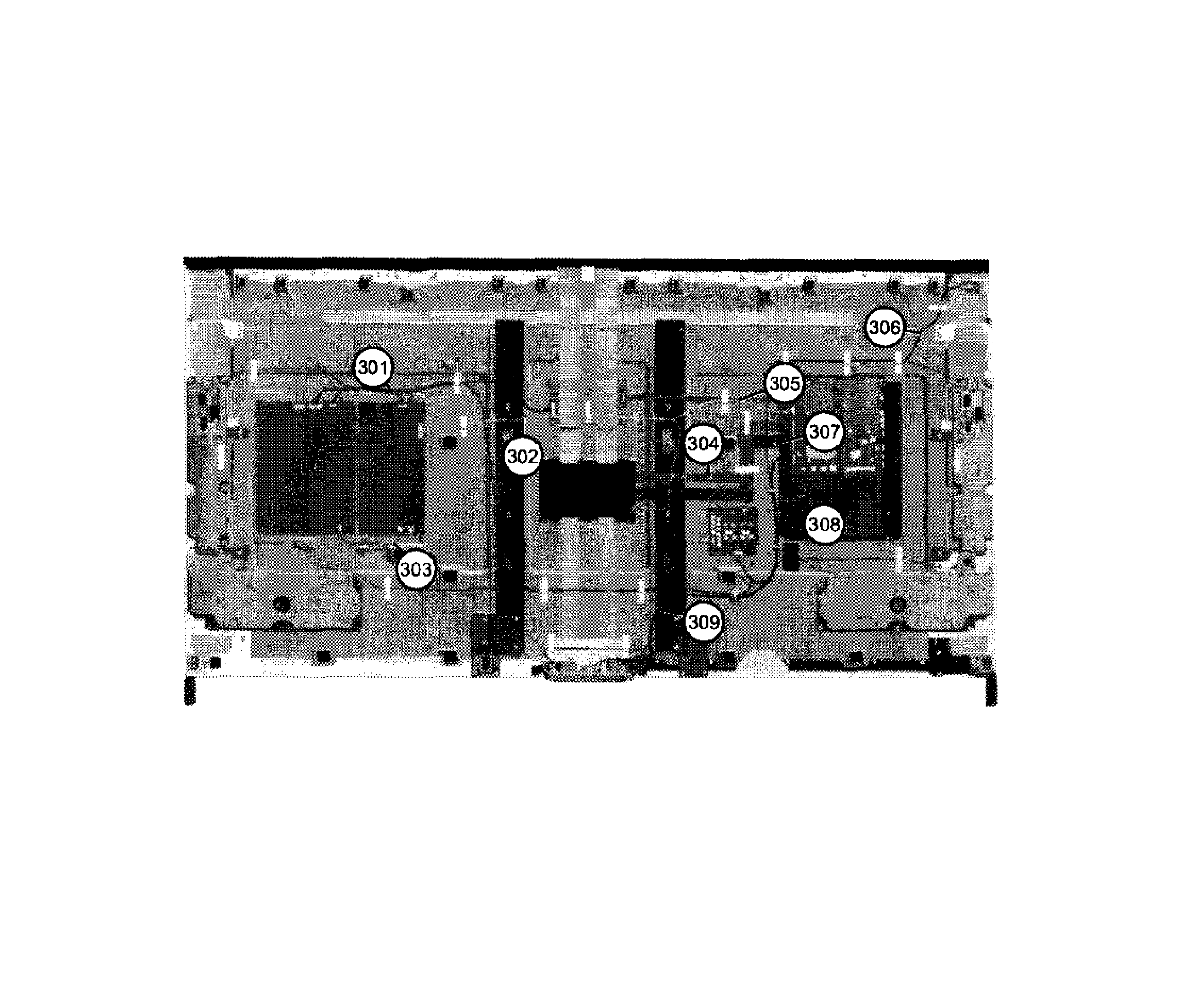

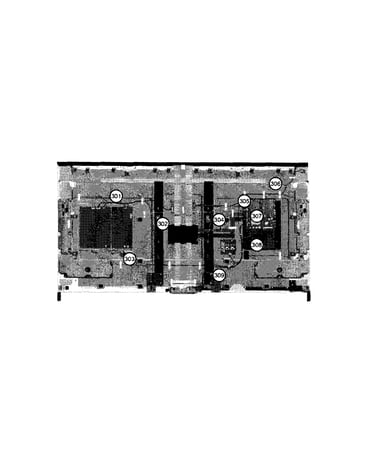

Connectors diagram

Harness

Part #191010931

The manufacturer no longer makes this part, and there's no substitute part

Cover Ac 448011901
#56

Rear cabinet diagram

Cover ac

Part #448011901

The manufacturer no longer makes this part, and there's no substitute part
