Model # 2CE04503025A Official York electric heat accessory

Here are the diagrams and repair parts for Official York 2CE04503025A electric heat accessory, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 15 parts  |

Plug 025-19672-900
#14

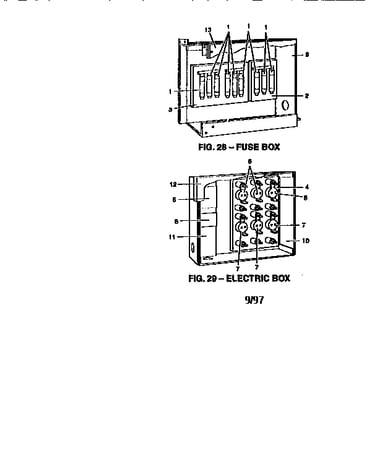

30kw heat/2ce045030xx diagram

Plug

Part #025-19672-900

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 025-26344-000
#2

30kw heat/2ce045030xx diagram

Fuse holder

Part #025-26344-000

The manufacturer no longer makes this part, and there's no substitute part

Bracket 063-89804-000
#11

30kw heat/2ce045030xx diagram

Bracket

Part #063-89804-000

The manufacturer no longer makes this part, and there's no substitute part

Fuse Holder 025-26343-000
#3

30kw heat/2ce045030xx diagram

Fuse holder

Part #025-26343-000

The manufacturer no longer makes this part, and there's no substitute part

Box Elect 073-01935-000
#10

30kw heat/2ce045030xx diagram

Box elect

Part #073-01935-000

The manufacturer no longer makes this part, and there's no substitute part

Switch 025-22273-001
#7

30kw heat/2ce045030xx diagram

Switch

Part #025-22273-001

The manufacturer no longer makes this part, and there's no substitute part

Cover Elect 063-89806-000
#12

30kw heat/2ce045030xx diagram

Cover elect

Part #063-89806-000

The manufacturer no longer makes this part, and there's no substitute part

Heater Air 025-26318-003
#4

30kw heat/2ce045030xx diagram

Heater air

Part #025-26318-003

The manufacturer no longer makes this part, and there's no substitute part

Relay 024-19082-034
#6

30kw heat/2ce045030xx diagram

Relay

Part #024-19082-034

The manufacturer no longer makes this part, and there's no substitute part

Relay 024-19082-031
#5

30kw heat/2ce045030xx diagram

Relay

Part #024-19082-031

The manufacturer no longer makes this part, and there's no substitute part
